EL15C7F2F-106.250MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EL15C7F2F-106.250MTR

EL15C7F2F-106.250MTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, 106.25MHz, LVDS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size127KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EL15C7F2F-106.250MTR Overview

CRYSTAL OSCILLATOR, CLOCK, 106.25MHz, LVDS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 6 PIN

EL15C7F2F-106.250MTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
package instruction	DILCC6,.2
Reach Compliance Code	compliant
Other features	TRI-STATE FUNCTION; ENABLE/DISABLE FUNCTION; TAPE AND REEL COMPLEMENTARY OUTPUT
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
JESD-609 code	e4
Manufacturer's serial number	EL15C7
Installation features	SURFACE MOUNT
Number of terminals	6
Nominal operating frequency	106.25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVDS
Output load	100 OHM
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.2
physical size	7.0mm x 5.0mm x 2.0mm
power supply	2.5 V
Certification status	Not Qualified
longest rise time	0.7 ns
Maximum slew rate	50 mA
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

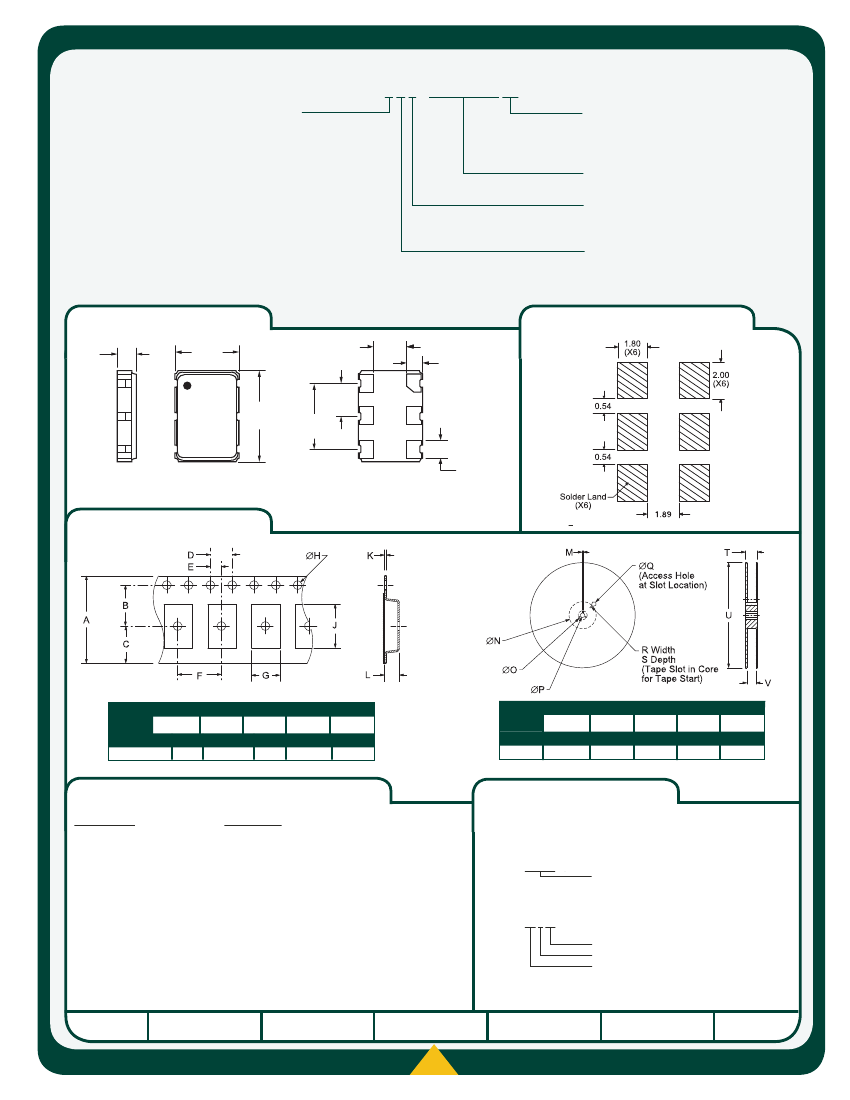

Preview

Download Datasheet

View All

EL15C7

Series

• Crystal Clock Oscillators

• LVDS Output

• +2.5V Supply Voltage

• Complementary Output

• Tri-State Output Function

• 6 Pad Ceramic SMD Package

• Low Stand-by Current

• RoHS Compliant (Pb-Free)

EL15C7

2.0

7.0

5.0

OSCILLATOR

ELECTRICAL SPECIFICATIONS

Nominal Frequency (MHz)

80, 80.157, 85, 87.125, 90, 100, 106.25, 110, 119, 120, 122.888, 124.4, 125, 127, 128, 131.072, 133, 133.33, 133.333,

135, 137.472, 150, 155.52, 156.25, 159.375, 161.1328, 162.5, 163.84, 164.355, 164.355469, 166, 166.67, 167.3316,

170, 173.3705, 175, 176.83816, 187.5, 187.509375, 187.5103, 200, 212.5, 240, 250, or 312.5MHz

0°C to +70°C, or -40°C to +85°C

-55°C to +125°C

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current

Frequency Tolerance / Stability

80MHz to 249.999999MHz

250MHz to 312.5MHz

Inclusive of All Conditions: Calibration Tolerance at 25°C,

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, 1st Year

Aging at 25°C, Shock, and Vibration

2.5V

±5%

50mA Maximum

65mA Maximum

±100ppm, ±50ppm, ±25ppm, or

±20ppm Maximum

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Differential Output Voltage (V

)

Offset Voltage (V

)

Rise Time / Fall Time

Differential Output Error (

)

Duty Cycle

Offset Error (

)

Output Swing (

)

Load Drive Capability

Logic Control / Additional Output

Tri-State Input Voltage

1.43V

Typical, 1.6V

Maximum

1.1V

Typical, 0.9V

Minimum

247mV Minimum, 330mV Typical, 454mV Maximum

1.125V Minimum, 1.250V Typical, 1.375V Maximum

300pSec Typical, 700pSec Maximum

50mV Maximum

50 ±5(%)

150mV Maximum

250mVdc Minimum

100 Ohms

Tri-State and Complementary Output

Enables Outputs

Disables Outputs: High Impedance

30µA Maximum

10 mSeconds Maximum

0.4pSec Typical, 1 pSec Maximum

-60dBc/Hz at 10Hz Offset

-95dBc/Hz at 100Hz Offset

-125dBc/Hz at 1kHz Offset

-143dBc/Hz at 10kHz Offset

-145dBc/Hz at 100kHz Offset

-145dBc/Hz at 1MHz Offset

-146dBc/Hz at 10MHz Offset

20% to 80% of waveform

at 50% of waveform or at the crossing point

Between Output and Complementary Output

of 70% of V

Minimum

No Connection

of 30% of V

Maximum

Without Load

FJ = 12kHz to 20MHz

Fo=156.250MHz

Standby Current

Start Up Time

RMS Phase Jitter

Typical Phase Noise
