UNISONIC TECHNOLOGIES CO., LTD
P6KE
TRANSIENT VOLTAGE
SUPPRESSORS
DESCRIPTION
The UTC
P6KE
is Transient Voltage Suppressors. it uses UTC’s
advanced technology to provide customers with low leakage current,
ultra-low response time and perfect clamping capability, etc
TVS
FEATURES
* Low leakage current
* Ultra-low response time
* Perfect clamping capability
DO-15

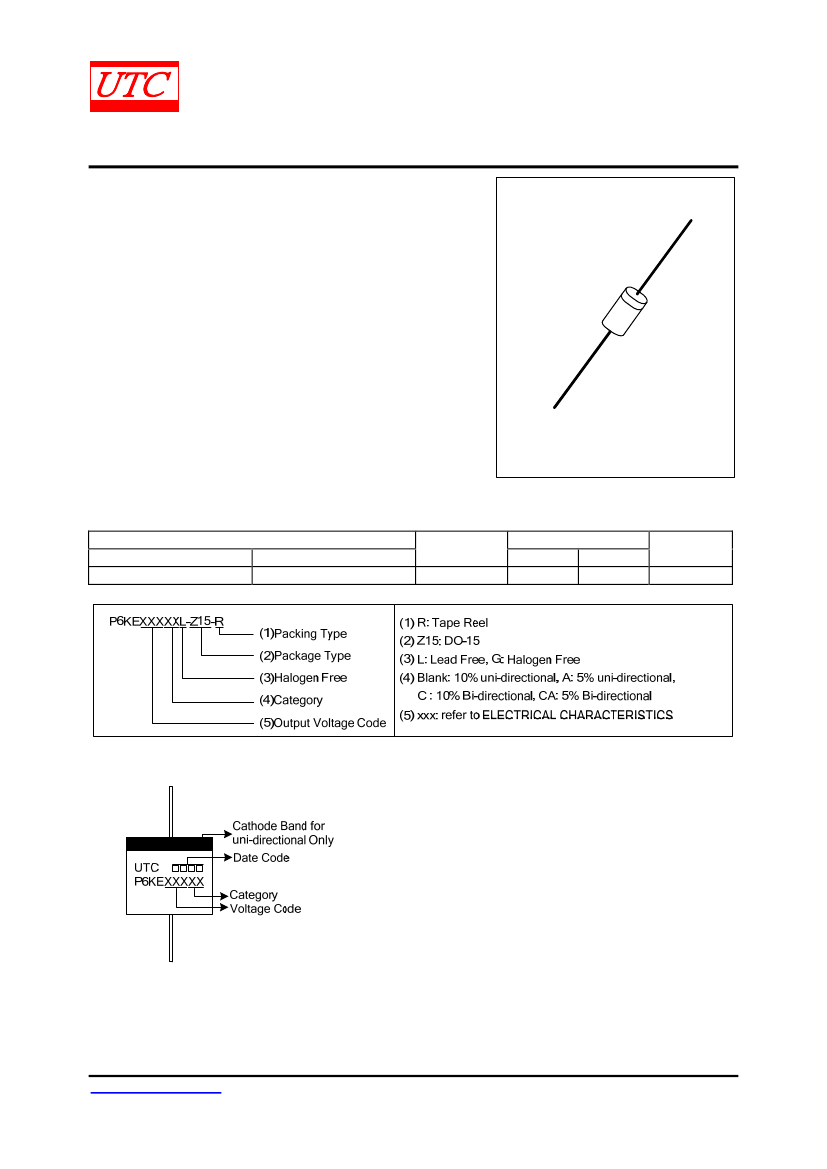

ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
P6KEXXXXXL-Z15-R
P6KEXXXXXG-Z15-R
Package
DO-15
Pin Assignment
1
2
K
A
Packing
Tape Reel
MARKING
www.unisonic.com.tw
Copyright © 2013 Unisonic Technologies Co., Ltd
1 of 7
QW-R227-001.B
P6KE
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C, unless otherwise noted)
TVS
PARAMETER
SYMBOL
RATINGS
UNIT
Peak Power Dissipation with a 10/1000µs Waveform (Note 2)
P
PP
600
W
Peak Pulse Current with a 10/1000µs Waveform (Note 2)
I
RSM
See Next Table
A
Power Dissipation on Infinite Heatsink at T
L
=75 °C
P
D
5.0
W
Peak Forward Surge Current (Note 3)
I
FSM
100
A
Maximum Instantaneous Forward Voltage at 50A for
V
F
3.5/5.0
V
Unidirectional Only (Note 4)
Operating Junction Temperature
T
J
-55~+150
°C
Storage Temperature
T
STG
-55~+150
°C
Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. Non-repetitive current pulse and derated above T
A
=25°C
3. Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle=4 pulses per minute
maximum
4. V
F
<3.5V for devices of V
BR
<200V and V
F
<5.0V for devices of V
BR
>201V
ELECTRICAL CHARACTERISTICS
(T
A
=25°C, unless otherwise noted)
BREAKDOWN
VOLTAGE V
BR
@ I
T
MIN
(V)
6.12
6.46
6.75
7.13
7.38
7.79
8.19
8.65
9.00
9.50
9.90
10.45
10.80
11.40
11.70
12.35
13.50
14.25
14.40
15.20
16.20
17.10
18.00
19.00
19.80
20.90
21.60
22.80
TYP
(V)
7.48
7.14
8.25
7.88
9.02
8.61
10.01
9.56
11.00
10.50
12.10
11.55
13.20
12.60
14.30
13.65
16.50
15.75
17.60
16.80
19.80
18.90
22.00
21.00
24.20
23.10
26.40
25.20
MAX
(mA)
10
10
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
MAXIMUM
REVERSE
LEAKAGE
I
R
@ V
RWM
(µA)
1000
1000
500
500
200
200
50
50
10
10
5
5
5
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
WORKING MAXIMUM
MAXIMUM
PEAK
REVERSE
CLAMPING
REVERSE SURGE
VOLTAGE V
C
VOLTAGE CURRENT
@ I
RSM
(V)
V
RWM
(V)
V
RSM
(A)
5.5
55.56
10.8
5.8
57.14
10.5
6.1
51.28
11.7
6.4
53.10
11.3
6.6
48.00
12.5
7.0
49.59
12.1
7.4
43.48
13.8
7.8
44.78
13.4
8.1
40.00
15.0
8.6
41.38
14.5
8.9
37.04
16.2
9.4
38.46
15.6
9.7
34.68
17.3
10.2
35.93
16.7
10.5
31.58
19.0
11.1
32.97
18.2
12.1
27.27
22.0
12.8
28.30
21.2
12.9
25.53
23.5
13.6
26.67
22.5
14.5
22.64
26.5
15.3
23.81
25.2
16.2
20.62
29.1
17.1
21.66
27.7
17.8
18.81
31.9
18.8
19.61
30.6
19.4
17.29
34.7
20.5
18.07
33.2
PART NUMBER
(UNI)
PART NUMBER
(BI)
P6KE6.8
P6KE6.8A
P6KE7.5
P6KE7.5A
P6KE8.2
P6KE8.2A
P6KE9.1
P6KE9.1A
P6KE10
P6KE10A
P6KE11
P6KE11A
P6KE12
P6KE12A
P6KE13
P6KE13A
P6KE15
P6KE15A
P6KE16
P6KE16A
P6KE18
P6KE18A
P6KE20
P6KE20A
P6KE22
P6KE22A
P6KE24
P6KE24A
P6KE6.8C
P6KE6.8CA
P6KE7.5C
P6KE7.5CA
P6KE8.2C
P6KE8.2CA
P6KE9.1C
P6KE9.1CA
P6KE10C
P6KE10CA
P6KE11C
P6KE11CA
P6KE12C
P6KE12CA
P6KE13C
P6KE13CA
P6KE15C
P6KE15CA
P6KE16C
P6KE16CA
P6KE18C
P6KE18CA
P6KE20C
P6KE20CA
P6KE22C
P6KE22CA
P6KE24C
P6KE24CA
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 7
QW-R227-001.B
P6KE
ELECTRICAL CHARACTERISTICS(Cont.)
BREAKDOWN
VOLTAGE V
BR
@ I
T
MIN
(V)
24.30
25.65
27.00
28.50
29.70
31.35
32.40
34.20
35.10
37.05
38.70
40.85
42.30
44.65
45.90
48.45
50.40
53.20
55.80
58.90
61.20
64.60
67.50
71.25
73.80
77.90
81.90
86.45
90.00
95.00
99.00
104.50
108.00
114.00
117.00
123.50
135.00
142.50
144.00
152.00
153.00
161.50
162.00
171.00
180.00
190.00
TYP
(V)
29.70
28.35
33.00
31.50
36.30
34.65
39.60
37.80
42.90
40.95
47.30
45.15
51.70
49.35
56.10
53.55
61.60
58.80
68.20
65.10
74.80
71.40
82.50
78.75
90.20
86.10
100.10
95.55
110.00
105.00
121.00
115.50
132.00
126.00
143.00
136.50
165.00
157.50
176.00
168.00
187.00
178.50
198.00
189.00
220.00
210.00
MAX
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
MAXIMUM
REVERSE
LEAKAGE
I
R
@ V
RWM
(µA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
TVS
PART NUMBER
(UNI)
PART NUMBER
(BI)
P6KE27
P6KE27A
P6KE30
P6KE30A
P6KE33
P6KE33A
P6KE36
P6KE36A
P6KE39
P6KE39A
P6KE43
P6KE43A
P6KE47
P6KE47A
P6KE51
P6KE51A
P6KE56
P6KE56A
P6KE62
P6KE62A
P6KE68
P6KE68A
P6KE75
P6KE75A
P6KE82
P6KE82A
P6KE91
P6KE91A
P6KE100
P6KE100A
P6KE110
P6KE110A
P6KE120
P6KE120A
P6KE130
P6KE130A
P6KE150
P6KE150A
P6KE160
P6KE160A
P6KE170
P6KE170A
P6KE180
P6KE180A
P6KE200
P6KE200A
P6KE27C
P6KE27CA
P6KE30C
P6KE30CA
P6KE33C
P6KE33CA
P6KE36C
P6KE36CA
P6KE39C
P6KE39CA
P6KE43C
P6KE43CA
P6KE47C
P6KE47CA
P6KE51C
P6KE51CA
P6KE56C
P6KE56CA
P6KE62C
P6KE62CA
P6KE68C
P6KE68CA
P6KE75C
P6KE75CA
P6KE82C
P6KE82CA
P6KE91C
P6KE91CA
P6KE100C
P6KE100CA
P6KE110C
P6KE110CA
P6KE120C
P6KE120CA
P6KE130C
P6KE130CA
P6KE150C
P6KE150CA
P6KE160C
P6KE160CA
P6KE170C
P6KE170CA
P6KE180C
P6KE180CA
P6KE200C
P6KE200CA
WORKING MAXIMUM
MAXIMUM
PEAK
REVERSE
CLAMPING
REVERSE SURGE
VOLTAGE V
C
VOLTAGE CURRENT
@ I
RSM
(V)
V
RWM
(V)
V
RSM
(A)
21.8
15.35
39.1
23.1
16.00
37.5
24.3
13.79
43.5
25.6
14.49
41.4
26.8
12.58
47.7
28.2
13.13
45.7
29.1
11.54
52.0
30.8
12.02
49.9
31.6
10.64
56.4
33.3
11.13
53.9
34.8
9.69
61.9
36.8
10.12
59.3
38.1
8.85
67.8
40.2
9.26
64.8
41.3
8.16
73.5
43.6
8.56
70.1
45.4
7.45
80.5
47.8
7.79
77.0
50.2
6.74
89.0
53.0
7.06
85.0
55.1
6.12
98.0
58.1
6.52
92.0
60.7
5.56
108.0
64.1
5.83
103.0
66.4
5.08
118.0
70.1
5.31
113.0
73.7
4.58
131.0
77.8
4.80
125.0
81.0
4.17
144.0
85.5
4.38
137.0
89.2
3.80
158.0
94.0
3.95
152.0
97.2
3.47
173.0
102.0
3.64
165.0
105.0
3.21
187.0
111.0
3.35
179.0
121.0
2.79
215.0
128.0
2.90
207.0
130.0
2.61
230.0
136.0
2.74
219.0
138.0
2.46
244.0
145.0
2.56
234.0
146.0
2.33
258.0
154.0
2.44
246.0
162.0
2.09
287.0
171.0
2.19
274.0
3 of 7
QW-R227-001.B
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
P6KE
ELECTRICAL CHARACTERISTICS(Cont.)
BREAKDOWN
VOLTAGE V
BR
@ I
T
MIN
(V)
198.00
209.00
225.00
237.50
270.00
285.00
315.00
332.50
342.00
361.00
360.00
380.00
396.00
418.00
450.00
475.00
468.00
494.00
495.00
522.50
540.00
570.00
TYP
(V)
242.00
231.00
275.00
262.50
330.00
315.00
385.00
367.50
418.00
399.00
440.00
420.00
484.00
462.00
550.00
525.00
572.00
546.00
605.00
577.50
660.00
630.00
MAX
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
MAXIMUM
REVERSE
LEAKAGE
I
R
@ V
RWM
(µA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
TVS
PART NUMBER
(UNI)
PART NUMBER
(BI)
P6KE220
P6KE220A
P6KE250
P6KE250A
P6KE300
P6KE300A
P6KE350
P6KE350A
P6KE380
P6KE380A
P6KE400
P6KE400A
P6KE440
P6KE440A
P6KE500
P6KE500A
P6KE520
P6KE520A
P6KE550
P6KE550A
P6KE600
P6KE600A
P6KE220C
P6KE220CA
P6KE250C
P6KE250CA
P6KE300C
P6KE300CA
P6KE350C
P6KE350CA
P6KE380C
P6KE380CA
P6KE400C
P6KE400CA
P6KE440C
P6KE440CA
P6KE500C
P6KE500CA
P6KE520C
P6KE520CA
P6KE550C
P6KE550CA
P6KE600C
P6KE600CA
WORKING MAXIMUM
MAXIMUM
PEAK
REVERSE
CLAMPING
REVERSE SURGE
VOLTAGE V
C
VOLTAGE CURRENT
@ I
RSM
(V)
V
RWM
(V)
V
RSM
(A)
175.0
1.74
344.0
185.0
1.83
328.0
202.0
1.67
360.0
214.0
1.74
344.0
243.0
1.40
430.0
256.0
1.45
414.0
284.2
1.19
504.0
299.3
1.24
482.0
308.6
1.10
547.2
324.9
1.14
524.4
324.8
1.05
574.0
342.0
1.09
548.0
357.3
0.95
633.6
376.2
0.99
607.2
406.0
0.83
720.0
427.5
0.87
690.0
422.2
0.80
748.8
444.6
0.84
717.6
446.6
0.76
792.0
470.3
0.79
759.0
487.2
0.69
864.0
513.0
0.72
828.0
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 7
QW-R227-001.B
P6KE

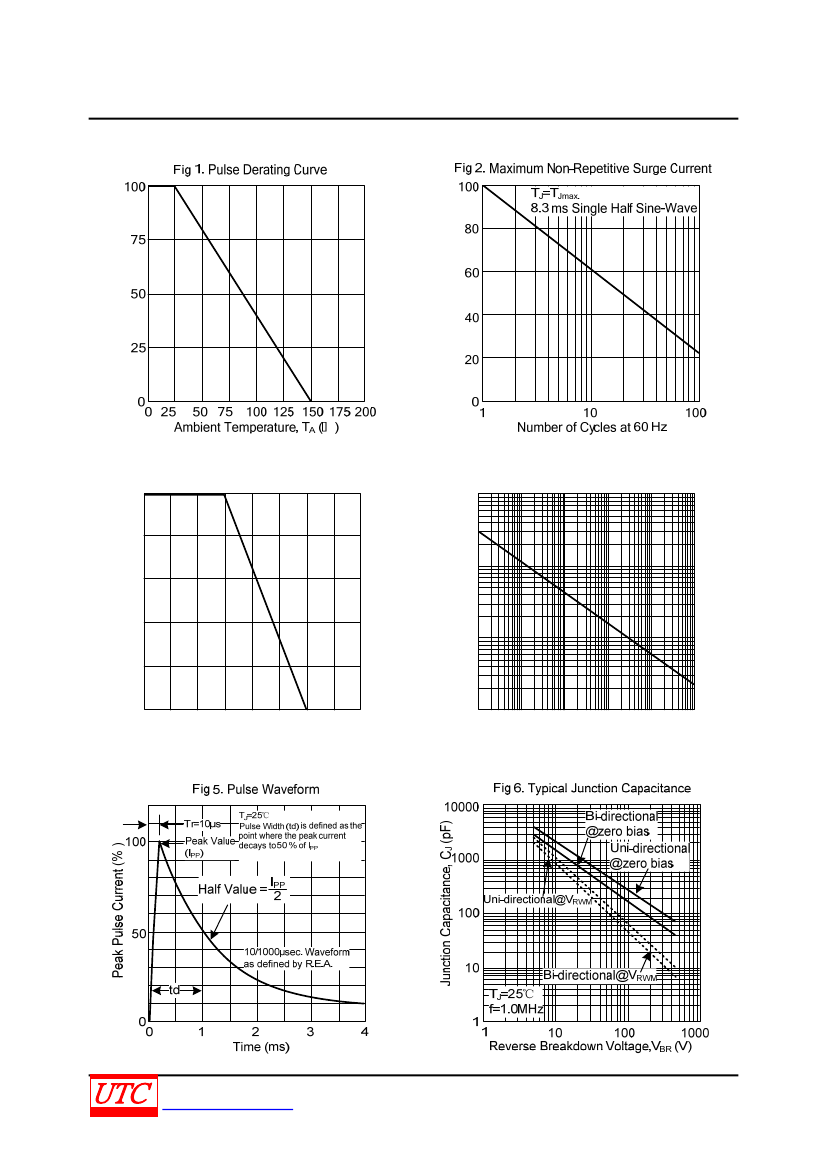

TYPICAL CHARACTERISTICS
(T
A
=25°C, unless otherwise noted)
Peak Pulse Derating in Percentage of
Peak Power or Current (%)
TVS
Peak Forward Surge Current (A)
Fig 4. Peak Pulse Power Rating Curve
100
Peak Power (kW)
0
25 50 75 100 125 150 175 200
Lead Temperature, T
A
(℃)
10
1
0
0.1
0.1
Steady State Power Dissipation (W)
Fig 3. Steady State Power Derating Curve
5.0
4.0
3.0
2.0
1.0
1
10
100
1000 10000
Pulse Width, t
d
(µs)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 7
QW-R227-001.B
京公网安备 11010802033920号
EEWORLD
