PSD502B1-90J datasheet, PDF - EEWORLD Datasheet

PSD502B1-90J: DescriptionMultifunction Peripheral, CMOS, PQCC68,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size6MB，130 Pages; ManufacturerWaferscale Integration Inc.

Download Datasheet Parametric View All

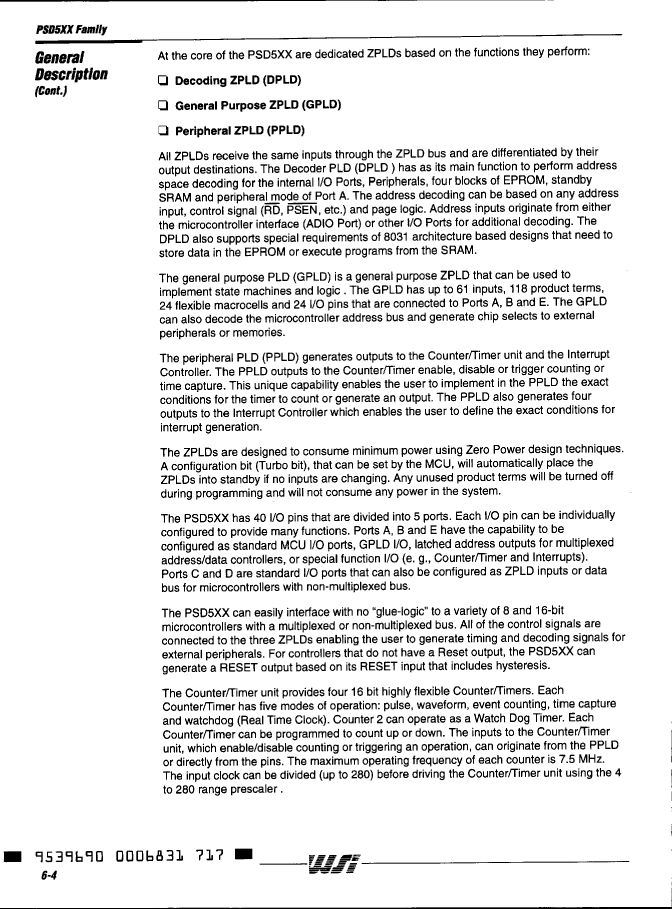

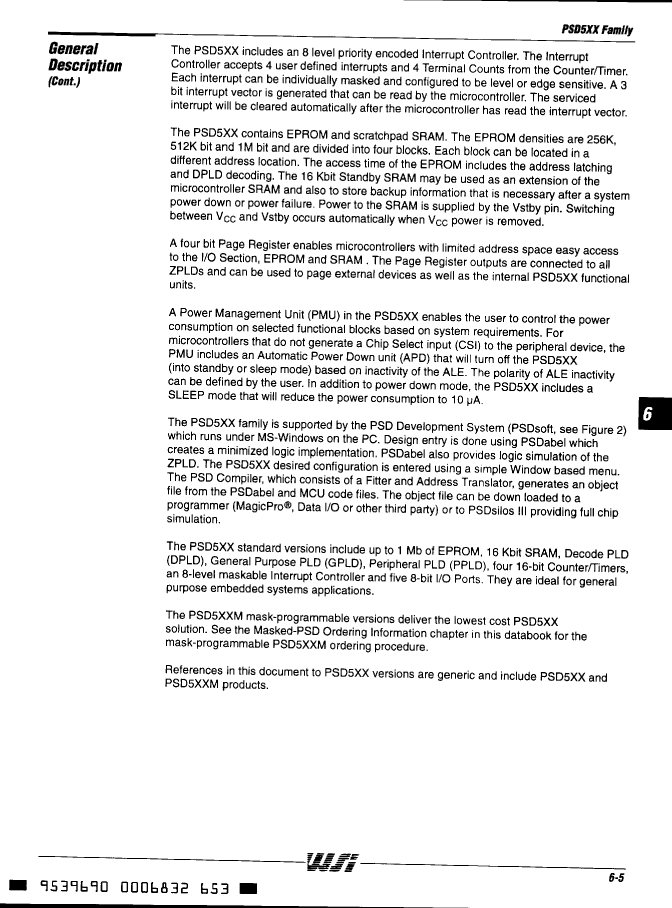

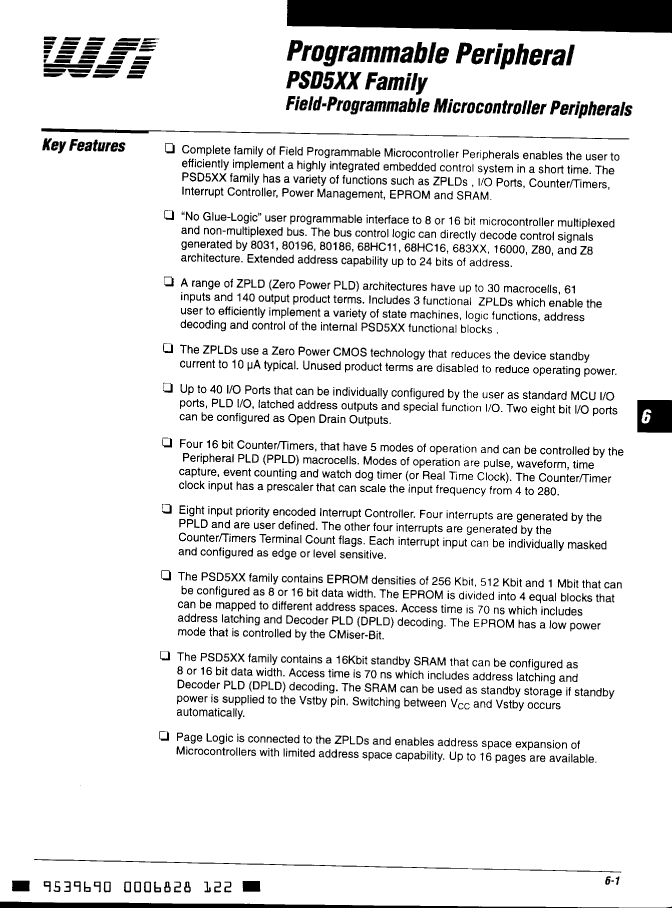

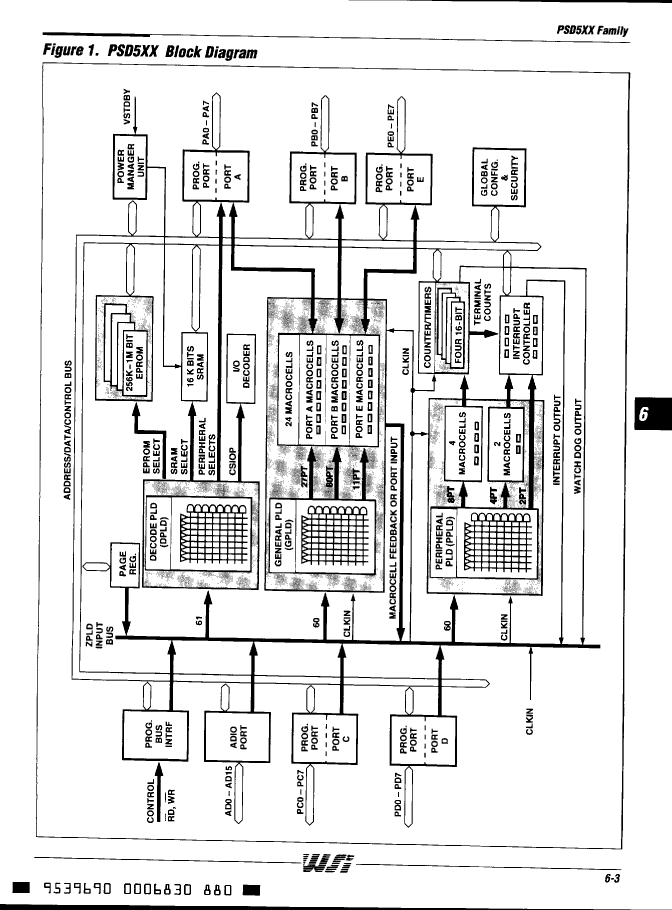

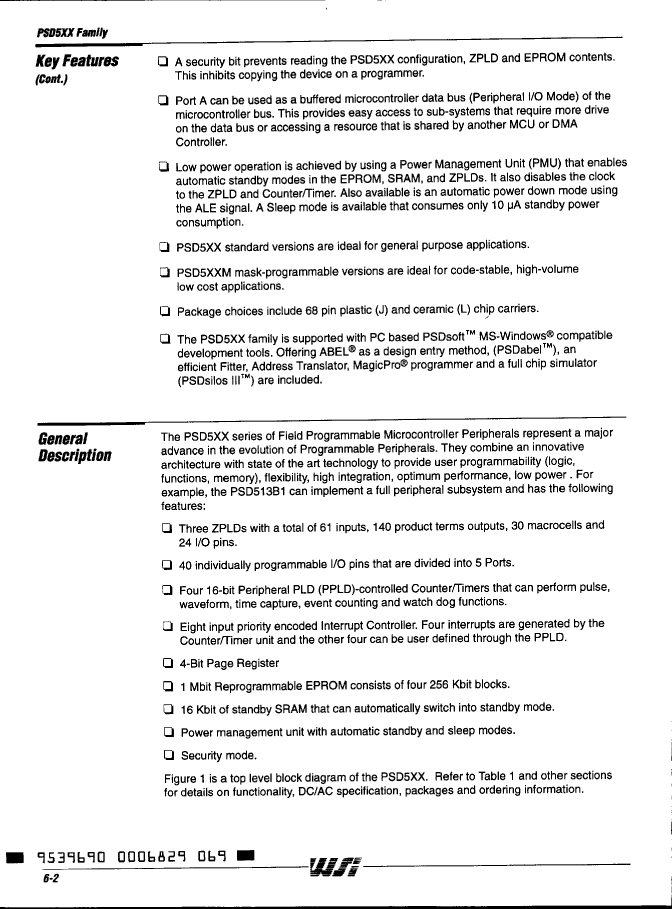

PSD502B1-90J Overview

Multifunction Peripheral, CMOS, PQCC68,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Waferscale Integration Inc.
Reach Compliance Code	unknown
Maximum access time	9e-8 ns
Other features	32K X 16 REPROGRAMMABLE EPROM; GENERAL PURPOSE ZPLD, DECODING ZPLD & PERIPHERAL ZPLD
Address bus width	16
boundary scan	NO
Bus compatibility	8031; 80196; 80196SP; 80186; 68HC11; 68HC16; 68330; 68331; 68340; 68302; 16000; Z80; Z8
maximum clock frequency	41.67 MHz
External data bus width	16
JESD-30 code	S-PQCC-J68
JESD-609 code	e0
Number of I/O lines	40
Number of serial I/Os
Number of terminals	68
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	512
ROM size (bits)	512 Bits
Maximum standby current	0.00002 A
Maximum slew rate	45 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
UV erasable	N
