RN1112FS

Description
Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications
CategoryDiscrete semiconductor    The transistor
File Size267KB,5 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric View All

RN1112FS Overview

Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications

RN1112FS Parametric

Parameter NameAttribute value
MakerToshiba Semiconductor
package instructionSMALL OUTLINE, R-PDSO-F3
Contacts3
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresBUILT-IN BIAS RESISTOR
Maximum collector current (IC)0.05 A
Collector-emitter maximum voltage20 V
ConfigurationSINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)300
JESD-30 codeR-PDSO-F3
JESD-609 codee0
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeNPN
Maximum power dissipation(Abs)0.05 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceTIN LEAD
Terminal formFLAT
Terminal locationDUAL
transistor applicationsSWITCHING
Transistor component materialsSILICON

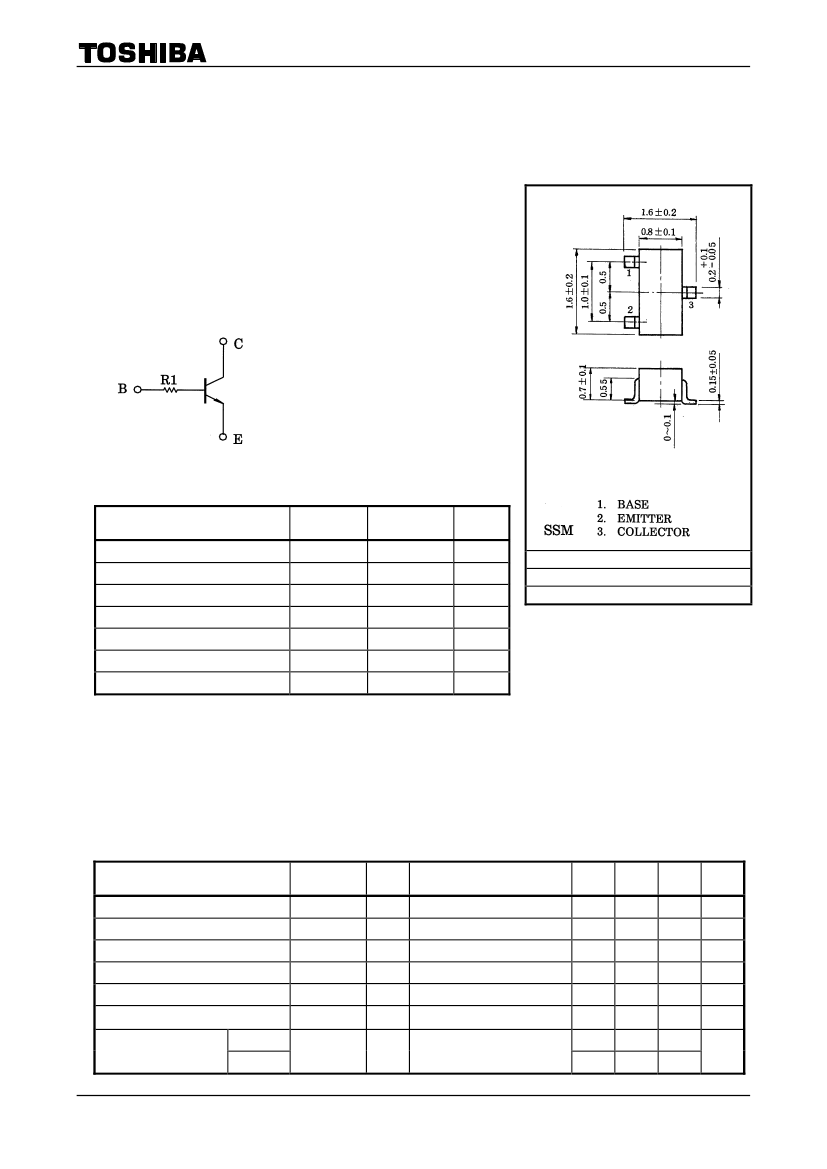

RN1112,RN1113
TOSHIBA Transistor
Silicon NPN Epitaxial Type (PCT Process)
RN1112, RN1113
Switching, Inverter Circuit, Interface Circuit
and Driver Circuit Applications
With built-in bias resistors
Simplified circuit design
Reduced number of parts and simplified process
Complementary to RN2112 and RN2113
Unit: mm
Equivalent Circuit
Absolute Maximum Ratings
(Ta = 25°C)
Characteristic
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
c
P
c
T
j
T
stg
Rating
50
50
5
100
100
150
−55
to 150
Unit
V
V
V
mA
mW
°C
°C
JEDEC
JEITA
TOSHIBA
2-2H1A
Weight: 2.4mg (typ.)
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Electrical Characteristics
(Ta = 25°C)
Characteristic
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Transition frequency
Collector output capacitance
Input resistor
RN1112
RN1113
Symbol
I
CBO
I
EBO
h
FE
V
CE (sat)
f
T
C
ob
R1
Test
Circuit
Test Condition
V
CB
= 50 V, I
E
= 0
V
EB
= 5 V, I
C
= 0
V
CE
= 5 V, I
C
= 1 mA
I
C
= 5 mA, I
B
= 0.25 mA
V
CE
= 10 V, I
C
= 5 mA
V
CB
= 10 V, I
E
= 0, f = 1 MHz
Min
120
15.4
32.9
Typ.
0.1
250
3
22
47
Max
100
100
700
0.3
6
28.6
61.1
Unit
nA
nA
V
MHz
pF
kΩ
1
2010-03-07
