Surface Mount High Current EMI Filters
Ferrite Power Beads

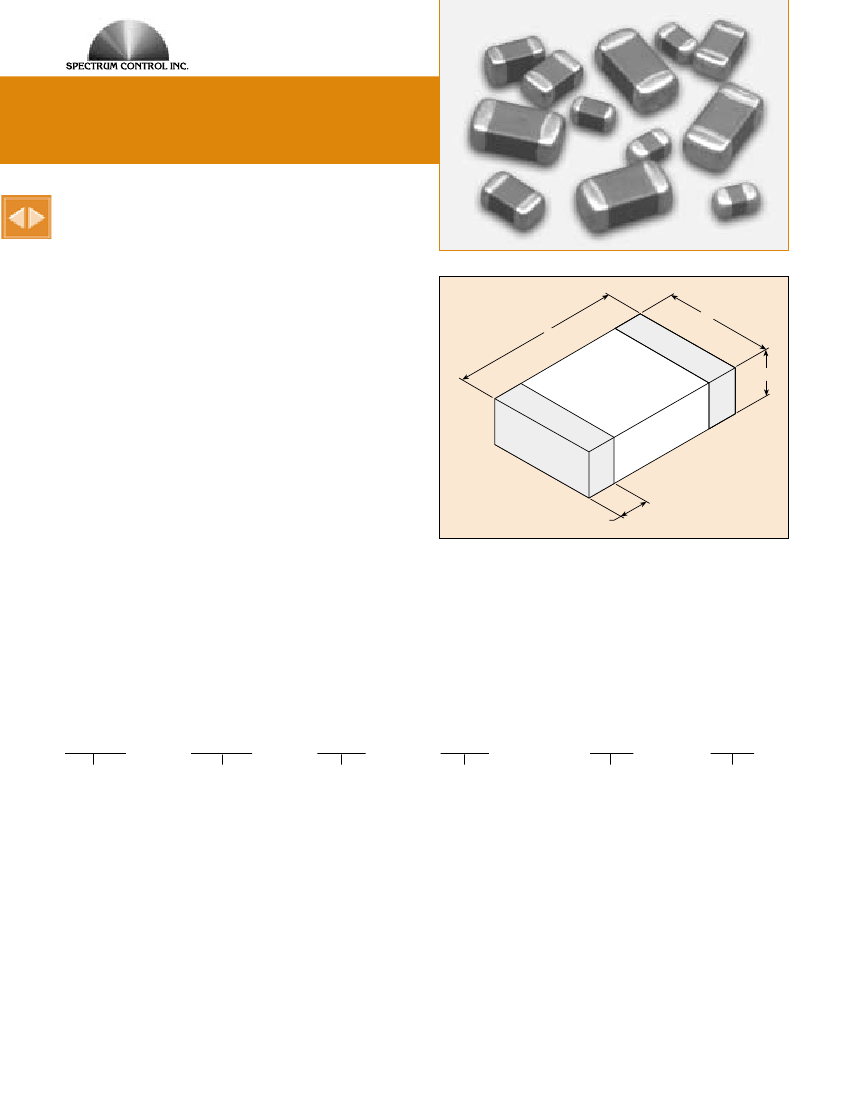

Features
I
Ferrite Power Beads
I
I
I
I
I
I
I
I
Rated up to 6 Amps
Broad range of impedance values available
(Standard line has values of 7
Ω
to 600
Ω)
Available in standard EIA/EIAJ chip sizes
(0603/1608, 0805/2012, 1206/3216, etc.)
Excellent solderability is achieved from a nickel barrier
with a solder overplate
Provides EMI attenuation without grounding
Closed magnetic circuit
Parts are suitable for flow or re-flow soldering
Available in tape and reel for easy placement
Operational temperature range of -55°C to +125°C
W
L
H
Applications
I
I
I
I
I
I
I
Telecommunications equipment (cellular phones,
cordless phones, faxes and ISDN’s)
Digital audio/visual equipment (TV, HDTV, VTR,
DVD, CATV tuners and etc.)
GPS and car navigation equipment
High speed clocks
Consumer electronics
Signal lines
LAN and WAN hardware
B
Part Numbering System
Example:
FPB-0805-A301P7
FPB
Series
Ferrite
Power
Beads
-
0805
Part Size
EIA Size
(Length x Width)
-
A
Material
Characteristic
Determined
by the desired
electrical
characteristic
301
Impedance Value
30(1)
(1) = the # of zeros
that will follow the first
two digits
Example: 30(1)
= 30 followed by 1 zero
= 300 Ohms
P
Tolerance Code
Standard Value is P
P
= ±25%
M
= ±20%
7
Packaging
7
= 7 inch reel
3
= 13 inch reel
B
= Bulk
Land Patterns and Soldering
Temperature Profiles
I
Packaging Specifications
and Storage Requirements
I
See page 33.
See page 34.
18
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-835-1650 • Fax: 814-835-1651 • Website: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
Surface Mount High Current EMI Filters
Ferrite Power Beads
Physical Characteristics
Size
EIA
0603
0805
1206
1806
1812
EIAJ
1608
2012
3216
4516
4532
Length (L)
0.063 ± 0.006
(1.60 ± 0.15)
0.079 ± 0.008
(2.00 ± 0.20)
0.126 ± 0.008
(3.20 ± 0.20)
0.177 ± 0.010
(4.50 ± 0.25)
0.177 ± 0.010
(4.50 ± 0.25)
Physical Dimensions
0.031 ± 0.006
(0.80 ± 0.15)
0.049 ± 0.008
(1.25 ± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
0.126 ± 0.010
(3.20 ± 0.25)
0.031 ± 0.006
(0.80 ± 0.15)
0.035 ± 0.008
(0.90 ± 0.20)
0.043 ± 0.008
(1.10 ± 0.20)
0.055 ± 0.010
(1.40 ± 0.25)
0.055 ± 0.010
(1.40 ± 0.25)
0.014 ± 0.006
(0.36 ± 0.15)
0.020 ± 0.010
(0.51 ± 0.25)
0.020 ± 0.010
(0.51 ± 0.25)
0.020 ± 0.010
(0.51 ± 0.25)
0.020 ± 0.010
(0.51 ± 0.25)
Dimensions in inches
(mm)
Electrical Characteristics
Standard FPB-0603 and FPB-0805 Sizes
Part
Number
FPB-0603-A300P*
FPB-0603-A600P*
FPB-0805-A070P*
FPB-0805-A100P*
FPB-0805-A110P*
FPB-0805-A150P*
FPB-0805-A300P*
FPB-0805-A400P*
FPB-0805-A450P*
FPB-0805-A800P*
FPB-0805-A201P*
FPB-0805-A301P*
FPB-0805-A601P*
Impedance
Ω
at 100 MHz
30
60
7
10
11
15
30
40
45
80
200
300
600
Max. DCR
Ω
0.06
0.10
0.02
Max. Current
mA
1,000
500
3,000
Standard FPB-1206 Sizes
Part
Number
FPB-1206-A190P*
FPB-1206-A260P*
FPB-1206-A300P*
FPB-1206-A310P*
FPB-1206-A500P*
FPB-1206-A700P*
FPB-1206-A800P*
FPB-1206-A900P*
FPB-1206-A121P*
FPB-1206-A601P*
FPB-1206-E101P*
FPB-1206-E121P*
FPB-1206-E601P*
Impedance
Ω
at 100 MHz
19
26
30
31
50
70
80
90
120
600
100
120
600
Max. DCR
Ω
Max. Current
mA
0.02
3,000
0.025
0.03
0.10
0.20
0.03
0.04
0.10
3,000
2,000
1,000
1,000
3,000
1,500
0.025
3,000
0.03
0.10
0.15
0.20
2,000
1,000
1,000
1,000
Notes: *
Please add packaging code at the end of part.
To change Tolerance Code, replace P with other tolerance values.
Consult factory for other impedance values of the 0603 and
0805 footprint that are available from Spectrum Control.
Notes: *
Please add packaging code at the end of part.
To change Tolerance Code, replace P with other tolerance values.
Consult factory for other impedance values of the 1206 footprint
that are available from Spectrum Control.
Standard FPB-1806 and FPB-1812 Sizes
Part
Number
FPB-1806-B600P*
FPB-1806-B750P*
FPB-1806-B800P*
FPB-1806-B151P*
FPB-1812-B700P*
FPB-1812-B121P*
Impedance
Ω
at 100 MHz
60
75
80
150
70
120
Max. DCR
Ω
0.01
0.03
0.03
0.07
0.03
0.05
Max. Current
mA
6,000
4,000
4,000
2,000
6,000
3,000
Notes: *
Please add packaging code at the end of part.
To change Tolerance Code, replace P with other tolerance values.
Consult factory for other impedance values of the 1806 and
1812 footprint that are available from Spectrum Control.
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-835-1650 • Fax: 814-835-1651 • Website: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
19
Ferrite Power Beads
Width (W)
Height (H)
Termination Band (B)
Surface Mount High Current EMI Filters
Ferrite Power Beads

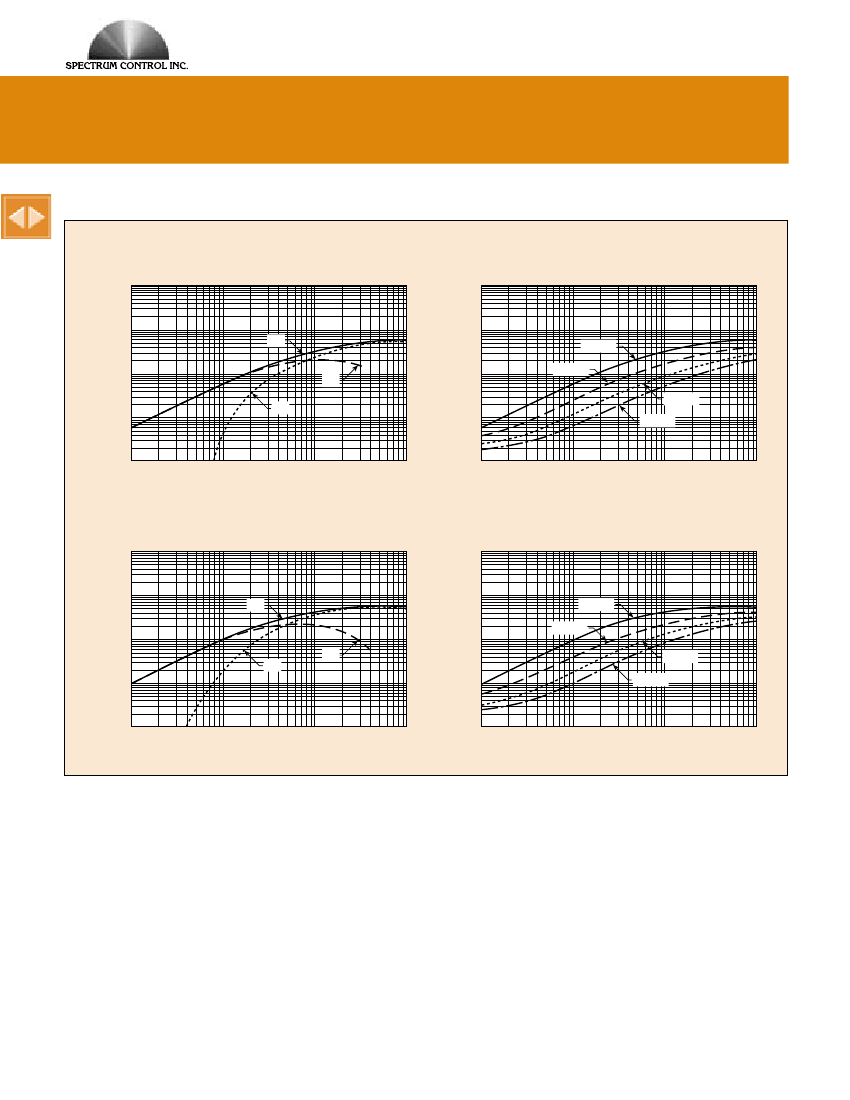

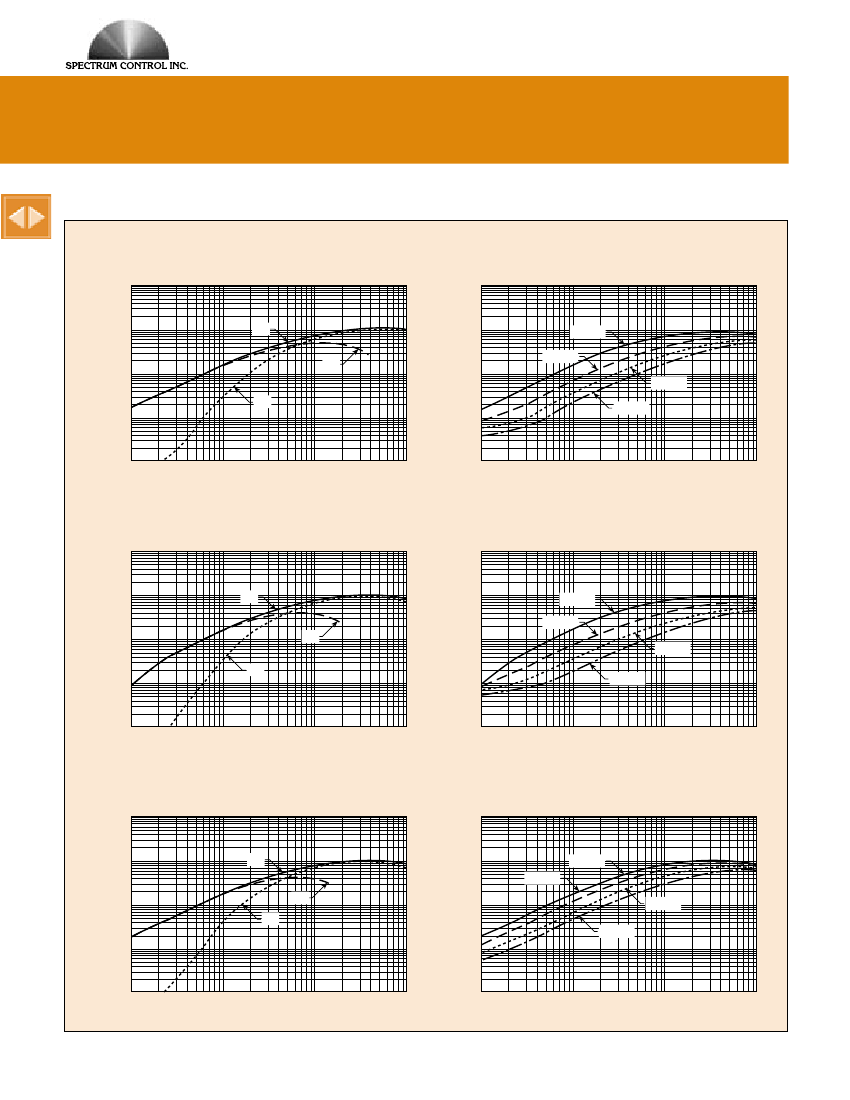

Typical Impedance Characteristics
(Curves not listed are available upon request or at our website.)
Ferrite Power Beads
0805 Size
FPB-0805-A300
1000
1000
FPB-0805-A300
|Z|, XL, R (Ohm)
|Z|
10
R
|Z|, XL, R (Ohm)
100
100
0.00 A
10
0.67 A
1.33 A
1
2.00 A
XL
1
0.1
1
10
100
Frequency (MHz)
1000
0.1
1
10
100
Frequency (MHz)
1000
FPB-0805-A450
1000
1000
FPB-0805-A450
|Z|, XL, R (Ohm)
|Z|
10
R
1
XL
|Z|, XL, R (Ohm)
100
100
0.00 A
0.67 A
10
1.33 A
1
2.00 A
0.1
1
10
100
Frequency (MHz)
1000
0.1
1
10
100
Frequency (MHz)
1000

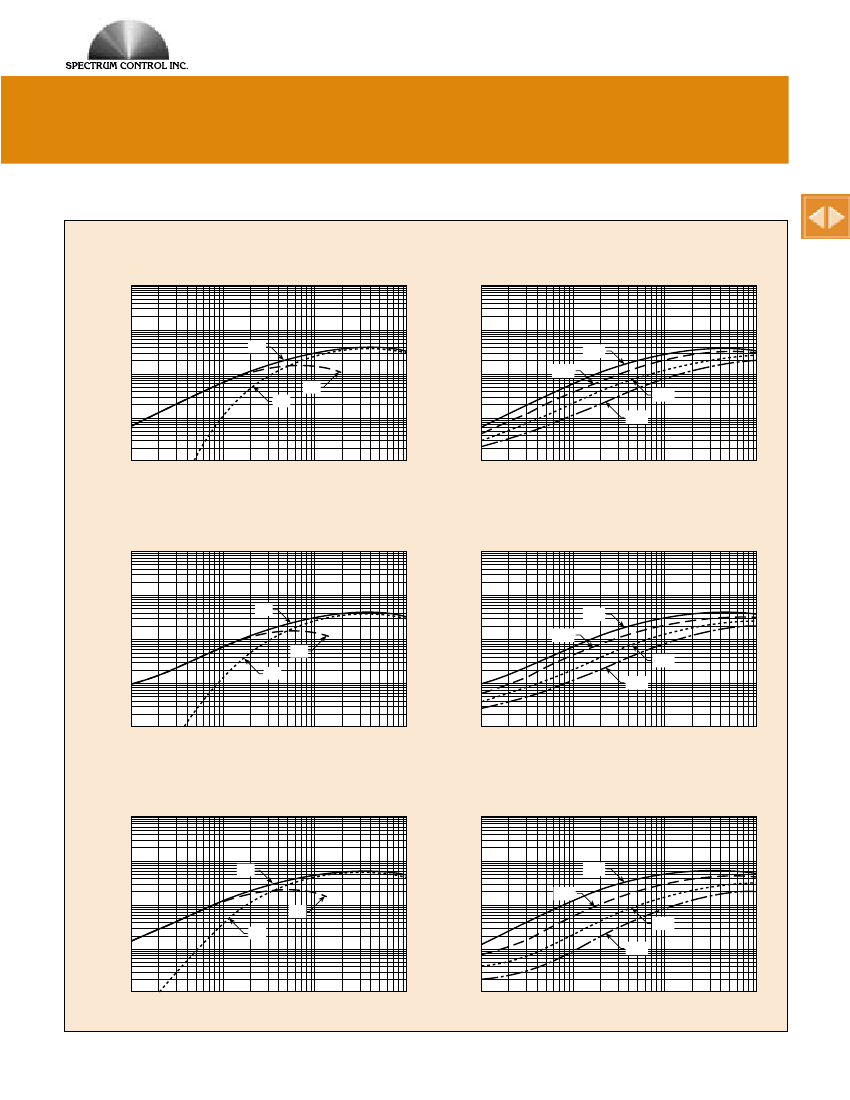

20
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-835-1650 • Fax: 814-835-1651 • Website: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
Surface Mount High Current EMI Filters
Ferrite Power Beads
Typical Impedance Characteristics
(Curves not listed are available upon request or at our website.)
Ferrite Power Beads
1000
1000
1000
1206 Size
FPB-1206-A260
1000
1000
FPB-1206-A260
|Z|, XL, R (Ohm)
|Z|
10
XL
R
1
|Z|, XL, R (Ohm)
100
100
0A
10
1A
2A
1
3A
0.1
1
10
100
Frequency (MHz)
1000
0.1
1
10
100
Frequency (MHz)
FPB-1206-A300
1000
1000
FPB-1206-A300
|Z|, XL, R (Ohm)
|Z|
10
XL
1
R
|Z|, XL, R (Ohm)
100
100
0A
10
1A
2A
1
3A
0.1
1
10
100
Frequency (MHz)
1000
0.1
1
10
100
Frequency (MHz)
FPB-1206-A500
1000
1000
FPB-1206-A500
|Z|, XL, R (Ohm)
|Z|, XL, R (Ohm)
100
|Z|
100
1A
10
0A
10
R
1
XL
2A
1
3A
0.1
1
10
100
Frequency (MHz)
1000
0.1
1
10
100
Frequency (MHz)
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-835-1650 • Fax: 814-835-1651 • Website: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
21
Surface Mount High Current EMI Filters
Ferrite Power Beads
Typical Impedance Characteristics
