UPD4516821G5-A15-7JF datasheet, PDF

UPD4516821G5-A15-7JF: DescriptionIC,SDRAM,2X1MX8,CMOS,TSOP,44PIN,PLASTIC; Categorystorage storage; File Size5MB，98 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

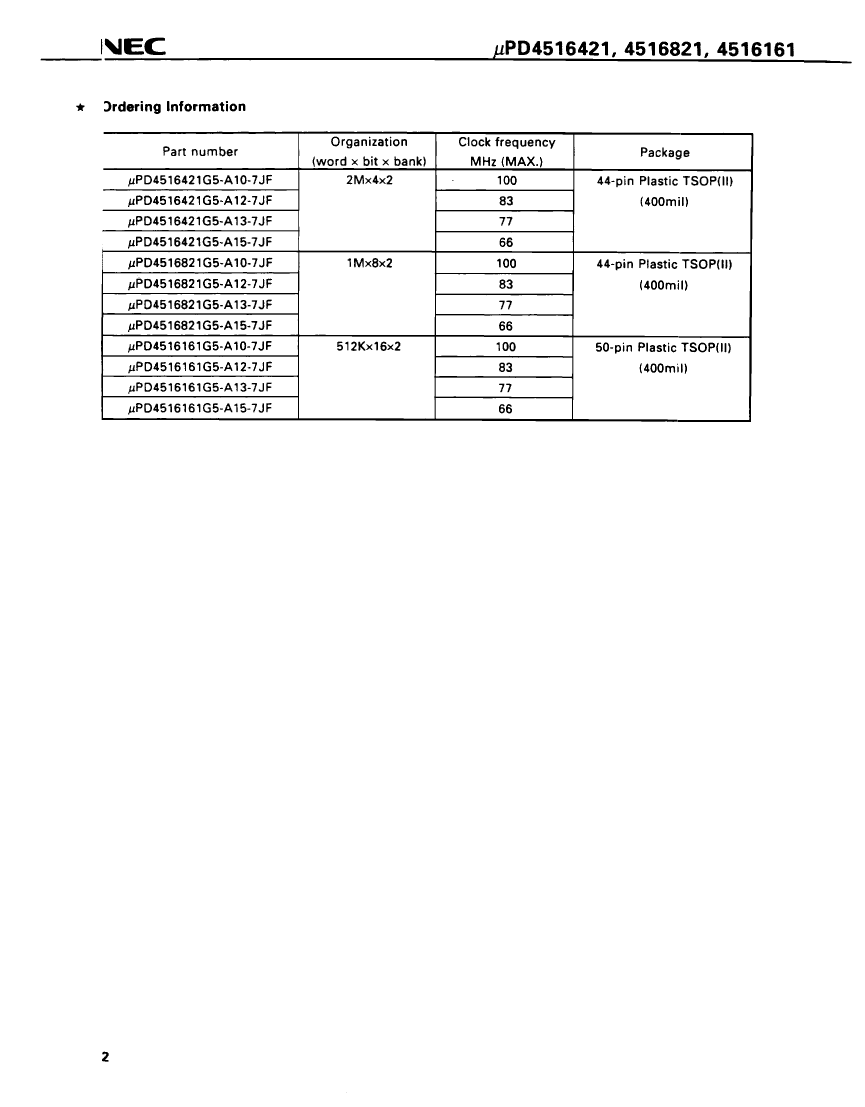

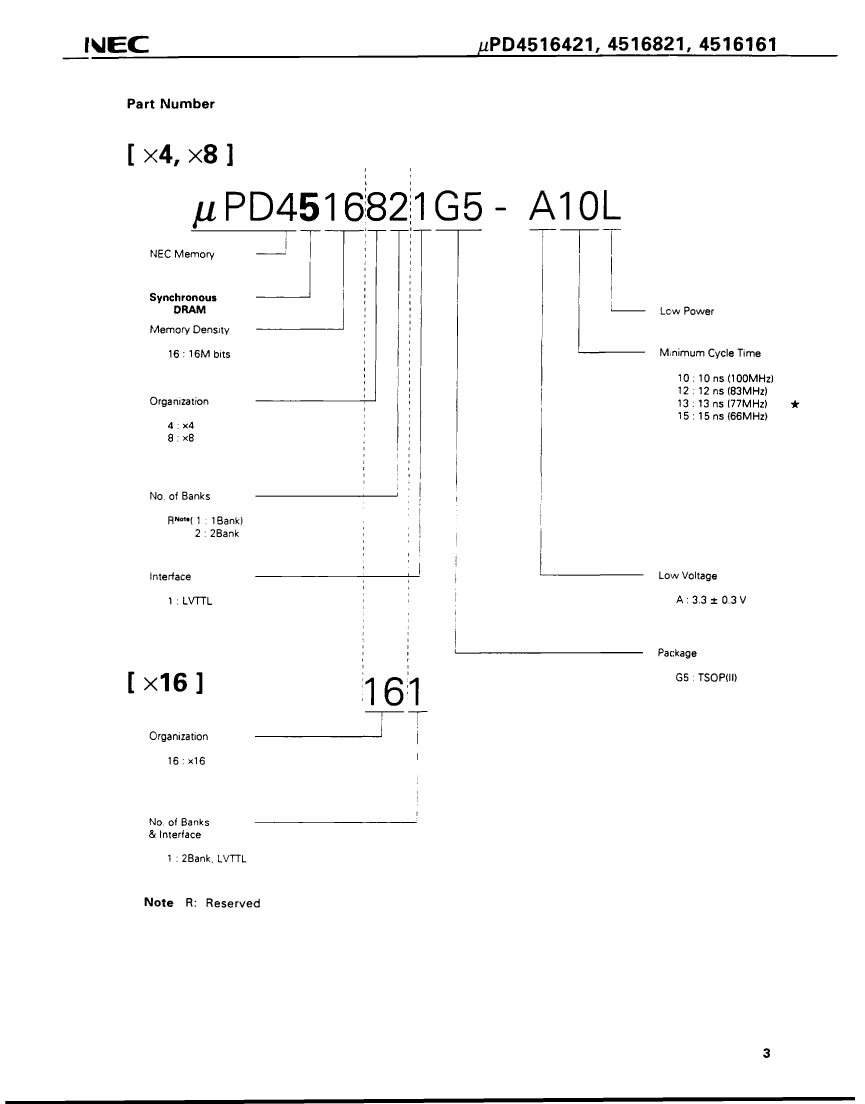

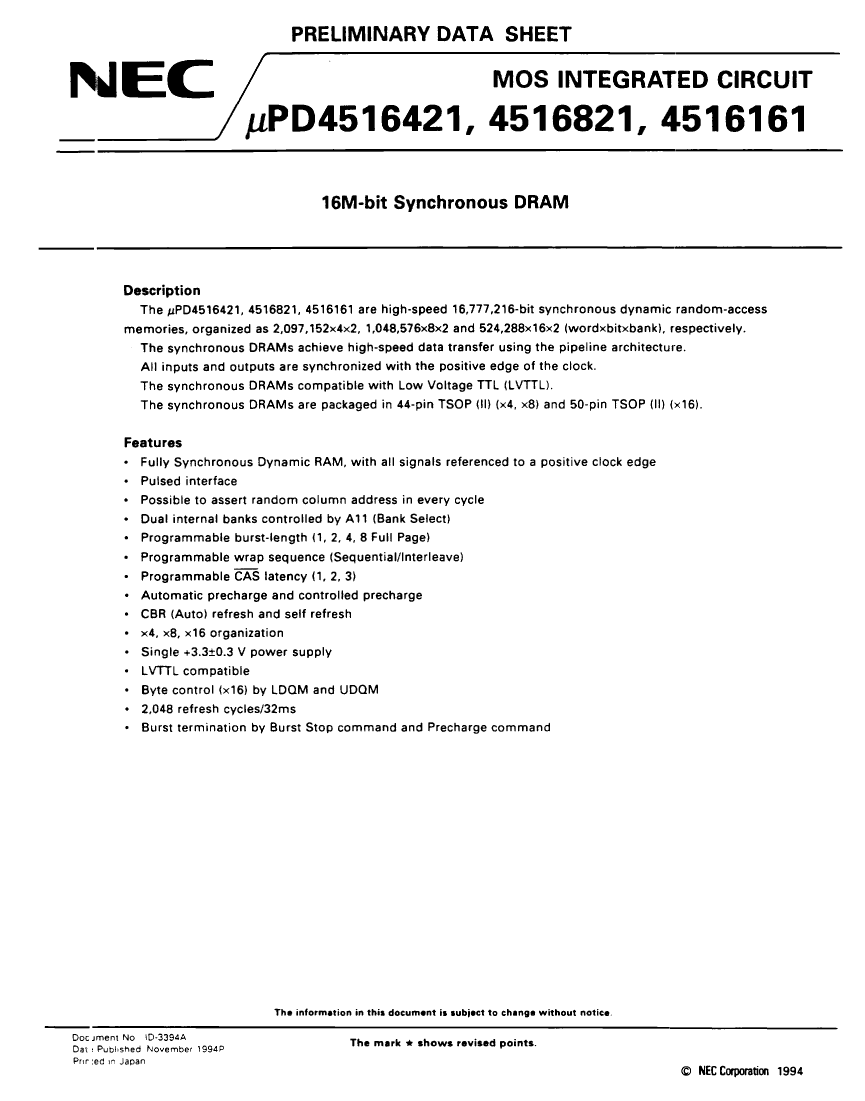

UPD4516821G5-A15-7JF Overview

IC,SDRAM,2X1MX8,CMOS,TSOP,44PIN,PLASTIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	TSOP2
package instruction	TSOP2,

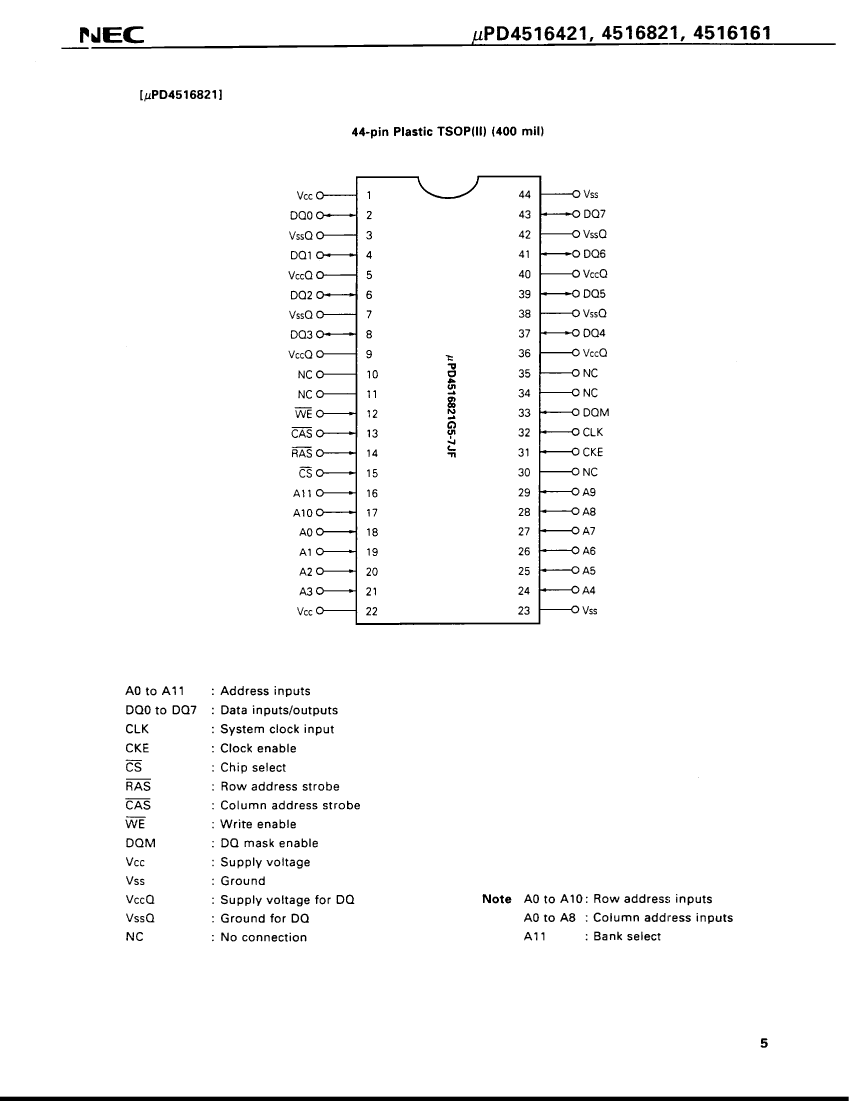

Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	DUAL BANK PAGE BURST
Maximum access time	14 ns
Other features	AUTO/SELF REFRESH
JESD-30 code	R-PDSO-G44
length	18.41 mm
memory density	16777216 bit
Memory IC Type	SYNCHRONOUS DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	44
word count	2097152 words
character code	2000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
refresh cycle	2048
Maximum seat height	1.2 mm
self refresh	YES
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	MOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	10.16 mm
