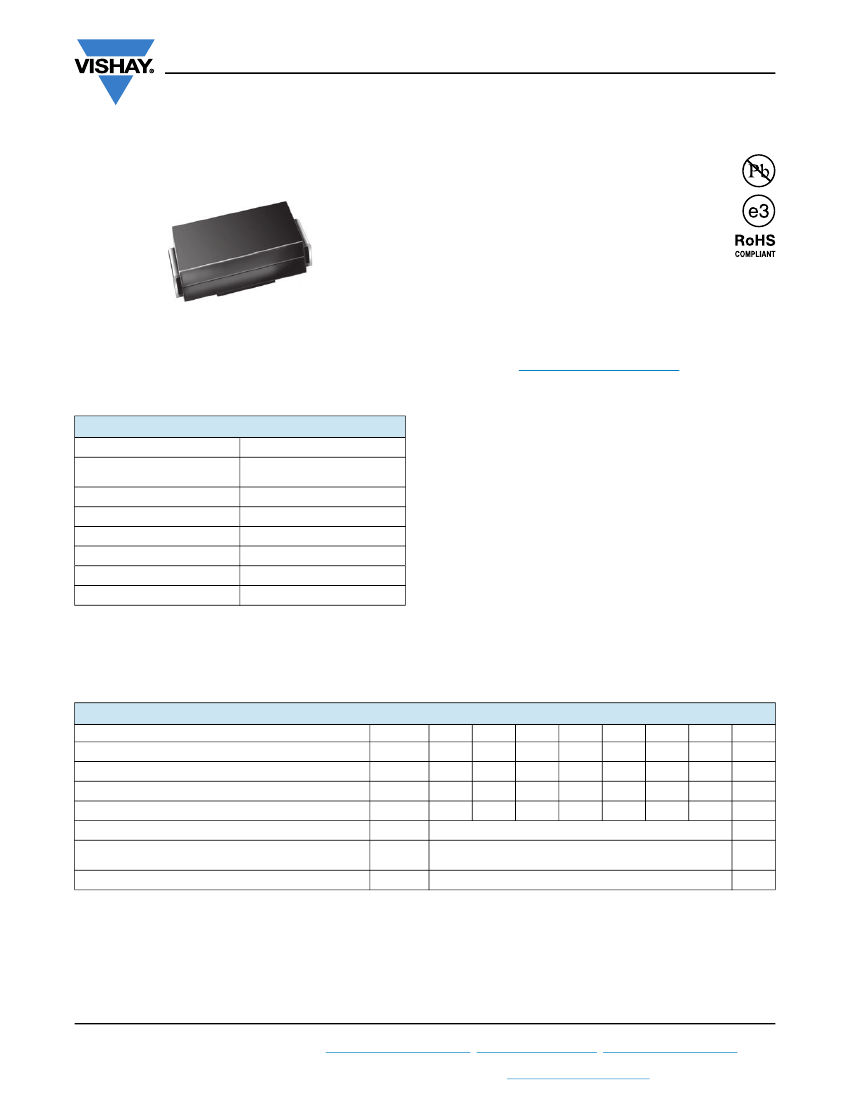

US1A, US1B, US1D, US1G, US1J, US1K, US1M
www.vishay.com
Vishay General Semiconductor
Surface Mount Ultrafast Rectifier
FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated chip junction
• Ultrafast reverse recovery time
• Low switching losses, high efficiency
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• AEC-Q101 qualified
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
DO-214AC (SMA)
TYPICAL APPLICATIONS
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
at I
F
T
J
max.
Package
Diode variations
1.0 A
50 V, 100 V, 200 V, 400 V, 600 V,
800 V, 1000 V
30 A
50 ns, 75 ns
1.0 V, 1.7 V
150 °C
DO-214AC (SMA)
Single die
For use in high frequency rectification and freewheeling
application in switching mode converters and inverters for
consumer, computer, automotive, and telecommunication.
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3 - RoHS-compliant, automotive grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B, .....)
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 2 whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
Color band denotes cathode end
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at T
L
= 110 °C
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
Operating and storage temperature range
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
, T
STG
SYMBOL
US1A
UA
50
35
50
US1B
UB
100
70
100
US1D
UD
200
140
200
US1G
UG
400
280
400
1.0
30
-55 to +150
US1J
UJ
600
420
600
US1K
UK
800
560
800
US1M
UM
1000
700
1000
V
V
V
A
A
°C
UNIT
Revision: 30-Oct-13
Document Number: 88768
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
US1A, US1B, US1D, US1G, US1J, US1K, US1M
www.vishay.com
Vishay General Semiconductor
SYMBOL
V
F (1)
T
A
= 25 °C
T
A
= 100 °C
I
R
t
rr
C
J
50
15
US1A
US1B
US1D
US1G
US1J
US1K
1.7
10
50
75
10
US1M
UNIT
V
μA
ns
pF
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous forward
voltage
Maximum DC reverse current
at rated DC blocking voltage
Maximum reverse recovery time
Typical junction capacitance
TEST CONDITIONS
1.0 A
1.0
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
4.0 V, 1 MHz
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum thermal resistance
SYMBOL
R
JA
(1)
US1A
US1B
US1D
US1G
75
27
US1J
US1K
US1M
UNIT
°C/W
R
JL
(1)
(1)
Note
PCB mounted on 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad area
ORDERING INFORMATION
(Example)
PREFERRED P/N
US1J-E3/61T
US1J-E3/5AT
US1JHE3/61T
(1)
US1JHE3/5AT
(1)
US1JHE3_A/H
(1)
UNIT WEIGHT (g)
0.064
0.064
0.064
0.064
0.064
0.064
PREFERRED PACKAGE CODE
61T
5AT
61T
5AT
H
I
BASE QUANTITY
1800
7500
1800
7500
1800
7500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
US1JHE3_A/I
(1)
Note
(1)
AEC-Q101 qualified

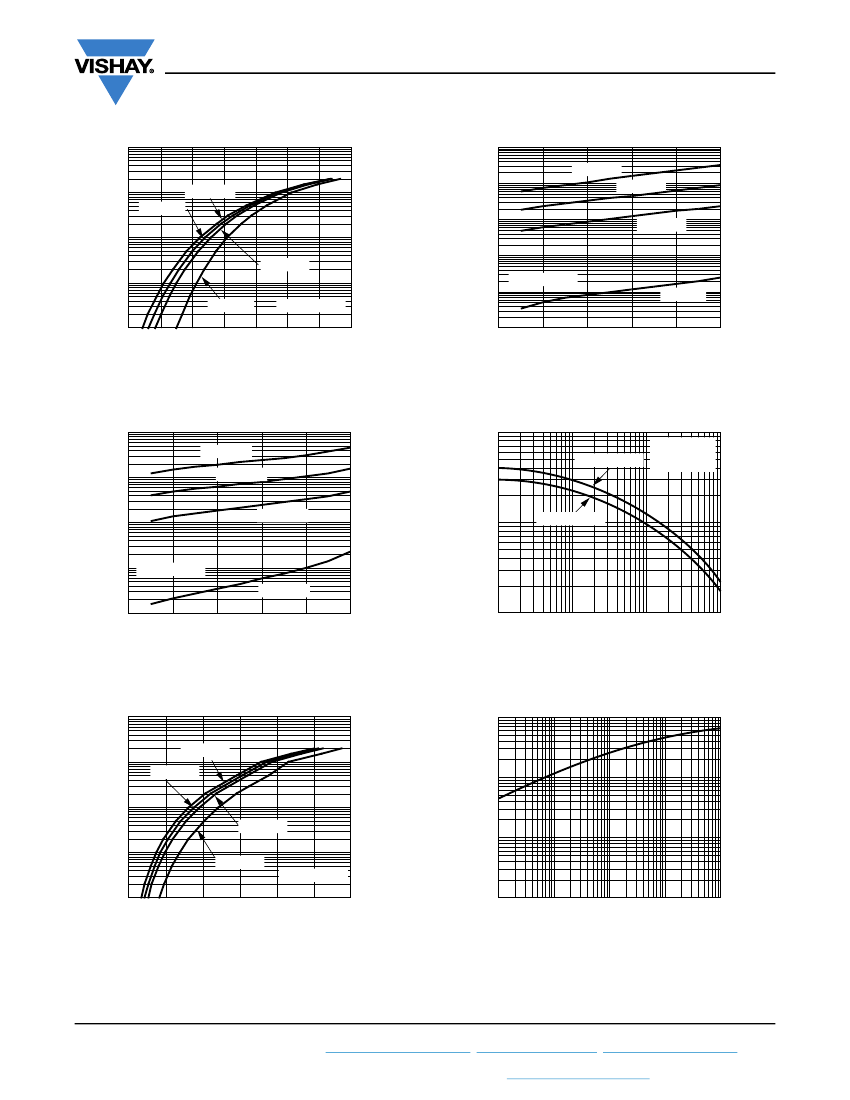

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
1.2
30
Average Forward Rectified Current (A)
1.0
Peak Forward Surge Current (A)
Resistive or Inductive Load
25
T
L
= 110 °C
8.3 ms Single Half Sine-Wave
0.8
20
0.6
15
0.4
0.2" x 0.2" (5.0 mm x 5.0 mm)
Copper Pad Areas
10
0.2
5
0
0
25
50
75
100
125
150
0
1
10
100
Lead Temperature (°C)
Number of Cycles at 60 Hz
Fig. 1 - Forward Current Derating Curve
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Revision: 30-Oct-13
Document Number: 88768
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
US1A, US1B, US1D, US1G, US1J, US1K, US1M
www.vishay.com
Vishay General Semiconductor
1000
100
Instantaneous Forward Current (A)
Instantaneous Reverse Leakage
Current (µA)
T
J
= 150 °C
100
T
J
= 125 °C
10
T
J
= 125 °C
1
T
J
= 150 °C
10
T
J
= 100 °C
T
J
= 100 °C
0.1
T
J
= 25 °C
0.01
0.3
US1A thru US1G
1
US1J thru US1M
0.1
T
J
= 25 °C
0.01
0.5
0.7
0.9
1.1
1.3
1.5
1.7
0
20
40
60
80
100
Instantaneous Forward Voltage (V)
Percent of Rated Peak Reverse Voltage (%)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Reverse Leakage Characteristics
100
100
T
J
= 150 °C
US1A thru US1G
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
Instantaneous Reverse Leakage
Current (µA)
10
T
J
= 125 °C
1
T
J
= 100 °C
Junction Capacitance (pF)
10
US1J thru US1M
0.1
US1A thru US1G
T
J
= 25 °C
0.01
0
20
40
60
80
100
1
0.1
1
10
100
Percent of Rated Peak Reverse Voltage (%)
Reverse Voltage (V)
Fig. 4 - Typical Reverse Leakage Characteristics
Fig. 7 - Typical Junction Capacitance
100
100
T
J
= 150 °C
10
T
J
= 125 °C
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
10
1
T
J
= 100 °C
0.1
T
J
= 25 °C
US1J thru US1M
0.01
0.2
1
0.7
1.2
1.7
2.2
2.7
3.2
0.1
0.01
0.1
1
10
100
Instantaneous Forward Voltage (V)
t - Pulse Duration (s)
Fig. 5 - Typical Instantaneous Forward Characteristics
Fig. 8 - Typical Transient Thermal Impedance
Revision: 30-Oct-13
Document Number: 88768
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
US1A, US1B, US1D, US1G, US1J, US1K, US1M
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-214AC (SMA)
Cathode Band
Vishay General Semiconductor
Mounting Pad Layout
0.066 (1.68)
MIN.
0.074 (1.88)
MAX.
0.065 (1.65)
0.049 (1.25)
0.110 (2.79)
0.100 (2.54)
0.177 (4.50)
0.157 (3.99)
0.012 (0.305)
0.006 (0.152)
0.060 (1.52)
MIN.
0.208 (5.28)
REF.
0.090 (2.29)
0.078 (1.98)
0.060 (1.52)
0.030 (0.76)
0.008 (0.203)
0 (0)
0.208 (5.28)
0.194 (4.93)
Revision: 30-Oct-13
Document Number: 88768
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
