S-1711A3015-M6T1 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> S-1711A3015-M6T1

S-1711A3015-M6T1: DescriptionFixed Positive LDO Regulator, 2 Output, 3V1, 1.5V2, CMOS, PDSO6, SOT-23, 6 PIN; CategoryPower/power management The power supply circuit; File Size565KB，39 Pages; ManufacturerABLIC

Download Datasheet Parametric View All

S-1711A3015-M6T1 Overview

Fixed Positive LDO Regulator, 2 Output, 3V1, 1.5V2, CMOS, PDSO6, SOT-23, 6 PIN

S-1711A3015-M6T1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ABLIC
Parts packaging code	SOT-23
package instruction	LSSOP, TSOP6,.11,37
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
Adjustability	FIXED
Maximum drop-back voltage 1	0.35 V
Nominal dropback voltage 1	0.54 V
Maximum drop-back voltage 2	0.58 V
Maximum absolute input voltage	7 V
Maximum input voltage	6.5 V
Minimum input voltage	2 V
JESD-30 code	R-PDSO-G6
length	2.9 mm
Maximum grid adjustment rate	0.009%
Maximum load regulation	0.04%
Number of functions	1
Output times	2
Number of terminals	6
Working temperatureTJ-Max	85 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	0.15 A
Maximum output voltage 1	3.03 V
Minimum output voltage 1	2.97 V
Nominal output voltage 1	3 V
Maximum output voltage 2	1.515 V
Minimum output voltage 2	1.485 V
Nominal output voltage 2	1.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSOP6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Maximum seat height	1.35 mm
surface mount	YES
technology	CMOS
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	1%
width	1.6 mm

Preview

Download Datasheet

View All

Rev.1.0

_02

SUPER-SMALL PACKAGE 2-CIRCUIT HIGH RIPPLE-REJECTION

LOW DROPOUT CMOS VOLTAGE REGULATOR

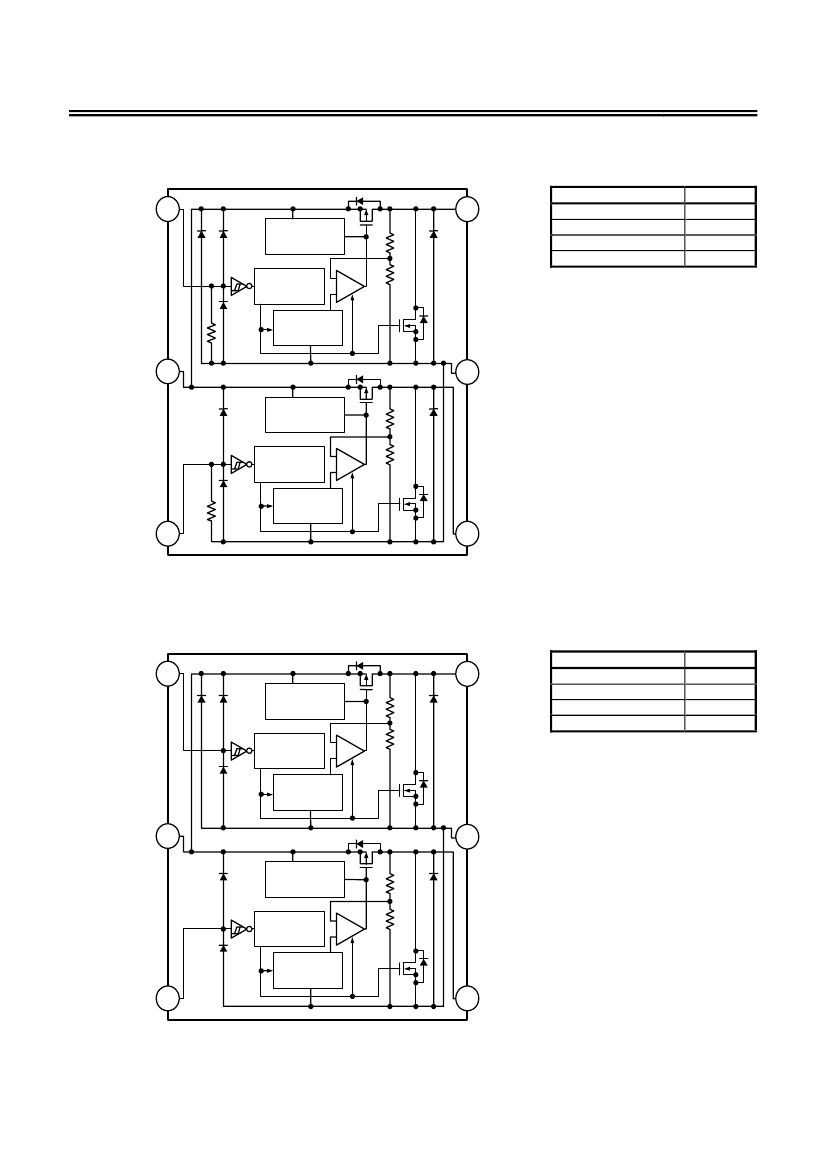

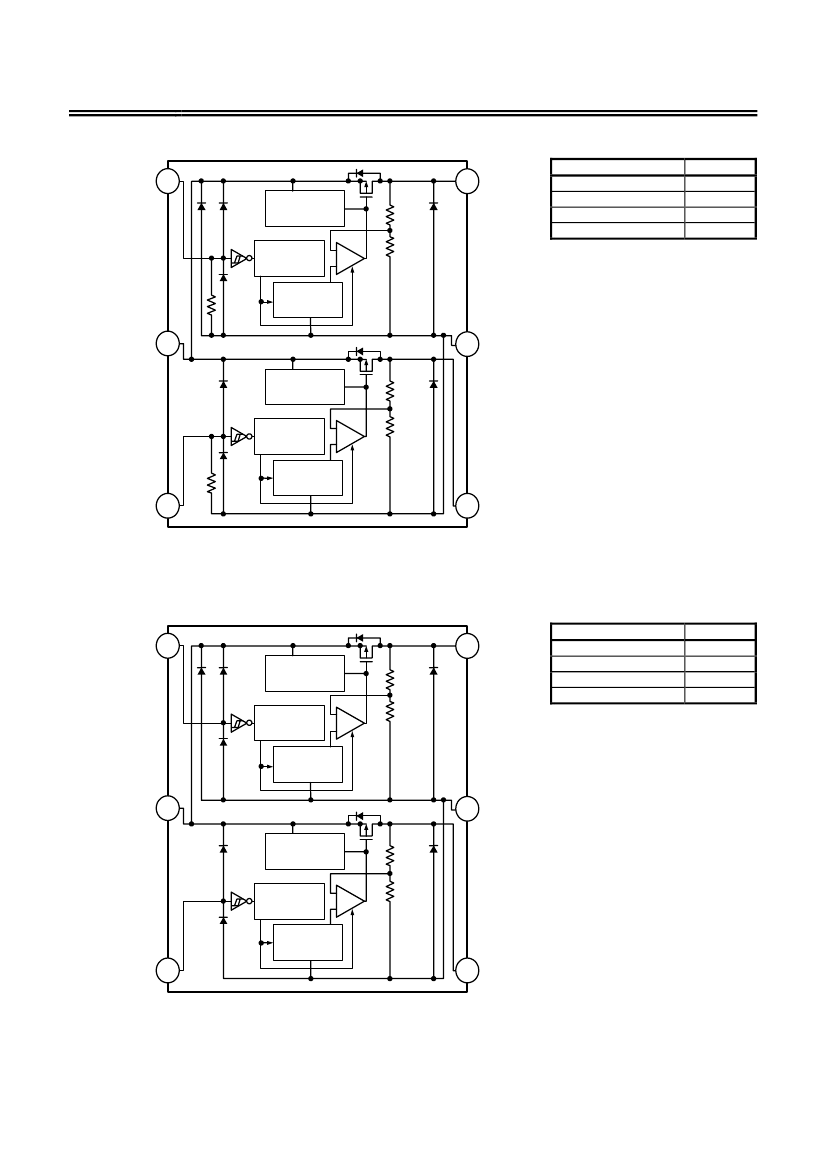

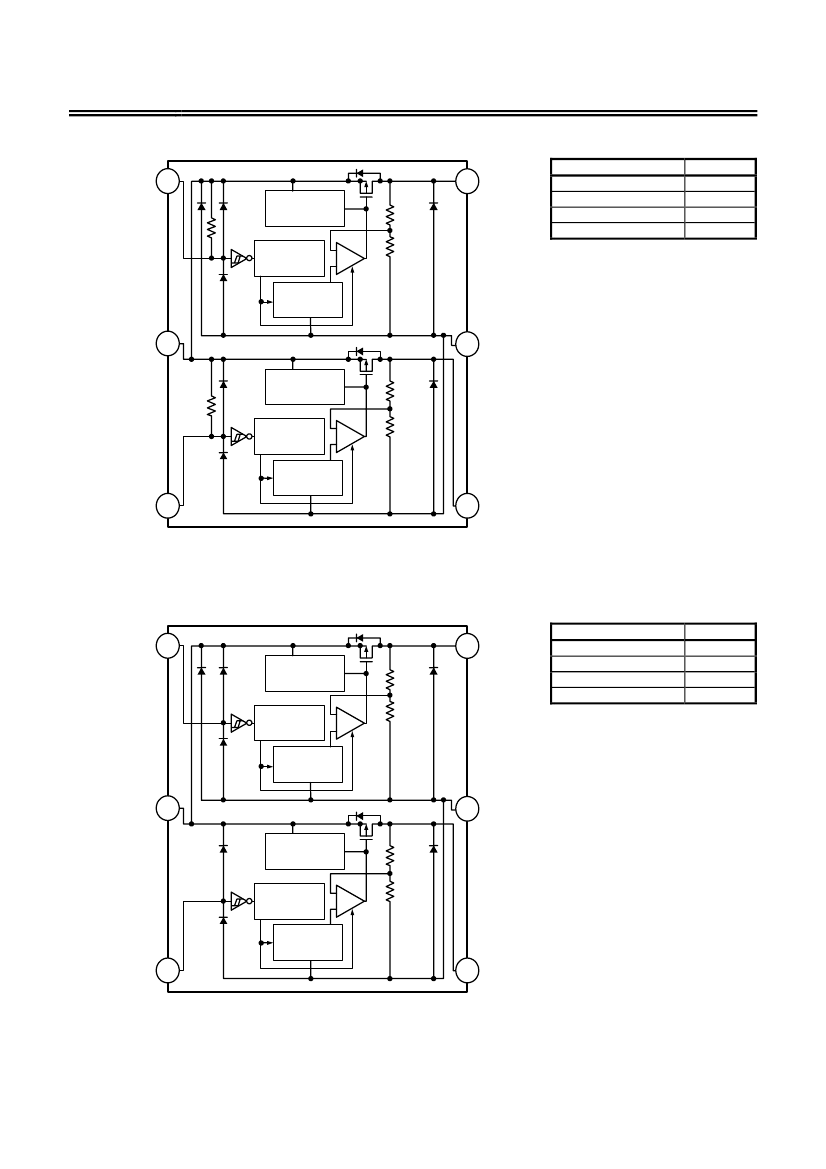

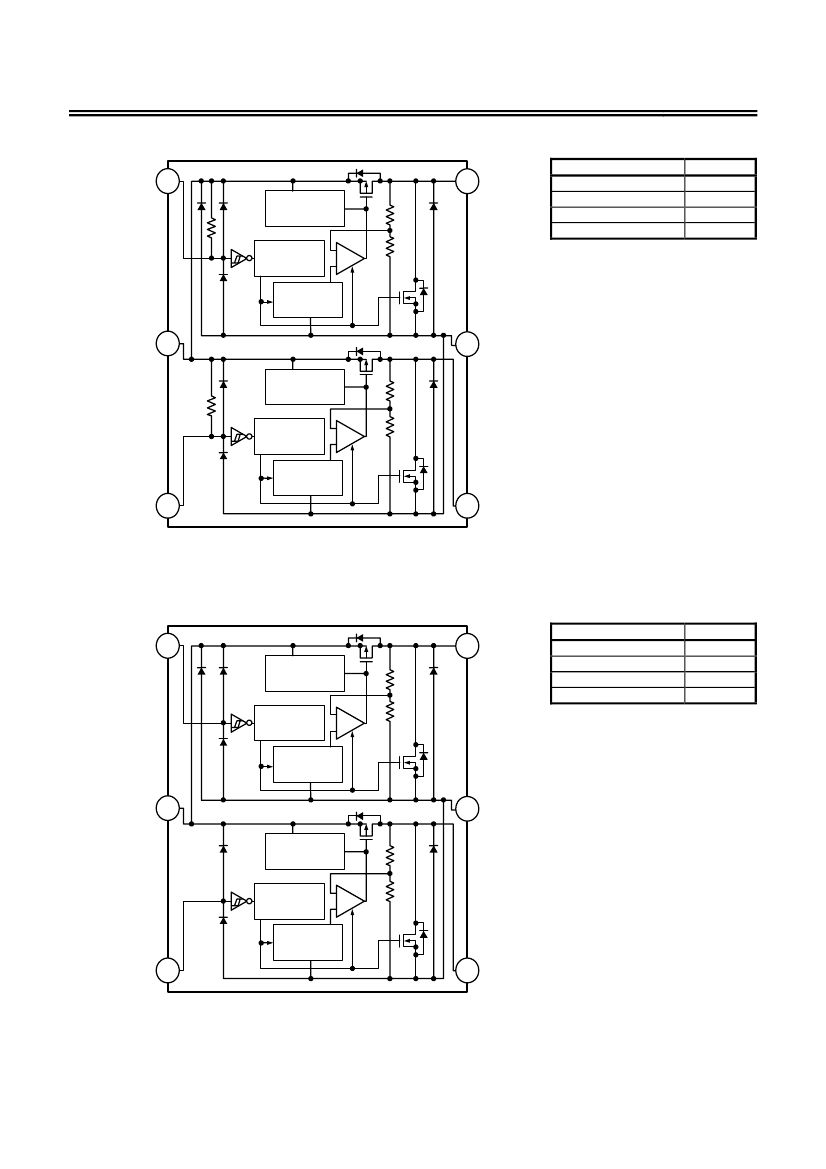

S-1711 Series

The S-1711 Series is a 2-channel positive voltage

regulator with a low dropout voltage, high output voltage

accuracy, and low current consumption (150 mA output

current) developed based on CMOS technology.

A 1.0

µF

small ceramic capacitor can be used, and a 2-

circuit voltage regulator with

±1.0%

high-accuracy output

voltage is incorporated in an SOT-23-6 or super-small

SNT-6A package. The A/ B/ E/ F types are provided with

a discharge shunt function allowing high-speed output

response when the ON/OFF pin is used.

Compared with the conventional 150 mA output current 2-

channel CMOS voltage regulators, high-density mounting

is realized by using the super-small SNT-6A package and

a small ceramic capacitor.

Also, the low current

consumption makes the S-1711 Series ideal for mobile

devices.

Features

1.5 V to 5.5 V, selectable in 0.1 V steps.

A ceramic capacitor of 1.0

µF

or more can be used for the output capacitor.

2.0 V to 6.5 V

±1.0%

200 mV typ. (3.0 V output product, I

OUT

150 mA)

During operation:

µA

typ., 90

µA

max. (Per circuit)

During shutdown: 0.1

µA

typ., 1.0

µA

max.

150 mA output is possible (at V

≥

OUT(S)

1.0 V)

(Per circuit)

•

Output current:

•

High ripple rejection:

70 dB typ. (at 1.0 kHz)

•

Built-in overcurrent protector:

Overcurrent of output transistor can be restricted.

•

Built-in ON/OFF circuit:

Ensures long battery life.

•

Discharge shunt circuit can be selected.

•

Pull-down or pull-down resistor can be selected.

•

Small package:

SNT-6A, SOT-23-6

*1.

Attention should be paid to the power dissipation of the package when the output current is large.

•

Output voltage:

•

Low ESR capacitor can be used:

•

Wide input voltage range:

•

High-accuracy output voltage:

•

Low dropout voltage:

•

Low current consumption:

Applications

•

Power supply for cellular phones

•

Power supply for battery-powered devices

•

Power supply for home electric/electronic appliances

Package

Package Name

Package

SNT-6A

SOT-23-6

PG006-A

MP006-A

Drawing Code

Tape

PG006-A

MP006-A

Reel

PG006-A

MP006-A

Seiko Instruments Inc.
