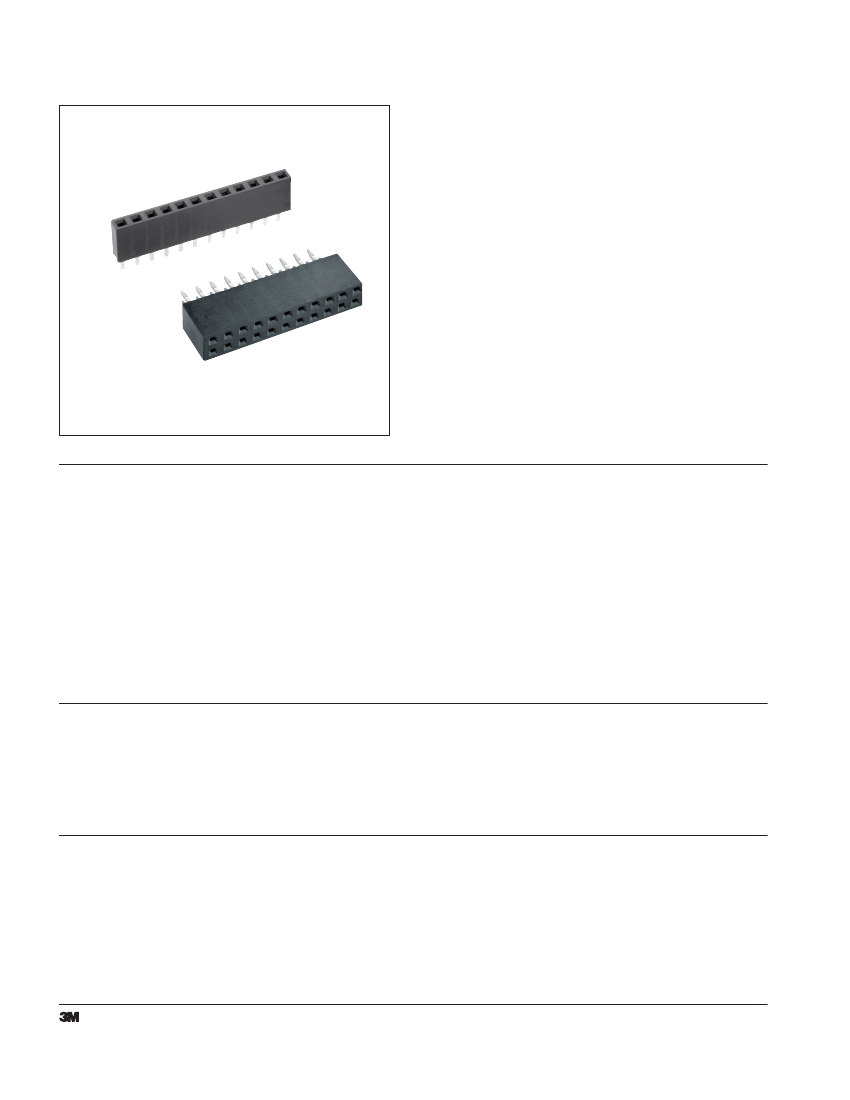

2.54 mm and 2.54 mm x 2.54 mm, Straight, Solder Tail
960 Series
•
High temperature dielectric
•
No lead” wave and reflow solder compatible
“
•
Single- and dual row design, 2–36 pins or 4–72 pins
•
Housing height options: 8.5 mm and 7.1 mm
•
Mates with pin-strip header products
•
RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS compliance” section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
Date Modified: November 19, 2012
TS-2187-B
Sheet 1 of 2
Physical
Insulation
Material: High Temperature Thermoplastic
Flammability: UL 94V-0
Color: Black
Contact
Material: Copper Alloy
Plating
Underplating: 1.25–2.5 µm [50–100 µ’’] Nickel
Wiping Area: Flash Gold
Solder Tail Area: 1–3 µm [40–118 µ’’] Matte Tin
Electrical
Current Rating:
2 A
Insulation Resistance:
> 5 x 10
8
Ohm at 100 V
DC
Withstanding Voltage:
1000 V
DC
Environmental
Temperature Range:
-25 °C to +105 °C
Processing Temperature:
ax. 260 °C (Profile per J-STD-020C)
m
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
3M
™
Boardmount Socket
Height: 7.1 mm (.28)
2.54 mm and 2.54 mm x 2.54 mm, Straight, Solder Tail
Height: 8.5 mm (.33)
960 Series

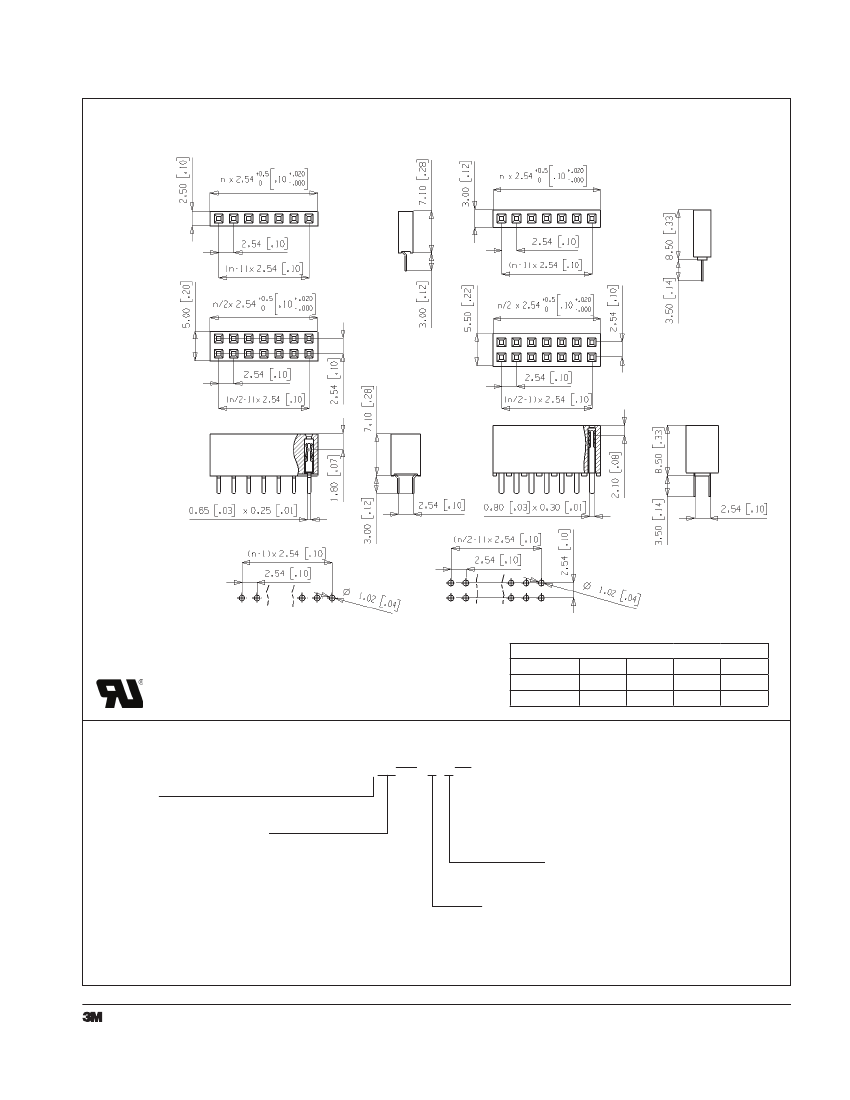

PCB Layout
PCB Layout
n = No. of Contacts
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1
+/- 0.1
+/- 0.2
Radii
+/- 0.2
+/- 0.5
+/- 1
30–120
+/- 0.3
+/- 1
Ordering Information
960XXX
Rows:
1 = 1 Row
2 = 2 Row
Contact Quantity:
02–36 Pins / 1 Row
04–72 Pins / 2 Row
6X0X
AR
(RIA E1 & C1 Apply)
Solder Tail Length:
2 = 3.0 mm [.12 ] / Body Height 7.1 mm [.28 ]
3 = 3.5 mm [.14 ] / Body Height 8.5 mm [.33 ]
Body Height:
2 = 7.1 mm [.28] / Solder Tail Length 3.0 mm [.12 ]
3 = 8.5 mm [.33 ] / Solder Tail Length 3.5 mm [.14 ]
TS-2187-B
Sheet 2 of 2
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
