BA6827FS datasheet, PDF - EEWORLD Datasheet

BA6827FS: DescriptionBrushless DC Motor Controller, 1.2A, BIPolar, PDSO24, SSOP-24; CategoryOther integrated circuit (IC) The signal circuit; File Size145KB，8 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BA6827FS Overview

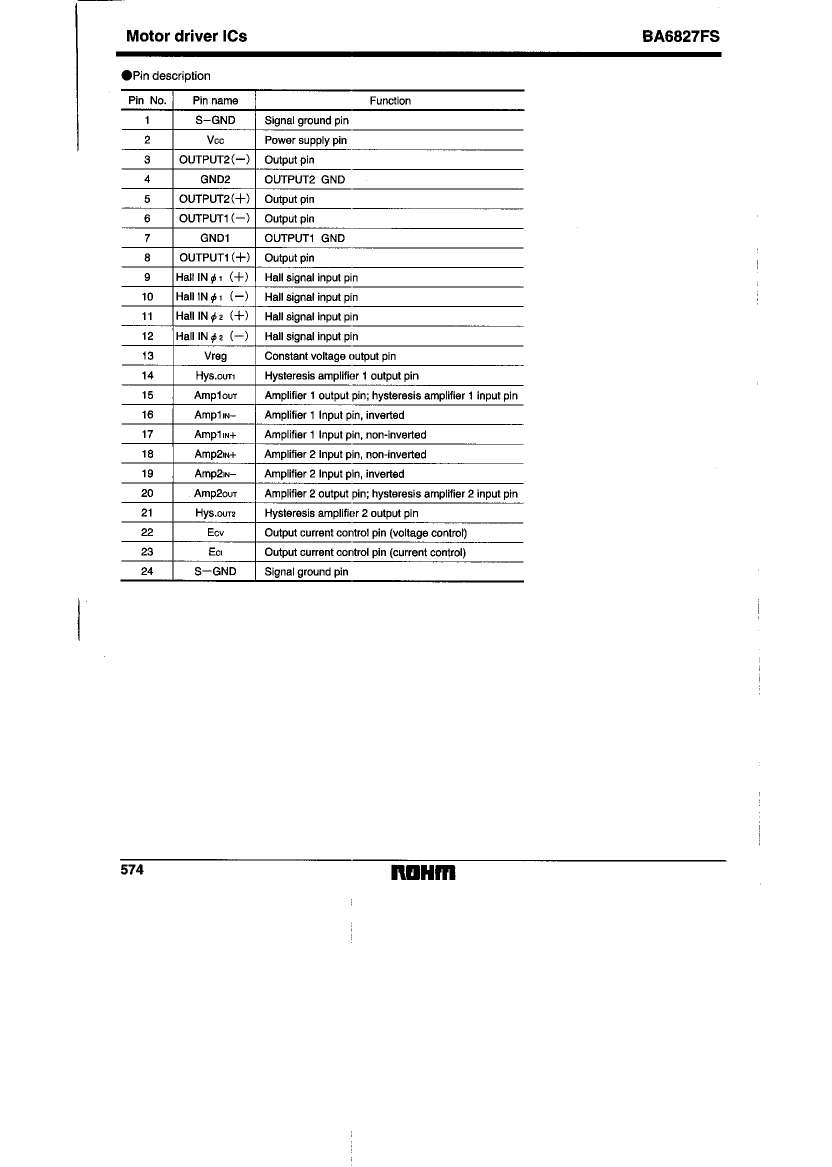

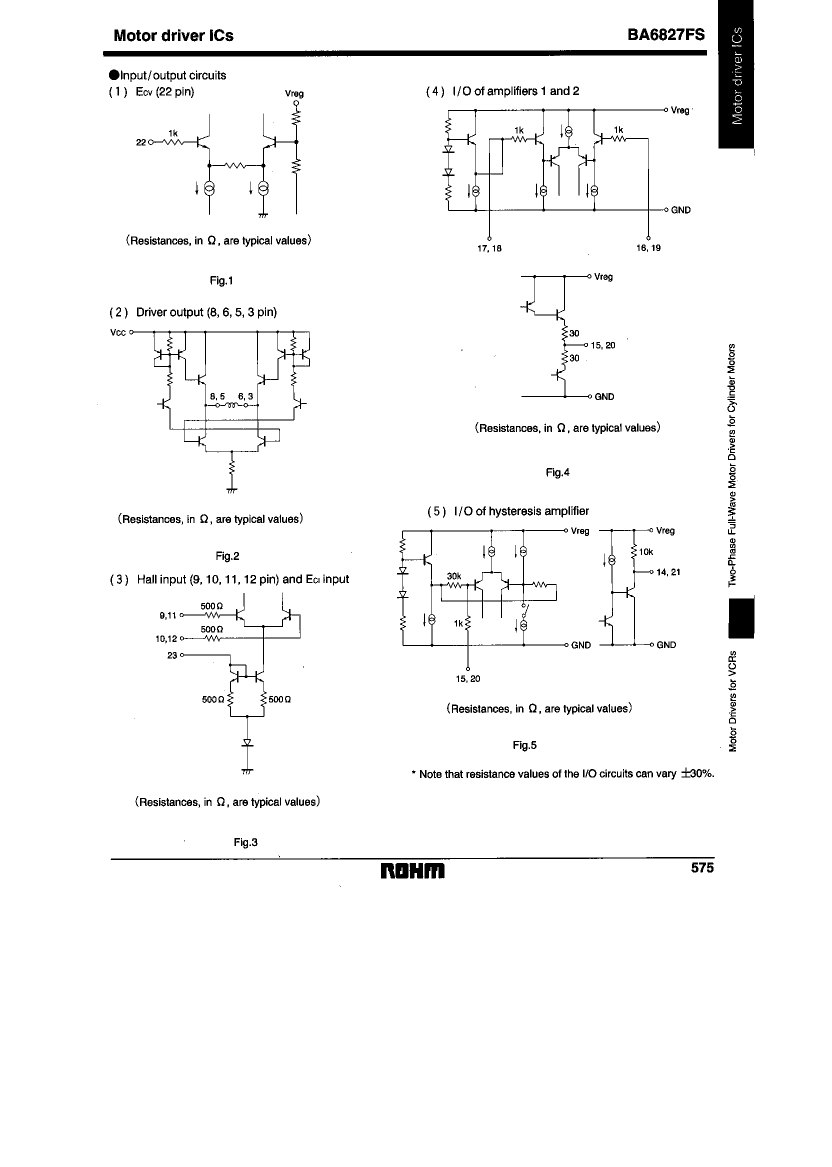

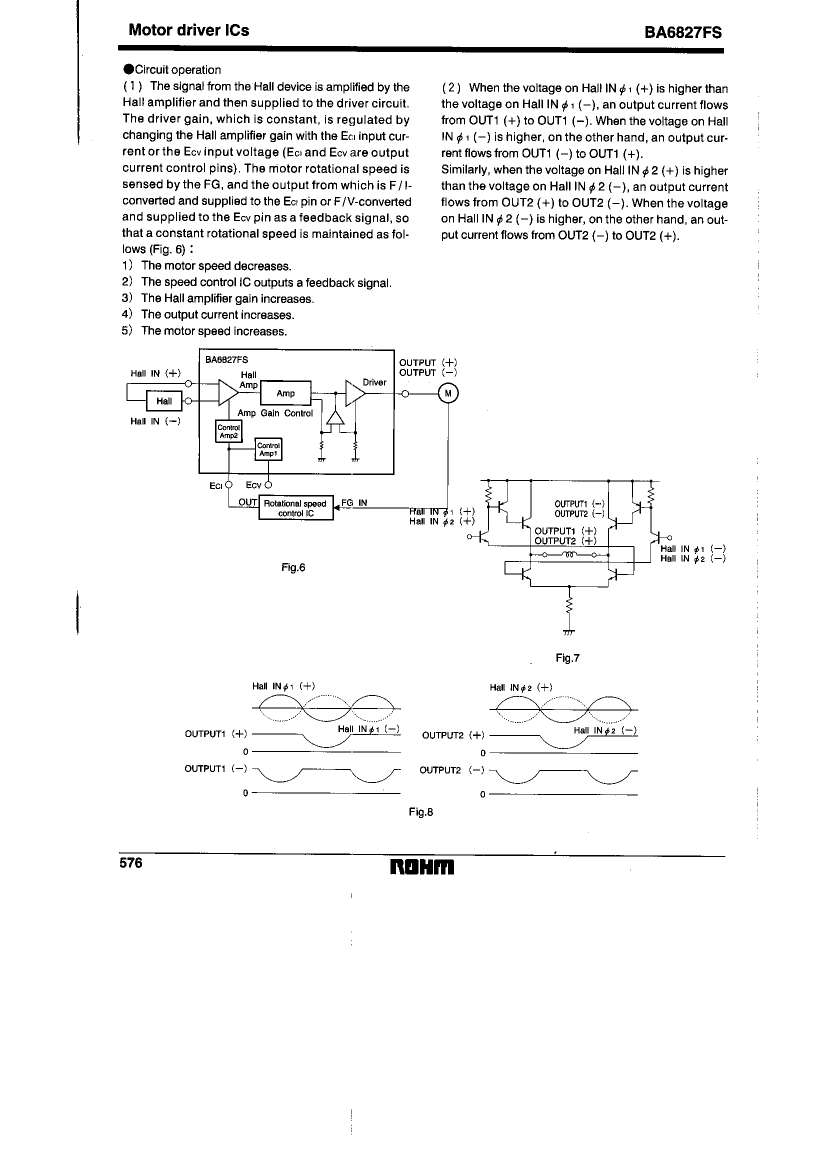

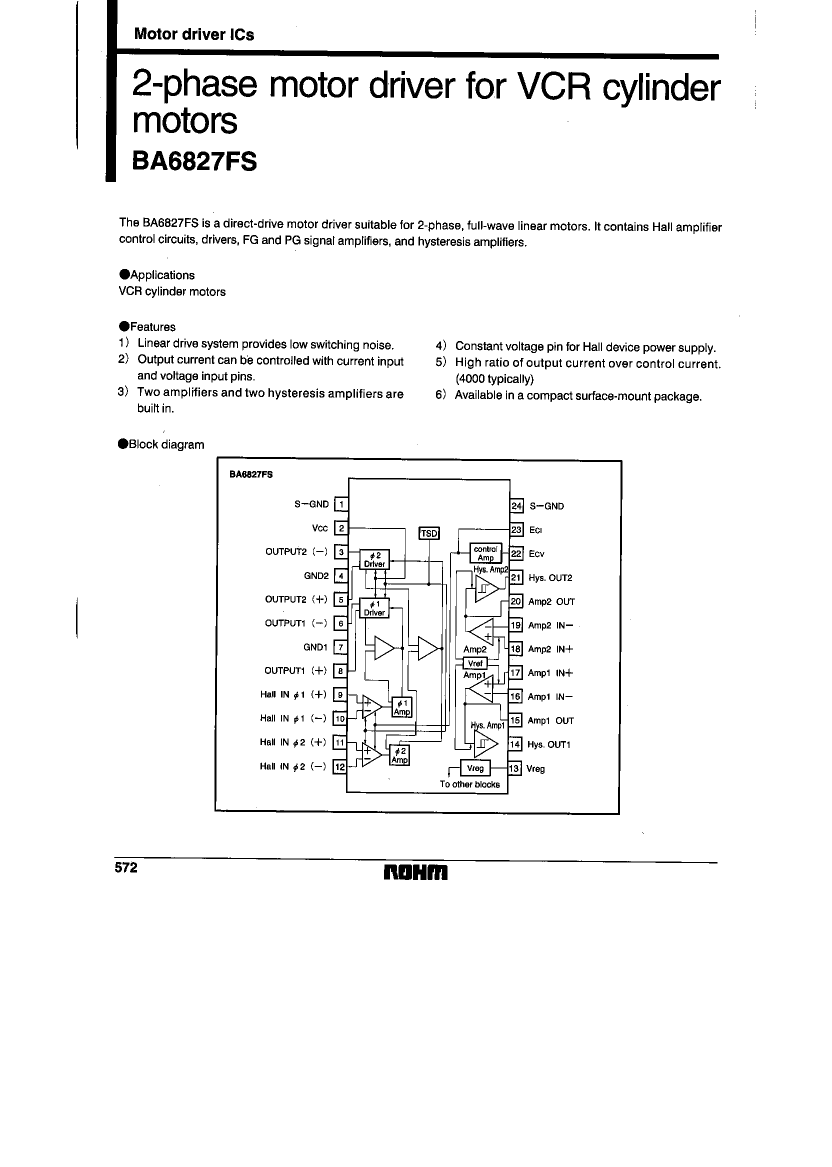

Brushless DC Motor Controller, 1.2A, BIPolar, PDSO24, SSOP-24

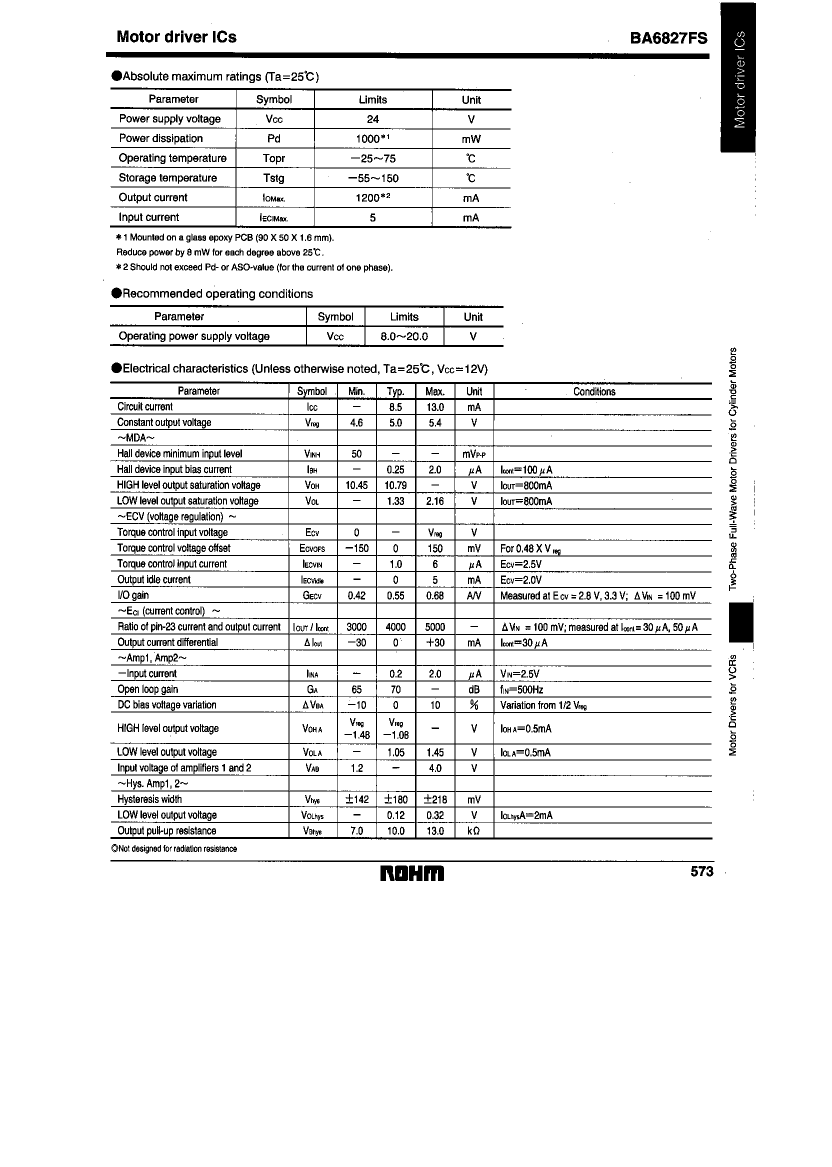

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SSOP
package instruction	SSOP, SOP24,.3,32
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G24
length	10 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Maximum output current	1.2 A
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP24,.3,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	12 V
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply current (Isup)	13 mA
Maximum supply voltage (Vsup)	20 V
Minimum supply voltage (Vsup)	8 V
Nominal supply voltage (Vsup)	12 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	5.4 mm
