AD7501SE/883B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> AD7501SE/883B

AD7501SE/883B: DescriptionIC 8-CHANNEL, SGL ENDED MULTIPLEXER, CQCC20, CERAMIC, LCC-20, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size122KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

AD7501SE/883B Overview

IC 8-CHANNEL, SGL ENDED MULTIPLEXER, CQCC20, CERAMIC, LCC-20, Multiplexer or Switch

AD7501SE/883B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	QLCC
package instruction	CERAMIC, LCC-20
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	20
On-state resistance matching specifications	6.8 Ω
Maximum on-state resistance (Ron)	300 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	2.54 mm
Maximum signal current	0.035 A
Maximum supply current (Isup)	0.8 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	80 ns
Maximum connection time	80 ns
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm

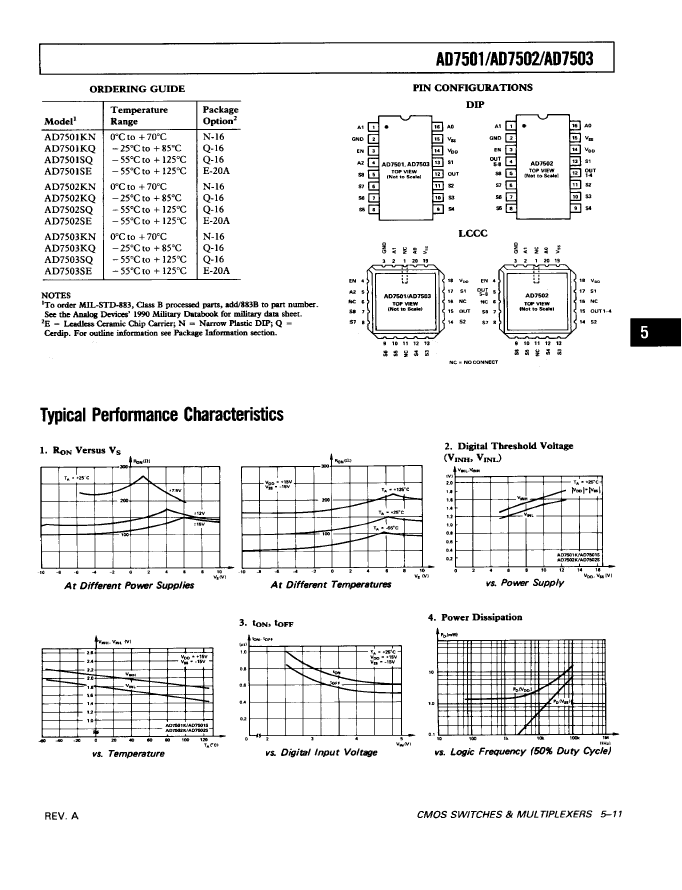

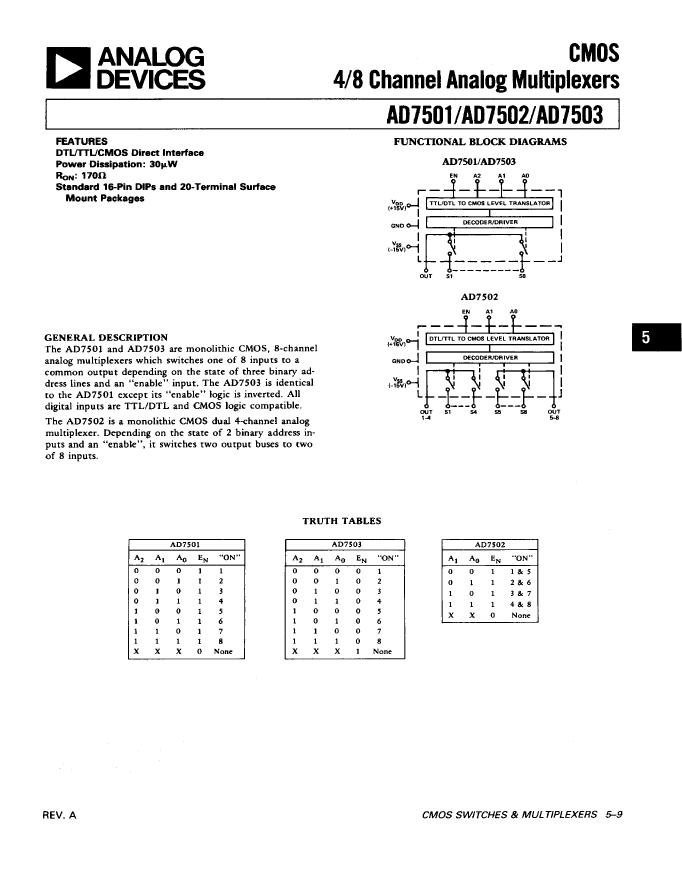

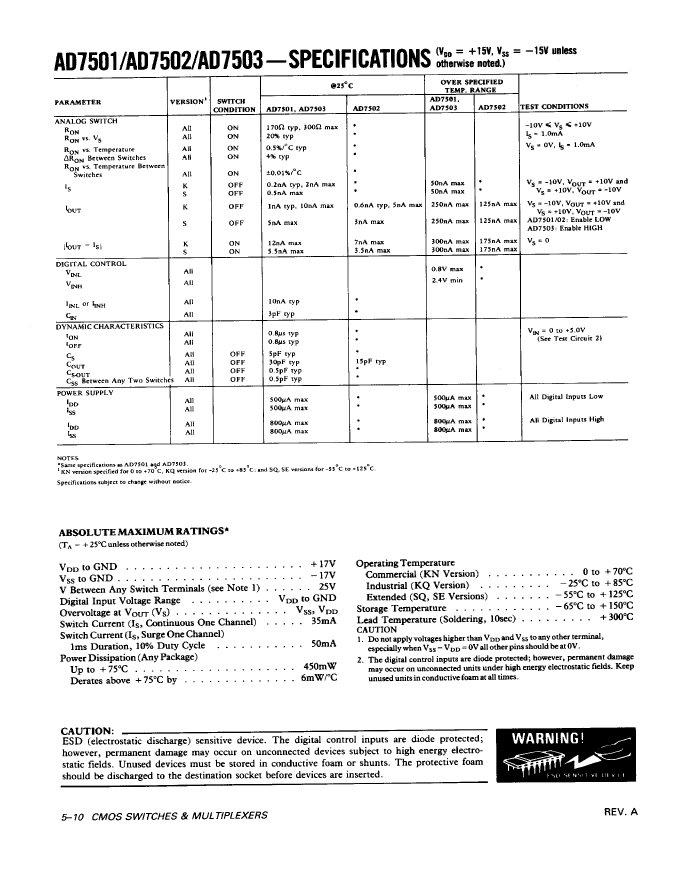

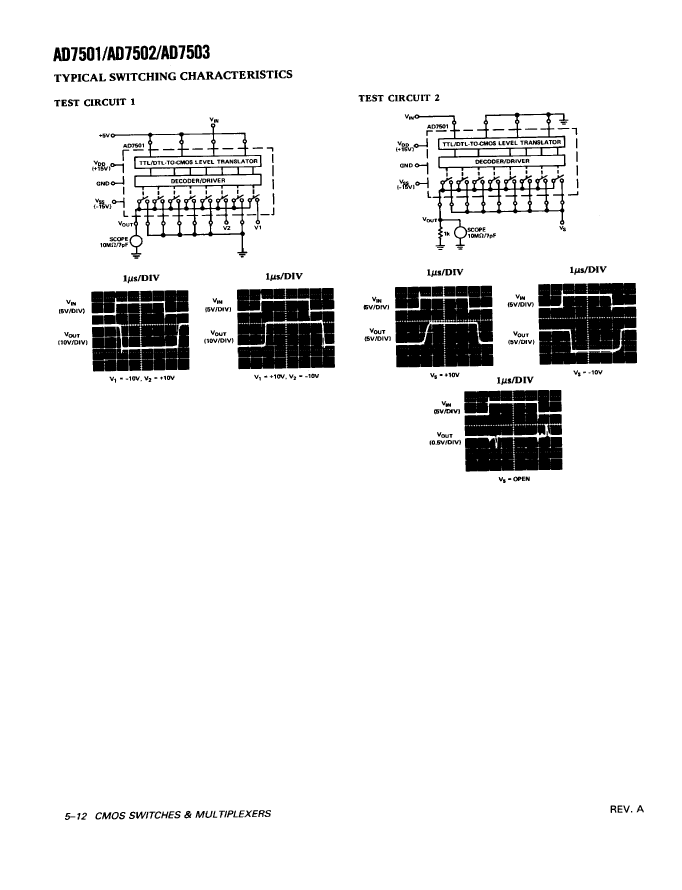

Preview

Download Datasheet

View All

AD7501SE/883B Related Products

	AD7501SE/883B	AD7502SE/883B	AD7501SQ/883B	AD7501SQ
Description	IC 8-CHANNEL, SGL ENDED MULTIPLEXER, CQCC20, CERAMIC, LCC-20, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CQCC20, CERAMIC, LCC-20, Multiplexer or Switch	8 - Channel Analog Multiplexer	8 - Channel Analog Multiplexer
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QLCC	QLCC	DIP	DIP
package instruction	CERAMIC, LCC-20	CERAMIC, LCC-20	DIP, DIP16,.3	DIP, DIP16,.3
Contacts	20	20	16	16
Reach Compliance Code	unknown	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	S-CQCC-N20	S-CQCC-N20	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0	e0	e0
length	8.89 mm	8.89 mm	19.05 mm	19.05 mm
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of channels	8	4	8	8
Number of functions	1	1	1	1
Number of terminals	20	20	16	16
On-state resistance matching specifications	6.8 Ω	6.8 Ω	6.8 Ω	6.8 Ω
Maximum on-state resistance (Ron)	300 Ω	300 Ω	300 Ω	300 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	QCCN	DIP	DIP
Encapsulate equivalent code	LCC20,.35SQ	LCC20,.35SQ	DIP16,.3	DIP16,.3
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	NOT APPLICABLE
power supply	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.54 mm	2.54 mm	5.08 mm	5.08 mm
Maximum signal current	0.035 A	0.035 A	0.035 A	0.035 A
Maximum supply current (Isup)	0.8 mA	0.8 mA	0.8 mA	0.8 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	YES	YES	NO	NO
Maximum disconnect time	80 ns	80 ns	80 ns	80 ns
Maximum connection time	80 ns	80 ns	80 ns	80 ns
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn63Pb37)	Tin/Lead (Sn63Pb37)
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	NOT APPLICABLE
width	8.89 mm	8.89 mm	7.62 mm	7.62 mm
Maker	ADI	-	ADI	ADI
Filter level	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	-
