V15H16-CZ300B datasheet, PDF - EEWORLD Datasheet

V15H16-CZ300B: DescriptionSnap Acting/Limit Switch, SPDT, Momentary, Quick Connect Terminal, Pin Plunger Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size879KB，6 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric View All

V15H16-CZ300B Overview

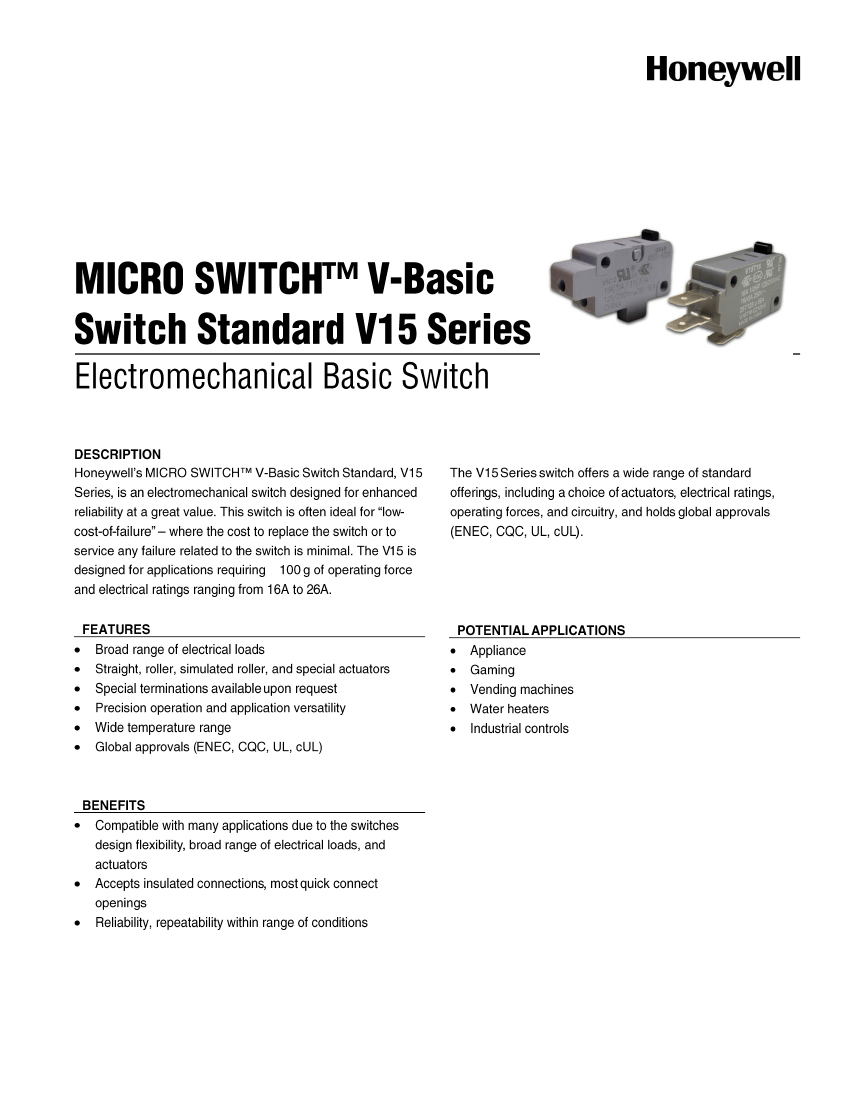

Snap Acting/Limit Switch, SPDT, Momentary, Quick Connect Terminal, Pin Plunger Actuator, Panel Mount

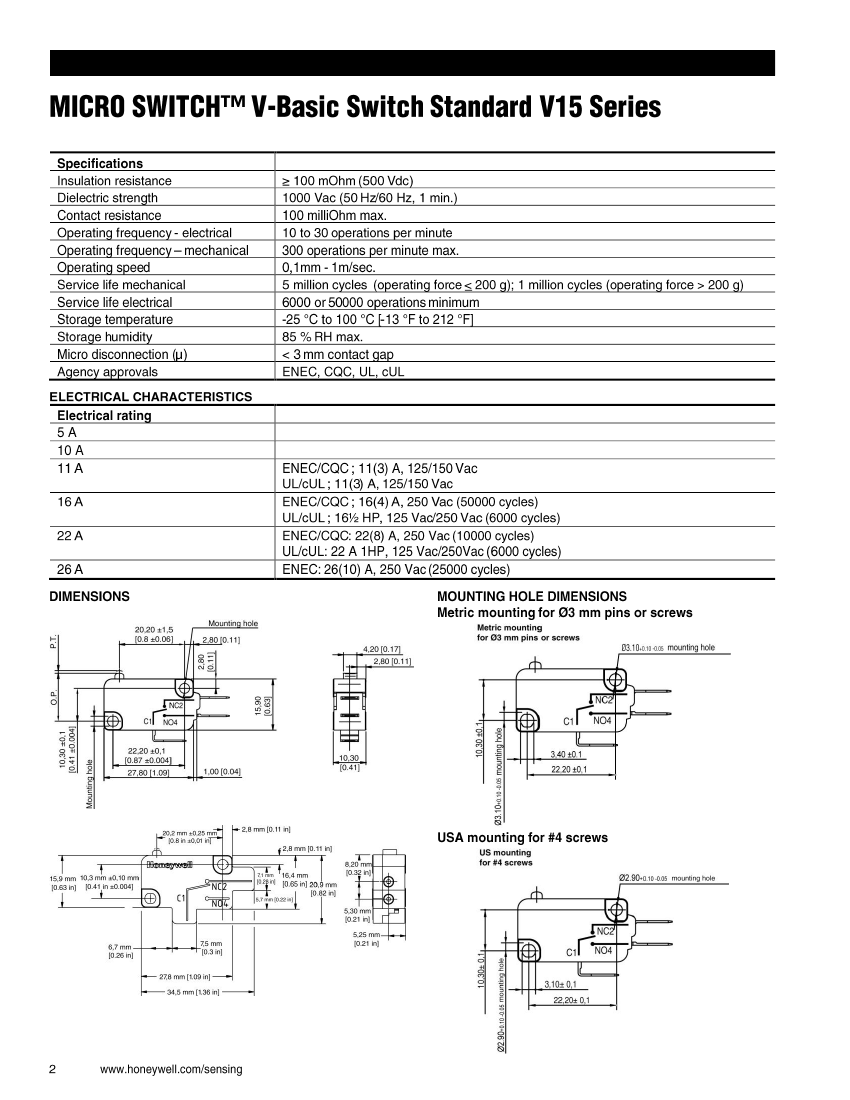

Parameter Name	Attribute value
Maker	Honeywell
Reach Compliance Code	unknown
ECCN code	EAR99

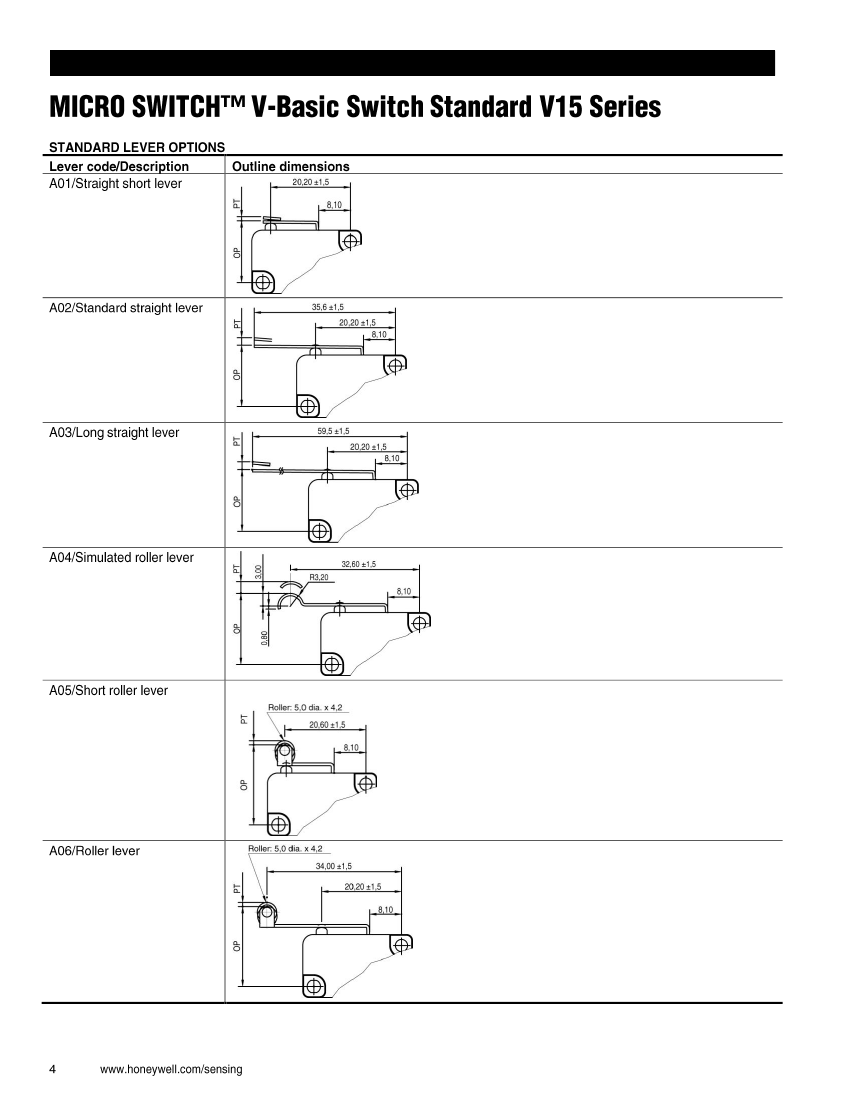

Actuator type	PIN PLUNGER
body width	10.3 mm
body height	15.9 mm
Body length or diameter	27.8 mm
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact voltage (AC)	250 V
Electrical life	6000 Cycle(s)
Manufacturer's serial number	V15
Installation features	PANEL MOUNT
Maximum operating force	2.94 N
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH

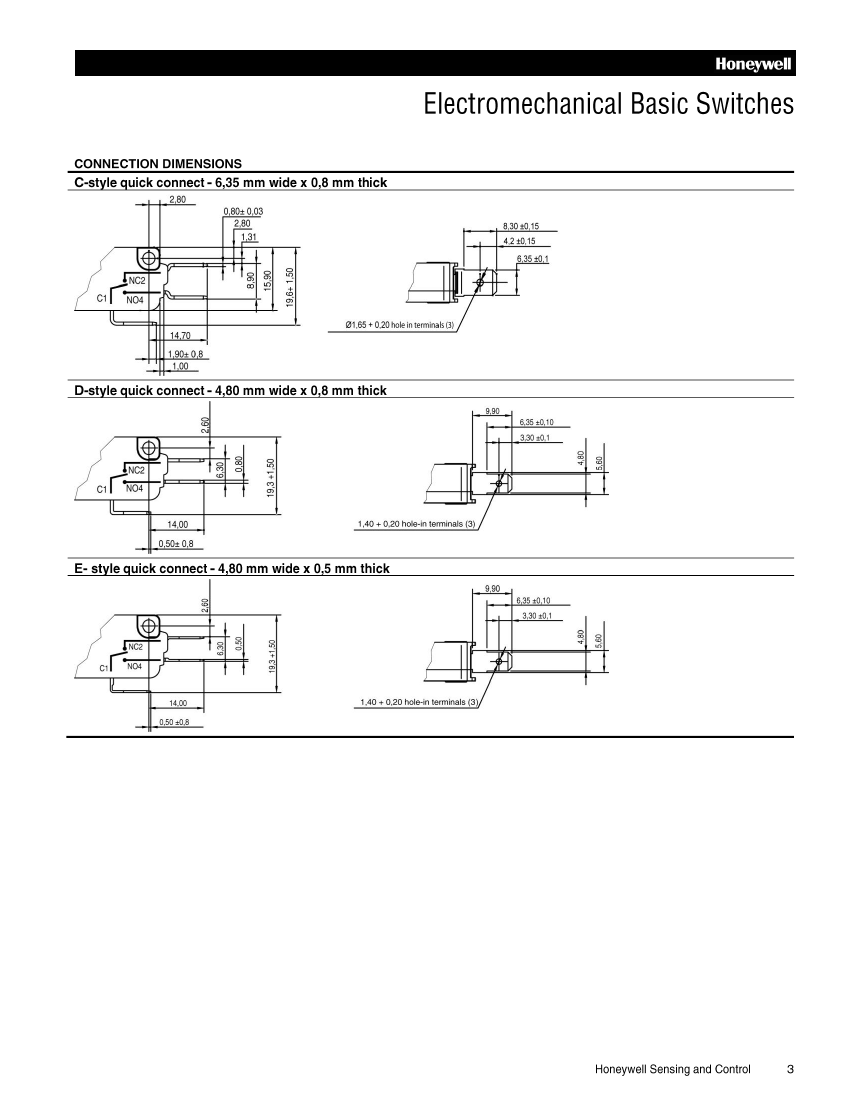

Termination type	QUICK CONNECT

≥
