APL5606/A
Low Dropout 600mA Linear Regulator for DC Fan Control
Features
•
•
•
•
•
•
•
•
•
•
Low Dropout Voltage: 220mV (typical) @ 600mA
Low Quiescent Current: 140µA
Selectable Adjustable/Full Speed Mode
O/I Voltage Ratio in Adjustable Mode : 1.6 times
Stable with Low ESR Ceramic Capacitors
Over-Temperature Protection
Current-Limit Protection with Foldback Current
Internal Soft-Start
SOP-8 Package
Lead Free and Green Devices Available
(RoHS Compliant)
General Description
The APL5606/A is a low quiescent current and low drop-
out linear regulator which is designed with a P-channel
pass MOSFET to power a DC fan and delivers output
current up to 600mA. In adjustable mode, the output
voltage follows the 1.6 times of the voltage on VSET pin to
dynamically adjust the DC fan speed; in full speed mode,
the internal P-channel MOSFET fully turns on to drive the
DC fan with maximum supply voltage for full speed
operation.The APL5606/A with low 140µA quiescent cur-
rent is ideal for battery-powered system appliances. It
is also stable with a low-ESR ceramic output capacitor (
2.2µF typical) to reduce total cost and to minimize the
PCB area required. The APL5606/A features current-limit
(with foldback current) and over-temperature protections
to protect the device against current over-loads and over-
V
OUT
VIN
VOUT
C2
2.2µF
Simplified Application Circuit
V
IN
C1
1µF
Adjustable mode
FSM
Full speed mode
GND
VSE
T
Speed control
voltage (V
SET
)
temperature. The APL5606/A is available in a SOP-8
package.
Applications
•
•
•
•
Notebook Fan Driver
Motherboards
PC Peripherals
Battery-Powered System
APL5606/A
Ordering and Marking Information
APL5606/A
Assembly Material
Handling Code
Temperature Range
Package Code
APL5606
XXXXX
APL5606A
XXXXX
Package Code
K : SOP-8
Operating Ambient Temperature Range
I : -40 to 85
o
C
Handling Code
TR : Tape & Reel
Assembly Material
L : Lead Free Device
G : Halogen and Lead Free Device
XXXXX - Date Code
APL5606/A K :
Note: ANPEC lead-free products contain molding compounds/die attach materials and 100% matte tin plate termination finish; which
are fully compliant with RoHS. ANPEC lead-free products meet or exceed the lead-free requirements of IPC/JEDEC J-STD-020D for
MSL classification at lead-free peak reflow temperature. ANPEC defines “Green” to mean lead-free (RoHS compliant) and halogen
free (Br or Cl does not exceed 900ppm by weight in homogeneous material and total of Br and Cl does not exceed 1500ppm by
weight).
ANPEC reserves the right to make changes to improve reliability or manufacturability without notice, and
advise customers to obtain the latest version of relevant information to verify before placing orders.
Copyright
©
ANPEC Electronics Corp.
Rev. A.4 - Dec., 2010
1
www.anpec.com.tw
APL5606/A
Pin Configuration
SOP-8
Top View
FSM 1
VIN 2
VOUT 3
VSET 4
8 GND
7 GND
6 GND
5 GND
APL5606/A
Absolute Maximum Ratings
Symbol
V
IN
V
FSM
V
OUT
T
J
P
D
T
STG
T
L
VIN to GND
FSM to GND
VOUT to GND
Maximum Junction Temperature
Power Dissipation
Storage Temperature Range
Lead Temperature, 10 Seconds
(Note 1)
Parameter
Rating
-0.3 ~ 6.5
-0.3 ~ V
IN
+0.3
-0.3 ~ V
IN
+0.3
150
Internally Limited
-65 ~ 150
260
Unit
V
V
V
o
C
o
C
C
o
Note1: Stresses beyond the absolute maximum rating may damage the device and exposure to absolute maximum rating conditions
for extended periods may affect device reliability.
Thermal Characteristics
Symbol
θ
JA
Parameter
Junction to Ambient Thermal Resistance
(Note 2)
SOP-8
Typical Value
80
Unit
°C/W
Note 2 : q
JA
is measured with the component mounted on a high effective thermal conductivity test board in free air.
Recommended Operating Conditions
Symbol
V
IN
V
FSM
V
OUT
V
SET
I
OUT
C
IN
C
OUT
T
J
T
A
VIN to GND
FSM to GND
VOUT to GND
VSET to GND
Output Current
Input Capacitor
Output Capacitor
Junction Temperature
Ambient Temperature
Parameter
Range
4.5 ~ 6
0 ~ V
IN
0 ~ V
IN
-V
DROP
0 ~ 3.3
0 ~ 0.6
0.82 ~ 470
1 ~ 330
-40 ~ 125
-40 ~ 85
Unit
V
V
V
V
A
µF
µF
°C
°C
Copyright
©
ANPEC Electronics Corp.
Rev. A.4 - Dec., 2010
2
www.anpec.com.tw
APL5606/A
Electrical Characteristics
Refer to the typical application circuit. V
IN
= 5V, V
FSM
= V
IN
, I
OUT
= 1mA~600mA, T
J
= -40 to 125
°C,
T
A
= -40 to 85°C,
unless otherwise specified. Typical values are at T
A
= 25
°C.
Symbol
SUPPLY CURRENT
I
Q
Quiescent Current
V
FSM
= 0V
V
FSM
= 5V, I
OUT
= 0A
-
-
-
140
1
200
µA
µA
V
V
Parameter
Test Conditions
APL5606/A
Min.
Typ.
Max.
Unit
UNDER-VOLTAGE-LOCKOUT (UVLO)
VIN UVLO Threshold
VIN UVLO Hysteresis
OUTPUT VOLTAGE
VOUT Voltage / VSET Voltage
VOUT Voltage / VSET Voltage
VSET pin Current
Line Regulation
Load Regulation
T
J
= 25°C, V
IN
=5.5V, I
OUT
=1mA,
V
SET
=3.3V
T
J
= 40 ~ 125°C, V
IN
=5.5V, I
OUT
=1mA,
V
SET
=1 ~ 3.3V
V
SET
=5V
V
IN
= V
OUT
+ 1V to 6V
I
OUT
= 1mA to 600mA
I
OUT
= 600mA, V
OUT
=2.5V
V
DROP
Dropout Voltage
I
OUT
= 600mA, V
OUT
=3.3V
I
OUT
= 600mA, V
OUT
=5V
PROTECTION AND SOFT-START
I
LIM
Output Current-Limit
Thermal Shutdown Temperature
Thermal Shutdown Hysteresis
Foldback Current-Limit
T
SS
Soft-Start Time
VOUT Pull Low Resistance
LOGIC INPUT
FSM Logic Input-High Level
FSM Logic Input-Low Level
FSM Pull-Low Resistance
FSM Pull-High Resistance
APL5606, V
FSM
<3V
APL5606A
1.6
-
-
-
-
-
2
390
-
0.4
-
-
V
V
MΩ
kΩ
V
FSM
=0V, V
OUT
=0.5V
V
OUT
<
0.6V
700
-
-
-
-
-
-
150
40
250
130
60
-
-
-
-
300
-
mA
°C
°C
mA
µs
Ω
1.552
1.504
-
-
-
-
-
-
1.6
1.6
0.05
0.03
60
250
220
200
1.648
1.696
1
0.1
100
400
350
320
V/V
V/V
µA
%/V
mV
mV
mV
mV
V
IN
rising
2.1
-
2.5
0.15
2.9
-
Copyright
©
ANPEC Electronics Corp.
Rev. A.4 - Dec., 2010
3
www.anpec.com.tw
APL5606/A

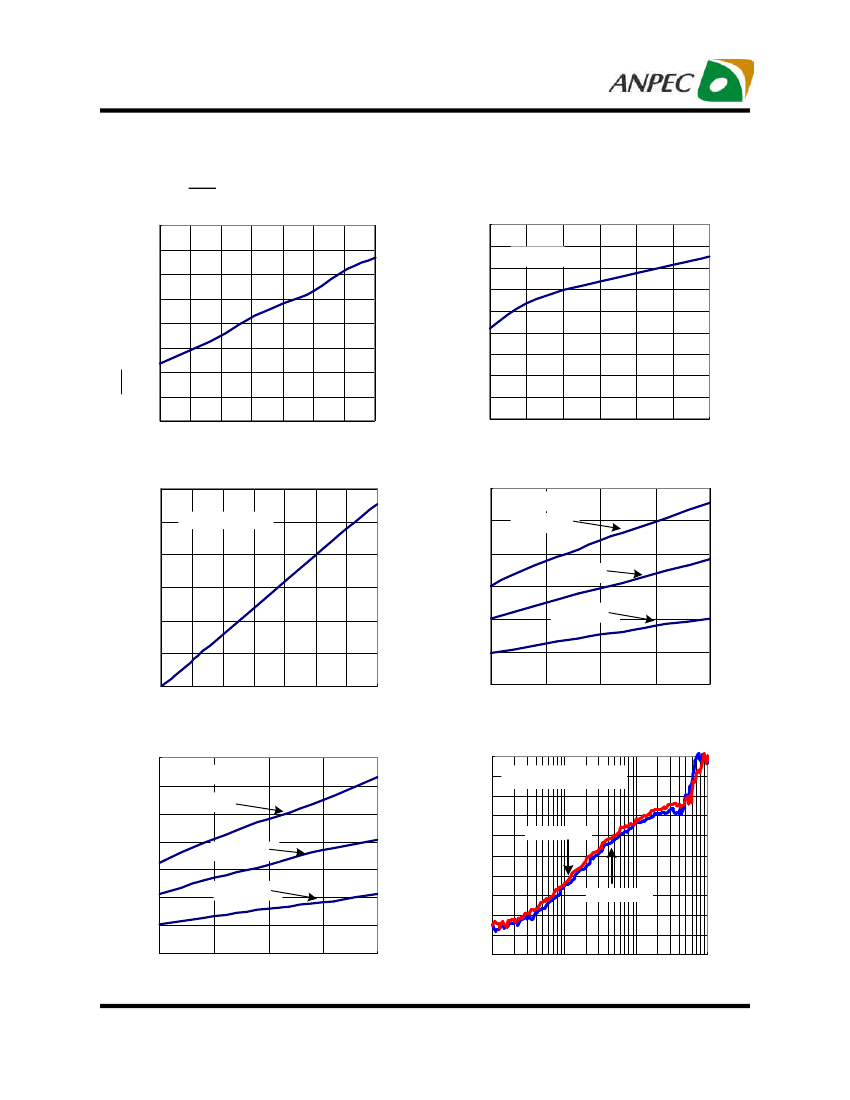

Typical Operating Characteristics
V
IN
=5V, V
SET
=2V, V
OUT
=3.2V, C
IN
=1µF, C
OUT
=2.2µF, unless otherwise specified.
FSM Voltage Threshold vs.
1.6
Input Voltage
Quiescent Current vs. VSET Voltage
180
160
Quiescent Current, I
Q
(μA)
140
120
100
80
60
40
20
FSM Voltage Threshold (V)
1.5
1.4
1.3
1.2
1.1
1
0.9
0.8
3
3.5
4
4.5
5
5.5
Input Voltage (V)
6
6.5
I
OUT
=0mA
0
0
0.5
1
1.5
2
VSET Voltage (V)
2.5
3
VSET Voltage vs. Output Voltage
6
5
I
OUT
=10mA
In Adjustable Mode
Dropout vs. Junction Temperature
300
V
OUT
=5V
250
Dropout Voltage (mV)
200
I
OUT
=600mA
Output Voltage (V)
4
3
2
1
0
0
0.5
1
1.5
2
2.5
VSET Voltage (V)
3
3.5
I
OUT
=400mA
150
100
50
0
-50
0
50
100
Junction Temperature, T
J
(
o
C)
150
I
OUT
=200mA
Dropout vs. Junction Temperature
350
300
V
OUT
=3.3V
I
OUT
=600mA
Power Supply Rejection Ratio (PSRR)
0
-5
-10
-15
V
IN
=5, C
IN
=1µF, C
OUT
=2.2µF,
V
SET
=2V, V
OUT
=3.2V
Dropout Voltage (mV)
250
200
150
100
50
0
-50
PSRR (dB)
-20
-25
-30
-35
-40
-45
I
OUT
=500mA
I
OUT
=400mA
I
OUT
=200mA
I
OUT
=400mA
0
50
100
Junction Temperature, T
J
(
o
C)
150
-50
1000
10000
100000
1000000
Frequency (Hz)
4
www.anpec.com.tw
Copyright
©
ANPEC Electronics Corp.
Rev. A.4 - Dec., 2010
