dropout linear regulator. The Device includes pass
element, error amplifier, band-gap, current-limit and
thermal shutdown circuitry. The characteristics of
low dropout voltage and less quiescent current
make it good for some critical current application,
for example, some battery powered devices. The
typical quiescent current is approximately 50µA
from zero to maximum load. Due to internal flexible
design, result in extensively fixed output voltage
versions and make it convenient to use for
applications.
Built-in
current-limit
and
thermal-shutdown functions prevent any fault
condition from IC damage.
Applications
- Wireless Communication
- Battery Powered device
- CD-ROM, DVD, and LAN Card
- PC peripheral
Ordering Information
AP130 XX XX X
Output voltage
15
18
20
25
28
30
33
35
: 1.5V
: 1.8V
: 2.0V
: 2.5V
: 2.8V
: 3.0V
: 3.3V
: 3.5V
Package
Y : SOT89
YR : SOT89R
W: SOT23
R: SOT23R
Z : TO92
ZR : TO92R
TW : TSOT23
Packing
Blank:Tube
A : Taping
Block Diagram
IN
Error
Amp
OUT
Current
Limit
- +
Thermal
Shutdown
Bandgap
1.08V
GND
This datasheet contains new product information. Anachip Corp. reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of
this product. No rights under any patent accompany the sale of the product.
Rev. 1.5 Nov 09, 2005
1/9
This Anachip version datasheet is replaced
with Diodes Inc. datasheet AP130
AP130
300mA Low Dropout (LDO) Linear Regulator
Pin Assignments and Pin Descriptions
Package
Type
( Top View )
3
Code
No.
1
Name
IN
OUT
GND
GND
OUT
IN
OUT
GND
IN
GND
Description
w
1
2
2
3
1
( SOT23)
( Top View )
3
R
1
2
2
3
1
(SOT23R)
( Top View )
Y
1
2
3
2
3
1
(SOT89)
( Top View )
YR
1
2
3
IN: Power Input
OUT: Output Voltage
GND: Ground
2
3
1
IN
OUT
IN
GND
(SOT89R)
(Top View)
Z
1
2
3
2
(TO92)
(Top View)
ZR
1
2
3
3
1
2
3
1
TW
2
3
OUT
GND
IN
OUT
IN
OUT
GND
(TO92R)
( Top View )
3
1
2
( TSOT23)
Anachip Corp.
www.anachip.com.tw
2/9
Rev. 1.5
Nov 09, 2005
This Anachip version datasheet is replaced
with Diodes Inc. datasheet AP130
AP130
300mA Low Dropout (LDO) Linear Regulator
Absolute Maximum Ratings
Symbol
V
CC
T
OP
T
ST
Parameter
Input Voltage
Operating Junction Temperature Range
Storage Temperature Range
Power Dissipation, P
D
@T
A
=25ºC
TO-92
SOT-89
SOT-23 / TSOT23-3L
Package Thermal Resistance
TO-92
SOT-89
SOT-23 / TSOT23-3L
Rating
-0.1 to +7
-40 to +125
-65 to +150
+0.6
+0.5
+0.25
+100
+100
+250
Unit
V
ºC
ºC
W
W
W
ºC/W
ºC/W
ºC/W
P
D
θ
JA
Electrical Characteristics
T
A
=25ºC, C
IN
=1µF, C
OUT
=10µF, unless otherwise specified.
Symbol
V
DROP
I
LIMIT
I
short
∆V
LINE
PSRR
∆V
LOAD
∆V
OUT
Parameter
Dropout Voltage (Note 1)
Current Limit (Note 2)
Short Circuit Current
Line Regulation
Ripple Rejection
Load Regulation (Note 3)
Output Voltage Accuracy
Output Voltage Temperature
Coefficient (Note 4)
Quiescent Current
Conditions
I
L
=300mA
V
IN
=5V, V
OUT
=0V
V
OUT
<1.05V
I
L
=1mA, V
IN
=5~7V
F=100Hz,
C
IN
=1µF, C
O
=10uF,
I
L
=100mA
I
L
=1~300mA, V
IN
=5V
I
L
=1mA, V
IN
=5V
Min.
-
350
-
-
-
-
-2
-
Typ.
400
450
150
0.1
58
30
-
50
50
Max.
500
-
300
0.3
-
40
+2
150
100
Unit
mV
mA
mA
%/V
dB
mV
%
PPM/ºC
μA
I
Q
I
L
=0mA, V
IN
=5V
-
Note 1.
Dropout voltage is defined as the input to output differential voltage. Dropout is measured at constant junction temperature by
using pulsed ON time, and the criterion is V
OUT
inside target value ±2%. This test is skipped at the condition of V
IN
<3V.
Note 2.
Current limit is measured at constant junction temperature by using pulsed testing with a low ON time.
Note 3.
Regulation is measured at constant junction temperature by using pulsed testing with a low ON time.
Note 4.
Guaranteed by design.
Anachip Corp.
www.anachip.com.tw
3/9
Rev. 1.5
Nov 09, 2005
This Anachip version datasheet is replaced
with Diodes Inc. datasheet AP130
AP130
300mA Low Dropout (LDO) Linear Regulator

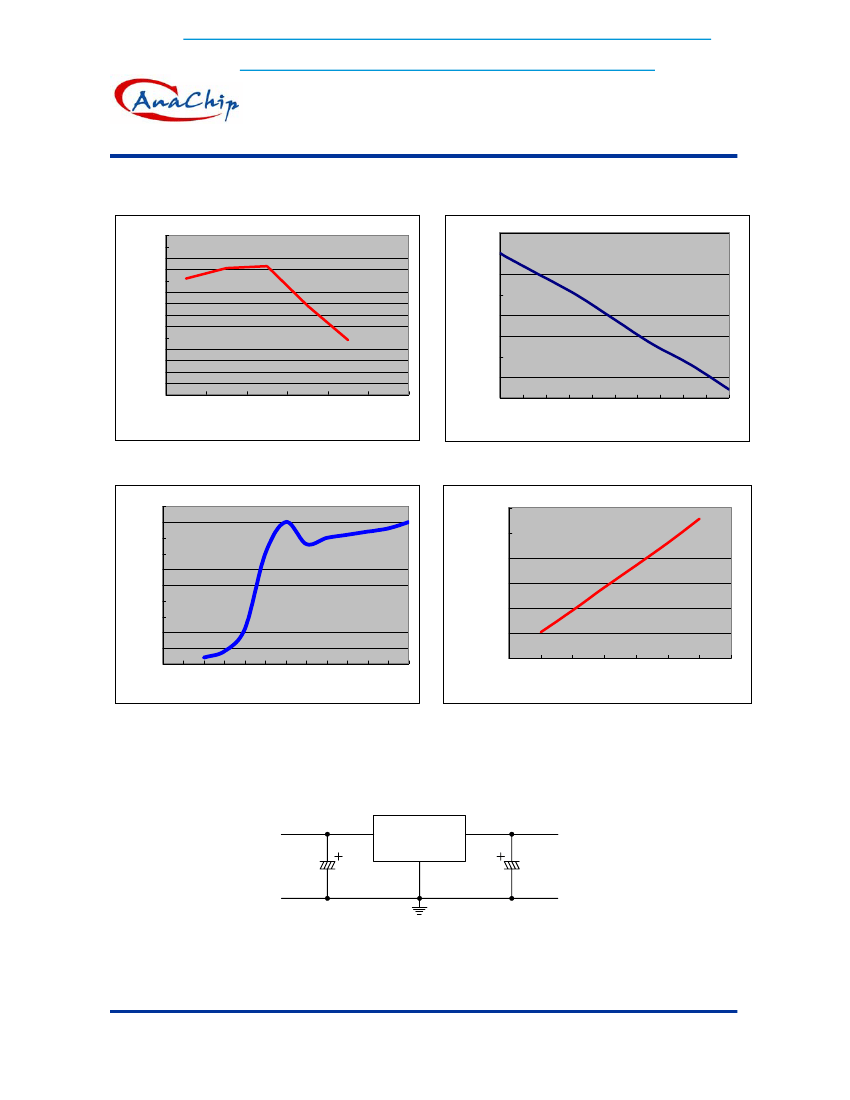

Typical Characteristics
70
65
60
55
50
45
40
35
30
25
20
15
10
5
0
AP130 PSRR V.S. Frequency
3.35
3.345
3.34
3.335
AP130 Vout V.S. Load Current
PSRR (dB)
Vout (V)
10
100
1K
10K
100K
1M
3.33
3.325
3.32
3.315
3.31
0
30
60
90 120 150 180 210 240 270 300
Frequency (Hz)
Load Current
PSRR V.S. Frequency
AP130 GND Current V.S. Input Voltage
Vout V.S. Load Current
AP130 Dropout V.S. Load
0.3
0.25
50
45
GND Current (uA)
30
25
20
15
10
5
0
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6
Dropout (V)
40
35
0.2
0.15
0.1
0.05
0
0
50
100
150
200
250
300
350
Input Voltage (V)
Load (Io) (mA)
GND Current V.S. Input Voltage
Dropout V.S. Load
Typical Application Circuit
AP130
IN
OUT
GND
V
IN
C
IN
1uF
C
OUT
10uF
V
OUT
Anachip Corp.
www.anachip.com.tw
4/9
Rev. 1.5
Nov 09, 2005
This Anachip version datasheet is replaced
with Diodes Inc. datasheet AP130
AP130
300mA Low Dropout (LDO) Linear Regulator
Function Description
A minimum of 10µF capacitor must be connected from OUT to ground to insure stability. Typically a large
storage capacitor is connected from V
IN
to ground to ensure that the input voltage does not sag below the
minimum dropout voltage during the load transient response. This pin must always be 0.7V higher than V
