AP130
300mA Low Dropout (LDO) Linear Regulator
Features
- Input voltage range is up to 7V
- Dropout voltage 400mV at 300mA output current
- Guaranteed 300mA output current.
- Internal R
ON
=1.5Ω PMOS draws no base current
- Low quiescent current 50µA
- Output voltage: 1.5V/1.8V/2.0V/2.5V/2.8V/3.0V/
3.3V/3.5V; accuracy 2%
- Fast transient response
- Good load regulation
- Current limit and thermal shutdown protection
- Short circuit current fold-back
- 3 leads SOT89,TO92 and SOT23,TSOT23-3L
Pb-Free
Package
General Descriptions
The AP130 is a 300mA, fixed output voltage, low
dropout linear regulator. The Device includes pass
element, error amplifier, band-gap, current-limit and
thermal shutdown circuitry. The characteristics of
low dropout voltage and less quiescent current
make it good for some critical current application,
for example, some battery powered devices. The
typical quiescent current is approximately 50µA
from zero to maximum load. Due to internal flexible
design, result in extensively fixed output voltage
versions and make it convenient to use for
applications.
Built-in
current-limit
and
thermal-shutdown functions prevent any fault
condition from IC damage.
Applications
- Wireless Communication
- Battery Powered device
- CD-ROM, DVD, and LAN Card
- PC peripheral
Ordering Information
AP130 XX XX X
Output voltage
15
18
20
25
28
30
33
35
: 1.5V
: 1.8V
: 2.0V
: 2.5V
: 2.8V
: 3.0V
: 3.3V
: 3.5V
Package
Y : SOT89
YR : SOT89R
W: SOT23
R: SOT23R
Z : TO92
ZR : TO92R
TW : TSOT23
Packing
Blank:Tube
A : Taping
Block Diagram
IN
Error
Amp
OUT
Current
Limit
- +
Thermal
Shutdown
Bandgap
1.08V
GND
This datasheet contains new product information. Anachip Corp. reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of
this product. No rights under any patent accompany the sale of the product.
Rev. 1.5 Nov 09, 2005
1/9
AP130
300mA Low Dropout (LDO) Linear Regulator
Absolute Maximum Ratings
Symbol
V
CC
T
OP
T
ST
Parameter
Input Voltage
Operating Junction Temperature Range
Storage Temperature Range
Power Dissipation, P
D
@T
A
=25ºC
TO-92
SOT-89
SOT-23 / TSOT23-3L
Package Thermal Resistance
TO-92
SOT-89
SOT-23 / TSOT23-3L
Rating
-0.1 to +7
-40 to +125
-65 to +150
+0.6
+0.5
+0.25
+100
+100
+250
Unit
V
ºC
ºC
W
W
W
ºC/W
ºC/W
ºC/W
P
D
θ
JA
Electrical Characteristics
T
A
=25ºC, C
IN
=1µF, C
OUT
=10µF, unless otherwise specified.
Symbol
V
DROP
I
LIMIT
I
short
∆V
LINE
PSRR
∆V
LOAD
∆V
OUT
Parameter
Dropout Voltage (Note 1)
Current Limit (Note 2)
Short Circuit Current
Line Regulation
Ripple Rejection
Load Regulation (Note 3)
Output Voltage Accuracy
Output Voltage Temperature
Coefficient (Note 4)
Quiescent Current
Conditions
I
L
=300mA
V
IN
=5V, V
OUT
=0V
V
OUT
<1.05V
I
L
=1mA, V
IN
=5~7V
F=100Hz,
C
IN
=1µF, C
O
=10uF,
I
L
=100mA
I
L
=1~300mA, V
IN
=5V
I
L
=1mA, V
IN
=5V
Min.
-
350
-
-
-
-
-2
-
Typ.
400
450
150
0.1
58
30
-
50
50
Max.
500
-
300
0.3
-
40
+2
150
100
Unit
mV
mA
mA
%/V
dB
mV
%
PPM/ºC
μA
I
Q
I
L
=0mA, V
IN
=5V
-
Note 1.
Dropout voltage is defined as the input to output differential voltage. Dropout is measured at constant junction temperature by
using pulsed ON time, and the criterion is V
OUT
inside target value ±2%. This test is skipped at the condition of V
IN
<3V.
Note 2.
Current limit is measured at constant junction temperature by using pulsed testing with a low ON time.
Note 3.
Regulation is measured at constant junction temperature by using pulsed testing with a low ON time.
Note 4.
Guaranteed by design.
Anachip Corp.
www.anachip.com.tw
3/9
Rev. 1.5
Nov 09, 2005
AP130
300mA Low Dropout (LDO) Linear Regulator

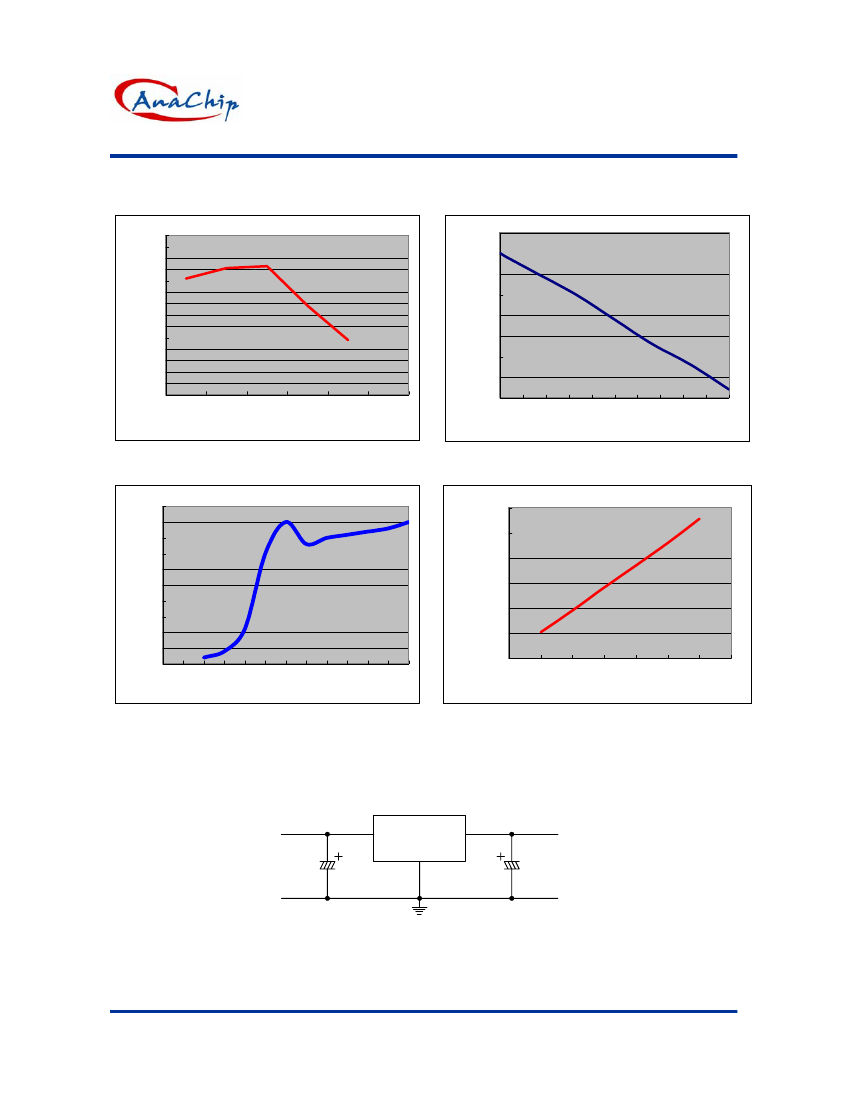

Typical Characteristics
70
65
60
55
50
45
40
35
30
25
20
15
10
5
0
AP130 PSRR V.S. Frequency
3.35
3.345
3.34
3.335
AP130 Vout V.S. Load Current
PSRR (dB)
Vout (V)
10
100
1K
10K
100K
1M
3.33
3.325
3.32
3.315
3.31
0
30
60
90 120 150 180 210 240 270 300
Frequency (Hz)
Load Current
PSRR V.S. Frequency
AP130 GND Current V.S. Input Voltage
Vout V.S. Load Current
AP130 Dropout V.S. Load
0.3
0.25
50
45
GND Current (uA)
30
25
20
15
10
5
0
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6
Dropout (V)
40
35
0.2
0.15
0.1
0.05
0
0
50
100
150
200
250
300
350
Input Voltage (V)
Load (Io) (mA)
GND Current V.S. Input Voltage
Dropout V.S. Load
Typical Application Circuit
AP130
IN
OUT
GND
V
IN
C
IN
1uF
C
OUT
10uF
V
OUT
Anachip Corp.
www.anachip.com.tw
4/9
Rev. 1.5
Nov 09, 2005
AP130
300mA Low Dropout (LDO) Linear Regulator
Function Description
A minimum of 10µF capacitor must be connected from OUT to ground to insure stability. Typically a large
storage capacitor is connected from V
IN
to ground to ensure that the input voltage does not sag below the
minimum dropout voltage during the load transient response. This pin must always be 0.7V higher than V
OUT
in order for the device to regulate properly.
Marking Information
(Top View)
XX
XX Y M
: Identification code
(See Appendix)
Output voltage
15: 1.5V
35: 3.5V
AP130
XX
Y WWX X
Internal code: Blank or A~Z
Xth Week: 01~52
Year: "1"=2001
"2"=2002
Part Number
Y
: Year: 0-9
M
: Month: A~L
3
1
2
TSOT23-3L
1
2
3
XX Y M
: Identification code
(See Appendix)
Y
: Year: 0-9
M
: Month: A~L
3
XX
TO92
(Top View)
XX
Y M
1
2
3
1
2
SOT23-3L
XX
: Identification code
(See Appendix)
Y
: Year: 0-9
M
: Month: A~L
SOT89-3L
Appendix
Part Number
SOT23/TSOT23
SOT89
Identification
code
CA
CD
CF
CK
CN
CP
CS
CU
Part Number
SOT23/TSOT23
SOT89
Identification
code
GO
GR
GT
GY
H1
H3
H9
HB
AP130-15W
AP130-18W
AP130-20W
AP130-25W
AP130-28W
AP130-30W
AP130-33W
AP130-35W
AP130-15Y
AP130-18Y
AP130-20Y
AP130-25Y
AP130-28Y
AP130-30Y
AP130-33Y
AP130-35Y
AP130-15R
AP130-18R
AP130-20R
AP130-25R
AP130-28R
AP130-30R
AP130-33R
AP130-35R
AP130-15YR
AP130-18YR
AP130-20YR
AP130-25YR
AP130-28YR
AP130-30YR
AP130-33YR
AP130-35YR
Anachip Corp.
www.anachip.com.tw
5/9
Rev. 1.5
Nov 09, 2005
