LPP100-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LPP100-15

LPP100-15: DescriptionAC-DC Power Factor Correction Module,; CategoryPower/power management The power supply circuit; File Size322KB，4 Pages; ManufacturerAstrodyne TDI

Download Datasheet Parametric Compare View All

LPP100-15 Overview

AC-DC Power Factor Correction Module,

LPP100-15 Parametric

Parameter Name	Attribute value
Maker	Astrodyne TDI
package instruction	PACKAGE-14
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE
Maximum input voltage	264 V
Minimum input voltage	90 V
Nominal input voltage	115 V
JESD-30 code	R-XXMA-X14
Number of functions	1
Output times	1
Number of terminals	14
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
Maximum output voltage	16.5 V
Minimum output voltage	14.3 V
Nominal output voltage	15 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum total power output	100 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

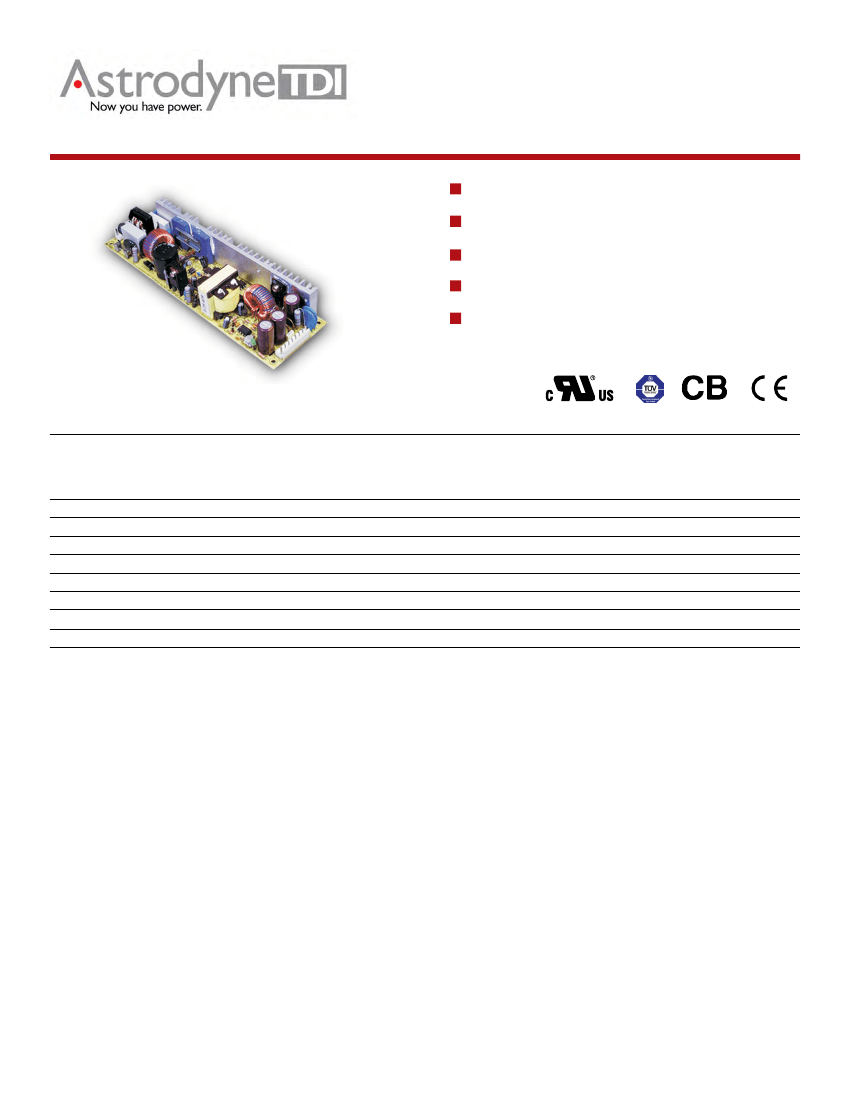

100 W S in gl e Ou tpu t with PF C Func t i on

Universal AC input

LPP100

Protections:Short circuit/Over load/Over voltage

Built-in active PFC function

Cooling by free air convection

series

Fixed switching frequency at PFC:67KHz PWM:134KHz

Model Number

SINGLE OUTPUT

LPP100-3.3

LPP100-5

LPP100-7.5

LPP100-12

LPP100-13.5

LPP100-15

LPP100-24

LPP100-27

LPP100-48

Output Volts

Output Amps

Ripple & Noise

Min Load

DC Volt Adjust Load Reg Efficiency

3.3 Volts(DC)

5 Volts(DC)

7.5 Volts(DC)

12 Volts(DC)

13.5 Volts(DC)

15 Volts(DC)

24 Volts(DC)

27 Volts(DC)

48 Volts(DC)

20 Amps

13.5 Amps

8.5 Amps

7.5 Amps

6.7 Amps

4.2 Amps

3.8 Amps

2.1 Amps

100mV pk-pk

150mV pk-pk

250mV pk-pk

0~20Amps

0~13.3Amps

0~8.5Amps

0~7.5Amps

0~6.7Amps

0~4.2Amps

0~3.8Amps

0~2.1Amps

3.14~3.63Volt(DC)

4.75~5.5Volt(DC)

7.13~8.25Volt(DC)

11.4~13.2Volt(DC

12.8~14.9Volt(DC)

14.3~16.5Volt(DC)

22.8~26.4Volt(DC)

25.7~29.7Volt(DC)

45.6~52.8Volt(DC)

±1.0%

±0.5%

69%

75%

76%

79%

80%

83%

WWW.ASTRODYNE.COM

ASTRODYNE USA: 1-800-823-8082

ASTRODYNE PACIFIC: 886-2-26983458

LPP100-15 Related Products

	LPP100-15	LPP100-3.3	LPP100-12	LPP100-27	LPP100-48	LPP100-5	LPP100-7.5
Description	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,
Maker	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI
package instruction	PACKAGE-14	PACKAGE-14	PACKAGE-14	PACKAGE-14	PACKAGE-14	PACKAGE-14	PACKAGE-14
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE
Maximum input voltage	264 V	264 V	264 V	264 V	264 V	264 V	264 V
Minimum input voltage	90 V	90 V	90 V	90 V	90 V	90 V	90 V
Nominal input voltage	115 V	115 V	115 V	115 V	115 V	115 V	115 V
JESD-30 code	R-XXMA-X14	R-XXMA-X14	R-XXMA-X14	R-XXMA-X14	R-XXMA-X14	R-XXMA-X14	R-XXMA-X14
Number of functions	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	50 °C	30 °C	50 °C	50 °C	50 °C	30 °C	30 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Maximum output voltage	16.5 V	3.63 V	13.2 V	29.7 V	52.8 V	5.5 V	8.25 V
Minimum output voltage	14.3 V	3.14 V	11.4 V	25.7 V	45.6 V	4.75 V	7.13 V
Nominal output voltage	15 V	3.3 V	12 V	27 V	48 V	5 V	7.5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	OTHER	COMMERCIAL	COMMERCIAL	COMMERCIAL	OTHER	OTHER
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Maximum total power output	100 W	66 W	100 W	100 W	100 W	100 W	100 W
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES	YES
