LPP150-48 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LPP150-48

LPP150-48: DescriptionAC-DC Power Factor Correction Module,; CategoryPower/power management The power supply circuit; File Size338KB，4 Pages; ManufacturerAstrodyne TDI

Download Datasheet Parametric Compare View All

LPP150-48 Overview

AC-DC Power Factor Correction Module,

LPP150-48 Parametric

Parameter Name	Attribute value
Maker	Astrodyne TDI
package instruction	PACKAGE-18
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE
Maximum input voltage	264 V
Minimum input voltage	90 V
Nominal input voltage	115 V
JESD-30 code	R-XXMA-X18
Number of functions	1
Output times	1
Number of terminals	18
Maximum operating temperature	40 °C
Minimum operating temperature	-10 °C
Maximum output voltage	52.8 V
Minimum output voltage	45.6 V
Nominal output voltage	48 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum total power output	150 W
Fine-tuning/adjustable output	YES

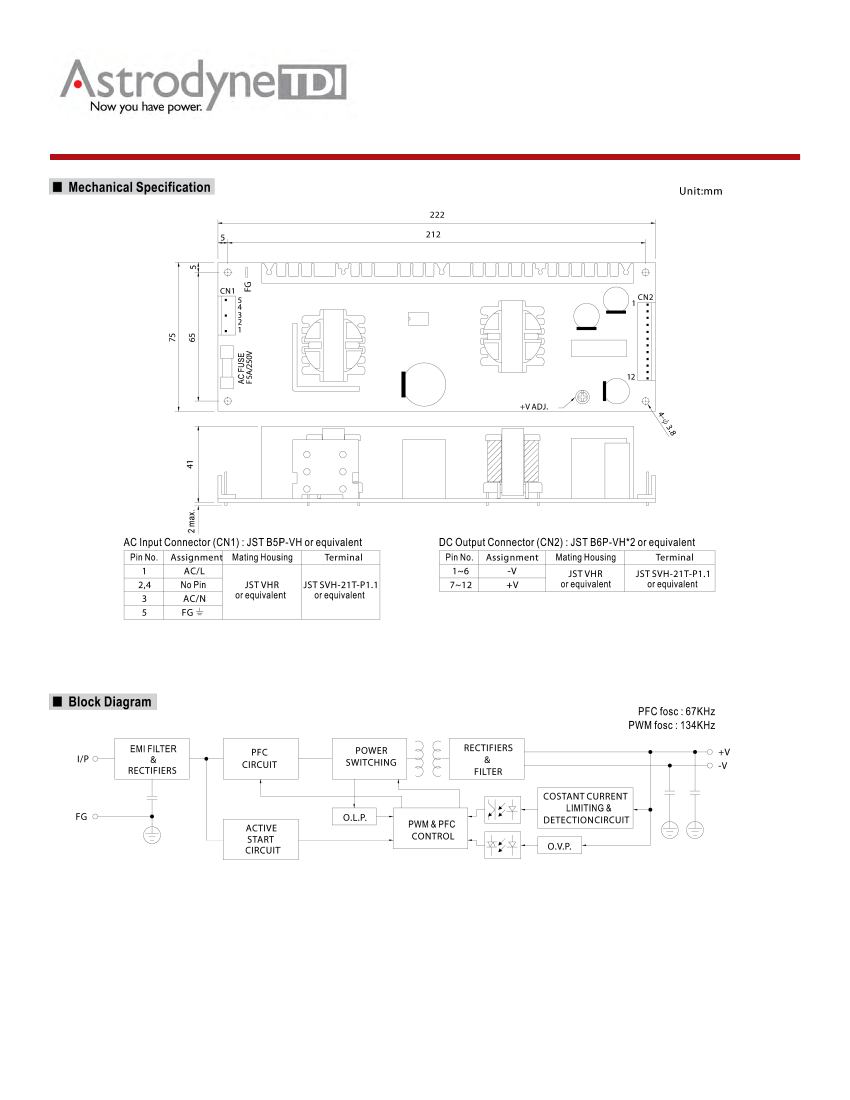

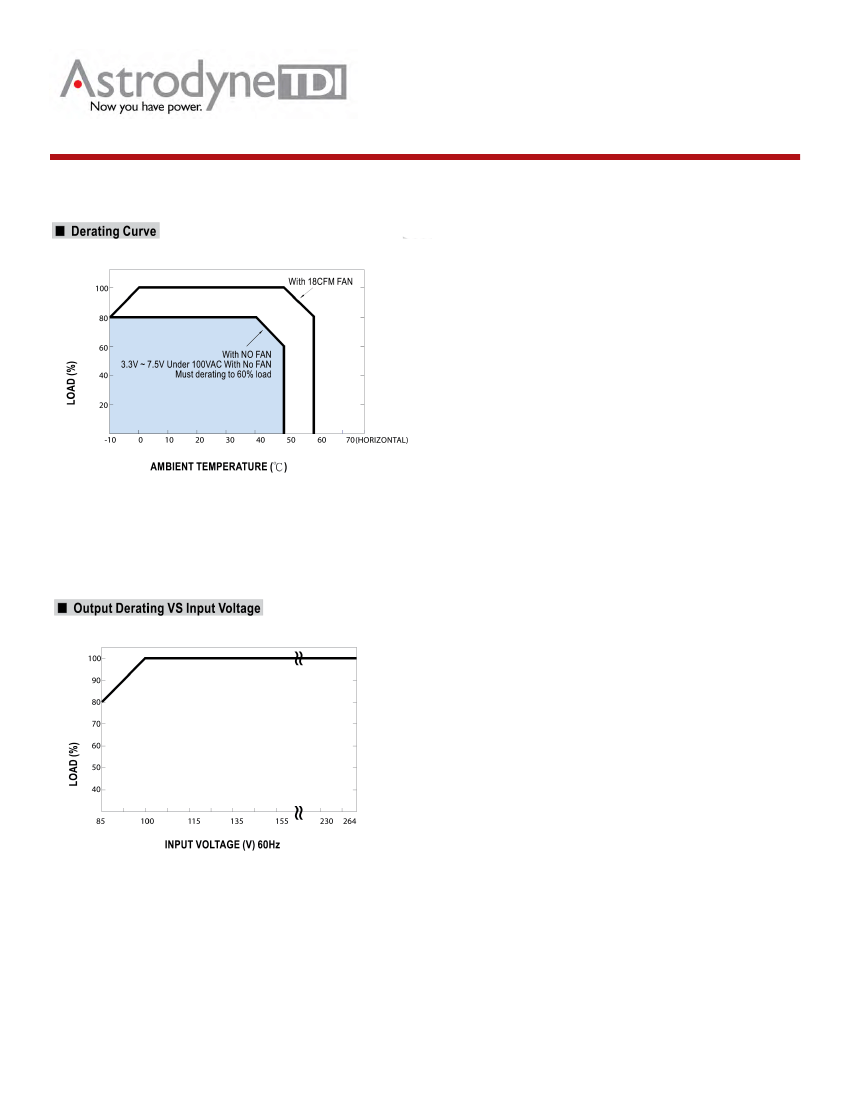

Preview

Download Datasheet

View All

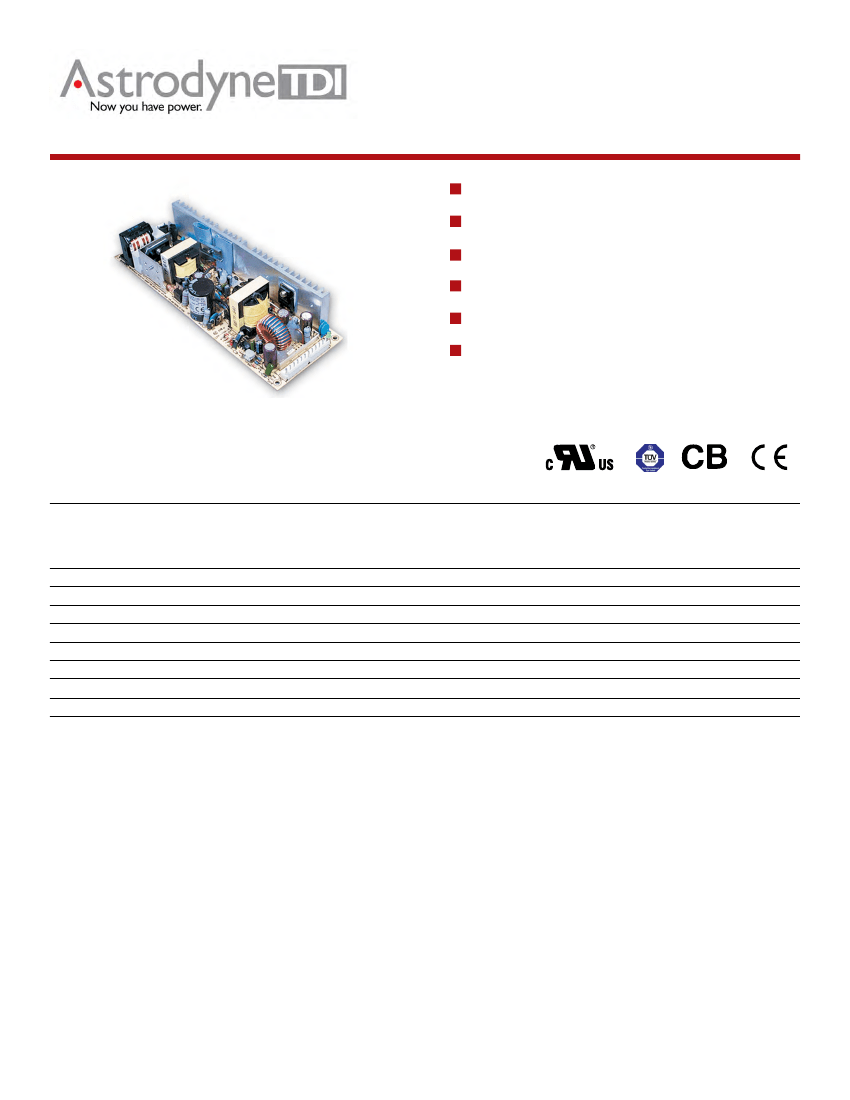

150 W S in gl e Ou tpu t with PF C Func t i on

Universal AC input

LPP150

Protections:Short circuit/Over load/Over voltage

Protections: Over temperature (option)

Built-in active PFC function, PF> 0.96

Cooling by free air convection

series

Fixed switching frequency at PFC:67KHz PWM:134KHz

Model Number

SINGLE OUTPUT

LPP150-3.3

LPP150-5

LPP150-7.5

LPP150-12

LPP150-13.5

LPP150-15

LPP150-24

LPP150-27

LPP150-48

Output Volts

Output Amps

Ripple & Noise

Min Load

DC Volt Adjust Load Reg Efficiency

3.3 Volts(DC)

5 Volts(DC)

7.5 Volts(DC)

12 Volts(DC)

13.5 Volts(DC)

15 Volts(DC)

24 Volts(DC)

27 Volts(DC)

48 Volts(DC)

30 Amps

20 Amps

12.5 Amps

11.2 Amps

10 Amps

6.3 Amps

5.6 Amps

3.2 Amps

100mV pk-pk

150mV pk-pk

250mV pk-pk

0~30Amps

0~20Amps

0~12.5Amps

0~11.2Amps

0~10Amps

0~6.3Amps

0~5..6Amps

0~3.2Amps

3.14~3.63Volt(DC)

4.75~5.5Volt(DC)

7.13~8.25Volt(DC)

11.4~13.2Volt(DC

12.8~14.9Volt(DC)

14.3~16.5Volt(DC)

22.8~26.4Volt(DC)

25.7~29.7Volt(DC)

45.6~52.8Volt(DC)

±1.0%

±0.5%

66%

72%

76%

79%

80%

83%

WWW.ASTRODYNE.COM

ASTRODYNE USA: 1-800-823-8082

ASTRODYNE PACIFIC: 886-2-26983458

LPP150-48 Related Products

	LPP150-48	LPP150-12	LPP150-15	LPP150-24	LPP150-27	LPP150-3.3	LPP150-5
Description	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,
Maker	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI
package instruction	PACKAGE-18	PACKAGE-18	PACKAGE-18	PACKAGE-18	PACKAGE-18	PACKAGE-18	PACKAGE-18
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE
Maximum input voltage	264 V	264 V	264 V	264 V	264 V	264 V	264 V
Minimum input voltage	90 V	90 V	90 V	90 V	90 V	90 V	90 V
Nominal input voltage	115 V	115 V	115 V	115 V	115 V	115 V	115 V
JESD-30 code	R-XXMA-X18	R-XXMA-X18	R-XXMA-X18	R-XXMA-X18	R-XXMA-X18	R-XXMA-X18	R-XXMA-X18
Number of functions	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1
Number of terminals	18	18	18	18	18	18	18
Maximum operating temperature	40 °C	40 °C	40 °C	40 °C	40 °C	40 °C	40 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Maximum output voltage	52.8 V	13.2 V	16.5 V	26.4 V	29.7 V	3.63 V	5.5 V
Minimum output voltage	45.6 V	11.4 V	14.3 V	22.8 V	25.7 V	3.14 V	4.75 V
Nominal output voltage	48 V	12 V	15 V	24 V	27 V	3.3 V	5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Maximum total power output	150 W	150 W	150 W	150 W	150 W	99 W	150 W
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES	YES
