TLR120A: DescriptionVisible LED, SINGLE COLOR LED, RED, 5 mm; CategoryLED optoelectronic/LED photoelectric; File Size81KB，3 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

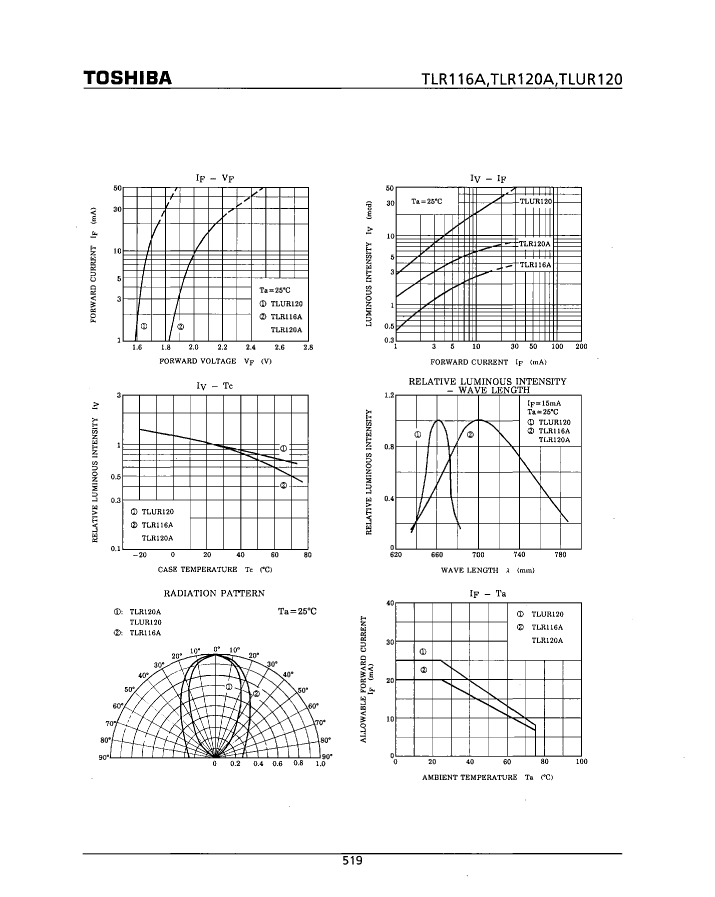

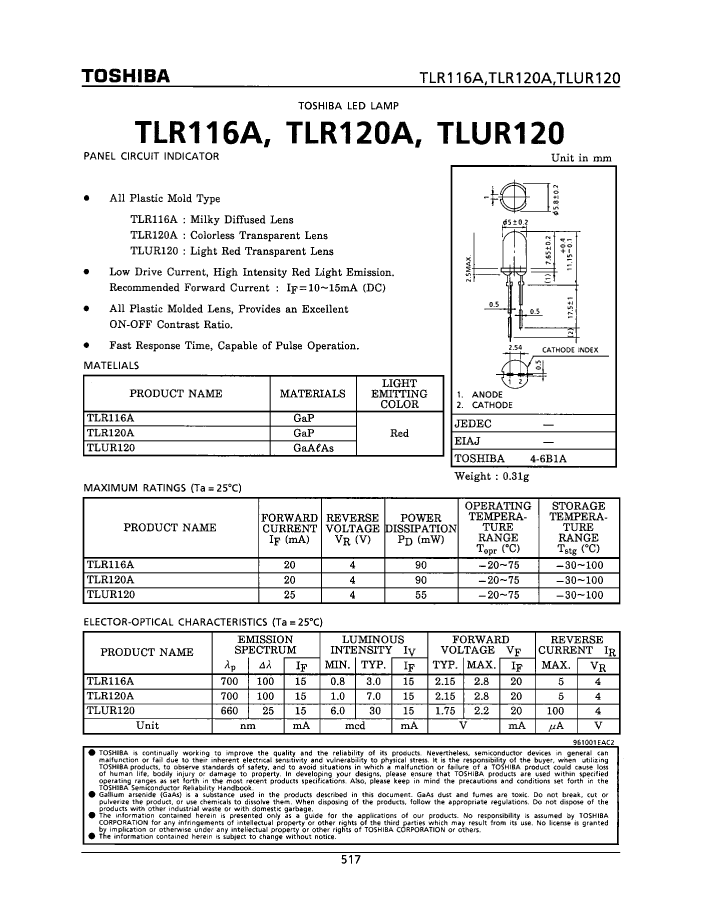

TLR120A Overview

Visible LED, SINGLE COLOR LED, RED, 5 mm

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Reach Compliance Code	unknown
color	RED
Configuration	SINGLE
Maximum forward current	0.02 A
JESD-609 code	e0
Lens type	COLORLESS TRANSPARENT
Nominal luminous intensity	7 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
total height	10.15 mm
method of packing	BULK
peak wavelength	700 nm
shape	ROUND
size	5 mm
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm

	TLR120A	TLUR120	TLR116A
Description	Visible LED, SINGLE COLOR LED, RED, 5 mm	Visible LED, SINGLE COLOR LED, RED, 5 mm	Visible LED, SINGLE COLOR LED, RED, 5 mm
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Reach Compliance Code	unknown	unknown	unknown
color	RED	RED	RED
Configuration	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.025 A	0.02 A
JESD-609 code	e0	e0	e0
Lens type	COLORLESS TRANSPARENT	LIGHT RED TRANSPARENT	MILKY DIFFUSED
Nominal luminous intensity	7 mcd	30 mcd	3 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	10.15 mm	10.15 mm	10.15 mm
method of packing	BULK	BULK	BULK
peak wavelength	700 nm	660 nm	700 nm
shape	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
