8D7-11W02PN

Description
MIL Series Connector, 2 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,
CategoryThe connector    The connector
File Size86KB，1 Pages
ManufacturerEsterline Technologies Corporation
Download Datasheet Parametric View All

8D7-11W02PN Overview

MIL Series Connector, 2 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,

8D7-11W02PN Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerEsterline Technologies Corporation
Reach Compliance Codenot_compliant
ECCN codeEAR99
Other featuresSTANDARD: MIL-DTL 38999, COMPATIBLE CONTACT: M39029/107622
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeMIL SERIES CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialCOPPER ALLOY
Coupling typeTHREADED
DIN complianceNO
empty shellNO
Environmental characteristicsENVIRONMENT/FLUID RESISTANT
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceYES
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE AND PANEL
OptionsGENERAL PURPOSE
Shell surfaceCADMIUM PLATED
Shell materialALUMINUM ALLOY
Housing size11
Termination typeCRIMP
Total number of contacts2

Preview

Download Datasheet

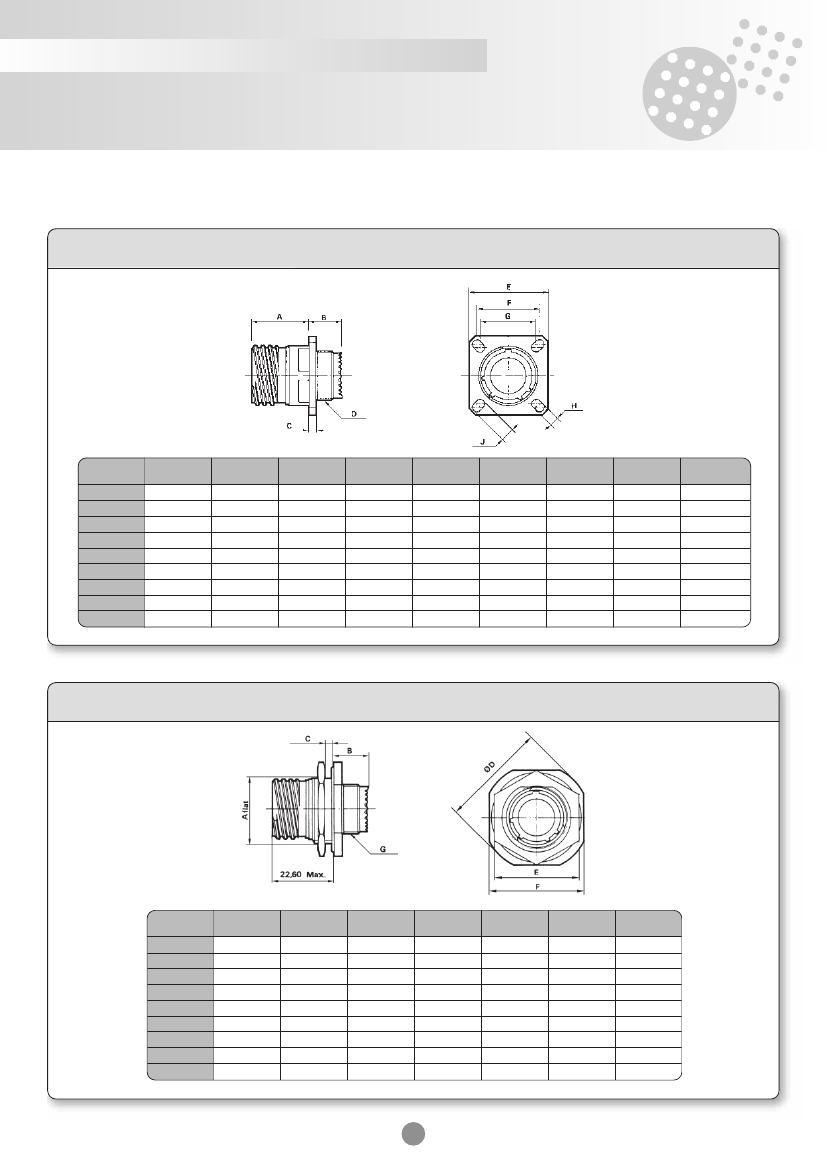

8D - D38999 Aluminium Series
Dimensions
Receptacle type 0
Shell
size
09 (A)
11 (B)
13 (C)
15 (D)
17 (E)
19 (F)
21 (G)
23 (H)
25 (J)
A
Max.
20.90
20.90
20.90
20.90
20.90
20.90
20.10
20.10
20.10
B
Max.
10.60
10.60
10.60
10.60
10.60
10.60
11.40
11.40
11.40
C
Max.
2.50
2.50
2.50
2.50
2.50
2.50
3.20
3.20
3.20
D
thread
M12 x 1-6g
M15 x 1-6g
M18 x 1-6g
M22 x 1-6g
M25 x 1-6g
M28 x 1-6g
M31 x 1-6g
M34 x 1-6g
M37 x 1-6g
E
± 0,30
23.80
26.20
28.60
31.00
33.30
36.50
39.70
42.90
46.00
F
18.26
20.62
23.01
24.61
26.97
29.36
31.75
34.93
38.10
G
15.09
18.26
20.62
23.01
24.61
26.97
29.36
31.75
34.93
H
± 0,20
3.25
3.25
3.25
3.25
3.25
3.25
3.25
3.91
3.91
J
± 0,20
5.49
4.93
4.93
4.93
4.93
4.93
4.93
6.15
6.15
Receptacle type 7
Shell
size
09 (A)
11 (B)
13 (C)
15 (D)
17 (E)
19 (F)
21 (G)
23 (H)
25 (J)
A + 0,10
- 0,15
16.53
19.07
23.82
26.97
30.15
33.32
36.50
39.67
42.85
B
Max.
9.90
9.90
9.90
9.90
9.90
9.90
9.90
9.90
9.90
C
Max.
3.20
3.20
3.20
3.20
3.20
3.50
3.50
3.50
3.50
D
Max.
30.50
35.20
38.40
41.60
44.80
49.50
52.70
55.90
59.00
E
Max.
23.00
26.00
31.00
34.00
37.00
41.00
46.00
47.00
52.00
F
± 0,40
27.00
31.80
34.90
38.10
41.30
46.00
49.20
52.40
55.60
G
thread
M12 x 1-6g
M15 x 1-6g
M18 x 1-6g
M22 x 1-6g
M25 x 1-6g
M28 x 1-6g
M31 x 1-6g
M34 x 1-6g
M37 x 1-6g
