293D107X0010V2WE3: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 100 uF, SURFACE MOUNT, 2917, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size111KB，9 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet View All

293D107X0010V2WE3 Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 100 uF, SURFACE MOUNT, 2917, CHIP, ROHS COMPLIANT

Preview

Download Datasheet

View All

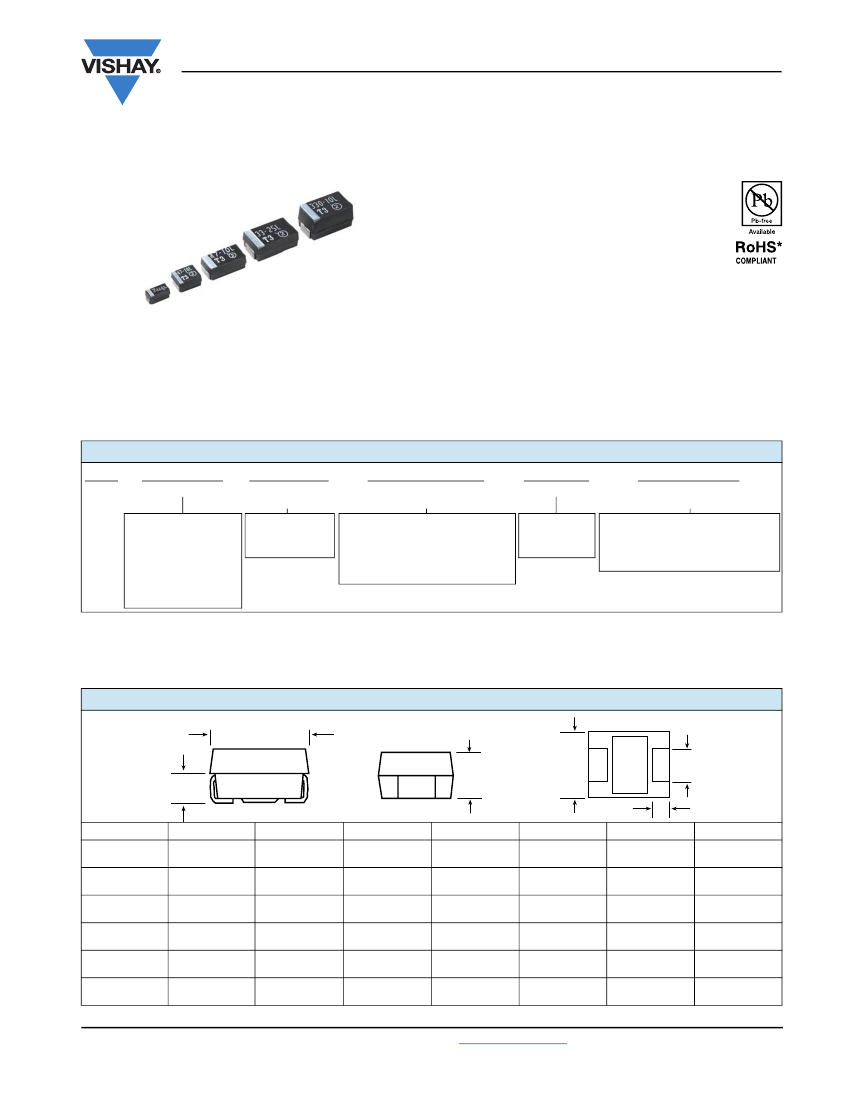

293D

Vishay Sprague

Solid Tantalum Surface Mount Capacitors

ANTAMOUNT®

Molded Case, Standard Industrial Grade

FEATURES

•

Terminations: 100 % matte tin, standard,

tin/lead available

•

Compliant terminations

•

Molded case available in six case codes

•

Compatible with “High Volume” automatic pick

and place equipment

•

Optical character recognition qualified

•

Meets IEC specification QC300801/US0001 and

EIA535BAAC mechanical and performance requirements

•

Compliant to RoHS directive 2002/95/EC

PERFORMANCE/ELECTRICAL CHARACTERISTICS

Operating Temperature:

- 55 °C to + 125 °C

Note:

Refer to Doc. 40088

Capacitance Range:

0.10 µF to 1000 µF

Capacitance Tolerance:

± 5 %, ± 10 % , ± 20 %

100 % Surge Current Tested (D and E Case Codes)

Voltage Rating:

4 VDC to 63 VDC

ORDERING INFORMATION

293D

TYPE

107

CAPACITANCE

This is expressed in

picofarads. The first

two digits are the

significant figures.

The third is the

number of zeros to

follow.

CAPACITANCE

TOLERANCE

X0 = ± 20 %

X9 = ± 10 %

X5 = ± 5 %

010

DC VOLTAGE RATING

AT + 85 °C

This is expressed in V. To

complete the three-digit block,

zeros precede the voltage rating.

A decimal point is indicated by an

“R” (6R3 = 6.3 V).

CASE CODE

See Ratings

and Case

Codes table

2WE3

TERMINATION AND

PACKAGING

2TE3: Matte tin, 7" (178 mm) reel

2WE3: Matte tin, 13" (330 mm) reel

8T: Tin/lead, 7" (178 mm) reel

8W: Tin/lead, 13" (330 mm) reel

Note

We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.

Voltage substitutions will be marked with the higher voltage rating.

Effective July 15, 2008, part numbers with solderable termination codes “2T” and “2W” may have either matte tin or tin/lead terminations. Codes

2TE3 and 2WE3 specify only matte tin terminations. Codes 8T and 8W specify only tin/lead terminations.

DIMENSIONS

in inches [millimeters]

MIN.

CASE CODE

EIA SIZE

3216-18

3528-21

6032-28

7343-31

7343-43

7343-20

0.126 ± 0.008

[3.2 ± 0.20]

0.138 ± 0.008

[3.5 ± 0.20]

0.236 ± 0.012

[6.0 ± 0.30]

0.287 ± 0.012

[7.3 ± 0.30]

0.287 ± 0.012

[7.3 ± 0.30]

0.287 ± 0.012

[7.3 ± 0.30]

0.063 ± 0.008

[1.6 ± 0.20]

0.110 ± 0.008

[2.8 ± 0.20]

0.126 ± 0.012

[3.2 ± 0.30]

0.170 ± 0.012

[4.3 ± 0.30]

0.170 ± 0.012

[4.3 ± 0.30]

0.170 ± 0.012

[4.3 ± 0.30]

0.063 ± 0.008

[1.6 ± 0.20]

0.075 ± 0.008

[1.9 ± 0.20]

0.098 ± 0.012

[2.5 ± 0.30]

0.110 ± 0.012

[2.8 ± 0.30]

0.158 ± 0.012

[4.0 ± 0.30]

0.079 max.

[2.0 max.]

0.031 ± 0.012

[0.80 ± 0.30]

0.031 ± 0.012

[0.80 ± 0.30]

0.051 ± 0.012

[1.3 ± 0.30]

0.051 ± 0.012

[1.3 ± 0.30]

0.051 ± 0.012

[1.3 ± 0.30]

0.051 ± 0.012

[1.3 ± 0.30]

0.047 ± 0.004

[1.2 ± 0.10]

0.087 ± 0.004

[2.2 ± 0.10]

0.087 ± 0.004

[2.2 ± 0.10]

0.095 ± 0.004

[2.4 ± 0.10]

0.095 ± 0.004

[2.4 ± 0.10]

0.095 ± 0.004

[2.4 ± 0.10]

MIN.

0.028

[0.70]

0.028

[0.70]

0.039

[1.0]

0.039

[1.0]

0.039

[1.0]

0.039

[1.0]

* Pb containing terminations are not RoHS compliant, exemptions may apply

Document Number: 40002

Revision: 02-Jun-09
