XZDMDK05A2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> XZDMDK05A2

XZDMDK05A2: DescriptionSmart/Normal 7 Seg Numeric LED Display, Red, 5.08mm, ROHS COMPLIANT, SMT, 20 PIN; CategoryLED optoelectronic/LED photoelectric; File Size110KB，3 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

XZDMDK05A2 Overview

Smart/Normal 7 Seg Numeric LED Display, Red, 5.08mm, ROHS COMPLIANT, SMT, 20 PIN

XZDMDK05A2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	ROHS COMPLIANT, SMT, 20 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	RED
Configuration	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT
Display height	5.08 mm
Maximum forward current	0.03 A
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

SURFACE MOUNT DISPLAY

SUN LED

: sales@us.sunled.com

Web Site : www.sunled.com

XZDMDK05A2

Notes:

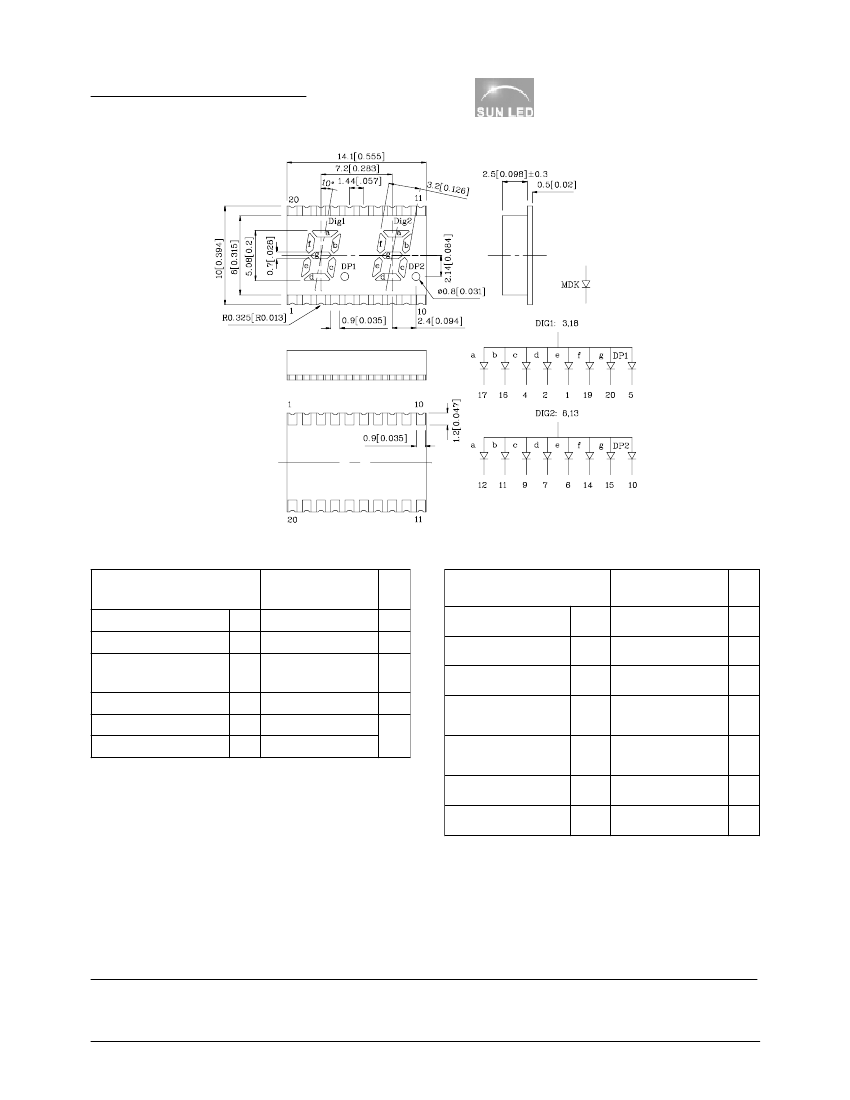

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

Ab s o l u t e m a x i m u m r a t i n g s

( T

=25

Reverse voltage

Forward current

Forward current (peak)

1/10Duty cycle

0.1ms pulse width

Power dissipation

Operating temperature

Storage temperature

Tstg

M DK

( In Ga Al P )

185

170

-40 ~ +85

Un i t

°C

Op e r a t i n g Ch a r a c t e r i s t i c s

( T

=25

Forward voltage (typ.)

(I F=10mA)

Forward voltage (max.)

(I F=10mA)

Reverse current

(VR=5V)

Wavelength at peak

emission

(I F=10mA)

Wavelength at Dominate

emission

(I F=10mA)

Spectral Line half-width

(I F=10mA)

Capacitance

(VF=0V, f=1MHz)

peak

M DK

( In Ga Al P )

1.85

2.5

650

Un i t

λD

∆λ

635

P art

Nu m b e r

Em i t t i n g

Co l o r

Em i t t i n g

Ma te ria l

L u min o u s

In t e n si t y

( I F = 10m A )

uc d

min .

ty p .

12000

30300

Wa v e l e n g t h

De sc r i p t i o n

XZDMDK05A2

R ed

I nGaAlP

650

Common Anode,Rt.Hand Decimal

Published Date : OCT 21,2002

Drawing No: XDSA3057

Checked :Shin Chi

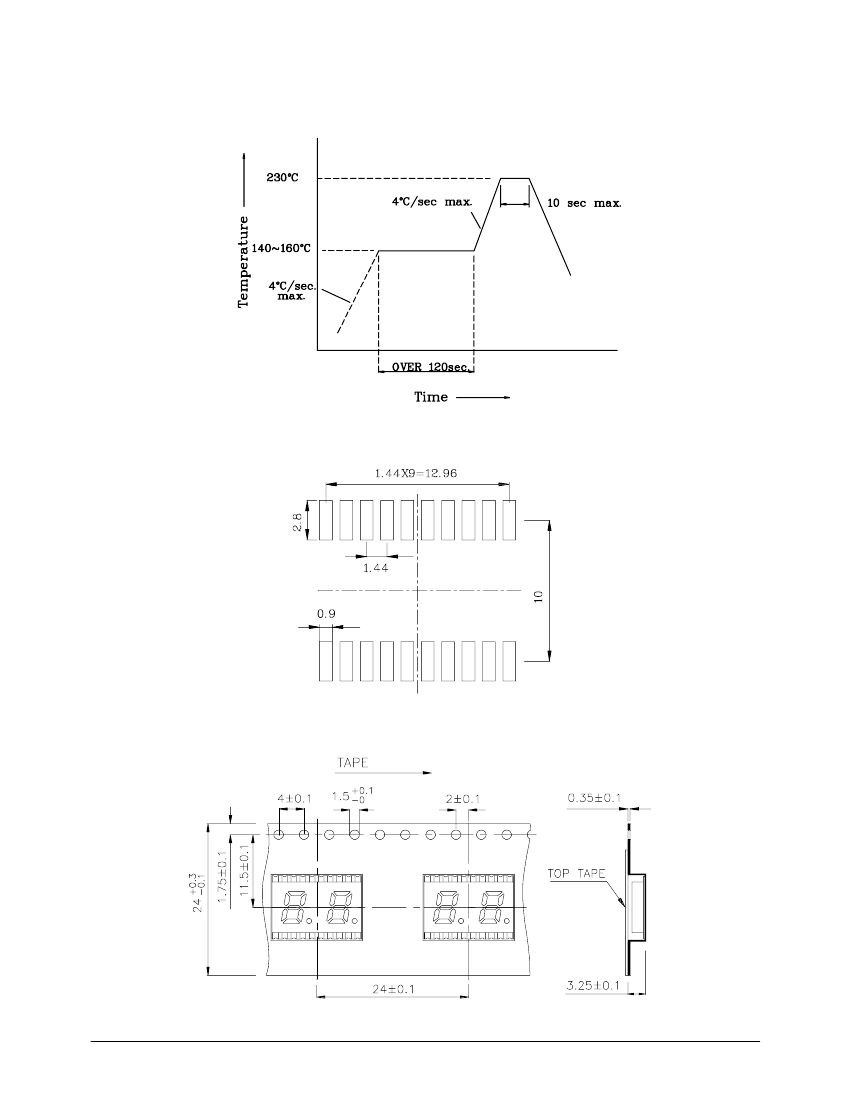

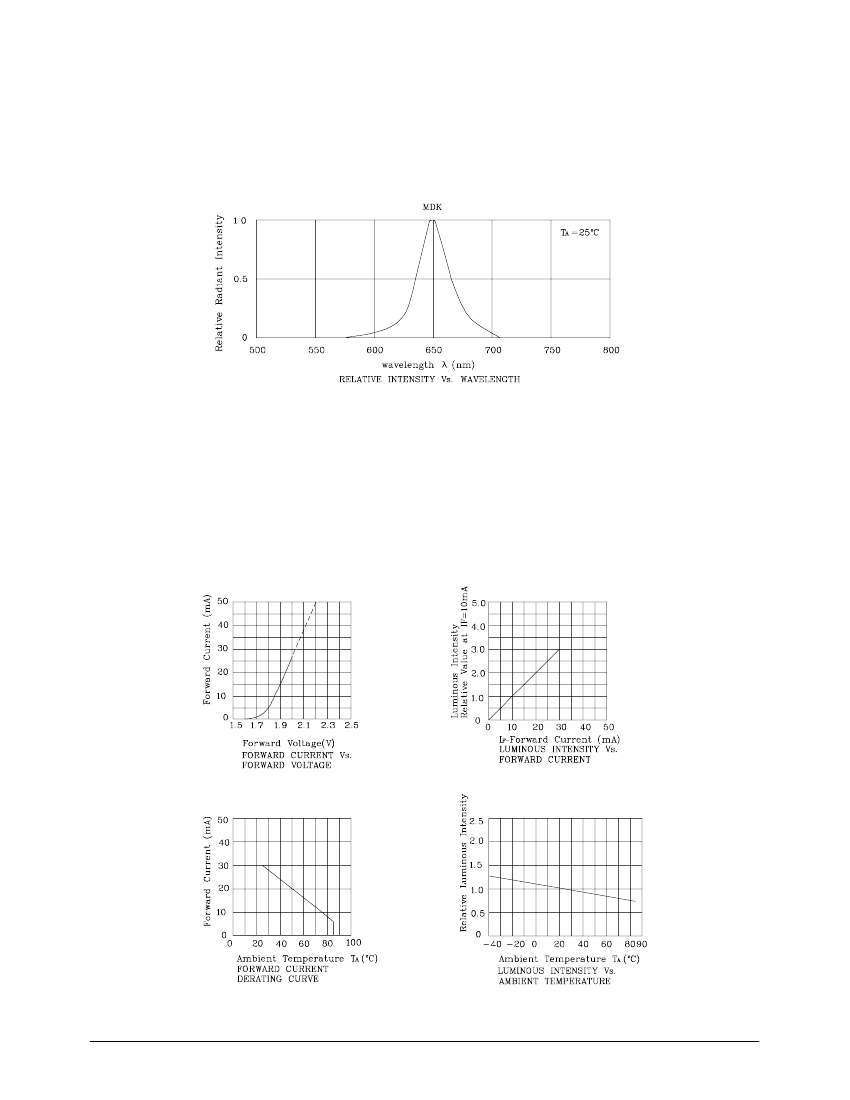

3-1
