BEC5-120-02-L-1-V-A-K-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> BEC5-120-02-L-1-V-A-K-TR

BEC5-120-02-L-1-V-A-K-TR: DescriptionCard Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size403KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

BEC5-120-02-L-1-V-A-K-TR Overview

Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal

BEC5-120-02-L-1-V-A-K-TR Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	MATTE TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	BEC5
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	120

Preview

Download Datasheet

View All

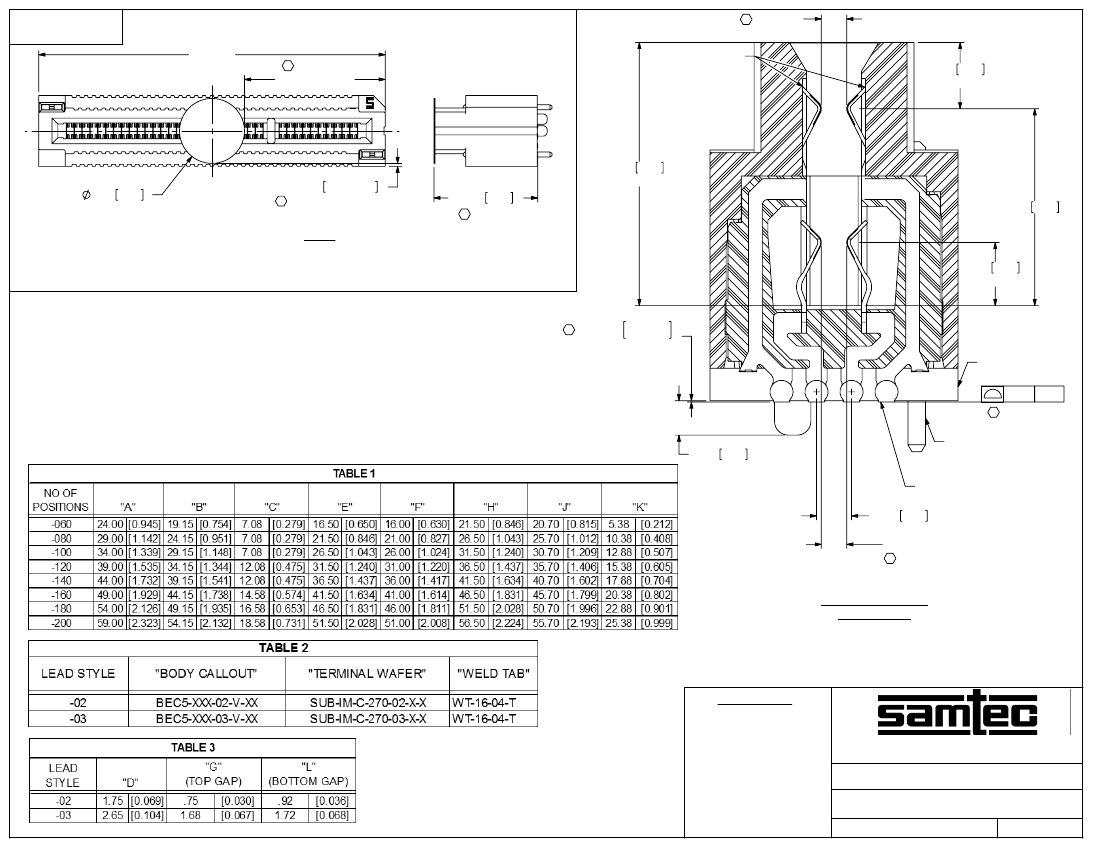

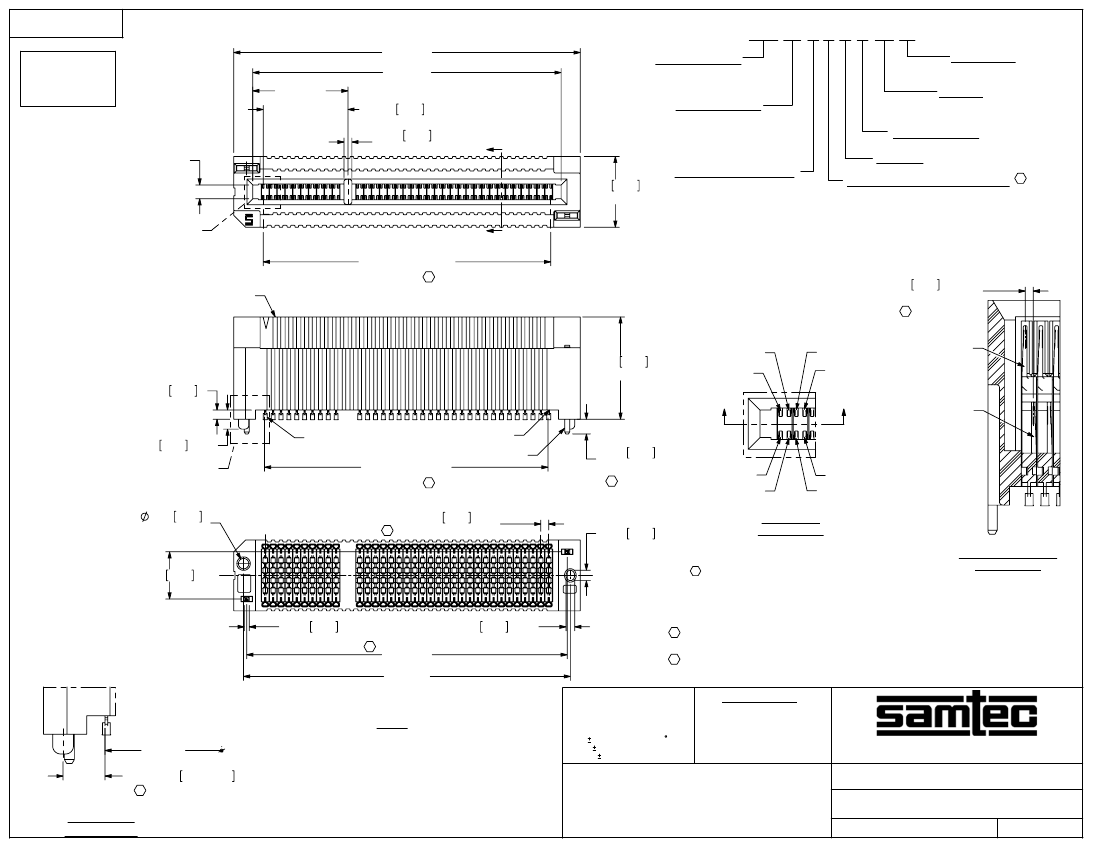

REVISION M

DO NOT

SCALE FROM

THIS PRINT

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

"A" REF

"B" REF

"C" REF

10.76 .424 REF

1.00 .039

REF

BEC5-XXX-XX-X-X-V-A-XX-TR

No OF POSITIONS

-060, -080, -100, -120, -140,

-160, -180, -200

(SEE NOTE 6)

CARD THICKNESS

-02 (1.57mm [.062] PCB)

(USE SUB-IM-C-270-02-X-X)

-03 (2.36 mm [0.93] PCB)

(USE SUB-IM-C-270-03-X-X)

9.00 .354

REF

PLATING SPECIFICATION

-L: 10 µ" SELECTIVE GOLD,

MATTE TIN ON TAIL

(USE SUB-IM-C-270-XX-L-X)

-S: 30 µ" SELECTIVE GOLD,

MATTE TIN ON TAILS

(USE SUB-IM-C-270-XX-S-X)

PACKAGING

-TR: TAPE & REEL

OPTIONS

-K: POLYIMIDE FILM

(SEE FIG. 2, SHT 2)

ALIGNMENT PINS

-A: ALIGMENT PINS

VERTICAL

"D"

REF

"A"

'B'

"E" (SEE NOTE 8)

"A"

SOLDER COMPOSTION & STYLE

-1: 63% TIN / 37% LEAD CHARGE TAIL

(USE SUB-IM-C-270-XX-X-1)

-2: 96.5% TIN / 3.5% SILVER

LEAD FREE CHARGE TAIL

(USE SUB-IM-C-270-XX-X-2)

BEC5-XXX-XX-V-XX

0.51 .020 (TYP)

TOL NON-ACCUM

13.00 .512

REF

1.18 .046

PIN 03(BOTTOM)

PIN 04(TOP)

PIN 08(TOP)

PIN 07(BOTTOM)

PIN 04

(TOP)

"C"

SUB-IM-C-270-XX-X-X

(SEE NOTE 11)

"F" (SEE NOTE 9)

"C"

PIN 03

(BOTTOM)

2.43 .096 REF

SEE NOTE 5

WT-16-04-T

1.86 .073

(2 PLCS)

'D'

1.32 .052

REF

PIN 01(TOP)

PIN 02(BOTTOM)

PIN 06 (BOTTOM)

PIN 05 (TOP)

1.000 .039

(TYP) NON ACCUM

1.32 .052

REF

DETAIL 'B'

SCALE 4 : 1

NOTES:

REPRESENTS A CRITICAL DIMENSION.

MINIMUM PUSHOUT FORCE: 2.22N[.5 LB].

PARTS TO BE PACKAGED IN TAPE AND REEL AS STANDARD

FOR QUANTITIES UP TO 49 PIECES, NO LEADER, TRAILER OR REEL WILL BE SUPPLIED

FOR QUANTITIES OF 50-124, NO LEADER OR TRAILER WILL BE SUPPLIED

5. SOLDER CRIMP VOLUME IS .20058 MM³ (0.000012691 IN³)

6. NUMBER OF POSITIONS EQUALS TOTAL NUMBER OF CIRCUITS.

C 7. THESE INSIDE EDGES ARE NOT TO APPEAR IN THE WINDOW WHEN VIEWED FROM DIRECTLY ABOVE.

8. DIMENSION TAKEN BETWEEN TOP AND BOTTOM PINS.

9. CHECK TO THE SIDE OF THE SOLDERTAIL AND NOT THE SOLDER CRIMP.

C 10. SEE DOCUMENT CO-OP-WI-3001-M FOR ADDITIONAL INSTRUCTION.

11. TO CALCULATE NUMBER OF SUBS NEEDED TAKE THE NUMBER OF POSITIONS AND DIVIDE BY 4.

12. MEASURE THIS DIMENSION AT ALL 4 CORNERS

6.00 .236

SECTION "C"-"C"

SCALE 4 : 1

0.64 .025 REF (TYP)

1.10 .043 REF

"J"±0.20

"H" REF

BEC5-140-02-X-X-V-A SHOWN

"F" REF

2.66±0.13 .105±.005

FIG 1

TOLERANCES ARE:

DECIMALS

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN

MILLIMETERS [INCHES]

ANGLES

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

X.X: 0.3 [.01]

X.XX: 0.13 [.005]

X.XXX: 0.051 [.0020]

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

INSULATOR: LCP , COLOR BLACK

CONTACT: BeCu

BI-LEVEL EDGE CARD ASSEMBLY

DETAIL 'D'

SCALE 4 : 1

F:\DWG\MISC\MKTG\BEC5-XXX-XX-X-X-V-A-XX-TR-MKT.SLDDRW

BEC5-XXX-XX-X-X-V-A-XX-TR

M MURILLO 1/16/2009

SHEET

BY:

BEC5-120-02-L-1-V-A-K-TR Related Products

	BEC5-120-02-L-1-V-A-K-TR	BEC5-140-02-L-1-V-A-K-TR	BEC5-160-02-L-1-V-A-K-TR	BEC5-180-02-L-1-V-A-K-TR	BEC5-200-02-L-1-V-A-K-TR
Description	Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 140 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 160 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 180 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 200 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
Reach Compliance Code	compliant	compliant	compliant	compliant	compli
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10)	GOLD (10)	GOLD (10)	GOLD (10)	GOLD (10)
Contact completed and terminated	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	BEC5	BEC5	BEC5	BEC5	BEC5
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	120	140	160	180	200
