XL93LC56ARY datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> XL93LC56ARY

XL93LC56ARY: DescriptionEEPROM, 128X16, Serial, CMOS, PDSO8,; Categorystorage storage; File Size223KB，8 Pages; ManufacturerExel Microelectronics Inc

Download Datasheet Parametric Compare View All

XL93LC56ARY Overview

EEPROM, 128X16, Serial, CMOS, PDSO8,

XL93LC56ARY Parametric

Parameter Name	Attribute value
Maker	Exel Microelectronics Inc
Reach Compliance Code	unknown
Other features	AUTOMATIC WRITE
Maximum clock frequency (fCLK)	1 MHz
JESD-30 code	R-PDSO-G8
memory density	2048 bit
Memory IC Type	EEPROM
memory width	16
Number of functions	1
Number of terminals	8
word count	128 words
character code	128
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128X16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Serial bus type	MICROWIRE
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Maximum write cycle time (tWC)	10 ms

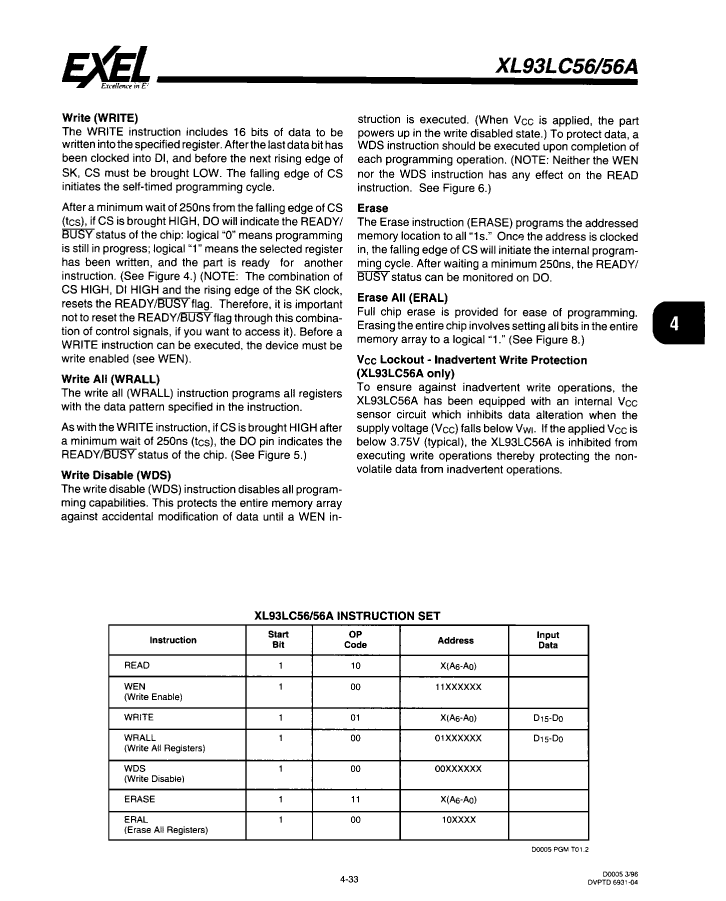

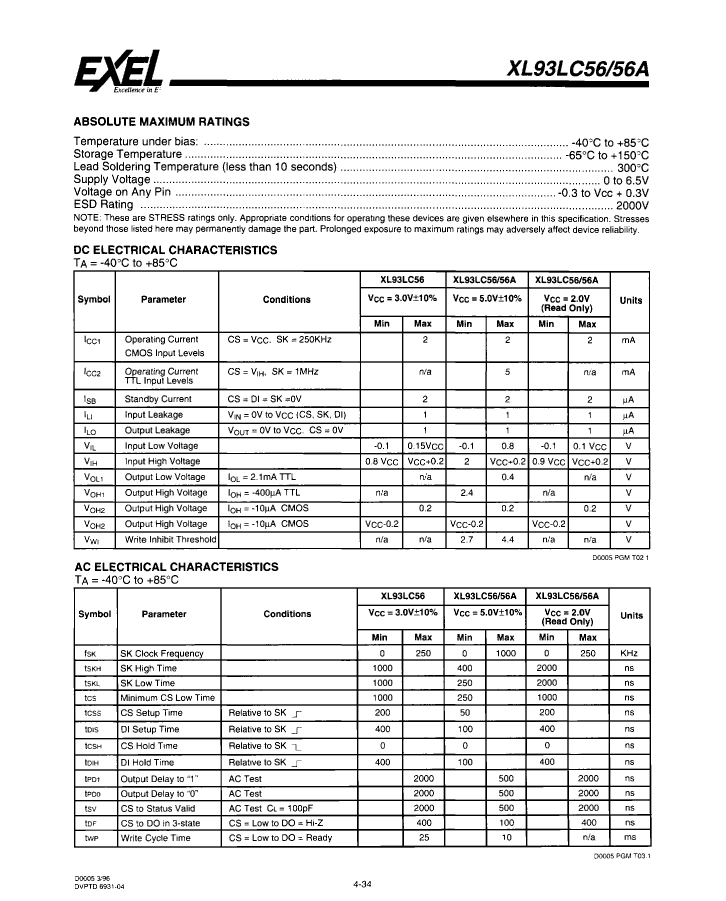

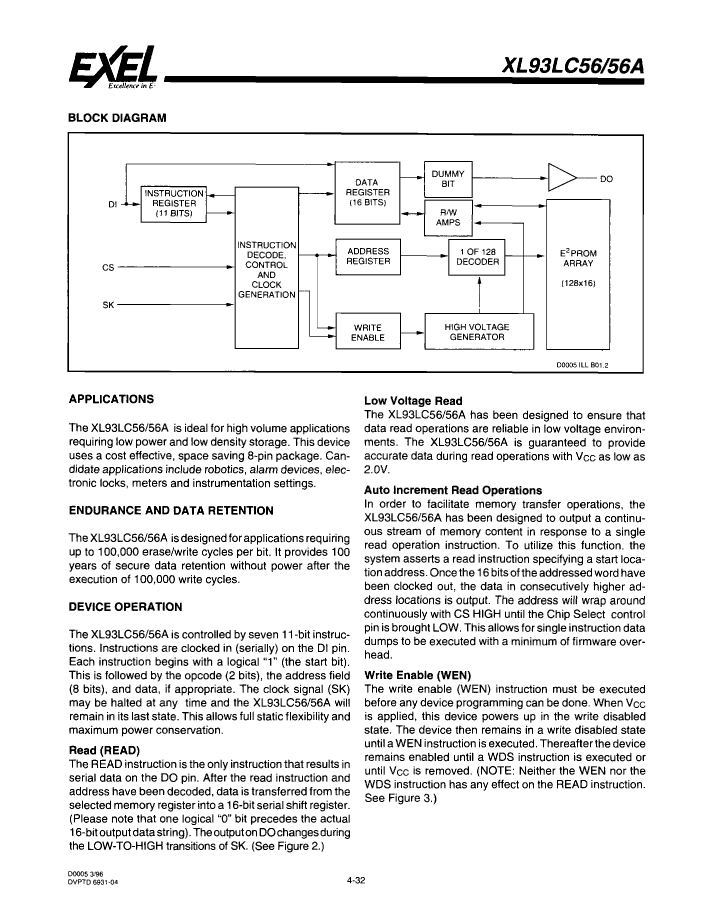

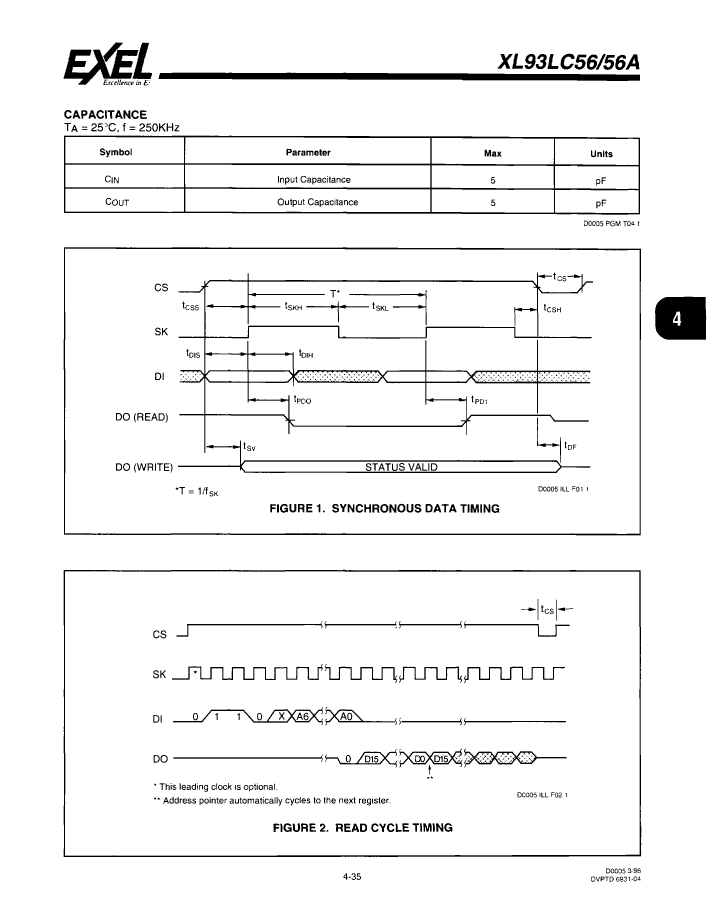

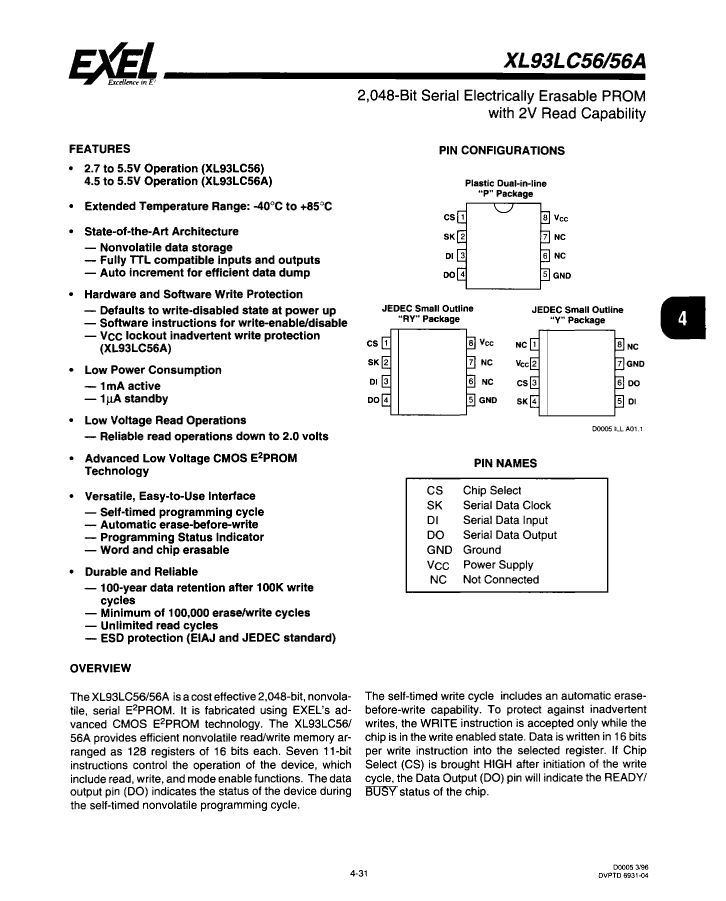

Preview

Download Datasheet

View All

XL93LC56ARY Related Products

	XL93LC56ARY	XL93LC56AP	XL93LC56P	XL93LC56RY	XL93LC56AY	XL93LC56Y
Description	EEPROM, 128X16, Serial, CMOS, PDSO8,	EEPROM, 128X16, Serial, CMOS, PDIP8,	EEPROM, 128X16, Serial, CMOS, PDIP8,	EEPROM, 128X16, Serial, CMOS, PDSO8,	EEPROM, 128X16, Serial, CMOS, PDSO8,	EEPROM, 128X16, Serial, CMOS, PDSO8,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE
Maximum clock frequency (fCLK)	1 MHz	1 MHz	0.25 MHz	0.25 MHz	1 MHz	0.25 MHz
JESD-30 code	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
memory density	2048 bit	2048 bit	2048 bit	2048 bit	2048 bit	2048 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
word count	128 words	128 words	128 words	128 words	128 words	128 words
character code	128	128	128	128	128	128
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	128X16	128X16	128X16	128X16	128X16	128X16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Serial bus type	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	2.7 V	2.7 V	4.5 V	2.7 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum write cycle time (tWC)	10 ms	10 ms	25 ms	25 ms	10 ms	25 ms
Maker	Exel Microelectronics Inc	-	Exel Microelectronics Inc	Exel Microelectronics Inc	Exel Microelectronics Inc	Exel Microelectronics Inc
