MA08070 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> MA08070

MA08070: Description2-Port Saw Resonator, 1090MHz Nom, SMD, 6 PIN; CategoryPassive components Crystal/resonator; File Size164KB，5 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/

Download Datasheet Parametric View All

MA08070 Overview

2-Port Saw Resonator, 1090MHz Nom, SMD, 6 PIN

MA08070 Parametric

Parameter Name	Attribute value
Maker	Golledge Electronics
package instruction	SMD, 6 PIN
Reach Compliance Code	compliant

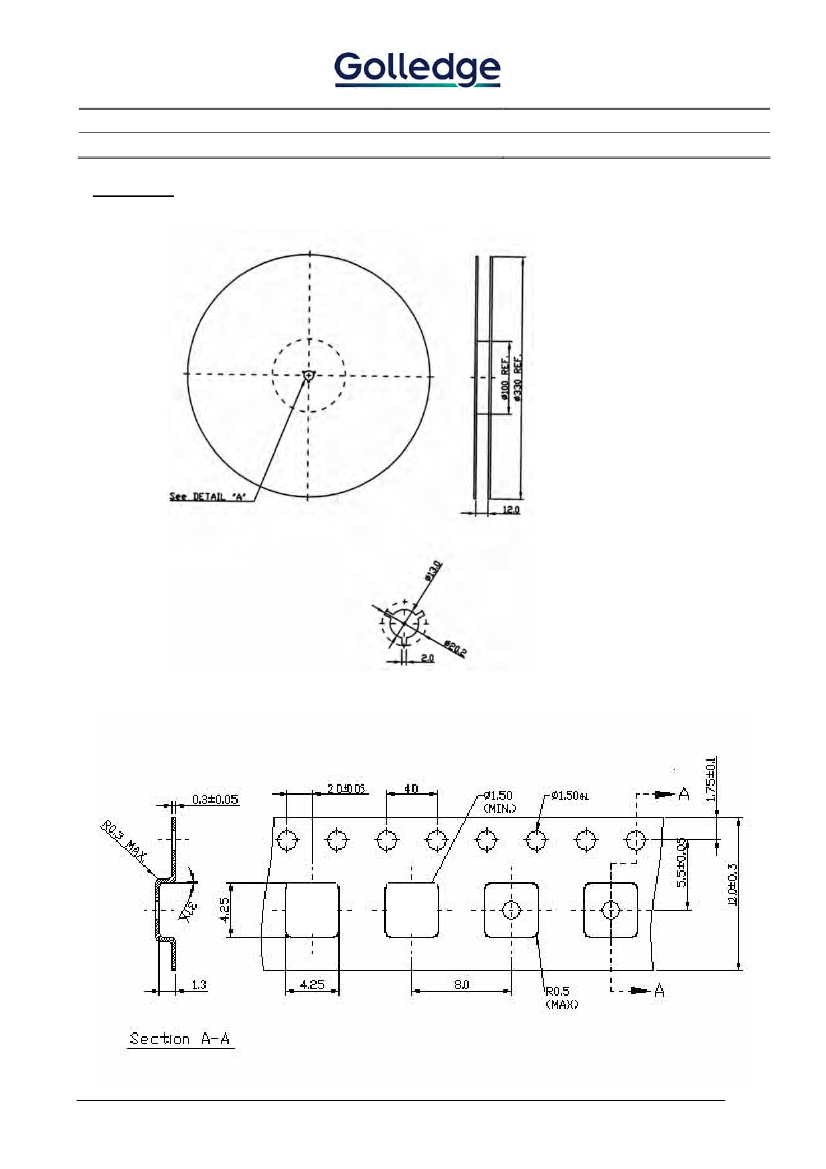

Other features	TAPE AND REEL
Crystal/Resonator Type	2-PORT
frequency stability	0.0115%
Insertion loss	12.5 dB
Manufacturer's serial number	MA08070
Installation features	SURFACE MOUNT
Nominal operating frequency	1090 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Parallel capacitor	1.5 pF
physical size	L3.8XB3.8XH1.5 (mm)/L0.15XB0.15XH0.059 (inch)
surface mount	YES

Preview

Download Datasheet

View All

Tel: +44 1460 256 100

Fax: +44 1460 256 101

www.golledge.com

Golledge Electronics Ltd

Eaglewood Park, ILMINSTERr

Somerset, TA19 9DQ, UK

SAW Resonator 1090.0MHz

Part No:

MA08070

A. FEATURES:

1. 2-Port Resonator.

B. MAXIMUM RATING:

1. Input Power Level: 3 dBm

2. DC voltage: 12 V

3. Operating Temperature: -40°C to +85°C

4. Storage Temperature: -40°C to +85°C

C. ELECTRICAL CHARACTERISTICS:

Reference Temperature T

=25°C

Characteristic

Units

Center frequency Fr

Insertion Loss IL

Unloaded Quality factor

Ageing of Fc

Equivalent Elements

Motional capacitance C1

Motional inductance L1

Motional resistance R1

Parallel capacitance Co

Temp.coeff.

Turnover To

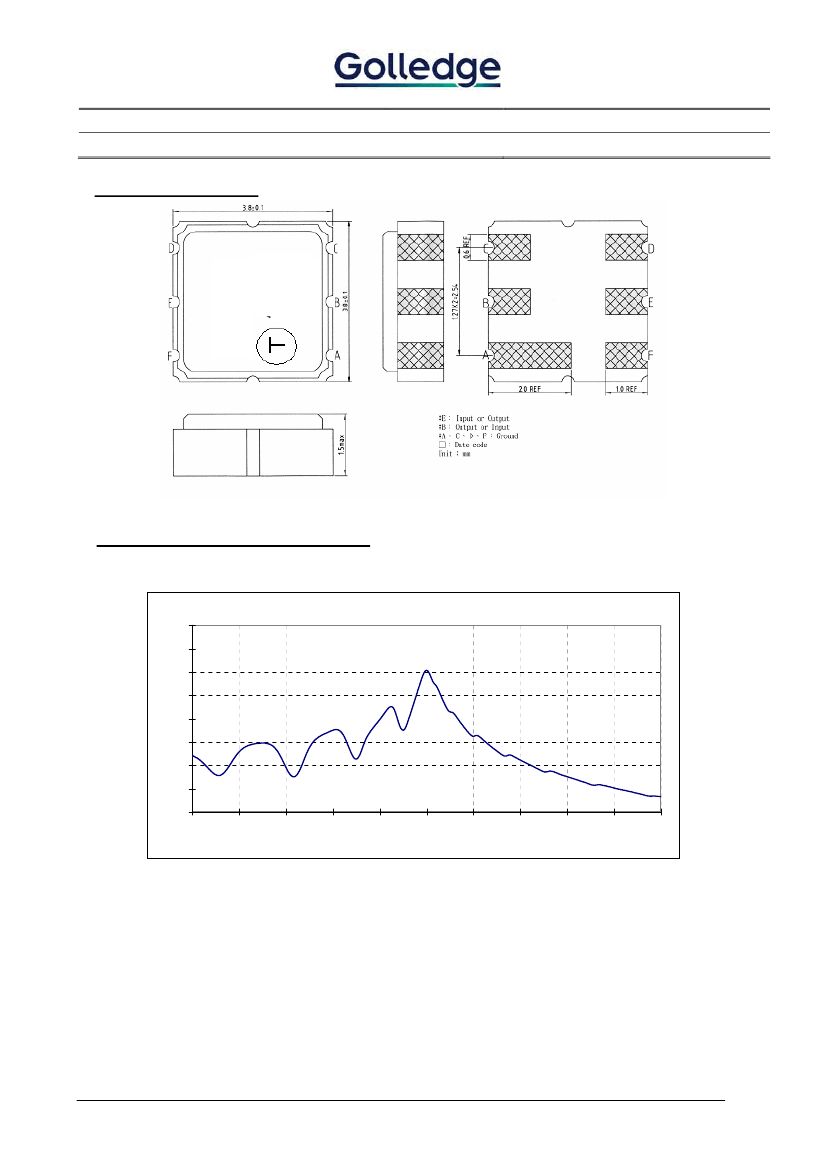

Package size

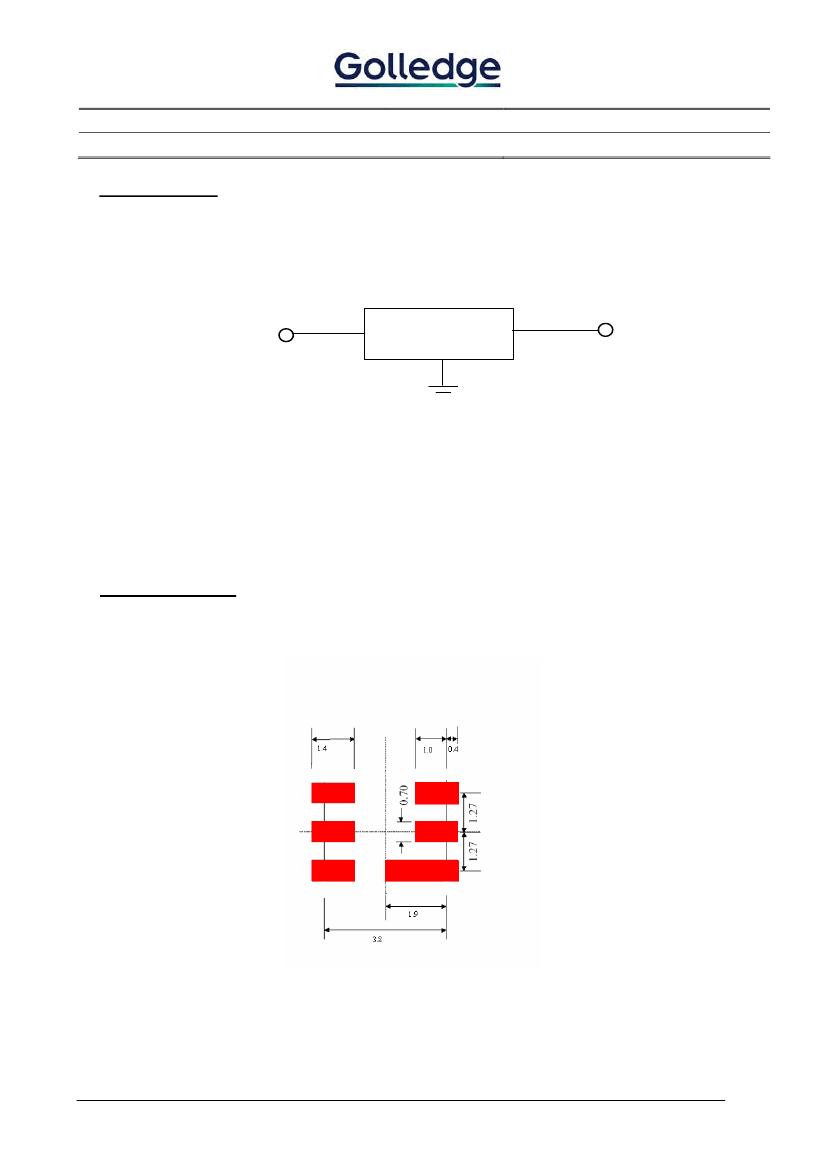

D. EQUIVALENT CIRCUIT:

Two-Port Resonator:

PinB

PinA,C

PinD,F

PinE

Model: TD0116A

REV. NO.: 3

Minimum

1089.800

Typical

1090

4700

0.18

114

178

1.5

0.032

SMD 3.8X3.8X1.4mm

Maximum

1090.200

12.5

10/year

MHz

ppm

μH

Ohm

ppm/c*2

deg.C

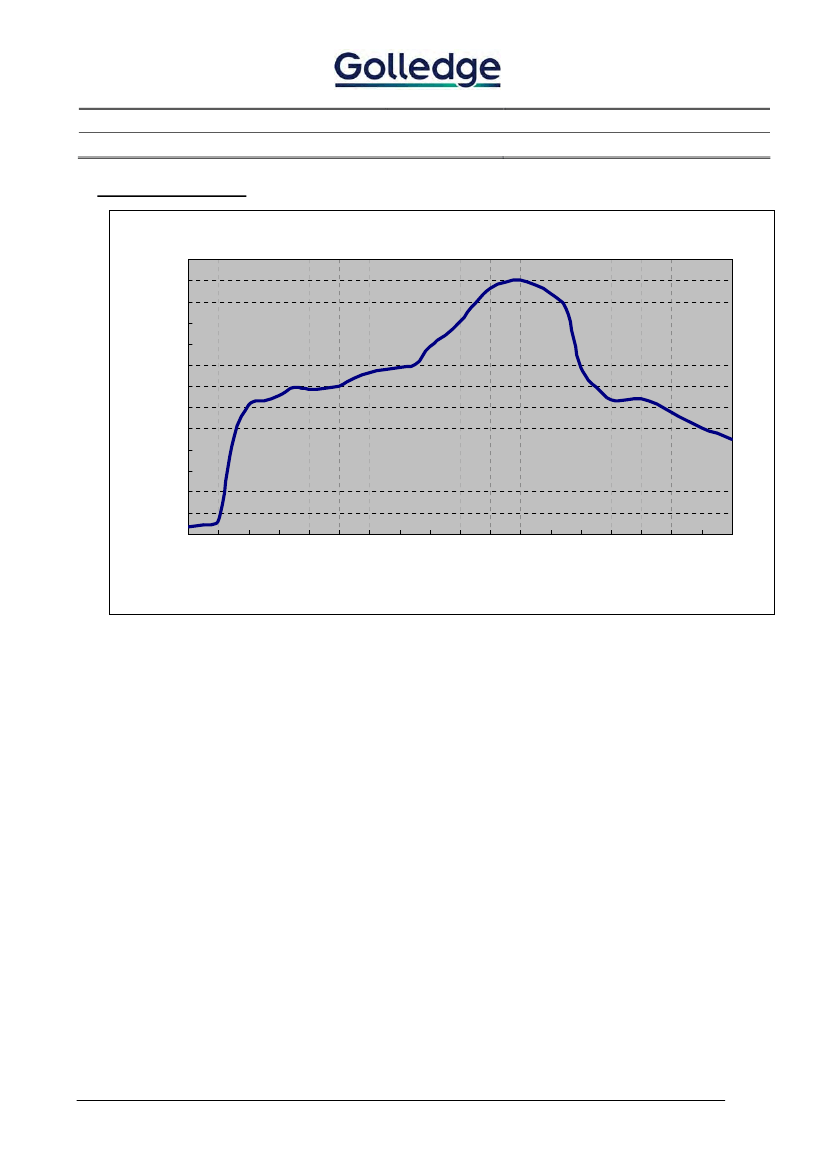

TD0116A v3
