■ Voltage and temperature compensation for improved
noise immunity
■ Internal 75kΩ input pull-down resistors
■ 50% faster than Fairchild 300K at lower power
■ Function and pinout compatible with Fairchild F100K
■ Available in 28-pin PLCC package
The SY100S307 is an ultra-fast quint exclusive-OR/NOR
gate designed for use in high-performance ECL systems. A
function output that is the wire-OR result of the exclusive-OR
outputs is also available. The inputs on the device have 75kΩ
pull-down resistors.
bLOCK DIAGRAM
PIN NAMES
Pin
D
na
– D
ne
E
O
a
– O
e
O
a
– O
e
V
EES
V
CCA
Enable Input
Data Outputs
Complementary Data Outputs
V
EE
Substrate
V
CCO
for ECL Outputs
Function
Data Inputs (n-1...5)
M9999-060910
hbwhelp@micrel.com or (408) 955-1690
1
Rev.: I
Amendment: /0
Issue Date: June 2010
Micrel, Inc.
SY100S307
PACKAGE/ORDERING INFORMATION
Ordering Information
Part Number
SY100S307JC
SY100S307JCTR
(1)
SY100S307JZ
(2)
SY100S307JZTR
(1, 2)
SY100S307JY
(2)
SY100S307JYTR
(1,2)
Package
Type
J28-1
J28-1
J28-1
J28-1
J28-1
J28-1
Operating
Range
Commercial
Commercial
Commercial
Commercial
Industrial
Industrial
Package
Marking
SY100S307JC
SY100S307JC
SY100S307JZ with
Pb-Free bar-line indicator
SY100S307JZ with
Pb-Free bar-line indicator
SY100S307JY with
Pb-Free bar-line indicator
Lead
Finish
Sn-Pb
Sn-Pb
Matte-Sn
Matte-Sn
Matte-Sn
SY100S307JY with
Matte-Sn
Pb-Free bar-line indicator
28-Pin PLCC (J28-1)
Notes:
1. Tape and Reel.
2. Pb-Free package is recommended for new designs.
M9999-060910
hbwhelp@micrel.com or (408) 955-1690
2
Micrel, Inc.
SY100S307
LOGIC EQUATION
F = (D
1a+
D
2a
) + (D
1b +
D
2b
) + (D
1c +
D
2c
) + (D
1d +
D
2d
)
+ (D
1e +
D
2e
).
DC ELECTRICAL CHARACTERISTICS
V
EE
= –4.2V to –5.5V unless otherwise specified, V
CC
= V
CCA
= GND
Symbol
I
IH
Parameter
Min.
—
—
–58
Typ.
—
—
–40
Max.
200
250
–27
Unit
µA
Condition
V
IN
= V
IH
(Max.)
Input HIGH Current
D
2a
— D
2e
D
2a
— D
2e
Power Supply Current
I
EE
mA
Inputs Open
AC ELECTRICAL CHARACTERISTICS
V
EE
= –4.2V to –5.5V unless otherwise specified, V
CC
= V
CCA
= GND
Symbol
t
PLH
t
PH2
t
PLH
t
PHL
t
PLH
t
PHL
t
TLH
t
THL
Propagation Delay
D
2a
— D
2e
to O, O
Propagation Delay
D
1a
— D
1e
to O, O
Propagation Delay
Data to F
Transition Time 3
20% to 80%, 80% to 20%
T
A
= -40°C
T
A
= 0°C T
A
= +25°C T
A
= +85°C
Min.
Max.
Max.
Min.
Max.
Min.
Min.
Parameter Max. Unit Condition
300
300
300
00
1000
900
1425
900
300
300
300
00
1000
900
1425
900
300
300
300
300
1000
900
1425
900
300
300
300
300
1000
930
1425
900
ps
ps
ps
ps
TIMING DIAGRAM
NOTE:
V
EE
= –4.2V to –5.5V unless otherwise specified, V
CC
= V
CCA
= GND
M9999-060910
hbwhelp@micrel.com or (408) 955-1690
Propagation Delay and Transition Times
3
Micrel, Inc.
SY100S307

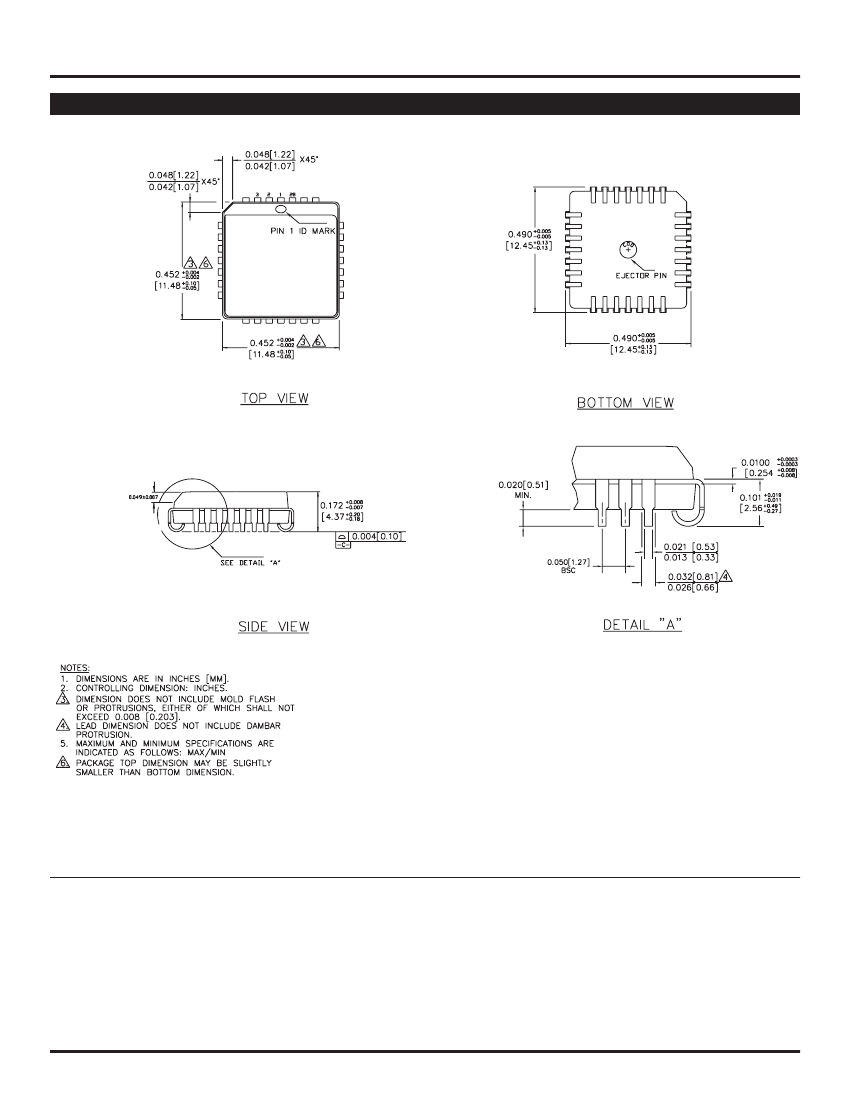

28-PIN PLCC (J28-1)
Rev. A
MICREL, INC. 2180 FORTUNE DRIVE SAN JOSE, CA 95131 USA
The information furnished by Micrel in this data sheet is believed to be accurate and reliable. However, no responsibility is assumed by Micrel for its use.
Micrel reserves the right to change circuitry and specifications at any time without notification to the customer.
Micrel Products are not designed or authorized for use as components in life support appliances, devices or systems where malfunction of a product can
reasonably be expected to result in personal injury. Life support devices or systems are devices or systems that (a) are intended for surgical implant into
the body or (b) support or sustain life, and whose failure to perform can be reasonably expected to result in a significant injury to the user. A Purchaser’s
use or sale of Micrel Products for use in life support appliances, devices or systems is at Purchaser’s own risk and Purchaser agrees to fully indemnify
Micrel for any damages resulting from such use or sale.
