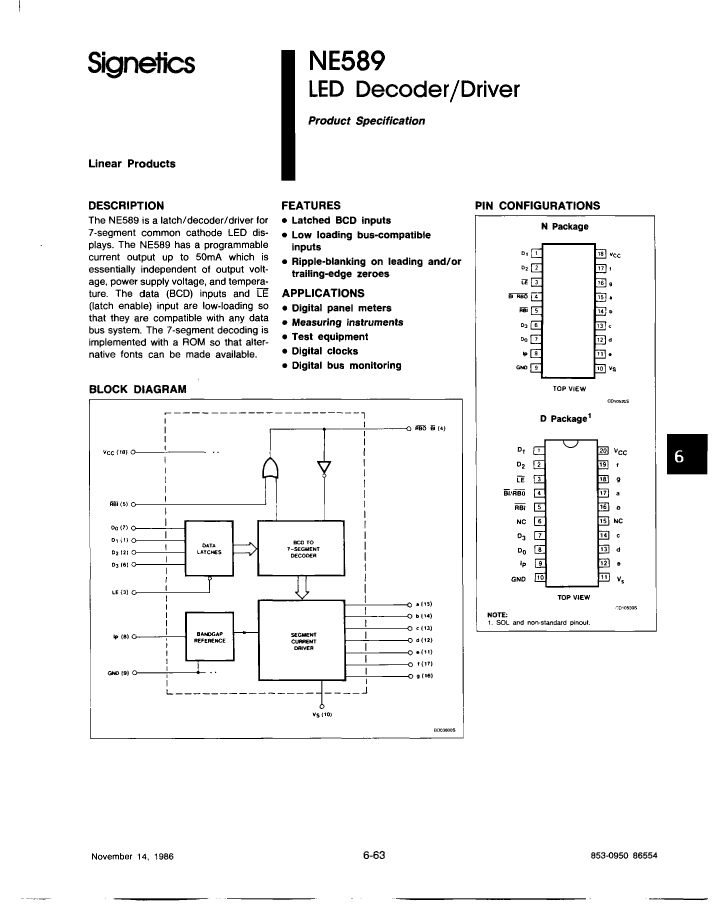

IC LED DISPLAY DRIVER, PDIP18, PLASTIC, DIP-18, Display Driver

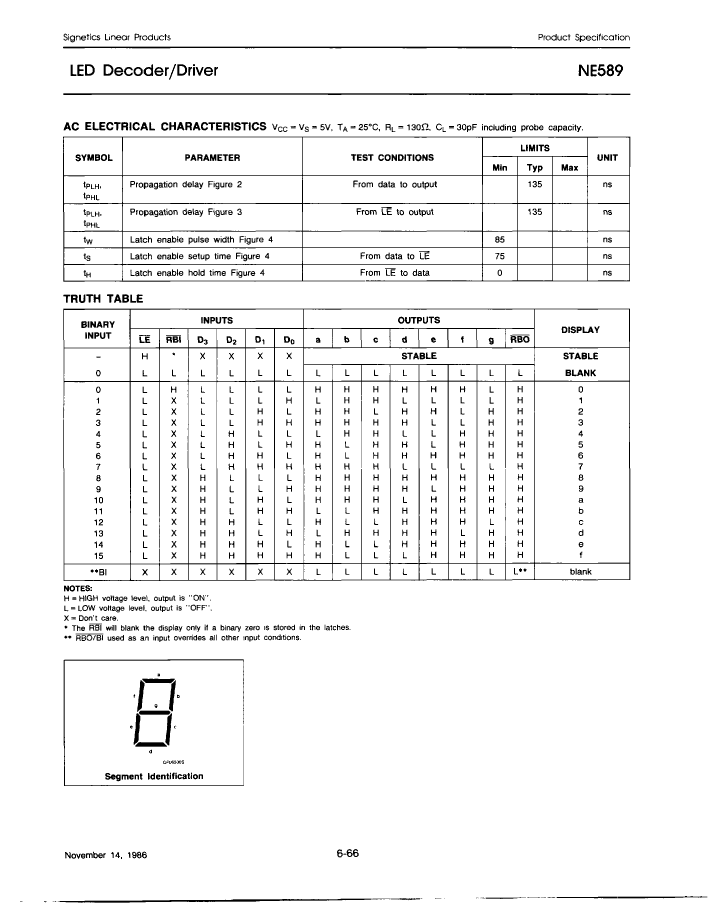

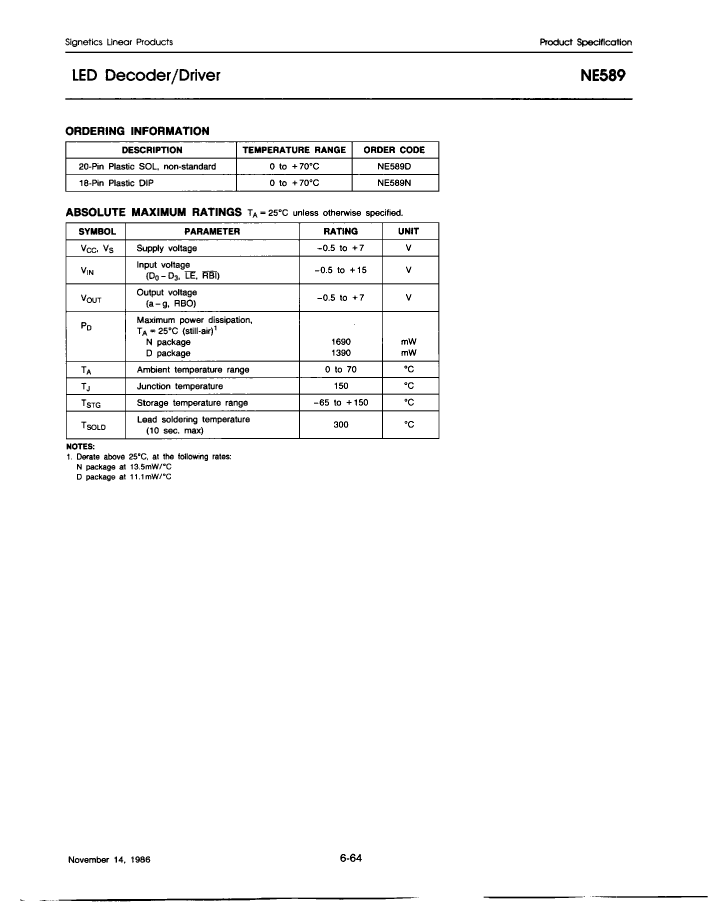

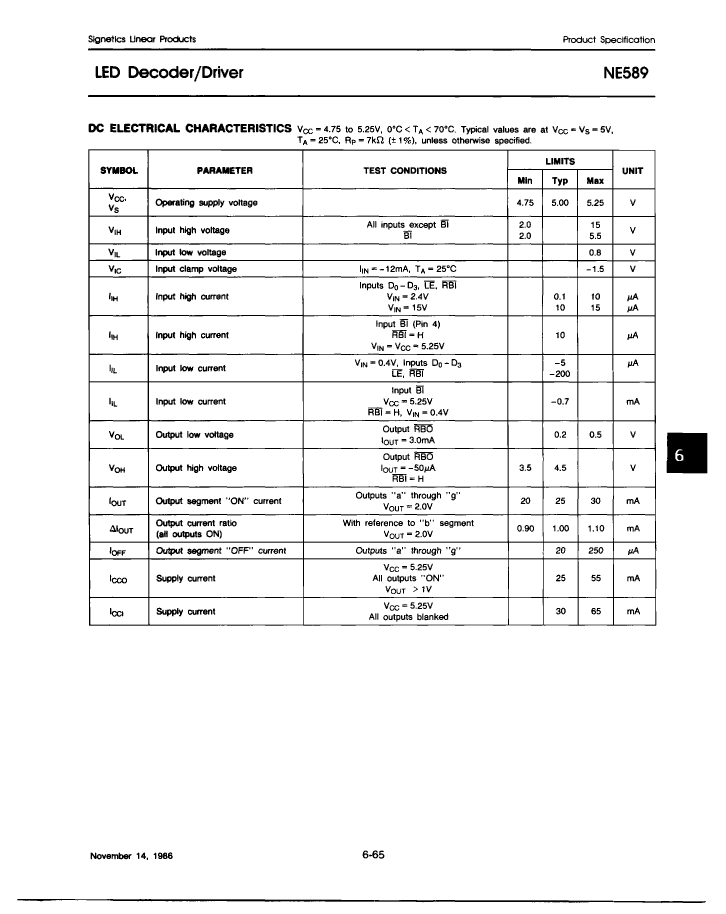

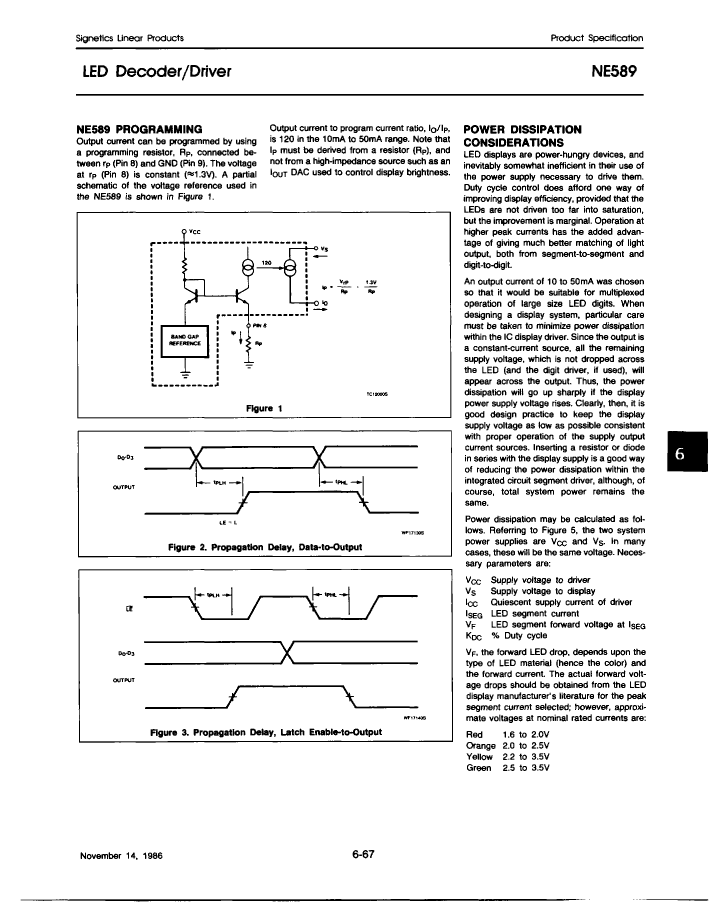

| Parameter Name | Attribute value |
| Maker | NXP |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 18 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| data entry mode | PARALLEL |
| display mode | SEGMENT |
| Interface integrated circuit type | LED DISPLAY DRIVER |
| JESD-30 code | R-PDIP-T18 |
| Multiplex display function | NO |
| Number of digits/characters | 1-DIGIT |
| Number of functions | 1 |
| Number of segments | 7 |
| Number of terminals | 18 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum supply voltage | 5.25 V |
| Minimum supply voltage | 4.75 V |
| Nominal supply voltage | 5 V |
| Supply voltage 1-max | 5.25 V |
| Mains voltage 1-minute | 4.75 V |
| Supply voltage1-Nom | 5 V |
| surface mount | NO |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| NE589N | NE589D-T | NE589D | |
|---|---|---|---|
| Description | IC LED DISPLAY DRIVER, PDIP18, PLASTIC, DIP-18, Display Driver | IC LED DISPLAY DRIVER, PDSO20, PLASTIC, SOL-20, Display Driver | IC LED DISPLAY DRIVER, PDSO20, PLASTIC, SOL-20, Display Driver |
| Maker | NXP | NXP | NXP |
| Parts packaging code | DIP | SOIC | SOIC |
| package instruction | DIP, | SOP, | SOP, |
| Contacts | 18 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 |
| data entry mode | PARALLEL | PARALLEL | PARALLEL |
| display mode | SEGMENT | SEGMENT | SEGMENT |
| Interface integrated circuit type | LED DISPLAY DRIVER | LED DISPLAY DRIVER | LED DISPLAY DRIVER |
| JESD-30 code | R-PDIP-T18 | R-PDSO-G20 | R-PDSO-G20 |
| Multiplex display function | NO | NO | NO |
| Number of digits/characters | 1-DIGIT | 1-DIGIT | 1-DIGIT |
| Number of functions | 1 | 1 | 1 |
| Number of segments | 7 | 7 | 7 |
| Number of terminals | 18 | 20 | 20 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage | 5 V | 5 V | 5 V |
| Supply voltage 1-max | 5.25 V | 5.25 V | 5.25 V |
| Mains voltage 1-minute | 4.75 V | 4.75 V | 4.75 V |
| Supply voltage1-Nom | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL |
