10115F datasheet, PDF - EEWORLD Datasheet

10115F: DescriptionLine Driver/Receiver, ECL10K, CDIP16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size255KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

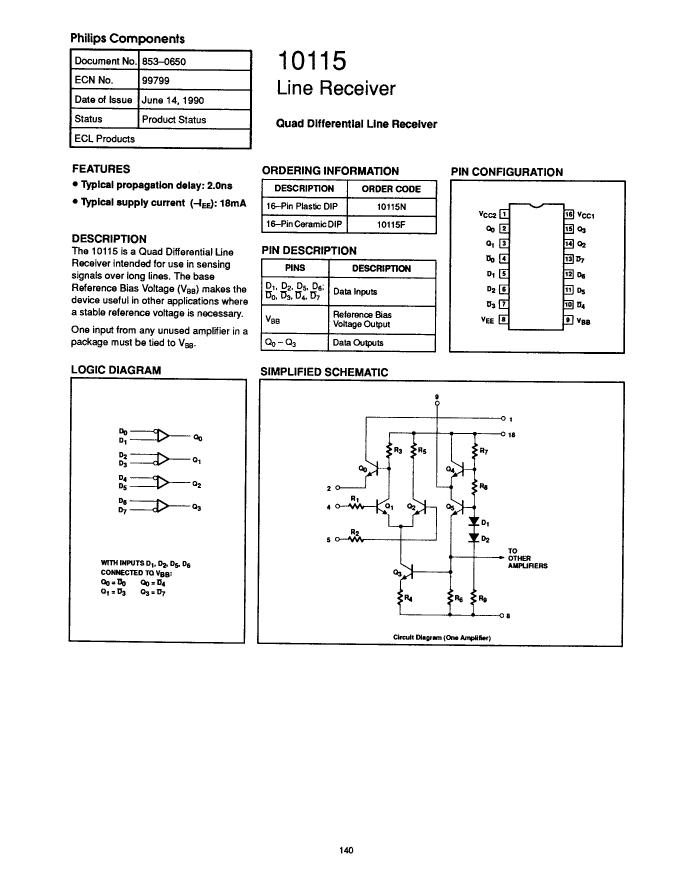

10115F Overview

Line Driver/Receiver, ECL10K, CDIP16

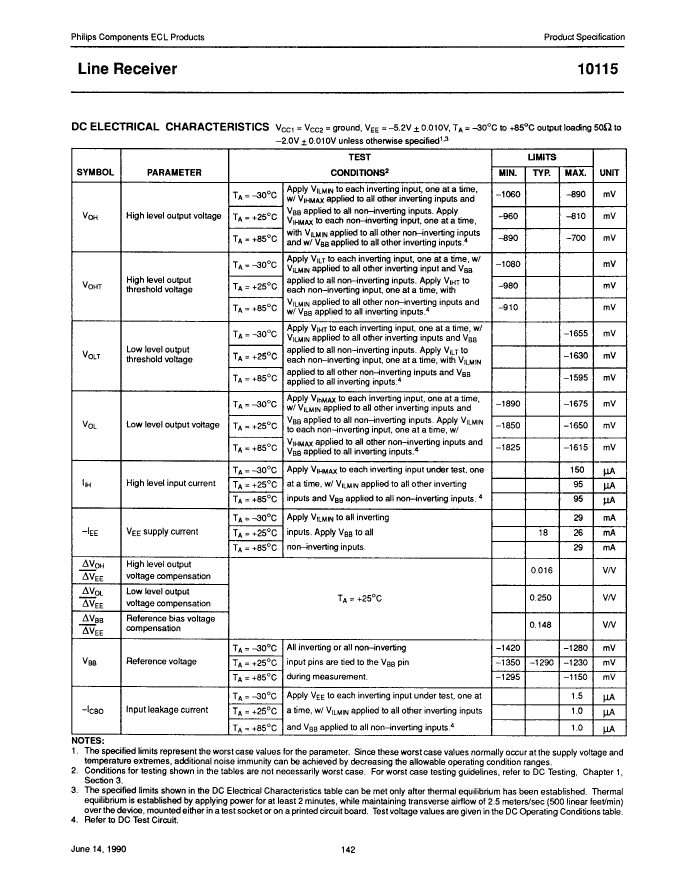

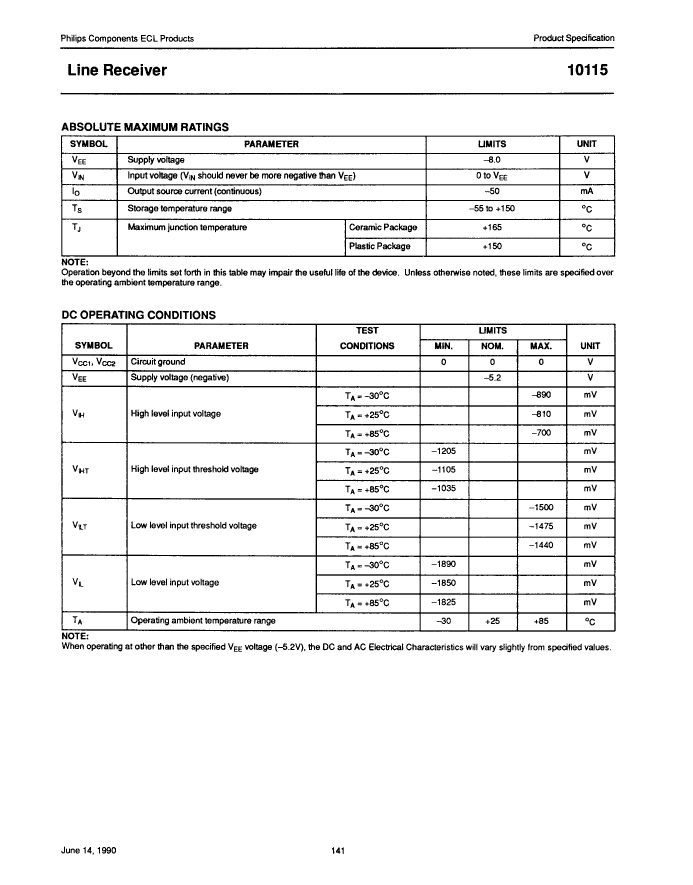

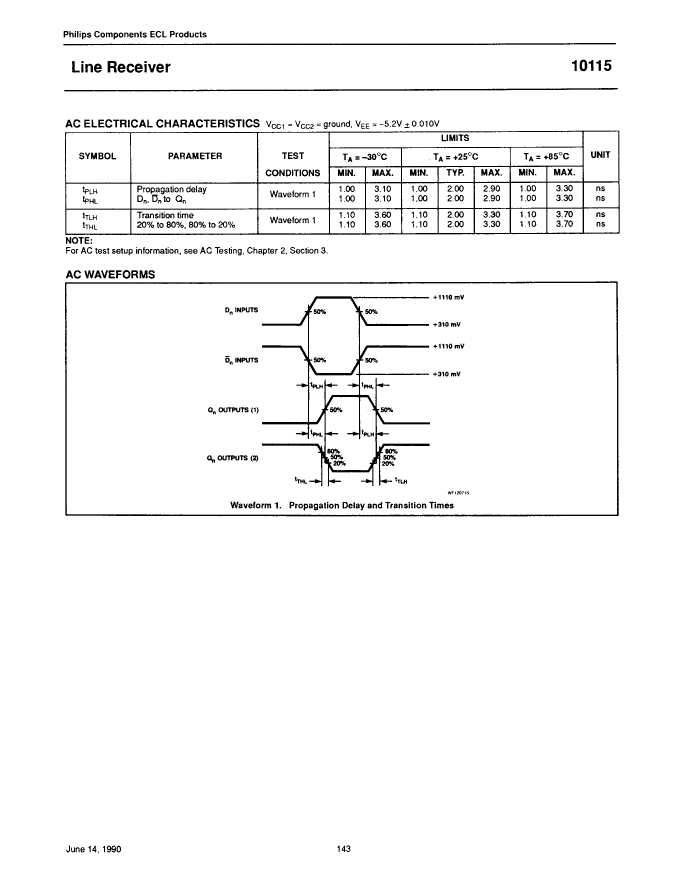

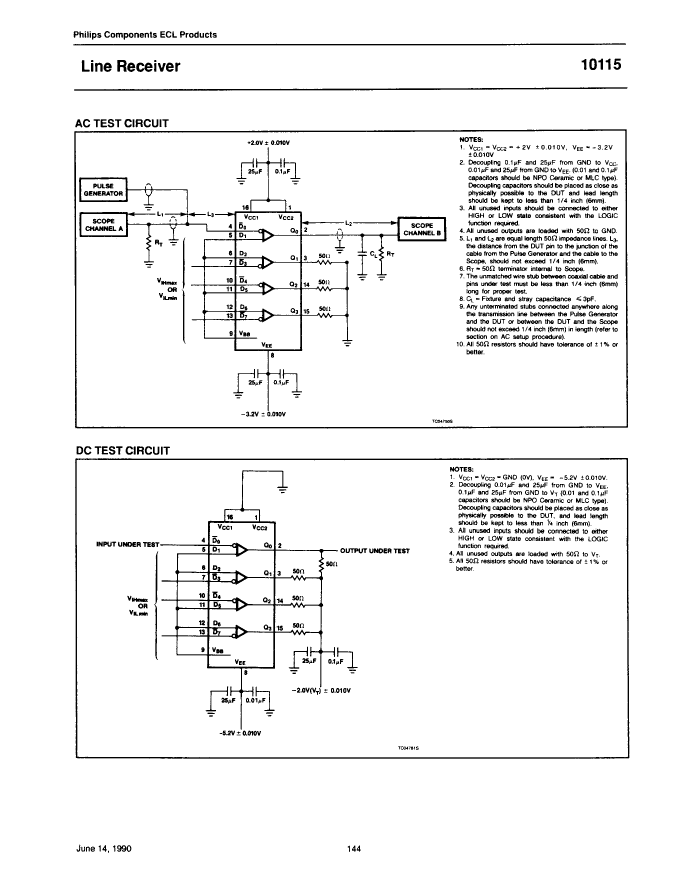

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Nominal negative supply voltage	-5.2 V
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	-5.2 V
Certification status	Not Qualified
Maximum slew rate	29 mA
surface mount	NO
technology	ECL10K
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	10115F	10115N
Description	Line Driver/Receiver, ECL10K, CDIP16	Line Driver/Receiver, ECL10K, PDIP16
Is it Rohs certified?	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	unknow
JESD-30 code	R-XDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0
Nominal negative supply voltage	-5.2 V	-5.2 V
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C
Package body material	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	-5.2 V	-5.2 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	29 mA	29 mA
surface mount	NO	NO
technology	ECL10K	ECL10K
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
