DE09-SL-25-M2.6 datasheet, PDF

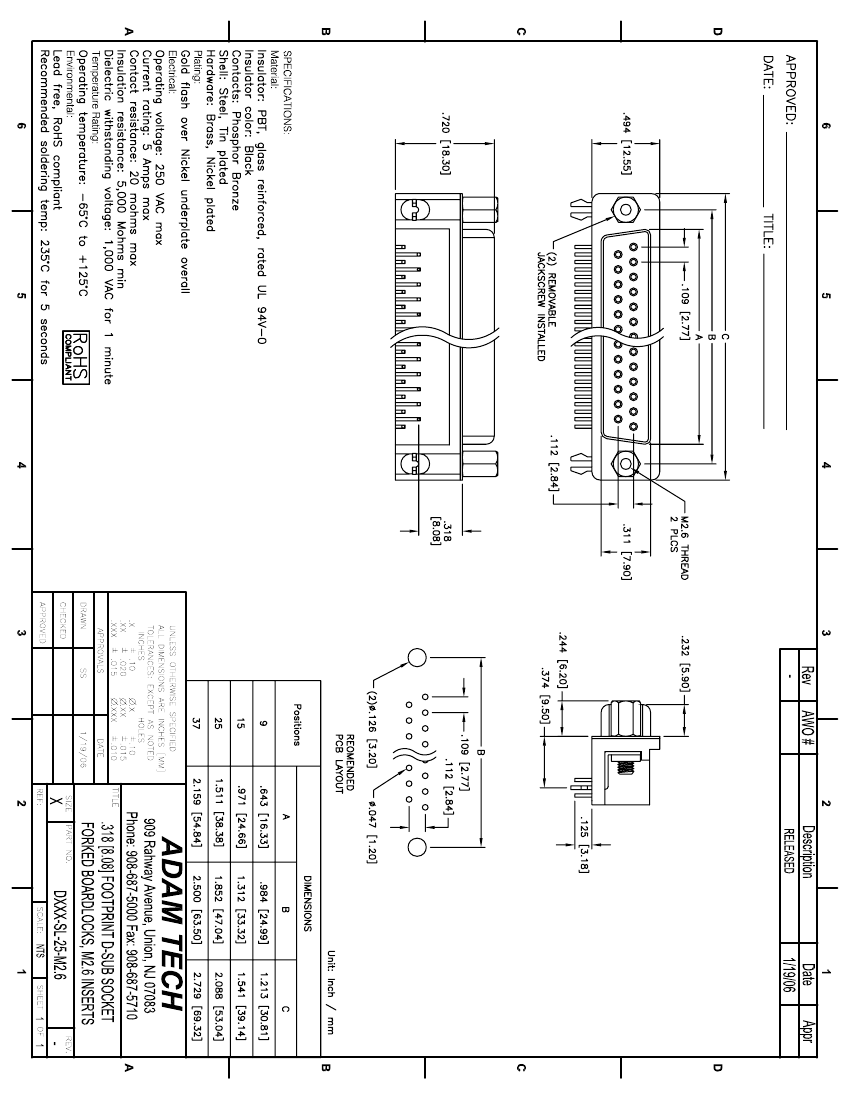

DE09-SL-25-M2.6: DescriptionD Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, M2.5, Receptacle; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

DE09-SL-25-M2.6 Overview

D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, M2.5, Receptacle

Parameter Name	Attribute value
Maker	Adam Tech
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.488 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	D
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	M2.5
Installation option 2	THREADED INSERT
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9
