BAT45-AR2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT45-AR2

BAT45-AR2: DescriptionSILICON, UHF BAND, MIXER DIODE, DO-35; CategoryDiscrete semiconductor diode; File Size65KB，3 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

BAT45-AR2 Overview

SILICON, UHF BAND, MIXER DIODE, DO-35

BAT45-AR2 Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
package instruction	O-LALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MATCHED BATCH AVAILABLE
Minimum breakdown voltage	15 V
Shell connection	ISOLATED
Configuration	SINGLE
Maximum diode capacitance	1.1 pF
Diode component materials	SILICON
Diode type	MIXER DIODE
Maximum forward voltage (VF)	1 V
frequency band	ULTRA HIGH FREQUENCY
JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
maximum noise index	7 dB
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	30 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum reverse current	0.1 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL

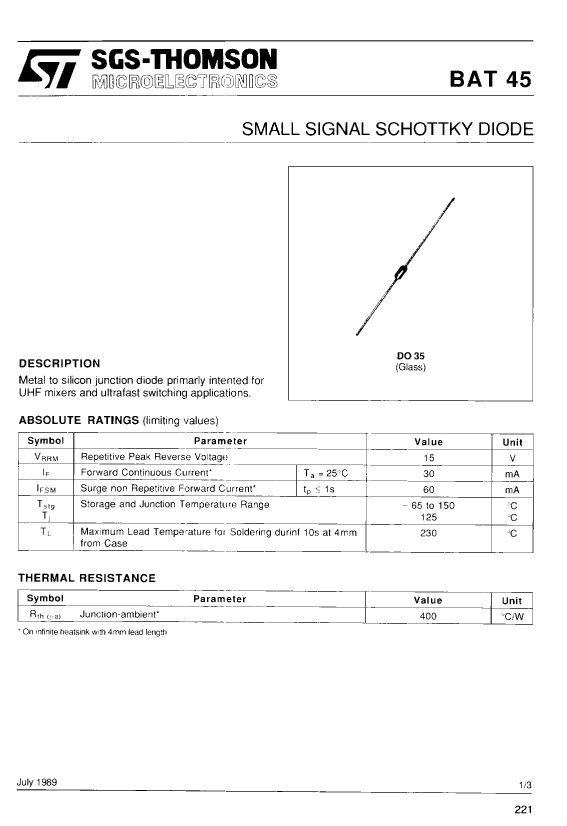

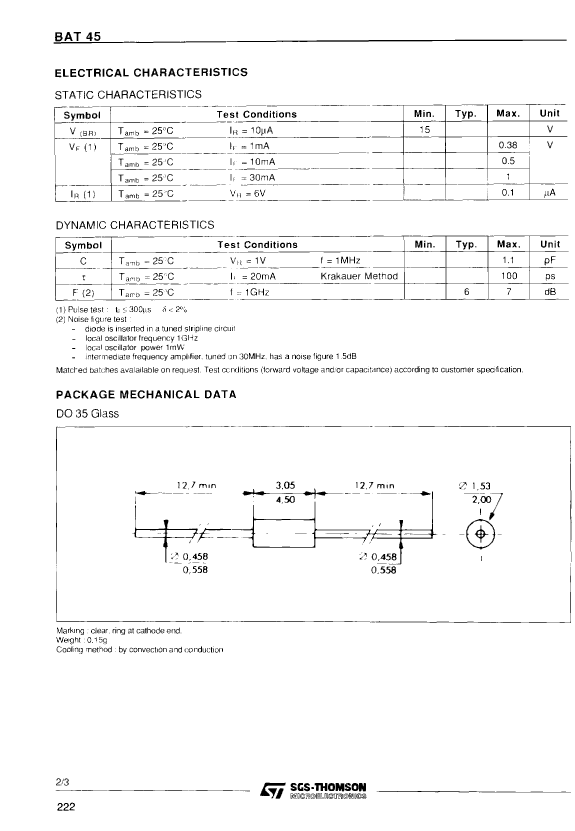

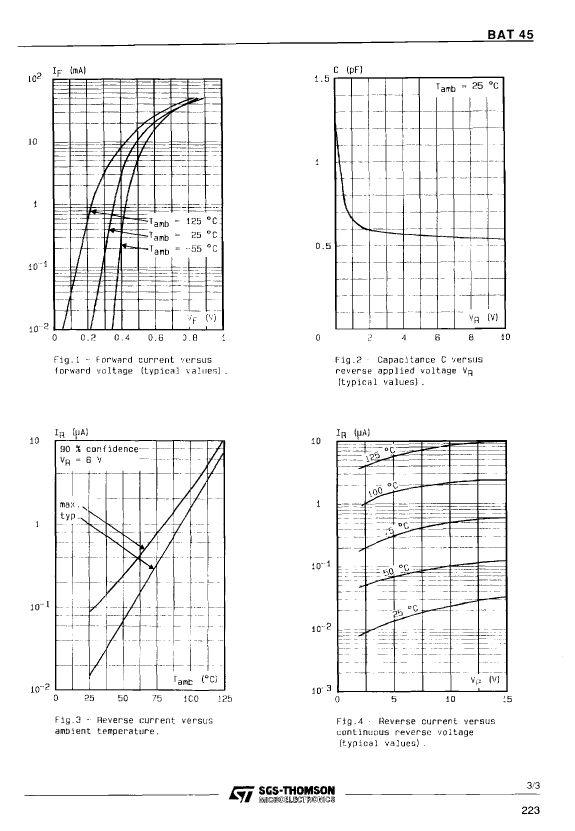

Preview

Download Datasheet

View All

BAT45-AR2 Related Products

	BAT45-AR2	BAT45-AZX	BAT45-AZ2	BAT45-AZ1	BAT45-ARX	BAT45-B2	BAT45-AR1
Description	SILICON, UHF BAND, MIXER DIODE, DO-35	SILICON, UHF BAND, MIXER DIODE, DO-35	SILICON, UHF BAND, MIXER DIODE, DO-35	SILICON, UHF BAND, MIXER DIODE, DO-35	SILICON, UHF BAND, MIXER DIODE, DO-35	SILICON, UHF BAND, MIXER DIODE, DO-35	SILICON, UHF BAND, MIXER DIODE, DO-35
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	MATCHED BATCH AVAILABLE	MATCHED BATCH AVAILABLE	MATCHED BATCH AVAILABLE	MATCHED BATCH AVAILABLE	MATCHED BATCH AVAILABLE	MATCHED BATCH AVAILABLE	MATCHED BATCH AVAILABLE
Minimum breakdown voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum diode capacitance	1.1 pF	1.1 pF	1.1 pF	1.1 pF	1.1 pF	1.1 pF	1.1 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V	1 V	1 V
frequency band	ULTRA HIGH FREQUENCY	ULTRA HIGH FREQUENCY	ULTRA HIGH FREQUENCY	ULTRA HIGH FREQUENCY	ULTRA HIGH FREQUENCY	ULTRA HIGH FREQUENCY	ULTRA HIGH FREQUENCY
JEDEC-95 code	DO-35	DO-35	DO-35	DO-35	DO-35	DO-35	DO-35
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
maximum noise index	7 dB	7 dB	7 dB	7 dB	7 dB	7 dB	7 dB
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	0.1 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
