REVISION CG
DO NOT
SCALE FROM
THIS PRINT
FTS-1XX-XX-XX-XX-XX
No OF POSITIONS
-02 THRU -50 (UNSHROUDED)
-05 THRU -46 (SHROUDED)
(No OF POS x .0500[1.27]) ±.010[0.25]
.050 1.27 REF
LEAD STYLE
SEE TABLE 1
PLATING SPECIFICATION
-L: 10µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-F: 3µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-S: 30µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-H: 30µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-SM: 30µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-LM: 10µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-FM: 3µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-G: 10µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
2 MAX SWAY
(EITHER DIRECTION)
OPTIONS
-P: PICK AND PLACE PAD (USE PPP-25)
(AVAILABLE ON POSITIONS 04 THRU 50)
(SEE FIG 5, SHT 2 & FIG 7, SHT 3)
(USE PPP-25-NT FOR TAPE & REEL)
-TR: TAPE & REEL PACKAGING (SEE FIG 10, SHT 4)
(SEE NOTE 16)
(ONLY AVAILABLE WITH -DV OPTION)
-S: END SHROUDS (SEE FIG 3, SHT 2 & FIG 6 SHT 3)
(LEAD STYLE -02 & -03 ONLY)
(05 POS MINIMUM, 46 POS MAXIMUM)
(NOT AVAILABLE WITH -A OPTION; ORDER -SA FOR
ALIGNMENT PIN WITH SHROUD)
(SEE NOTES 6 & 7)
-SA: END SHROUDS W/ ALIGNMENT PINS
(SEE FIG 4, SHT 2 & FIG 8, SHT 3)
(LEAD STYLE -02 & -03 ONLY)
(05 POS MINIMUM, 46 POS MAXIMUM)
(SEE NOTES 6 & 7)
-A: MOLDED ALIGMENT PIN (USE FTS-XX-DV-XX)
(ONLY AVAILABLE IN -DV OPTION, 5 POS MINIMUM)
(SEE FIG 9, SHT 3)
(NOT AVAILABLE WITH -S OPTION; ORDER -SA FOR
ALIGNMENT PIN AND SHROUD)
TAIL OPTION
-D: DOUBLE ROW THROUGH HOLE
-DV: DOUBLE ROW VERTICAL SURFACE MOUNT
02
.135 3.43
REF
50
C
L
01
49
FTS-XX-DV-XX
(No OF POS x .0500[1.270])
- .0500[1.270]
.016 0.41 SQ
REF (TYP)
2 MAX SWAY
(EITHER DIRECTION)
"A"
(SEE NOTE 15)
.050±.004 1.27±0.10
.090±.010 2.29±0.25
(SEE NOTE 3)
.070 1.78 REF
(CONTACT AREA)
(SEE NOTE 5)
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. PARTS MAY BE CUT TO POSITION.
3. SHEAR TAILS TO DIMENSION SHOWN.
4. MEASURED AT BEND RADIUS, NOT AT END OF PIN.
5. GOLD PLATING TO BE ON POST, TIN PLATING TO BE ON TAIL.
6. 4 POSITIONS PER ROW WILL BE COVERED BY SHROUDS.
(2 POSITIONS PER ROW ON EACH END).
7. 4 POSITIONS MUST BE ADDED TO PART CALLOUT TO ALLOW
FOR SHROUDS, EXAMPLE FTS-125-02-L-D-SA REQUIRES A
29 POSITION BODY.
8. NOTE DELETED.
9. MINIMUM PUSHOUT FORCE: .5 LB (8 OZ)
10. MAXIMUM CUT FLASH: .015[0.38]
11. PPP-25-NT MUST BE USED FOR ALL TAPE AND REEL PACKAGING.
12. FILL BODY SO THAT THE LEAD IN OF THE CORE IS ON THE TAILS SIDE
FOR -DV OPTION ONLY.
13. MAXIMUM BURR ALLOWANCE: .003[0.08]
14. FOR PACKAGING OPTION LEFT BLANK. POSITIONS -05 THRU -50
TO BE TUBED. POSITIONS -02 THRU -04 ON TAIL OPTION -D TO BE
LAYER PACKAGED. POSITIONS -02 THRU -04 ON TAIL OPTION -DV
TO BE TAPE AND REELED.
15. MAX HEIGHT VARIATION BETWEEN ROWS: .005[0.13].
16. FOR QUANTITIES LESS THAN 125 PIECES, NO REEL WILL BE SUPPLIED.
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
T-1SXX-XX-X
(SEE TABLE 1)
2 MAX SWAY
(EITHER DIRECTION)
(No OF POS x .0500[1.270]) - .0500[1.270]
.034 0.86
REF
(SEE NOTE 13)

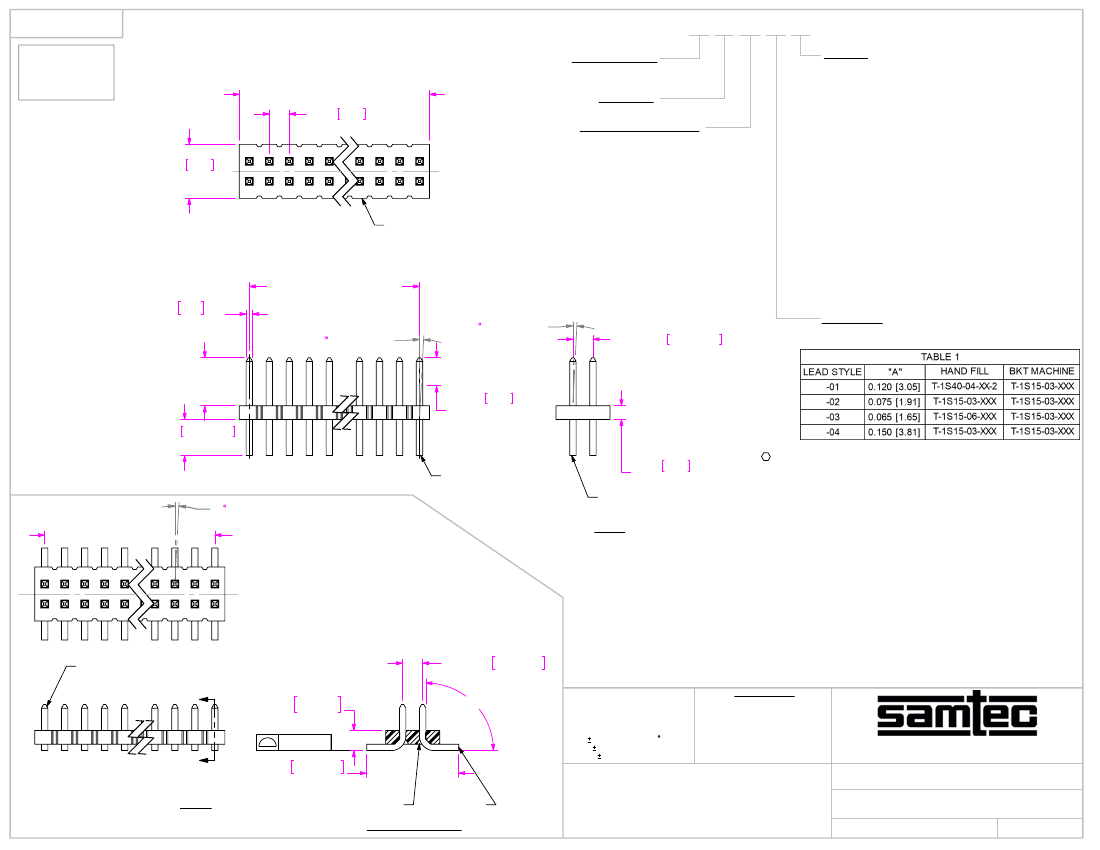

FTS-1XX-01-XX-D SHOWN
FIG 1
02
50
C
L
01
49
MAY SUBSTITUTE ASP-61746-05-X
FOR RETENTION PURPOSES FOR -DV STYLE ONLY
.050±.006 1.27±0.15
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
*
"B"
.050
+.005
1.27
+0.13
- .000
0.00
(SEE NOTE 4)
.004[0.10
.230±.010 5.84±0.25
(SEE NOTE 3)
SEE NOTE 12
90°±3°
PROPRIETARY NOTE
*
"B"
FIG 2
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
INSULATOR: LCP, UL 94 V0, COLOR: BLACK
TERMINAL: PHOS BRONZE

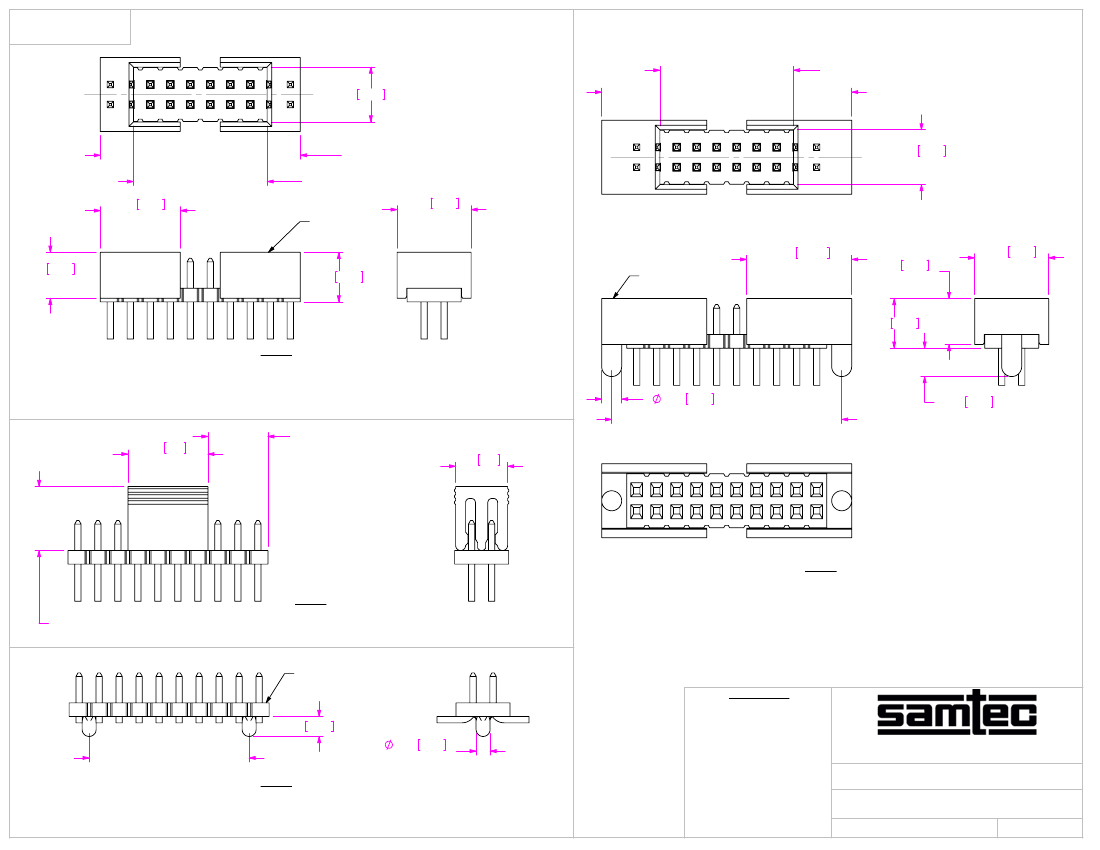

.050 X .050 C.L. LOW PROFILE
TERMINAL STRIP ASSEMBLY
FTS-1XX-03-XX-DV SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
SEE NOTE 13
F:\DWG\MISC\MKTG\FTS-1XX-XX-XX-XX-XX-MKT.SLDDRW
SECTION "B"-"B"
FTS-1XX-XX-XX-XX-XX
SHEET
1
OF
4
BY:
BRATCHER 11/29/1993
REVISION CG
(No OF POS x .050[1.27]) + .034[0.86]
C
.137 3.48 REF
L
(No OF POS x .050[1.27]) + .325[8.26] REF
(No OF POS x .050[1.27]) + .200[5.08] REF
(No OF POS x .050[1.27]) + .034[0.86]
.200 5.08
REF
.115 2.92
REF
FES
.185 4.70
REF
.2625 6.668
REF
C
L
.137 3.48
REF
.140 3.56
FES-A
.115 2.92
REF
.185 4.70
REF
NOTE: 4 POSITIONS MUST BE ADDED TO PART CALLOUT TO ACHIEVE DIMS
(NOT AVAILABLE WITH -A OPTION; ORDER -SA FOR ALIGNMENT PIN WITH SHROUD)
{[(No OF POS x .050[1.27]) - .200[5.08]] / 2} ±.020[0.51]
.20 5.1
REF
.23 5.8
REF

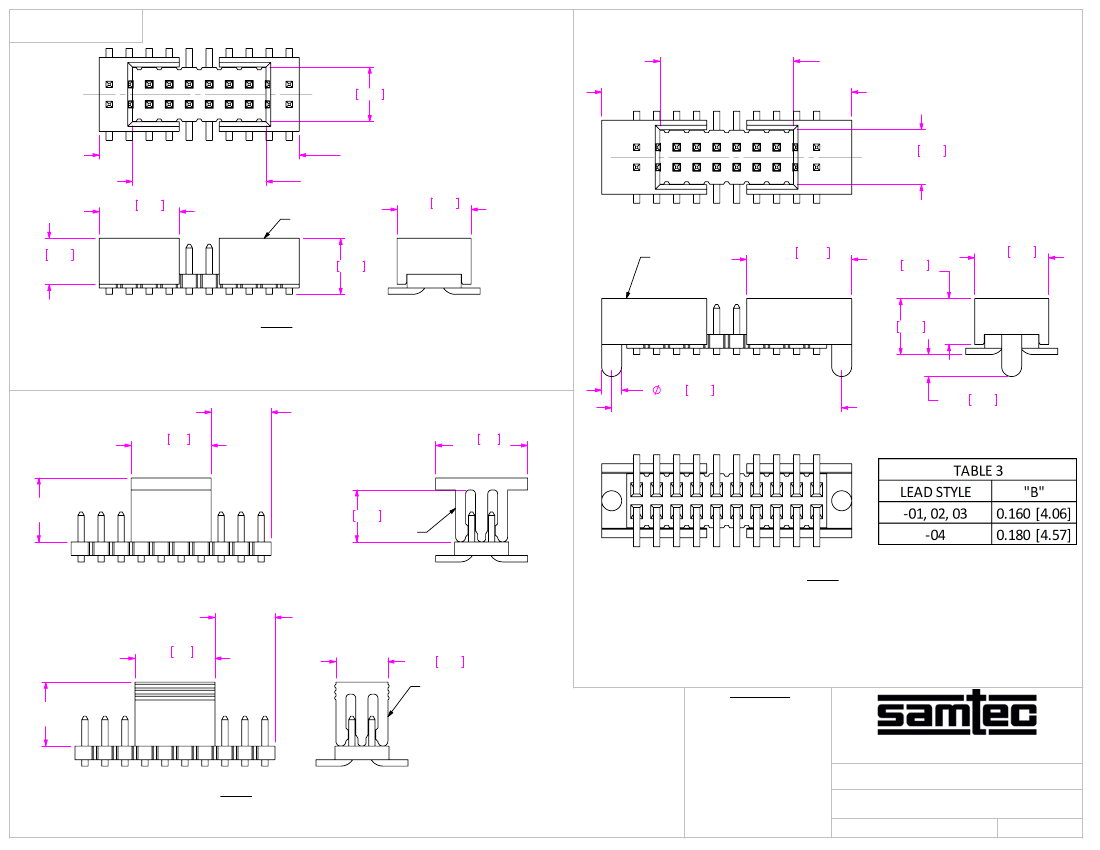

-DV-S OPTION (SEE NOTES 6 & 7)
FTS-106-02-XX-DV-S SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 3
.140 3.56
.050 1.27 REF
(No OF POS x .050[1.27]) + .275[6.99]]
.055 1.40 REF
"B"
REF
.130 3.30
PPP-25-NT
(USE PPP-25-NT FOR TAPE AND REEL PACKAGING ONLY)
{[(No OF POS x .050[1.27]) - .200[5.08]] / 2} ±.020[0.51]
.20 5.1
REF
-DV-SA OPTION (SEE NOTES 6 & 7)
FTS-106-02-XX-DV-SA SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
NOTE: 4 POSITIONS MUST BE ADDED TO PART CALLOUT TO ACHIEVE DIMS
FIG 4
.130 3.30 REF
PPP-25
F:\DWG\MISC\MKTG\FTS-1XX-XX-XX-XX-XX-MKT.SLDDRW
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
"B"
REF
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
-DV-P OPTION
FTS-110-02-XX-DV-P SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 5
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
DESCRIPTION:
DWG. NO.
.050 X .050 C.L. LOW PROFILE
TERMINAL STRIP ASSEMBLY
FTS-1XX-XX-XX-XX-XX
SHEET
2
OF
4
BY:
BRATCHER 11/29/1993
REVISION CG
(No OF POS x .050[1.27]) + .034[0.86]
C
.137 3.48 REF
L
(No OF POS x .050[1.27]) + .325[8.26] REF
(No OF POS x .050[1.27]) + .200[5.08] REF
(No OF POS x .050[1.27]) + .034[0.86]
.200 5.08
REF
.185 4.70
REF
.2625 6.668
REF
C
L
.137 3.48
REF
FES
.115 2.92
REF
.124 3.15
FES-A
.115 2.92
REF
.185 4.70
REF
.124 3.15
NOTE: 4 POSITIONS MUST BE ADDED TO PART CALLOUT TO ACHIEVE DIMS
(NOT AVAILABLE WITH -A OPTION; ORDER -SA FOR ALIGNMENT PIN WITH SHROUD)
{[(No OF POS x .050[1.27]) - .200[5.08]] / 2} ±.020[0.51]
.13 3.3
REF
-D-S OPTION (SEE NOTES 6 & 7)
FTS-106-02-XX-D-S SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 6
.050 1.27 REF
(No OF POS x .050[1.27]) + .275[6.99]]
.071 1.80 REF
.20 5.1
REF
"B" REF
(SEE TABLE 3, SHT 2)
-D-P OPTION
FTS-110-02-XX-D-P SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 7
-D-SA OPTION (SEE NOTES 6 & 7)
FTS-106-02-XX-D-SA SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
NOTE: 4 POSITIONS MUST BE ADDED TO PART CALLOUT TO ACHIEVE DIMS
FIG 8
FTS-XX-DV-XX
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
F:\DWG\MISC\MKTG\FTS-1XX-XX-XX-XX-XX-MKT.SLDDRW
*
PROPRIETARY NOTE
*
.050 1.27 REF
(No OF POS - 2) x .050[1.27]
REF
.035 0.89
REF
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
-A MOLDED ALIGNMENT PIN
FTS-110-02-XX-DV-A SHOWN
(ONLY AVAILABLE IN -DV OPTION)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 9
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
DESCRIPTION:
DWG. NO.
.050 X .050 C.L. LOW PROFILE
TERMINAL STRIP ASSEMBLY
FTS-1XX-XX-XX-XX-XX
SHEET
3
OF
4
BY:
BRATCHER 11/29/1993
REVISION CG

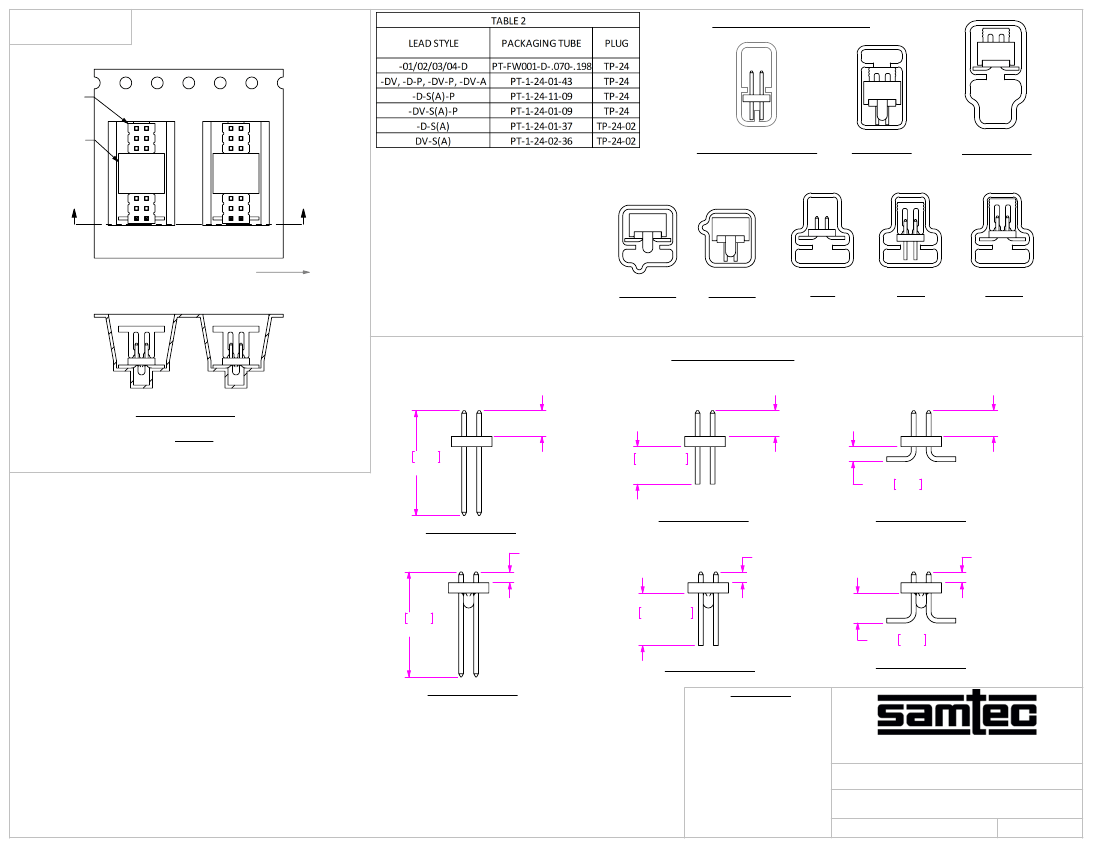

TUBE PACKAGING VIEW
POSITION 1
SEE NOTE 11
SEE NOTE 14
-01-D, -02-D, -03-D
-D-S(A)-P
-DV-S(A)-P
"A"
"A"
USER DIRECTION OF UNREELING
POCKET NOT DETAILED
-DV-S(A)
-D-S(A)
-DV
-D-P
-DV-P
(HANDFILL ONLY)
NOTE: -02 & -03 LEAD STYLES WITH -A PINS; BKT MACHINE ONLY
IN PROCESS VIEWS
SECTION "A"-"A"
-TR: TAPE AND REEL PACKAGING WITH PPP-25-NT PAD
NOT AVAILABLE ON THROUGH HOLE LEAD STYLES
FIG 10
"A" - .034[0.86]
(SEE NOTE 15)
.350 8.89
REF
.125±.010 3.18±0.25
(SEE NOTE 3)
"A" - .034[0.86]
(SEE NOTE 15)
"A" - .034[0.86]
(SEE NOTE 15)
.050 1.27
IN PROCESS 1
W/O -A PINS
"A" - .084[2.13]
(SEE NOTE 15)
IN PROCESS 2
W/O -A PINS
"A" - .084[2.13]
(SEE NOTE 15)
IN PROCESS 2
W/O -A PINS
"A" - .084[2.13]
(SEE NOTE 15)
.350 8.89
REF
.175±.010 4.45±0.25
(SEE NOTE 3)
.100 2.54
IN PROCESS 2
IN PROCESS 1
WITH -A PINS
WITH -A PINS
*
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
IN PROCESS 3
WITH -A PINS
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
DESCRIPTION:
DWG. NO.
.050 X .050 C.L. LOW PROFILE
TERMINAL STRIP ASSEMBLY
FTS-1XX-XX-XX-XX-XX
SHEET
4
OF
4
F:\DWG\MISC\MKTG\FTS-1XX-XX-XX-XX-XX-MKT.SLDDRW
BY:
BRATCHER 11/29/1993
