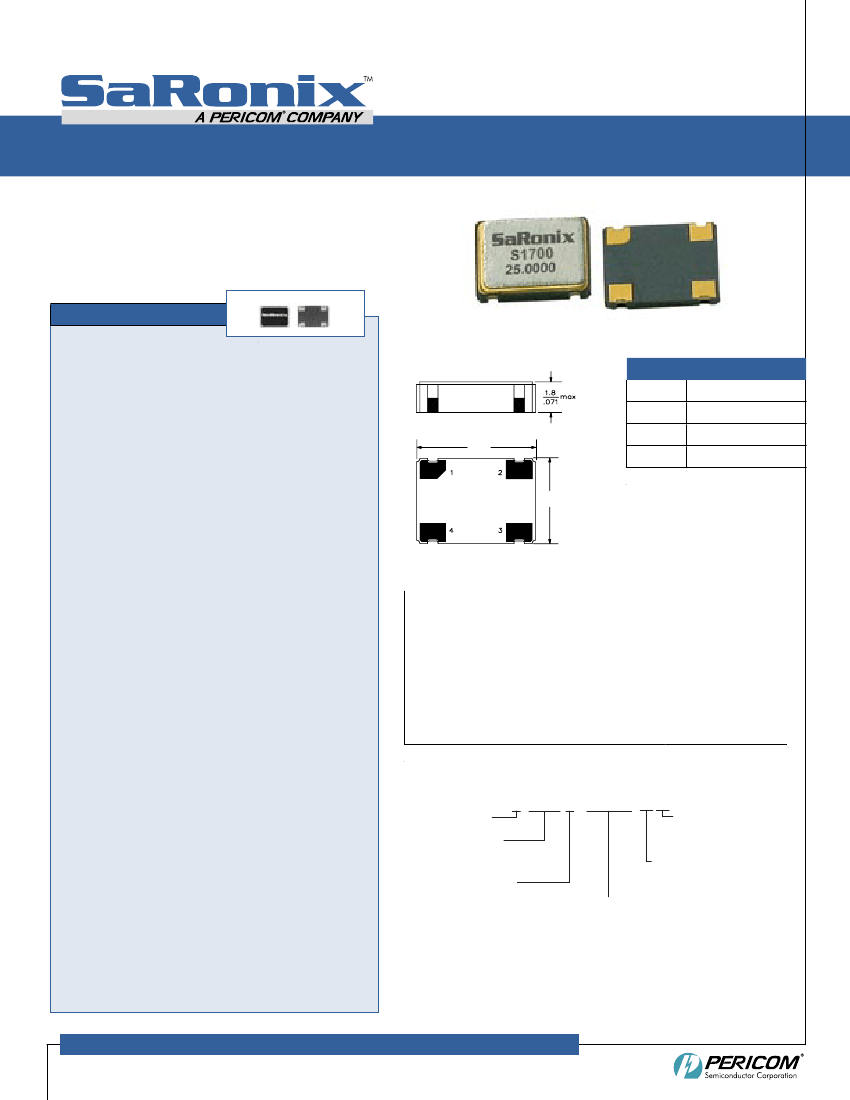

Not for new designs - see S1615 series
S1700/S1750 Series
5V CMOS/TTL, SMD
Crystal Clock Oscillator (XO)
Actual Size = 7 x 5mm
Product Features
• 5V CMOS/TTL compatible logic levels
• Pin-compatible with standard 7x5mm packages
• Designed for standard reflow and washing
techniques
• Output Tri-state function
• Pb-free and RoHS/Green compliant
(seam seal package only)
Packaging Outline
Pin Functions
Pin
Function
1
2
7mm
OE Function
Ground
Clock Output
V
DD
3
4
5mm
Product Description
The S1700 and S1750 are 5V crystal clock oscillators.
The output clock signal is compatible with CMOS/TTL
logic levels. The device, available on tape and reel,
is contained in a 7x5mm surface-mount ceramic
package.
Common Frequencies
Contact SaRonix for additional frequencies
Applications
The S1700 and S1750 are an ideal reference clock
for SMT applications requiring 5V CMOS & TTL logic
levels
• PC's, notebooks, palmtop computers
• Portable applications
• PCMCIA cards and HDD
3.6864 MHz
8.0000 MHz
10.0000 MHz
14.3181 MHz
16.0000 MHz
18.4320 MHz
20.0000 MHz
22.0000 MHz
24.5760 MHz
25.0000 MHz
32.0000 MHz
32.7680 MHz
33.0000 MHz
35.3280 MHz
40.0000 MHz
48.0000 MHz
50.0000 MHz
60.0000 MHz
66.0000 MHz
66.6667 MHz
75.0000 MHz
Ordering Information
½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½
½½½½½½½½½½½½½½½½½½½½
½
½½½½ ½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
1
All specifications are subject to change without notice.
DS 138 Rev I | 04/07/06
Not for new designs - see S1615 series
S1700/S1750 Series
5V CMOS/TTL, SMD
Crystal Clock Oscillator (XO)
Electrical Performance
Parameter
Min.
Typ.
Max.
Units
Notes
Output frequency
Supply voltage
Supply current, output enabled
1700
Supply current, output enabled
1750
Frequency stability
Operating temperature
Output logic 0, VOL
Output logic 1, VOH
1.8432
+4.5
+5.0
80
+5.5
15
30
50
20
35
60
±50 to
±100
MHz
V DC
S1750 Max Frequency 67 MHz
1.8 to 35 MHz
mA
>35 to 66.0 MHz
>66 to 80.0 MHz
1.8 to 20 MHz
mA
ppM
°C
V
V
V
V
>20 to 50 MHz
>50 to 67.0 MHz
See Note 1 below
HCMOS
TTL, S1750 only
HCMOS
TTL, S1750 only
S1700
S1750
TTL, S1750 only
0 to 70°C measured 50%VDD
0 to 70°C measured 1.5V, S1750 only
measured 20/80% of waveform
measured 0.5V to 2.5V, S1750 only
0
+70
10% V
DD
0.5
90% V
DD
2.5
15
50
5
pF
pF
TTL
%
%
ns
ns
Output load
CMOS
TTL
CMOS
TTL
45
40
Duty cycle
Rise and fall
time
55
60
10
5
Note:
1. As specified. Stability includes all combinations of operating temperature, load changes, rated input (supply) voltage changes, initial calibration tolerance (25°C),
aging (1 year at 25°C average effective ambient temperature), shock and vibration.
Output Enable / Disable Function
Parameter
Min.
Typ.
Max.
Units
Notes
Input Voltage (pin 1), Output
Enable (HCMOS)
Input voltage (pin 1), Output
Disable (HCMOS)
Input voltage (pin 1), Output
Enable (TTL)
Input voltage (pin 1), Output
Disable (TTL)
Internal pullup resistance
Output disable delay
Output enable delay
90% V
DD
10% V
DD
2.2
0.8
50
100
100
V
V
V
V
kΩ
ns
ns
or open
Output is Hi-Z
or open
Output is Hi-Z
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
2
All specifications are subject to change without notice.
DS 138 Rev I | 04/07/06
Not for new designs - see S1615 series
S1700/S1750 Series
5V CMOS/TTL, SMD
Crystal Clock Oscillator (XO)
Absolute Maximum Ratings
Parameter
Min.
Typ.
Max.
Units
Notes
Storage temperature
-55
+125
°C
Test Circuit
½½½½½½½½½½
½
½½½½½
½½
½½½½½½
½
½½½½½
½½½½½½
½
½
½½½½½½½½½½½
½½½½½½½½½½½
½½½½½½½½½½½½½½½½
½½½½½½½½½½½
½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Reliability Test Ratings
This product is rated to meet the following test conditions (Applies to seam-seal package only):
Type
Parameter
Test Condition
Mechanical
Mechanical
Mechanical
Mechanical
Mechanical
Mechanical
Environmental
Environmental
Environmental
Environmental
Shock
Solderability
Terminal strength
Gross leak
Fine leak
Solvent resistance
Thermal shock
Moisture resistance
Vibration
Resistance to soldering heat
MIL-STD-883, Method 2002, Condition B
JESD22-B102-D Method 2 (Preconditioning E)
MIL-STD-883, Method 2004, Condition D
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 1014, Condition A2 (R
1
= 2x10
-8
atm cc/s)
MIL-STD-202, Method 215
MIL-STD-883, Method 1011, Condition A
MIL-STD-883, Method 1004
MIL-STD-883, Method 2007, Condition A
J-STD-020C Table 5-2 Pb-free devices (2 cycles max)
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
3
All specifications are subject to change without notice.
DS 138 Rev I | 04/07/06
Not for new designs - see S1615 series
S1700/S1750 Series
5V CMOS/TTL, SMD
Crystal Clock Oscillator (XO)
Output Waveform
t
f
t
r
VOH
80%
50%
20%
VOL
t
A
Duty cycle = 100%
x
(t
A
)
/
(t
A
+ t
B
)
t
B
Reflow Soldering Profile (Applies to seam-seal package only)
As per IPC/JEDEC J-STD-020C
260
217
1 to 3°C/sec max
Peak 260°C for 10 sec max
1 to 3°C/sec
Temperature – °C
Time
60 to 90 sec
4 to 6 minutes max
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
4
All specifications are subject to change without notice.
DS 138 Rev I | 04/07/06
Not for new designs - see S1615 series
S1700/S1750 Series
5V CMOS/TTL, SMD
Crystal Clock Oscillator (XO)

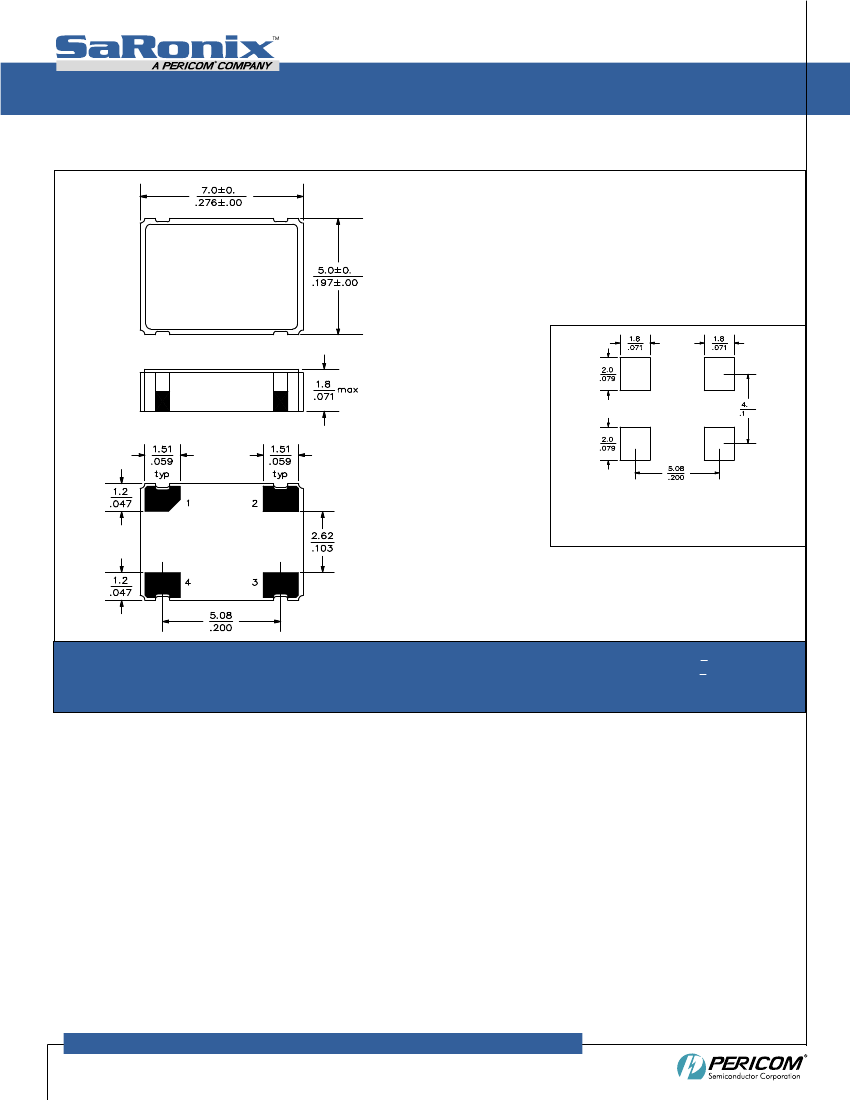

Mechanical Drawings
½½
½
Note:
Seam-seal package is depicted.
Legacy glass-frit package has limited
availability, please inquire if needed.
½½
½
Recommended Land Pattern*
½½
½½
*External high-frequency power decoupling is
recommended.(see test circuit for minimum recom-
mendation). To ensure optimal performance, do not
route traces beneath the package.
Scale: None. Dimensions are in mm/inches.
Marking LINE 1:
Marking LINE 2:
S XX YY WW X (SaRonix, Model, Stability, Year, Week, Origin )
•
Frequency (Pin #1, Frequency code)
Note:
S2XYYWWX S1700
S7XYYWWX S1750
**Exact location of markings may vary.
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
5
All specifications are subject to change without notice.
DS 138 Rev I | 04/07/06
