67679-005 datasheet, PDF - EEWORLD Datasheet

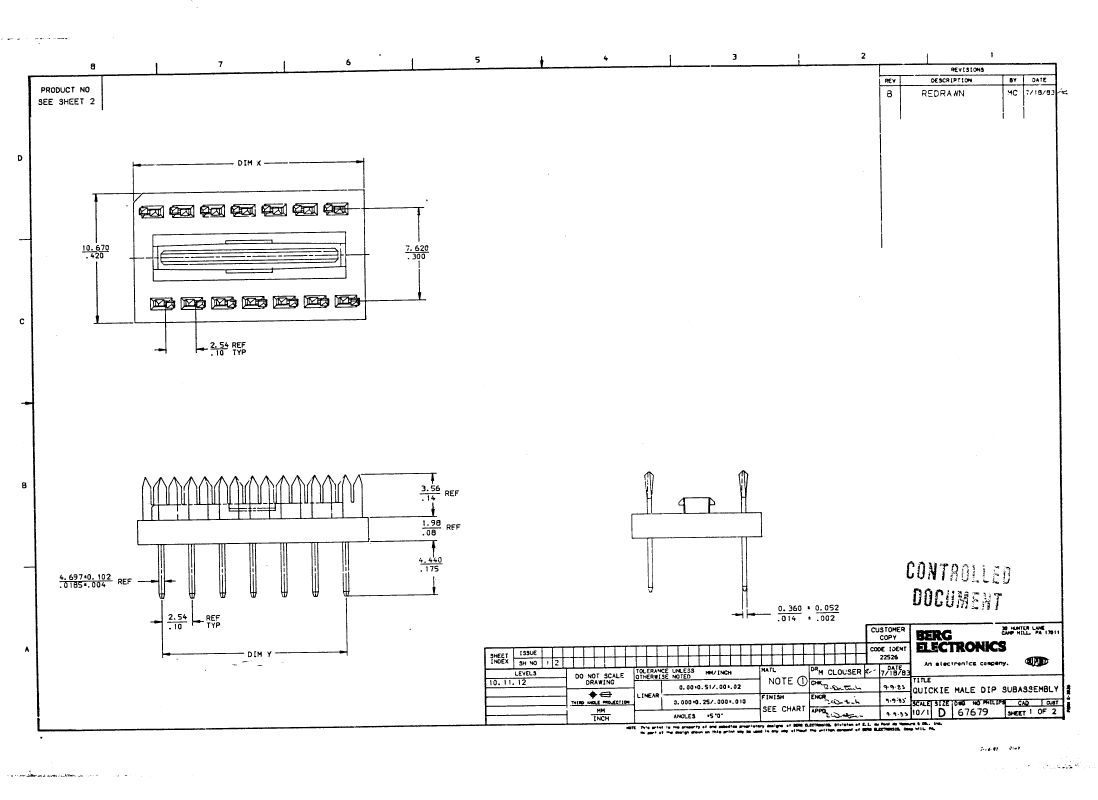

67679-005: DescriptionDIP Connector, 14 Contact(s), 2 Row(s), Male, IDC Terminal; CategoryThe connector The connector; File Size179KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

67679-005 Overview

DIP Connector, 14 Contact(s), 2 Row(s), Male, IDC Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	DIP CONNECTOR
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	67679
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	14
UL Flammability Code	94V-0

PDM: Rev:B

STATUS:

Released

Printed: Nov 10, 2004

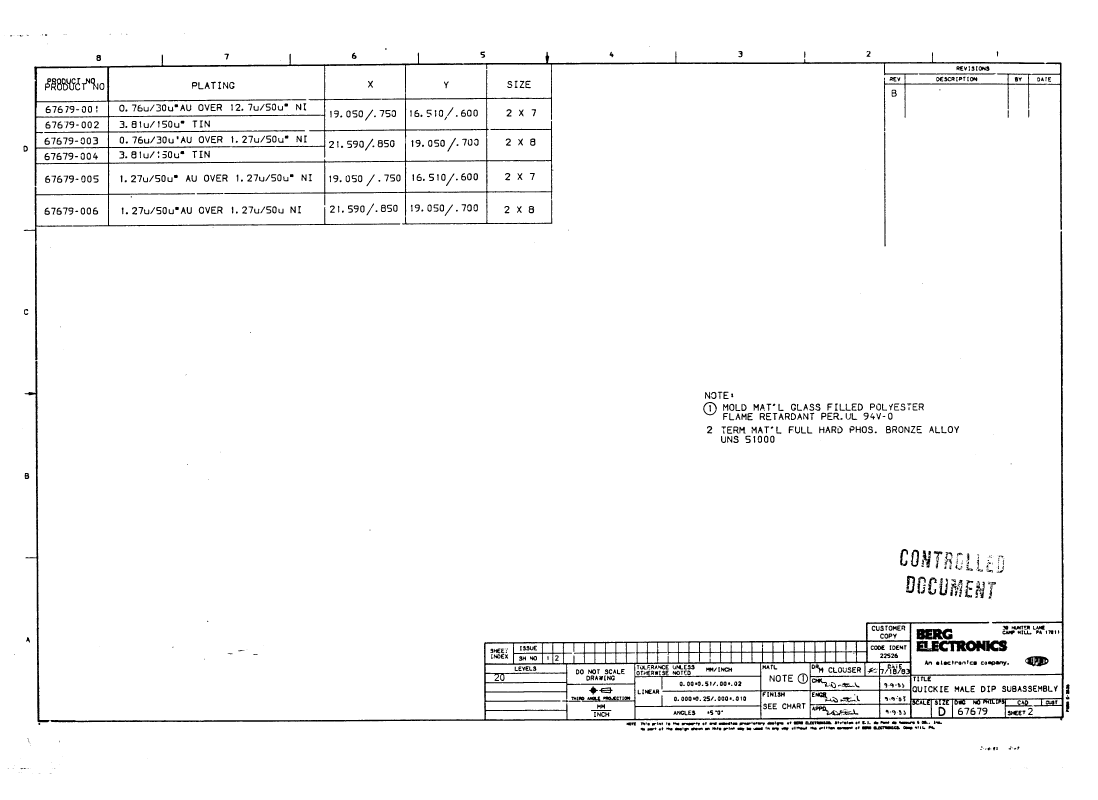

	67679-005	67679-001	67679-002	67679-003	67679-004	67679-006
Description	DIP Connector, 14 Contact(s), 2 Row(s), Male, IDC Terminal	DIP Connector, 14 Contact(s), 2 Row(s), Male, IDC Terminal	DIP Connector, 14 Contact(s), 2 Row(s), Male, IDC Terminal	DIP Connector, 16 Contact(s), 2 Row(s), Male, IDC Terminal	DIP Connector, 16 Contact(s), 2 Row(s), Male, IDC Terminal	DIP Connector, 16 Contact(s), 2 Row(s), Male, IDC Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR
Contact completed and terminated	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	67679	67679	67679	67679	67679	67679
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	14	14	14	16	16	16
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
