LTC2356IMSE-12#TR datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> LTC2356IMSE-12#TR

LTC2356IMSE-12#TR: DescriptionIC 1-CH 12-BIT PROPRIETARY METHOD ADC, SERIAL ACCESS, PDSO10, PLASTIC, MSOP-10, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size266KB，16 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LTC2356IMSE-12#TR Overview

IC 1-CH 12-BIT PROPRIETARY METHOD ADC, SERIAL ACCESS, PDSO10, PLASTIC, MSOP-10, Analog to Digital Converter

LTC2356IMSE-12#TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	MSOP
package instruction	TSSOP, TSSOP10,.19,20
Contacts	10
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum analog input voltage	-1.25 V
Minimum analog input voltage	1.25 V
Converter type	ADC, PROPRIETARY METHOD
JESD-30 code	S-PDSO-G10
JESD-609 code	e0
length	3 mm
Maximum linear error (EL)	0.0488%
Humidity sensitivity level	1
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	10
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output bit code	OFFSET BINARY, 2\'S COMPLEMENT BINARY
Output format	SERIAL
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP10,.19,20
Package shape	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	235
power supply	3.3 V
Certification status	Not Qualified
Sampling rate	3.5 MHz
Sample and hold/Track and hold	SAMPLE
Maximum seat height	1.1 mm
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	3 mm

Preview

Download Datasheet

View All

LTC2356-12/LTC2356-14

Serial 12-Bit/14-Bit, 3.5Msps

Sampling ADCs with Shutdown

FEATURES

■

DESCRIPTIO

3.5Msps Conversion Rate

74.1dB SINAD at 14-Bits, 71.1dB SINAD at 12-Bits

Low Power Dissipation: 18mW

3.3V Single Supply Operation

2.5V Internal Bandgap Reference can be Overdriven

3-Wire SPI-Compatible Serial Interface

Sleep (13µW) Shutdown Mode

Nap (4mW) Shutdown Mode

80dB Common Mode Rejection

±1.25V

Bipolar Input Range

Tiny 10-Lead MSOP Package

The LTC

2356-12/LTC2356-14 are 12-bit/14-bit, 3.5Msps

serial ADCs with differential inputs. The devices draw

only 5.5mA from a single 3.3V supply and come in a tiny

10-lead MSOP package. A Sleep shutdown feature further

reduces power consumption to 13µW. The combination of

speed, low power and tiny package makes the LTC2356-12/

LTC2356-14 suitable for high speed, portable applications.

The 80dB common mode rejection allows users to elimi-

nate ground loops and common mode noise by measuring

signals differentially from the source.

The devices convert –1.25V to 1.25V bipolar inputs differ-

entially. The absolute voltage swing for A

IN+

and

IN–

extends from ground to the supply voltage.

The serial interface sends out the conversion results during

the 16 clock cycles following a CONV rising edge for

compatibility with standard serial interfaces. If two addi-

tional clock cycles for acquisition time are allowed after the

data stream in between conversions, the full sampling rate

of 3.5Msps can be achieved with a 63MHz clock.

, LT, LTC and LTM are registered trademarks of Linear Technology Corporation.

All other trademarks are the property of their respective owners.

APPLICATIO S

■

Communications

Data Acquisition Systems

Uninterrupted Power Supplies

Multiphase Motor Control

Multiplexed Data Acquisition

RFID

BLOCK DIAGRA

10µF 3.3V

LTC2356-14

IN+

IN–

S&H

14-BIT ADC

14-BIT LATCH

SDO

THD, 2nd, 3rd (dB)

–

REF

2.5V

REFERENCE

THREE-

STATE

SERIAL

OUTPUT

PORT

10µF

TIMING

LOGIC

2356 BD

CONV

GND

SCK

EXPOSED PAD

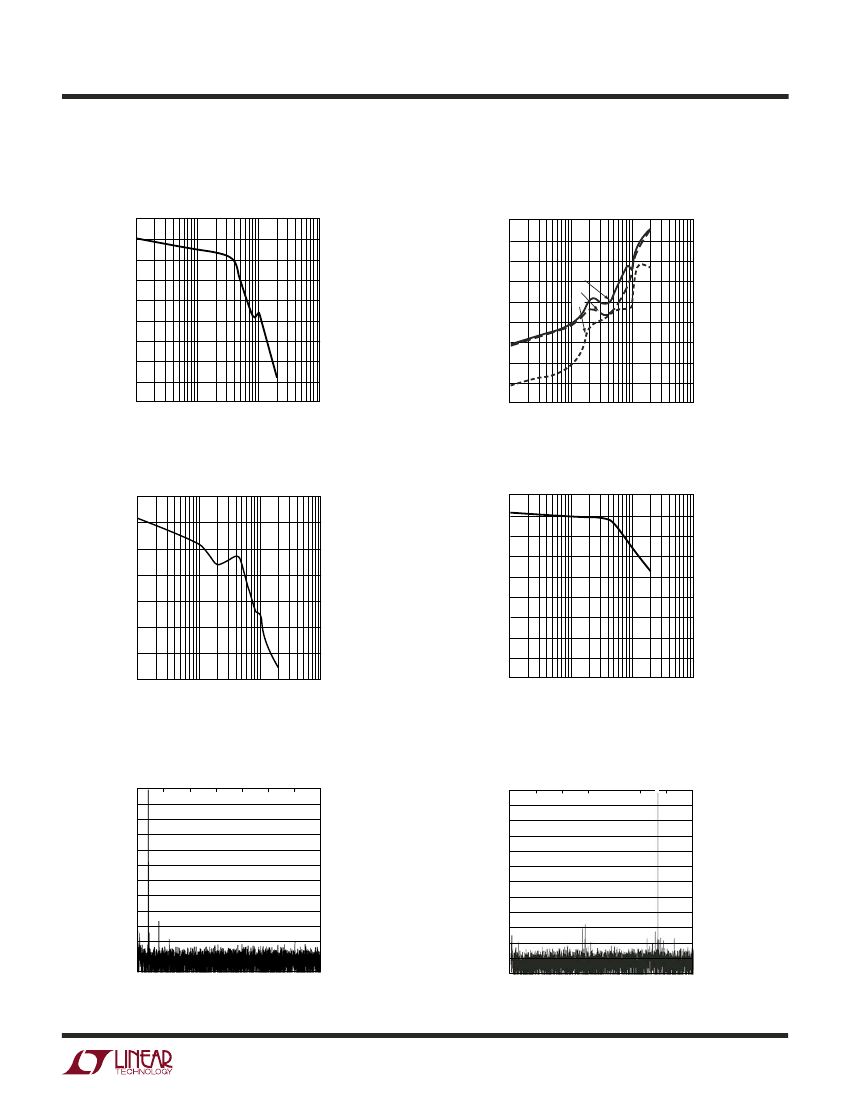

THD, 2nd and 3rd vs Input Frequency

for Differential Input Signals

–50

–56

–62

–68

–74

–80

–86

–92

–98

–104

0.1

FREQUENCY (MHz)

100

2356 G02

THD

2nd

3rd

2356f

LTC2356IMSE-12#TR Related Products

	LTC2356IMSE-12#TR	LTC2356CMSE-12#TR	LTC2356CMSE-14#TR	LTC2356IMSE-14#TR
Description	IC 1-CH 12-BIT PROPRIETARY METHOD ADC, SERIAL ACCESS, PDSO10, PLASTIC, MSOP-10, Analog to Digital Converter	IC 1-CH 12-BIT PROPRIETARY METHOD ADC, SERIAL ACCESS, PDSO10, PLASTIC, MSOP-10, Analog to Digital Converter	IC 1-CH 14-BIT PROPRIETARY METHOD ADC, SERIAL ACCESS, PDSO10, PLASTIC, MSOP-10, Analog to Digital Converter	IC 1-CH 14-BIT PROPRIETARY METHOD ADC, SERIAL ACCESS, PDSO10, PLASTIC, MSOP-10, Analog to Digital Converter
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
Parts packaging code	MSOP	MSOP	MSOP	MSOP
package instruction	TSSOP, TSSOP10,.19,20	TSSOP, TSSOP10,.19,20	TSSOP, TSSOP10,.19,20	TSSOP, TSSOP10,.19,20
Contacts	10	10	10	10
Reach Compliance Code	not_compliant	not_compliant	_compli	_compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum analog input voltage	-1.25 V	-1.25 V	-1.25 V	-1.25 V
Minimum analog input voltage	1.25 V	1.25 V	1.25 V	1.25 V
Converter type	ADC, PROPRIETARY METHOD	ADC, PROPRIETARY METHOD	ADC, PROPRIETARY METHOD	ADC, PROPRIETARY METHOD
JESD-30 code	S-PDSO-G10	S-PDSO-G10	S-PDSO-G10	S-PDSO-G10
JESD-609 code	e0	e0	e0	e0
length	3 mm	3 mm	3 mm	3 mm
Maximum linear error (EL)	0.0488%	0.0488%	0.0244%	0.0244%
Humidity sensitivity level	1	1	1	1
Number of analog input channels	1	1	1	1
Number of digits	12	12	14	14
Number of functions	1	1	1	1
Number of terminals	10	10	10	10
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C
Output bit code	OFFSET BINARY, 2\'S COMPLEMENT BINARY	OFFSET BINARY, 2\'S COMPLEMENT BINARY	OFFSET BINARY, 2\'S COMPLEMENT BINARY	OFFSET BINARY, 2\'S COMPLEMENT BINARY
Output format	SERIAL	SERIAL	SERIAL	SERIAL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	TSSOP	TSSOP
Encapsulate equivalent code	TSSOP10,.19,20	TSSOP10,.19,20	TSSOP10,.19,20	TSSOP10,.19,20
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	235	235	235	235
power supply	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	3.5 MHz	3.5 MHz	3.5 MHz	3.5 MHz
Sample and hold/Track and hold	SAMPLE	SAMPLE	SAMPLE	SAMPLE
Maximum seat height	1.1 mm	1.1 mm	1.1 mm	1.1 mm
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	20	20	20	20
width	3 mm	3 mm	3 mm	3 mm
