LTC1273CS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> LTC1273CS

LTC1273CS: DescriptionIC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO24, PLASTIC, SOL-24, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size103KB，2 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LTC1273CS Overview

IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO24, PLASTIC, SOL-24, Analog to Digital Converter

LTC1273CS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	SOIC
package instruction	PLASTIC, SOL-24
Contacts	24
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum analog input voltage	5 V
Minimum analog input voltage
Maximum conversion time	2.7 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	15.4 mm
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY
Output format	PARALLEL, WORD
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Sampling rate	0.3 MHz
Maximum seat height	2.65 mm
Nominal supply voltage	5 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm

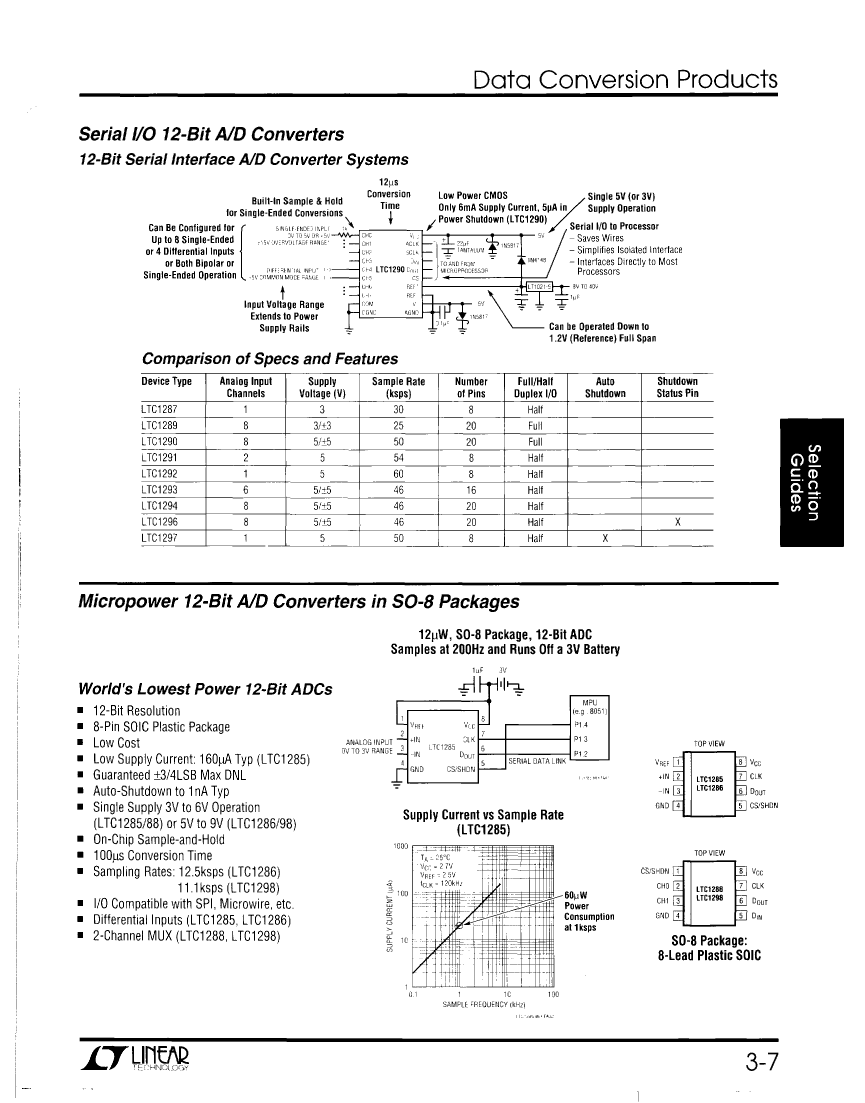

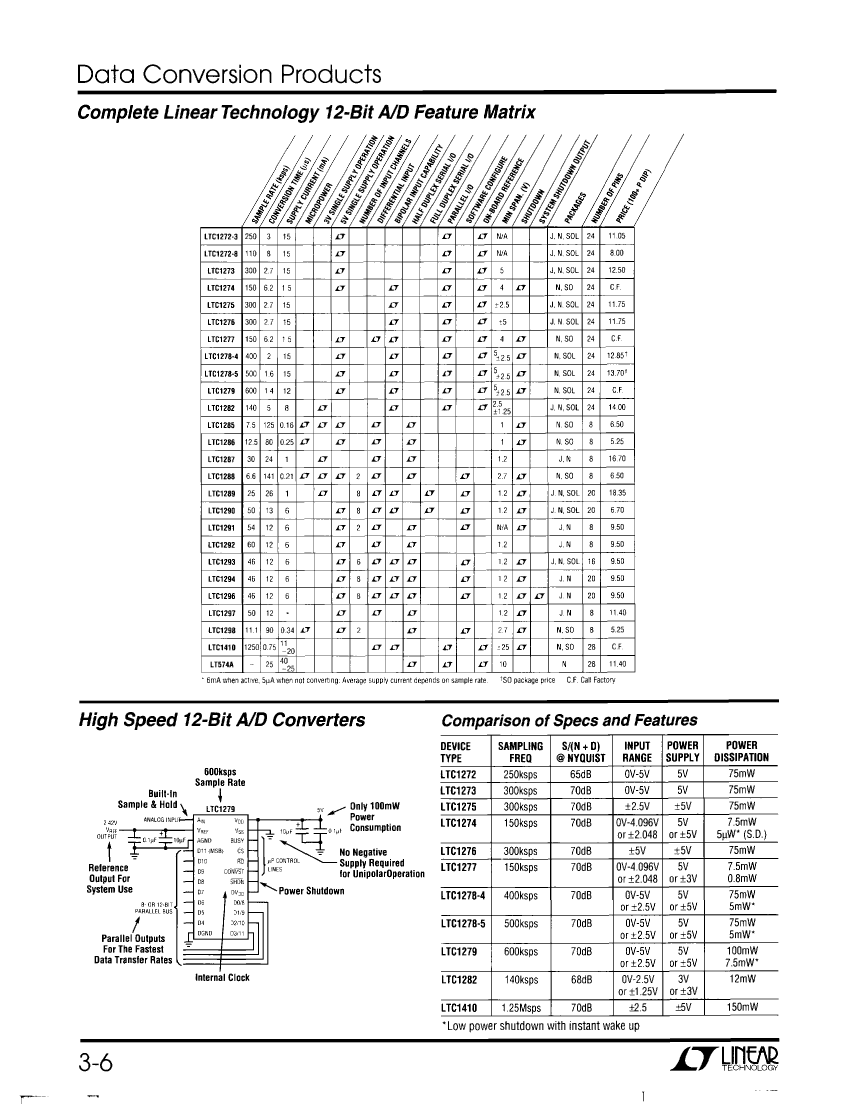

Preview

Download Datasheet

View All

LTC1273CS Related Products

	LTC1273CS	LTC1278-5CS	LTC1278-4CS	LTC1279CS	LTC1272-8CJ	LTC1272-3CS	LTC1272-8CN	LTC1274CN	LTC1272-3CN
Description	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO24, PLASTIC, SOL-24, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO24, PLASTIC, SOL-24, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO24, PLASTIC, SOL-24, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO24, PLASTIC, SOL-24, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP24, CERAMIC, DIP-24, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO24, PLASTIC, SOL-24, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24, PLASTIC, DIP-24, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24, PLASTIC, DIP-24, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24, PLASTIC, DIP-24, Analog to Digital Converter
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
Parts packaging code	SOIC	SOIC	SOIC	SOIC	DIP	SOIC	DIP	DIP	DIP
package instruction	PLASTIC, SOL-24	SOP, SOP24,.4	SOP, SOP24,.4	PLASTIC, SOL-24	CERAMIC, DIP-24	PLASTIC, SOL-24	PLASTIC, DIP-24	PLASTIC, DIP-24	PLASTIC, DIP-24
Contacts	24	24	24	24	24	24	24	24	24
Reach Compliance Code	compliant	unknown	unknown	compliant	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum analog input voltage	5 V	2.5 V	2.5 V	2.5 V	5 V	5 V	5 V	2.048 V	5 V
Maximum conversion time	2.7 µs	1.85 µs	2.3 µs	1.5 µs	8 µs	3 µs	8 µs	6.2 µs	3 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-GDIP-T24	R-PDSO-G24	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of analog input channels	1	1	1	1	1	1	1	1	1
Number of digits	12	12	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24	24
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output bit code	BINARY	BINARY, 2'S COMPLEMENT BINARY	BINARY, 2\'S COMPLEMENT BINARY	BINARY, 2\'S COMPLEMENT BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	DIP	SOP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	0.3 MHz	0.5 MHz	0.4 MHz	0.6 MHz	0.11 MHz	0.25 MHz	0.11 MHz	80 MHz	0.25 MHz
Maximum seat height	2.65 mm	2.65 mm	2.65 mm	2.65 mm	5.08 mm	2.65 mm	3.937 mm	3.937 mm	3.937 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO	YES	NO	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.62 mm	7.5 mm	7.62 mm	7.62 mm	7.62 mm
length	15.4 mm	15.4 mm	15.4 mm	15.4 mm	-	15.4 mm	-	-	-
