MDS100

Description
Three-phase rectifier bridge module, 100A, 600-1600V, 1.3V, 100A, 8MA, 1200A, 7200A2S, 150℃
CategoryAnalog mixed-signal IC    Three phase rectifier bridge module
File Size2MB，1 Pages
ManufacturerLGE
Websitehttp://www.luguang.cn/web_en/index.html
Download Datasheet Parametric Compare View All

MDS100 Overview

Three-phase rectifier bridge module, 100A, 600-1600V, 1.3V, 100A, 8MA, 1200A, 7200A2S, 150℃

MDS100 Parametric

Parameter NameAttribute value
IF(A)100
Maximum recurrent peak reverse voltage600-1600
VFM(V)1.3
IFM(A)100
IRRM(MA)8
Peak forward surge current1200
I2t(A2S)7200
Storage Temperature Range150

Preview

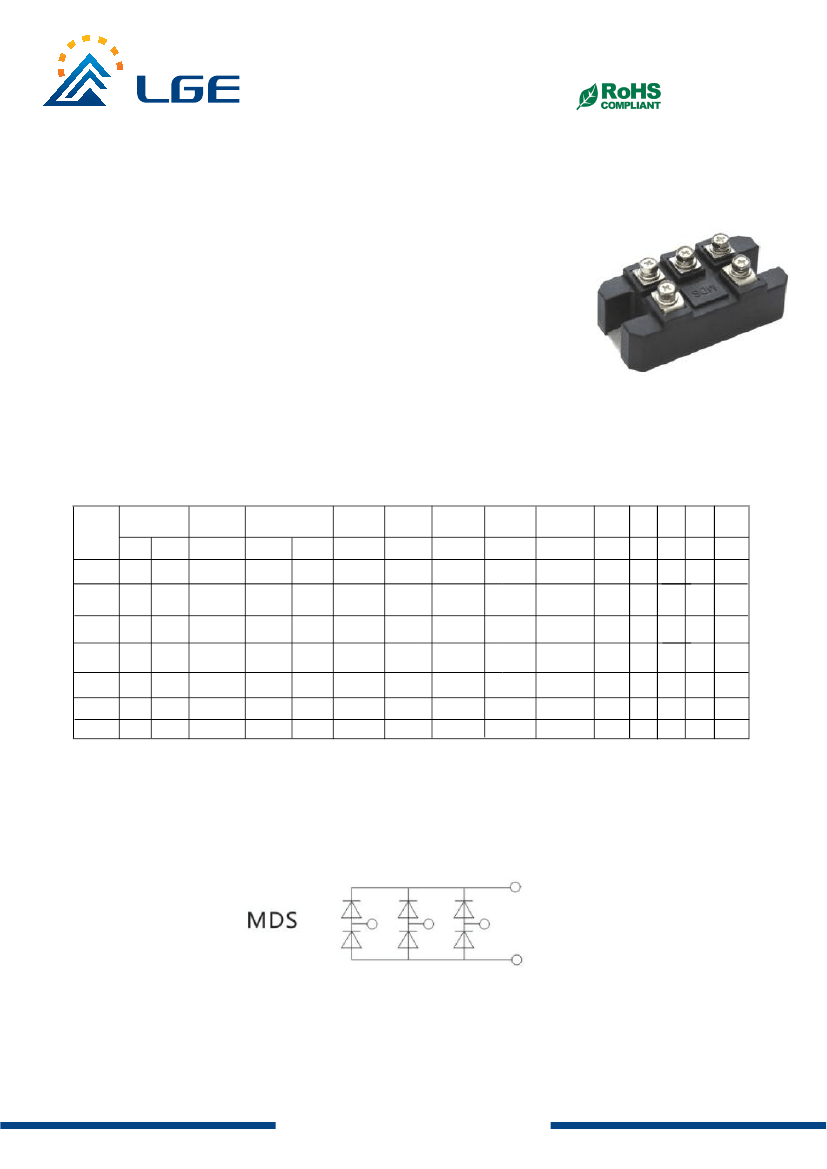

Download Datasheet
Three-phase bridge rectifier
modules
Features
●
●
Noninsulated and common electrode for base.
International standard packaging.
Total pressure structure,good ability of temperature characteristic and
power cycle.
Maximum operating junction temperature.
Hight surge current.
Low peak on-state voltage.
●
●
●
●
MDS
Id@Tc
Type
MDS30
MDS50
MDS75
MDS100
MDS150
A
30
50
75
100
150
A
100
100
100
100
100
100
100
VRRM
V
600~1600
600~1600
600~1600
600~1600
600~1600
600~1600
600~1600
VFM@IFM
V
1.1
1.2
1.25
1.30
1.20
1.51
1.35
A
30
50
75
100
150
175
200
I
RRM
mA
2
4
4
8
10
12
15
IF(AV)
A
10
17
25
33
50
58
67
IF(RMS)
A
25
39
47
51
71
83
95
IFSM
A×10
3
0.5
0.75
1.00
1.20
1.50
2.70
2.1
I2T
A
2
s×10
4
0.12
0.28
0.51
0.72
1.14
3.88
2.21
VFO
v
0.80
0.80
0.80
0.80
0.80
0.80
0.80
R
F
R
jc
T
jm
V
iso
V
(A.C)
2500
2500
2500
2500
2500
2500
2500
mΩ
℃/W ℃
9.0
9.0
7.0
4.5
3.8
3.1
2.8
0.44
0.3
150
150
0.24 150
0.2
150
0.14 150
0.14 150
0.1
150
MDS175
175
MDS200
200
Revision:20190101-P1
ht
t
p
:
//
www.lgesemi
.c
o
m
mail:lge@lgesemi.com

MDS100 Related Products

MDS100 MDS175 MDS200 MDS150 MDS50 MDS30 MDS75
Description Three-phase rectifier bridge module, 100A, 600-1600V, 1.3V, 100A, 8MA, 1200A, 7200A2S, 150℃ No description yet Three-phase rectifier bridge module, 200A, 600-1600V, 1.35V, 200A, 15MA, 2100A, 22100A2S, 150℃ Three-phase rectifier bridge module, 150A, 600-1600V, 1.2V, 150A, 10MA, 1500A, 11400A2S, 150℃ Three-phase bridge rectifier module, 50A, 600-1600V, 1.2V, 50A, 4MA, 750A, 2800A2S, 150℃ Three-phase rectifier bridge module, 30A, 600-1600V, 1.1V, 30A, 2MA, 500A, 1200A2S, 150℃ Three-phase rectifier bridge module, 75A, 600-1600V, 1.25V, 75A, 4MA, 1000A, 5100A2S, 150℃
IF(A) 100 175 200 150 50 30 75
Maximum recurrent peak reverse voltage 600-1600 600-1600 600-1600 600-1600 600-1600 600-1600 600-1600
VFM(V) 1.3 1.51 1.35 1.2 1.2 1.1 1.25
IFM(A) 100 175 200 150 50 30 75
IRRM(MA) 8 12 15 10 4 2 4
I2t(A2S) 7200 38800 22100 11400 2800 1200 5100
Storage Temperature Range 150 150 150 150 150 150 150
Peak forward surge current 1200 2700 2100 1500 750 500 -
