LOW PROFILE WIRE WOUND INDUCTOR (CERAMIC BASE)
AISC-0805LP
FEATURES:
• Wire wound Ceramic Construction Provides
High SRFs and Exceptional Q Values
• Outstanding Endurance from Pull-up Force,
Mechanical Shock and Pressure
• Tighter Tolerance of ±2%, Low Profile Construction
• Working Temperature Range : -40 °C ~ 125 °C
Pb
RoHS
Compliant
2.29 x 1.73 x 1.03mm
| | | | | | | | | | | | | | |
APPLICATIONS:
• Widely applied in the VCO, RF module, remote
controller and security system
• Cellular Phone (CDMA/GSM/PHS), Wireless PDA,
• Base Station, Repeater, GPS Receiver
• CATV Filter, Tuner, Set Top Box, Cable Modem/XDSL Tuner
• USB 2.0, IEEE 1394
ELECTRICAL SPECIFICATIONS:
PARAMETERS
ABRACON P/N: AISC-0805LP Series
Operating temperature: -40°C to + 125°C
Storage temperature: -40°C to + 85°C, 70% RH max.
Part Number
AISC-0805LP-1N8
AISC-0805LP-3N9
AISC-0805LP-4N7
AISC-0805LP-6N8
AISC-0805LP-8N2
AISC-0805LP-10N
AISC-0805LP-12N
AISC-0805LP-15N
AISC-0805LP-18N
AISC-0805LP-22N
AISC-0805LP-27N
AISC-0805LP-33N
AISC-0805LP-39N
AISC-0805LP-47N
AISC-0805LP-56N
AISC-0805LP-68N
AISC-0805LP-82N
AISC-0805LP-R10
AISC-0805LP-R12
AISC-0805LP-R15
AISC-0805LP-1R0
Inductance (L)
@Test Freq.
(nH)
1.8 @ 250 MHz
3.9 @ 250 MHz
4.7@ 250 MHz
6.8 @ 250 MHz
8.2 @ 250 MHz
10 @ 250 MHz
12 @ 250 MHz
15 @ 250 MHz
18 @ 250 MHz
22 @ 250 MHz
27 @ 250 MHz
33 @ 250 MHz
39 @ 250 MHz
47 @ 200 MHz
56 @ 200 MHz
68 @ 200 MHz
82 @ 150 MHz
100 @ 150 MHz
120 @ 150 MHz
150 @ 150 MHz
1000 @ 25 MHz
Tolerance
(±%)
K
J, K
J, K
J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
Q, Min
@Test Freq.
55 @ 1500 MHz
60 @ 1000 MHz
50 @ 1000 MHz
50 @ 1000 MHz
50 @ 1000 MHz
55 @ 750 MHz
55 @ 750 MHz
50 @ 500 MHz
50 @ 500 MHz
50 @ 500MHz
50 @ 500MHz
50 @ 500MHz
50 @ 500MHz
50 @ 500MHz
50 @ 500MHz
50 @ 500MHz
50 @ 500MHz
50 @ 500MHz
40 @ 250 MHz
40 @ 250 MHz
16 @ 50 MHz
SRF
Min
(GHz)
9.4
6.1
5.5
5.5
4.8
3.3
3.8
2.95
3.1
2.9
2.45
2.35
2.2
2
1.85
1.5
1.5
1.2
1.15
1.05
0.08
R
DC
Max
0.03
0.06
0.06
0.08
0.08
0.08
0.1
0.1
0.13
0.15
0.23
0.28
0.33
0.39
0.39
0.4
0.44
0.64
0.68
0.8
3.5
I
DC
Max
(mA)
800
800
800
800
800
800
800
800
800
800
600
600
600
600
500
500
500
400
300
300
1.7
Color
Code
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
Whit
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
Whit
Black
Test Equipment
1.For SMT inductor, the inductance value(L) is measured by using HP4291B impedance analyzer
2. RDC measured by using Micro-ohm meter (GOM-801G)
3.For SMT inductor , the quality factor (Q) is measured by using HP4291B impedance analyzer
4.For SMT inductor ,SRF is measured by using HP8753 network analyzer
OPTIONS AND PART IDENTIFICATION
AISC - 0805LP -
Inductance Code
Please refer to the Table
-
-
Packaging Code
T
Tape & Reel
Tolerance Code
G
±2%
J
±5%
K
±10%
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 08.18.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
LOW PROFILE WIRE WOUND INDUCTOR (CERAMIC BASE)
AISC-0805LP

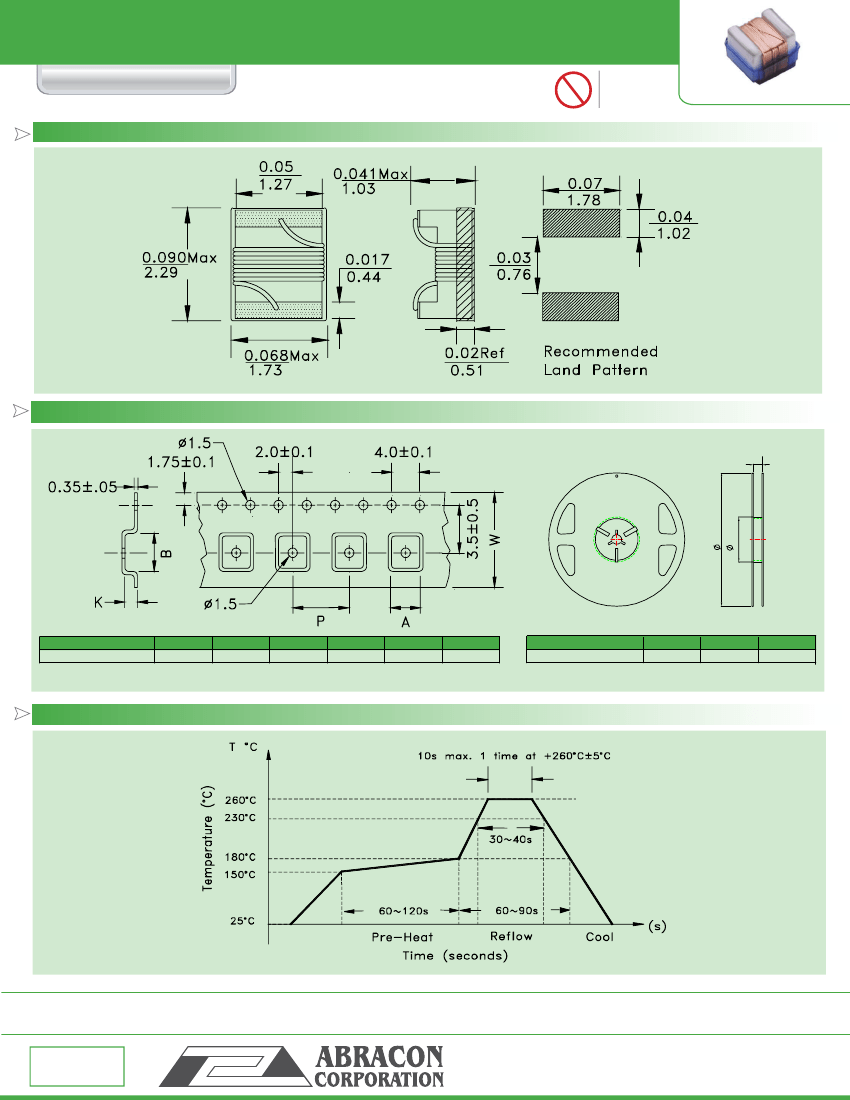

OUTLINE DRAWING:
Pb
RoHS
Compliant
2.29 x 1.73 x 1.03mm
| | | | | | | | | | | | | | |
Dimension : inch/mm
TAPE & REEL:
Tape and reel 2,000pcs/reel
ABRACON P/N
AISC-0805LP
A (mm)
1.8
B (mm)
2.3
K (mm)
0.9
P (mm)
4
W (mm)
8
PCS/REEL
2,000
Series
AISC-0805LP
A
178±2.0
A
Z
C
9±0.3
C
Z
60±1.0
Dimensions: mm
REFLOW PROFILE:
NOTE:
Abracon manufactured products are intended for general commercial and industrial use. For applications requiring
high reliability and/or presenting extreme operating environment, written consent & authorization from Abracon is required.
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 08.18.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
