MTXV8E9CSFREQ datasheet, PDF - EEWORLD Datasheet

MTXV8E9CSFREQ: DescriptionCMOS Output Clock Oscillator, 0.5MHz Min, 155.52MHz Max; CategoryPassive components oscillator; File Size58KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MTXV8E9CSFREQ Overview

CMOS Output Clock Oscillator, 0.5MHz Min, 155.52MHz Max

Parameter Name	Attribute value
Maker	MtronPTI
Reach Compliance Code	unknown
Maximum control voltage	5 V
Minimum control voltage
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	35 ppm
frequency stability	10%
Manufacturer's serial number	MTXV
Installation features	SURFACE MOUNT
Maximum operating frequency	155.52 MHz
Minimum operating frequency	0.5 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	5 TTL, 15 pF
physical size	20.8mm x 13.2mm x 7.87mm
longest rise time	10 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %

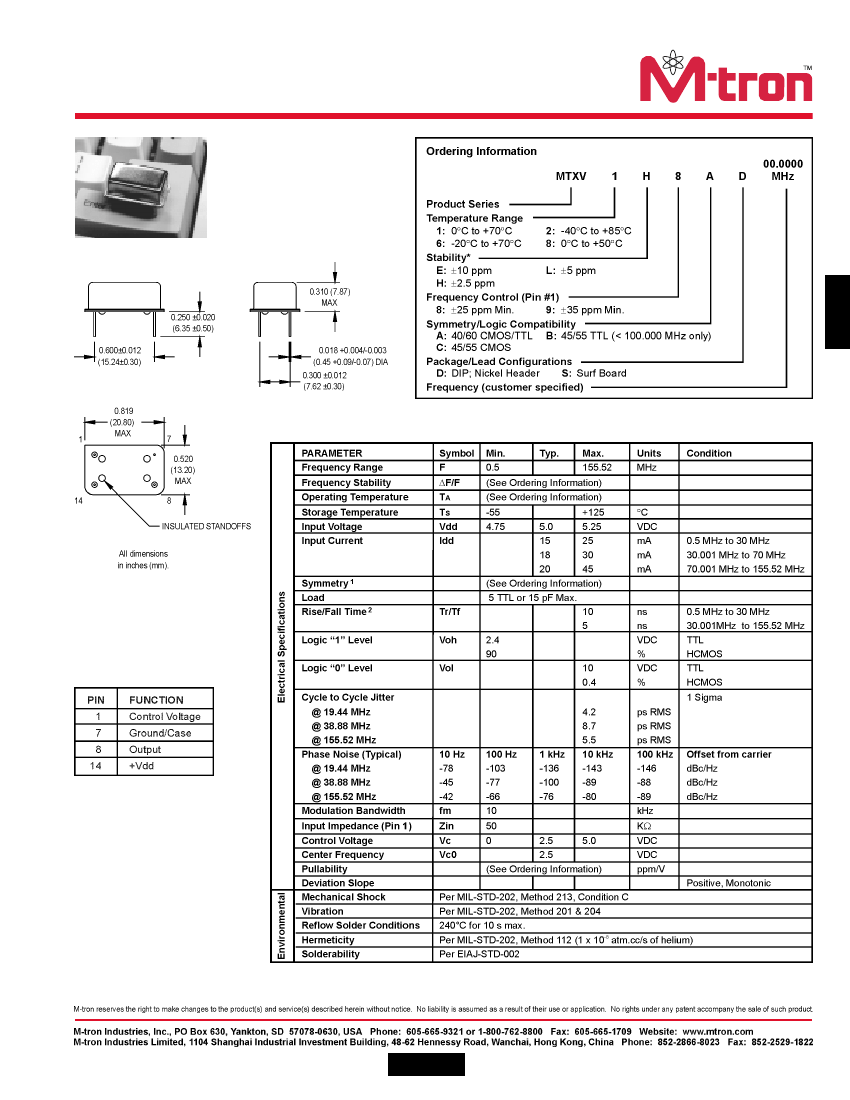

MTXV Series 5.0 Volt TCVCXO

* Referenced to 25°C reading at 2.5 VDC control voltage.

* See page 90 for surf board configuration.

Pin Connections

1. Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.

2. Rise/fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with HCMOS load.
