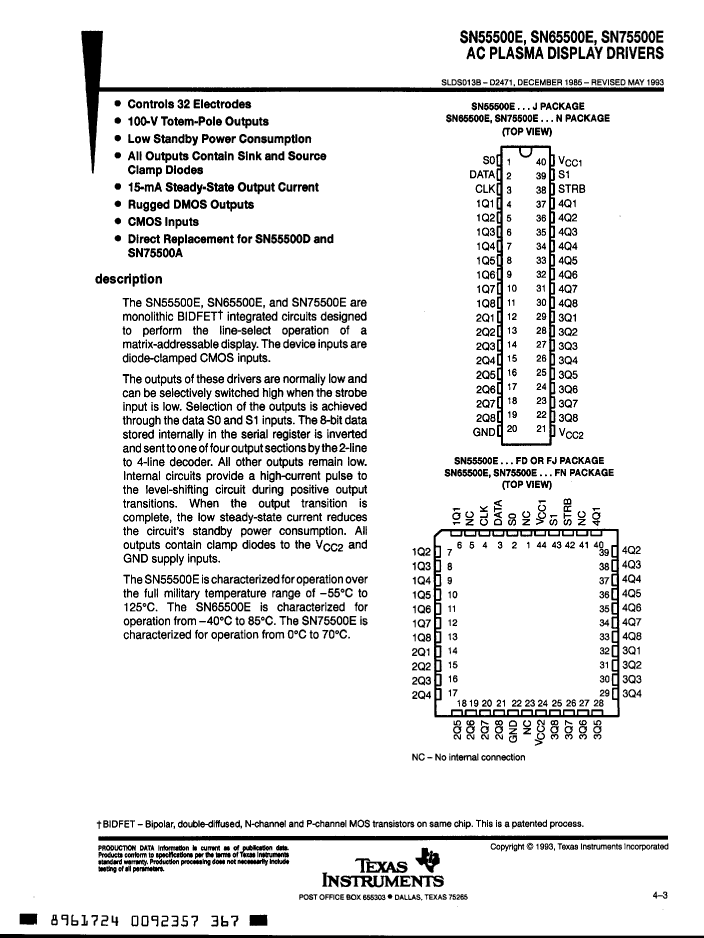

AC Plasma Driver, 32-Segment, BICMOS, CQCC44, CERAMIC, PACKAGE-44

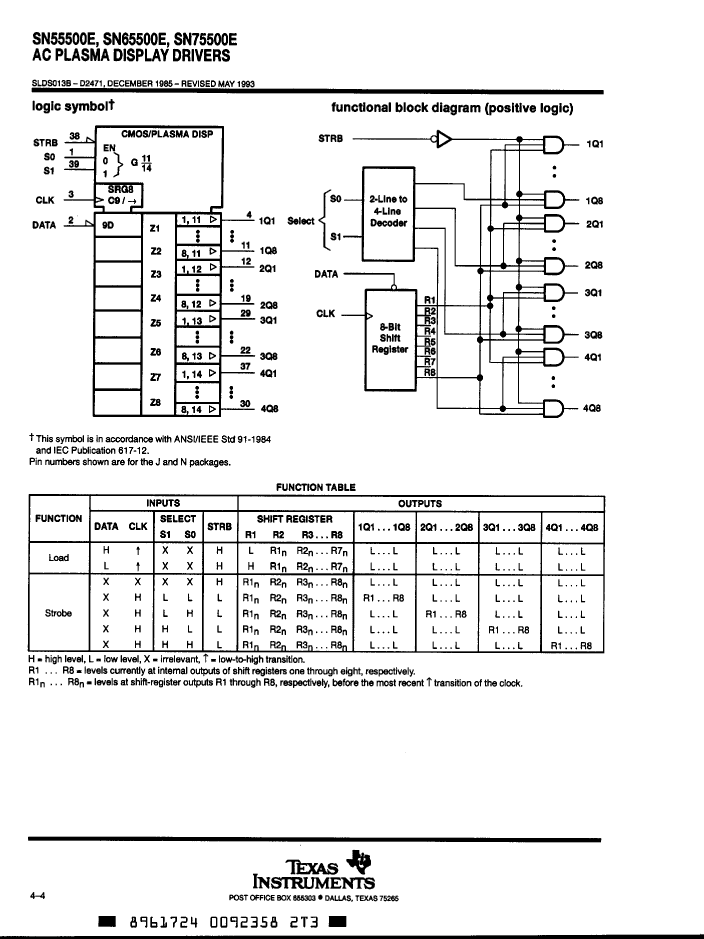

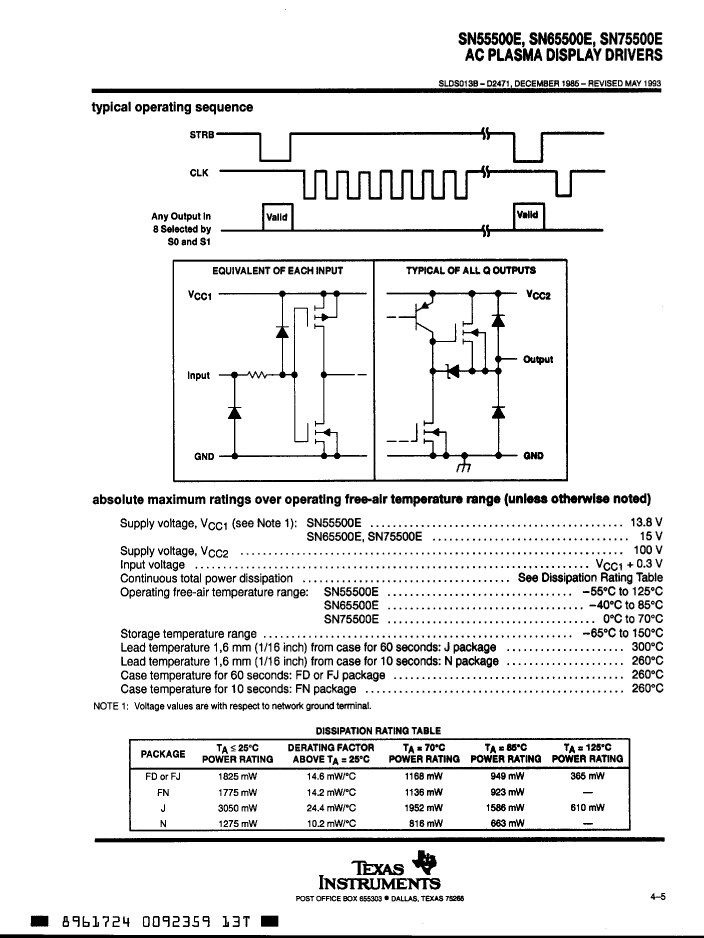

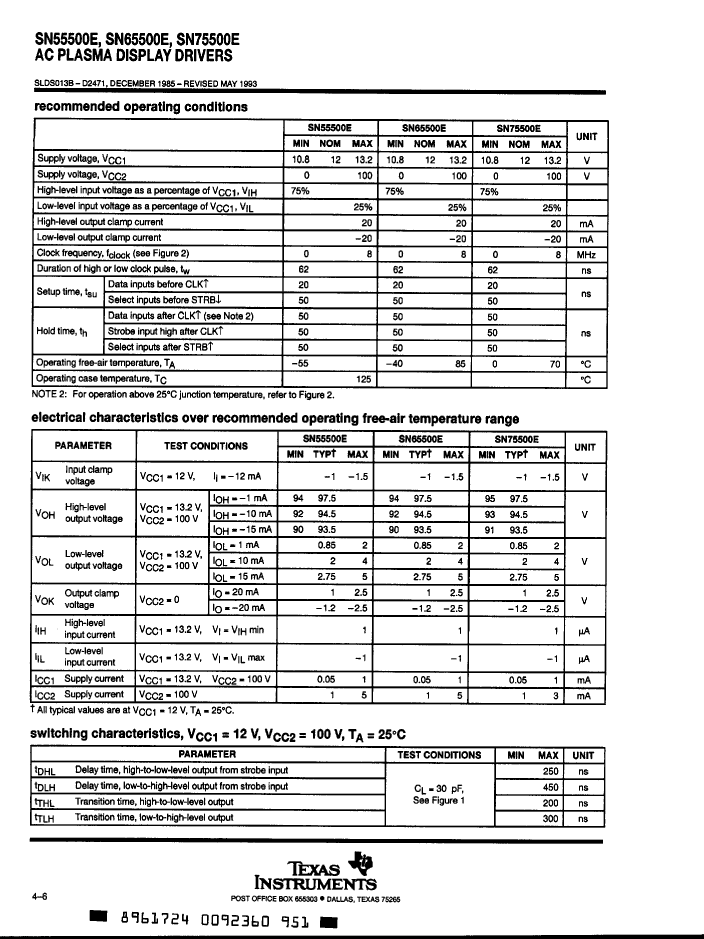

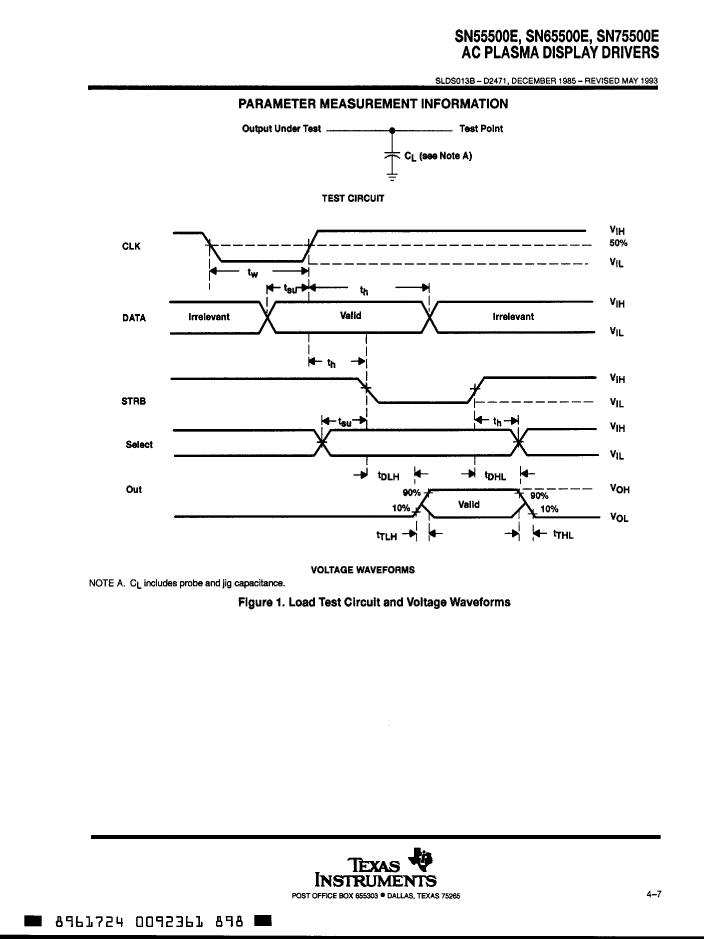

| Parameter Name | Attribute value |
| Maker | Rochester Electronics |
| package instruction | QCCJ, |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | OPTEMP_MAX SPECIFIED AS TC |
| data entry mode | SERIAL |
| display mode | DOT MATRIX |
| Interface integrated circuit type | AC PLASMA DISPLAY DRIVER |
| JESD-30 code | S-CQCC-J44 |
| JESD-609 code | e0 |
| Multiplex display function | YES |
| Number of functions | 1 |
| Number of segments | 32 |
| Number of terminals | 44 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCJ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Maximum supply voltage | 13.2 V |
| Minimum supply voltage | 10.8 V |
| Nominal supply voltage | 12 V |
| Supply voltage 1-max | 100 V |
| Mains voltage 1-minute | |
| Supply voltage1-Nom | 60 V |
| surface mount | YES |
| technology | BICMOS |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | J BEND |
| Terminal location | QUAD |
| minfmax | 8 MHz |
| SN55500EFJ | SN75500AN | SN75500DN | SNJ55500EJ | SN55500EJ | |
|---|---|---|---|---|---|
| Description | AC Plasma Driver, 32-Segment, BICMOS, CQCC44, CERAMIC, PACKAGE-44 | AC Plasma Driver | AC Plasma Driver | AC Plasma Driver, 32-Segment, BICMOS, CDIP40, CERAMIC, DIP-40 | AC Plasma Driver, 32-Segment, BICMOS, CDIP40, CERAMIC, DIP-40 |
| Maker | Rochester Electronics | Rochester Electronics | Rochester Electronics | Rochester Electronics | Rochester Electronics |
| package instruction | QCCJ, | , | , | DIP, | DIP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Interface integrated circuit type | AC PLASMA DISPLAY DRIVER | AC PLASMA DISPLAY DRIVER | AC PLASMA DISPLAY DRIVER | AC PLASMA DISPLAY DRIVER | AC PLASMA DISPLAY DRIVER |
| data entry mode | SERIAL | - | - | SERIAL | SERIAL |
| display mode | DOT MATRIX | - | - | DOT MATRIX | DOT MATRIX |
| JESD-30 code | S-CQCC-J44 | - | - | R-CDIP-T40 | R-CDIP-T40 |
| JESD-609 code | e0 | - | - | e0 | e0 |
| Multiplex display function | YES | - | - | YES | YES |
| Number of functions | 1 | - | - | 1 | 1 |
| Number of segments | 32 | - | - | 32 | 32 |
| Number of terminals | 44 | - | - | 40 | 40 |
| Maximum operating temperature | 125 °C | - | - | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | - | - | -55 °C | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | - | - | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCJ | - | - | DIP | DIP |
| Package shape | SQUARE | - | - | RECTANGULAR | RECTANGULAR |
| Package form | CHIP CARRIER | - | - | IN-LINE | IN-LINE |
| Maximum supply voltage | 13.2 V | - | - | 13.2 V | 13.2 V |
| Minimum supply voltage | 10.8 V | - | - | 10.8 V | 10.8 V |
| Nominal supply voltage | 12 V | - | - | 12 V | 12 V |
| Supply voltage 1-max | 100 V | - | - | 100 V | 100 V |
| Supply voltage1-Nom | 60 V | - | - | 60 V | 60 V |
| surface mount | YES | - | - | NO | NO |
| technology | BICMOS | - | - | BICMOS | BICMOS |
| Temperature level | MILITARY | - | - | MILITARY | MILITARY |
| Terminal surface | TIN LEAD | - | - | TIN LEAD | TIN LEAD |
| Terminal form | J BEND | - | - | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | QUAD | - | - | DUAL | DUAL |
| minfmax | 8 MHz | - | - | 8 MHz | 8 MHz |
