ST230S12M0VL: DescriptionSilicon Controlled Rectifier, 360 A, 1200 V, SCR, TO-209AB; CategoryAnalog mixed-signal IC Trigger device; File Size316KB，9 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

ST230S12M0VL Overview

Silicon Controlled Rectifier, 360 A, 1200 V, SCR, TO-209AB

ST230S12M0VL Parametric

Parameter Name	Attribute value
Maker	Vishay
package instruction	POST/STUD MOUNT, O-MUPM-H3
Reach Compliance Code	unknown
Configuration	SINGLE
Maximum DC gate trigger current	150 mA
JEDEC-95 code	TO-209AB
JESD-30 code	O-MUPM-H3
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	360 A
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Trigger device type	SCR

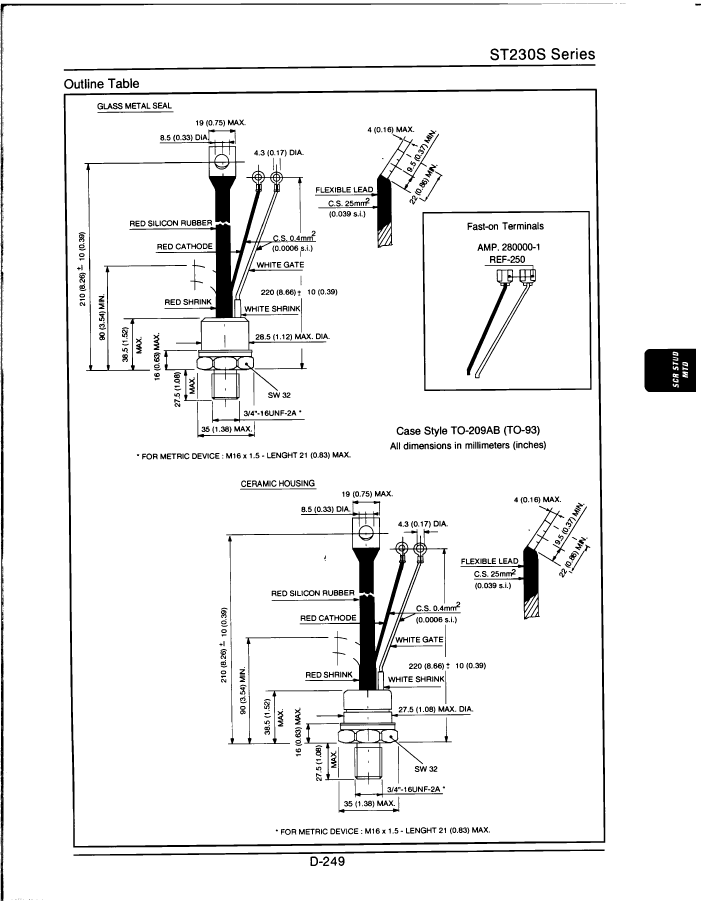

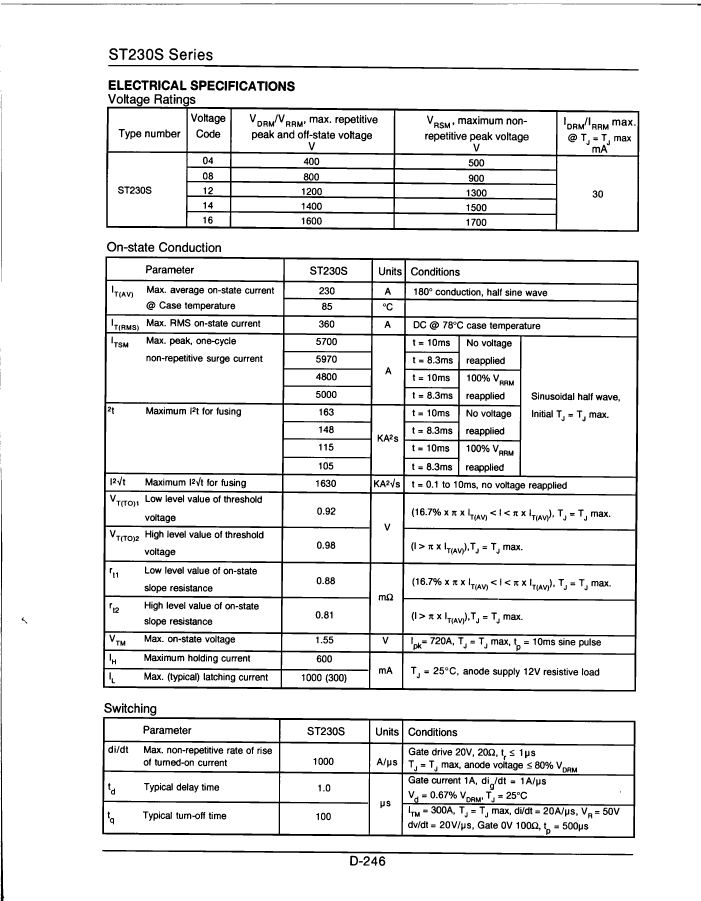

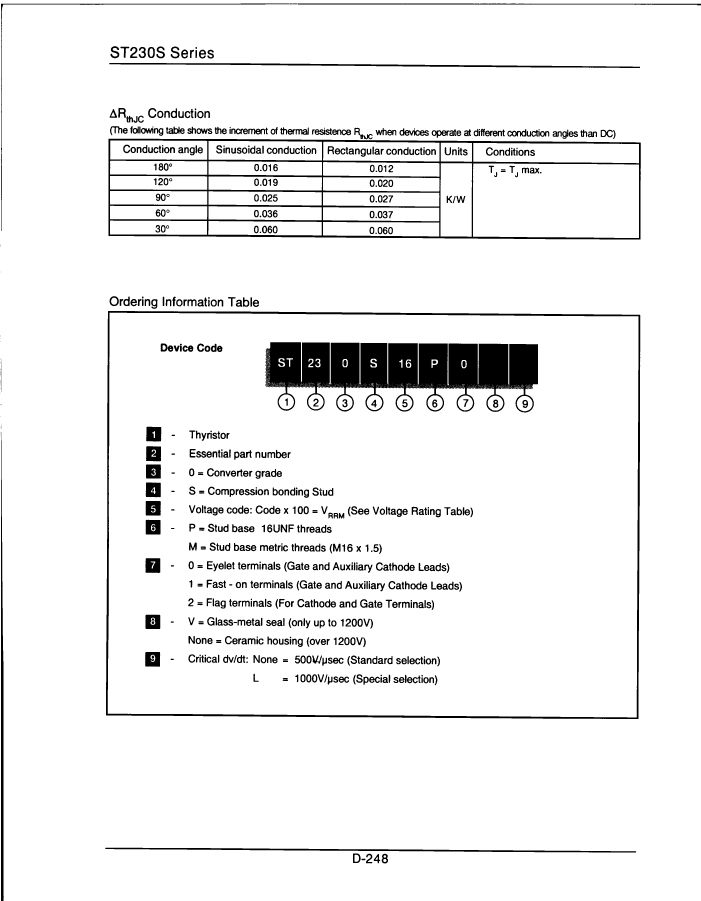

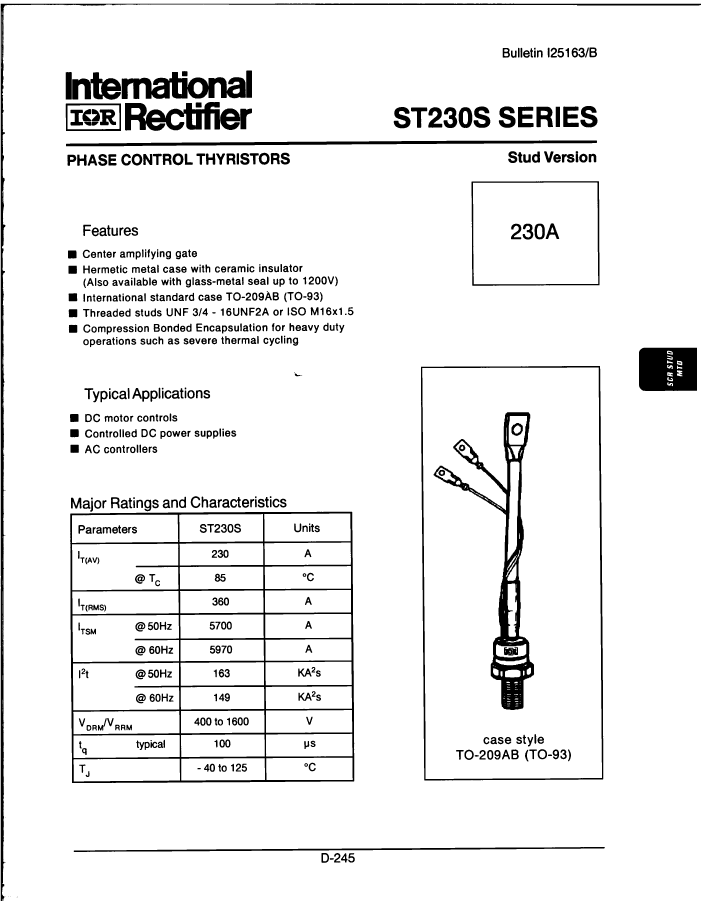

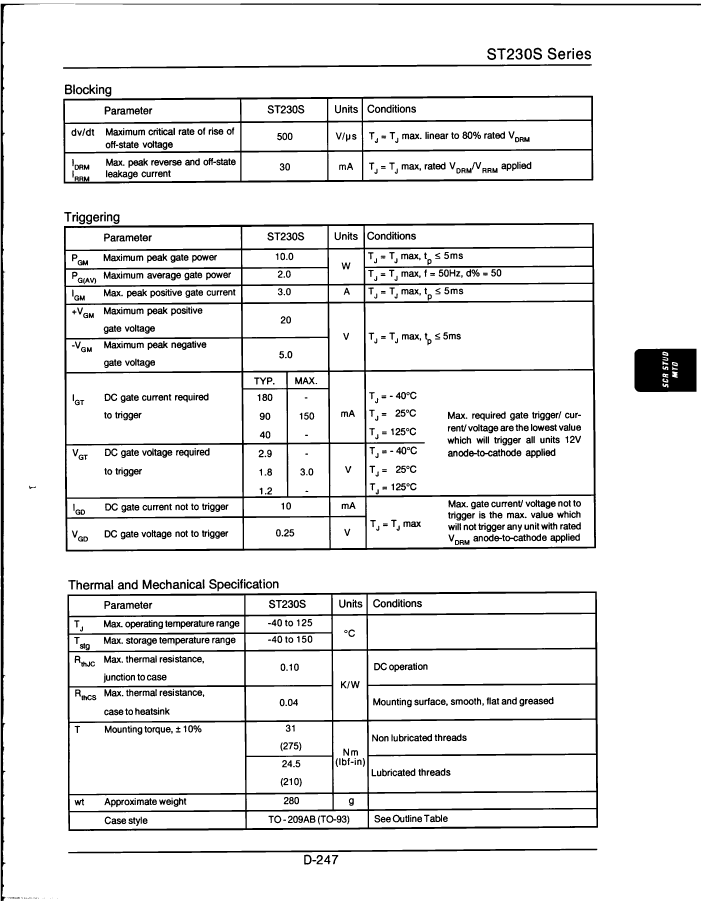

Preview

Download Datasheet

View All

ST230S12M0VL Related Products

	ST230S12M0VL	ST230S08P0VL	ST230S12P1VL	ST230S12M1V	ST230S08M1V	ST230S04M1V	ST230S14M1
Description	Silicon Controlled Rectifier, 360 A, 1200 V, SCR, TO-209AB	Silicon Controlled Rectifier, 360 A, 800 V, SCR, TO-209AB	Silicon Controlled Rectifier, 360 A, 1200 V, SCR, TO-209AB	Silicon Controlled Rectifier, 360 A, 1200 V, SCR, TO-209AB	Silicon Controlled Rectifier, 360 A, 800 V, SCR, TO-209AB	Silicon Controlled Rectifier, 360 A, 400 V, SCR, TO-209AB	Silicon Controlled Rectifier, 360 A, 1400 V, SCR, TO-209AB
Maker	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
package instruction	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
JEDEC-95 code	TO-209AB	TO-209AB	TO-209AB	TO-209AB	TO-209AB	TO-209AB	TO-209AB
JESD-30 code	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	360 A	360 A	360 A	360 A	360 A	360 A	360 A
Off-state repetitive peak voltage	1200 V	800 V	1200 V	1200 V	800 V	400 V	1400 V
Repeated peak reverse voltage	1200 V	800 V	1200 V	1200 V	800 V	400 V	1400 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR
