ATT-0527-19-SMA-07 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-0527-19-SMA-07

ATT-0527-19-SMA-07: DescriptionFixed Attenuator, 0MHz Min, 12400MHz Max, STAINLESS STEEL; CategoryWireless rf/communication Radio frequency and microwave; File Size92KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

ATT-0527-19-SMA-07 Overview

Fixed Attenuator, 0MHz Min, 12400MHz Max, STAINLESS STEEL

ATT-0527-19-SMA-07 Parametric

Parameter Name	Attribute value
Maker	Vertiv
Reach Compliance Code	unknown
Other features	SMA-F; SMA-M, I/P POWER-MAX(PEAK)=500W
Nominal attenuation	19 dB
structure	COAXIAL
Maximum input power (CW)	43.01 dBm
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.25

Preview

Download Datasheet

View All

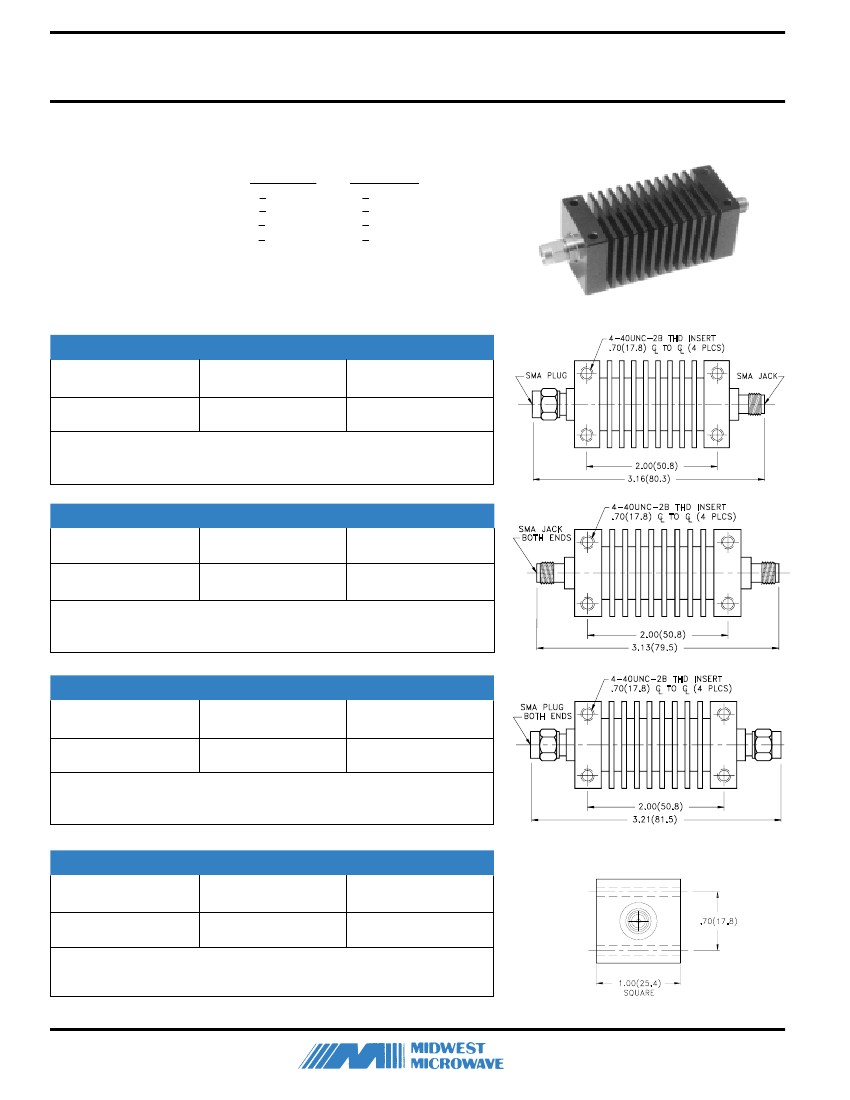

Attenuators

20 Watts - DC - 18 GHz Performance

SMA Medium Power Types

Frequency:

DC - 18.0 , DC-12.4, DC-6.0, and DC-2.0 GHz units available

Attenuation Values:

1 thru 40 dB in 1 dB Increments

Attenuation Accuracy:

DC-12.4 GHz

12.4 - 18 GHz

1- 6 dB

+ 0.3 dB

+ 0.5 dB

+ 0.75 dB

7-10 dB

11-20 dB + 0.75 dB

+ 1.0 dB

+ 1.5 dB

21-40 dB + 1.0 dB

1.25 max. @ DC - 12.4 GHz, and 1.50 max. @ 12.4 - 18.0 GHz

VSWR:

Power:

20 Watts Average @ +40C derated linearly to 5 Watts @ +125C

Peak Power:

500 Watts

Operating Temperature Range:

-54C to +125C

Finish:

Black Anodized Aluminum and Stainless Steel Connectors

DC - 18.0 GHz

Male/Female

ATT-0553-XX-SMA-07

526 Series

Female/Female

ATT-553F-XX-SMA-07

Model Numbers

Male/Male

ATT-553M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

20 WATTS

DC - 12.4 GHz

Male/Female

ATT-0527-XX-SMA-07

527 Series

Female/Female

ATT-527F-XX-SMA-07

Model Numbers

Male/Male

ATT-527M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

20 WATTS

DC - 6.0 GHz

Male/Female

ATT-0554-XX-SMA-07

525 Series

Female/Female

ATT-554F-XX-SMA-07

Model Numbers

Male/Male

ATT-554M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

20 WATTS

DC - 2.0 GHz

Male/Female

ATT-0555-XX-SMA-07

524 Series

Female/Female

ATT-555F-XX-SMA-07

Model Numbers

Male/Male

ATT-555M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

20 WATTS
