5023520302 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5023520302

Preview

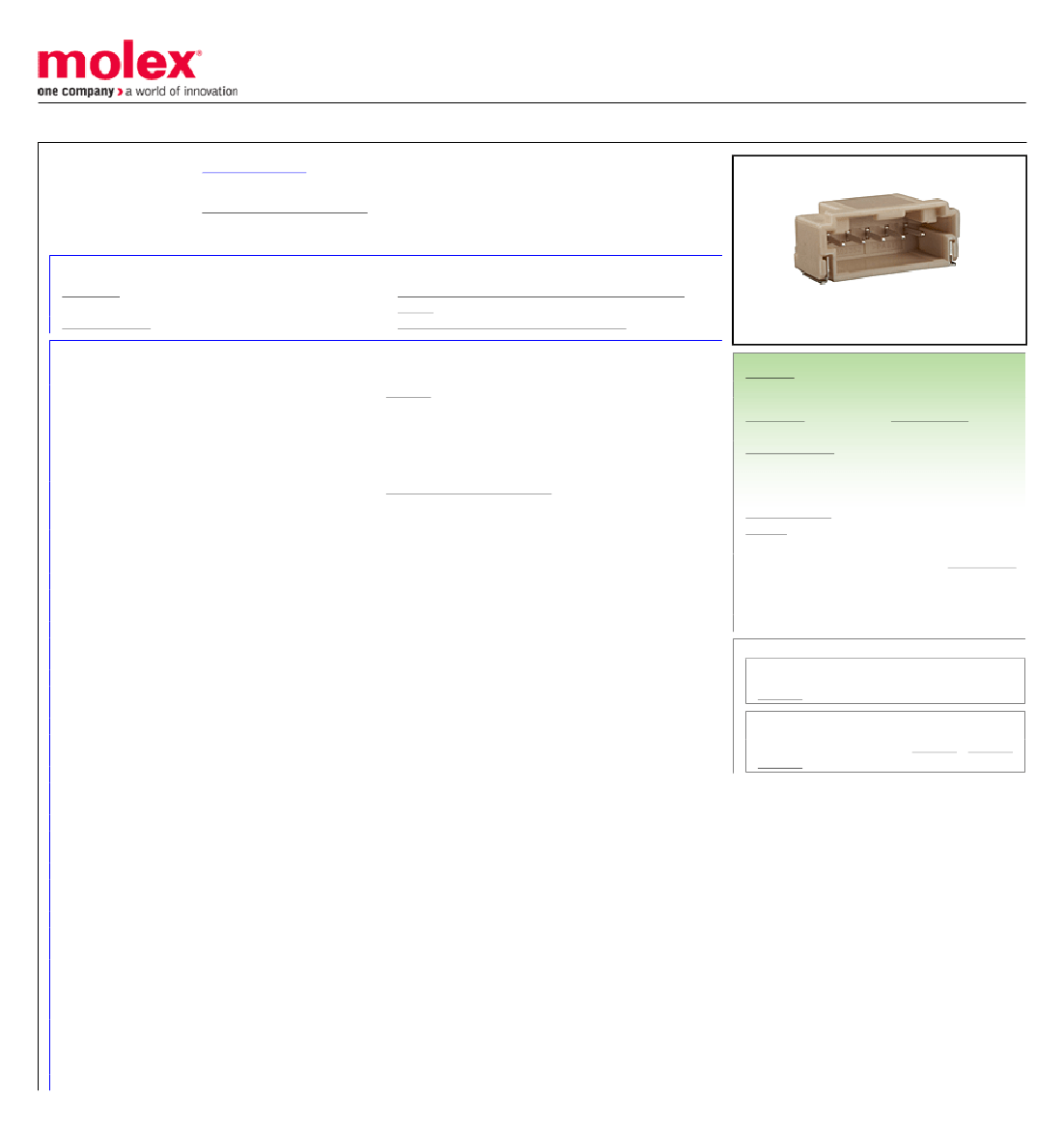

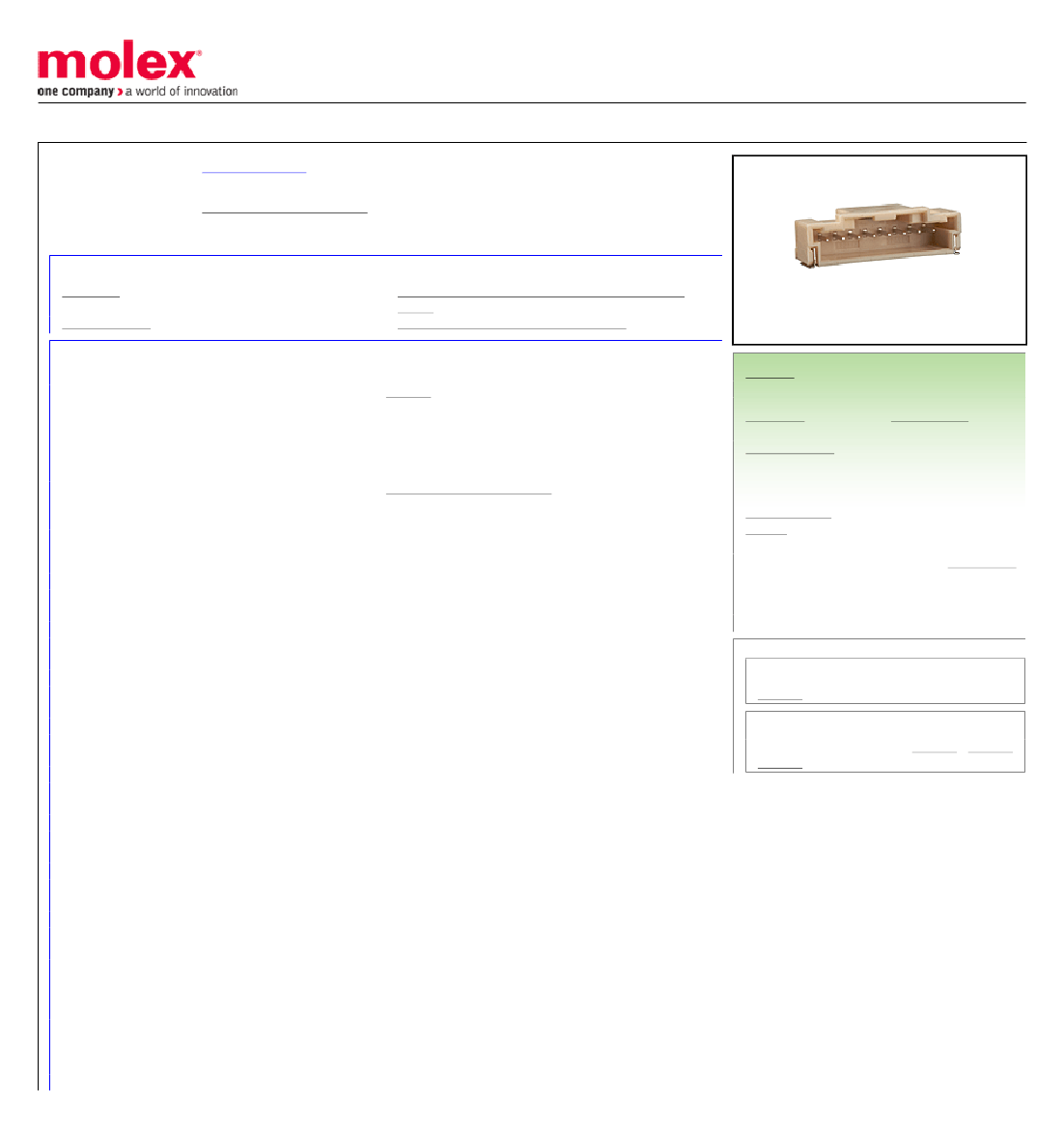

5023520302: DescriptionBoard Connector,; CategoryThe connector The connector; File Size31KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

5023520302 Overview

Board Connector,

5023520302 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 10/18/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5023520302

Active

DuraClik Connector System

DuraClik Wire-to-Board Header, Single Row, Right-Angle, 3 Circuits, Tin (Sn) Plating,

Red

Documents:

3D Model

Drawing (PDF)

General

Product Family

Series

Application

Comments

Packaging Specification PK-502352-002-JP-001

(PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/61/2018 (27 June

2018)

Halogen-Free

Status

Not Low-Halogen

For more information, please visit Contact US

China ROHS

ELV

RoHS Phthalates

Green Image

Compliant

Not Contained

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Capable

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

PCB Headers

502352

Signal, Wire-to-Board

The Operating Temperature Range when used with

DuraClik series 502351 is -40°C to +105°C. It is -40°C

to 125°C when used with DuraClik ISL series 560123 or

TPA series 505151.

DuraClik Connector System

DuraClik

889056680059

No

3

Red

30

No

Yes

6.40mm

Copper Alloy

Tin over Nickel

Polyamide

0.495/g

1

Right Angle

No

Yes

Embossed Tape on Reel

2.00mm

Yes

No

-40° to +105°C

Surface Mount

3.0A

125V

Search Parts in this Series

502352 Series

Mates With

DuraClik Crimp Housings 502351 , 560123 ,

505151

PK-502352-002-JP-001
