3019: DescriptionRESISTOR, POTENTIOMETER, WIRE WOUND, 1 TURN(S), 4 W, 25 ohm - 150000 ohm; CategoryPassive components; File Size93KB，1 Pages; ManufacturerETC2

Download Datasheet Parametric View All

3019 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3019	-	-	View	Buy Now

3019 Overview

RESISTOR, POTENTIOMETER, WIRE WOUND, 1 TURN(S), 4 W, 25 ohm - 150000 ohm

3019 Parametric

Parameter Name	Attribute value
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
state	ACTIVE
packaging shape	Round PACKAGE
Terminal shape	BINDING POST
Installation features	Panel mounting
Rated temperature	70 Cel
Manufacturer Series	3019
Resistor type	Potentiometer
Resistivity	Linear
Control valve type	SHAFT
Mechanical connection number	1 - 8
Number of turns	1
control valve direction	HORIZONTAL
Resistor element material	Winding

Preview

Download Datasheet

View All

ISO

900

UALI

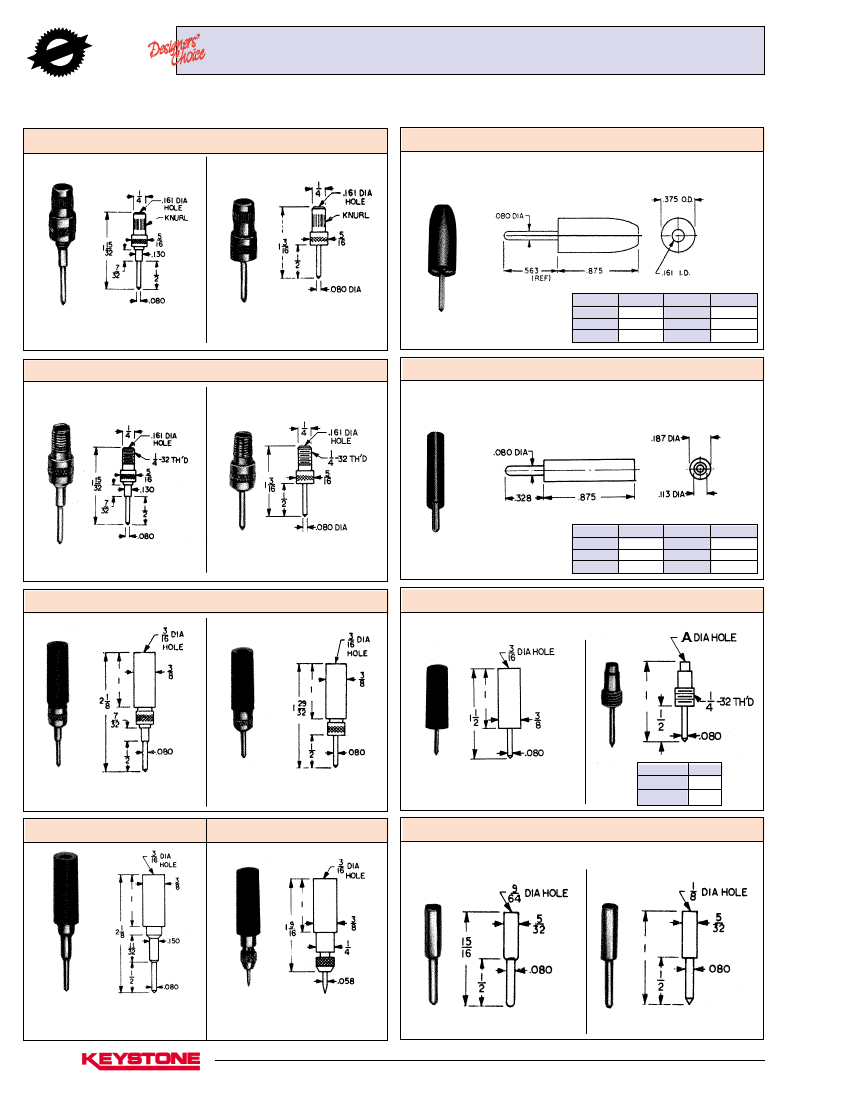

TEST TIPS & PLUGS

SPECIFICATIONS:

Tips:

Brass, Nickel Plate

Handles:

Nylon 6/6, Available in Red or Black

Rating:

10 Amps AC for 10º0ºº C temperature rise, continuous duty

FORCE FIT SOLDERLESS TIPS

SENIOR

JUNIOR

SOLDERLESS - .080 DIA. TIP PLUGS

Fully insulated molded nylon sleeve. Maximum reliability with minimum contact resistance.

Recessed metal head eliminates possibility of shock or grounding. Designed for solderless

connection of up to 16 gauge stranded wire which fits through handle and tip and is

secured by screwing handle tight. Current rating 10 Amps. Fits all standard tip jacks.

CAT. NO. 1690

CAT. NO. 1680

SELECTION OF COLORS

COLOR

CAT. NO.

GREEN

WHITE

6003

6000

YELLOW

RED

6004

6001

6005

BLUE

6002

BLACK

THREADED SOLDERSLESS TIP

SENIOR

JUNIOR

MINIATURE - .080 DIA. TIP PLUGS

Designed for miniaturization where space is critical. Solder lead connection. Maximum

reliability with minimum contact resistance. Base of tip is recessed to eliminate shock or

grounding. Fits horizontal tip jacks. Current rating: 10 Amps.

SELECTION OF COLORS

CAT. NO.

6006

6007

6008

COLOR

WHITE

RED

BLACK

CAT. NO.

6009

6010

6011

COLOR

GREEN

YELLOW

BLUE

CAT. NO. 1691

CAT. NO. 1681

INSULATED SOLDERLESS TIP

SENIOR

JUNIOR

STREAMLINE TIPS

CAT. NO. 1660- RED

CAT. NO. 1661- BLACK

CAT. NO. 1670- RED

CAT. NO. 1671- BLACK

CAT. NO. 1615 - RED

CAT. NO. 1616 - BLACK

CAT. NO.

3022-12

3022-20

.120

.093

HEAVY DUTY

NEEDLE TIPS

STANDARD PHONE TIPS

Ideal for replacement tip for headset, speaker, or extension cord. Cat. No. 1601 Tip

accommodates heavier wire.

CAT. NO. 3017 - RED

CAT. NO. 3018 - BLACK

CAT. NO. 3019 - TIP ONLY

CAT. NO. 3015 - RED

CAT. NO. 3016 - BLACK

CAT. NO. 3014 - TIP ONLY

CAT. NO. 1600

CAT. NO. 1601

31-07 20th Road

•

Astoria, New York 11105-2017

•

(718) 956-8900

•

FAX (718) 956-9040

e-mail: kec@keyelco.com

•

WebSite: keyelco.com
