71922-132: Description26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector; File Size157KB，2 Pages; ManufacturerFCI connector

Download Datasheet Parametric Compare View All

71922-132 Overview

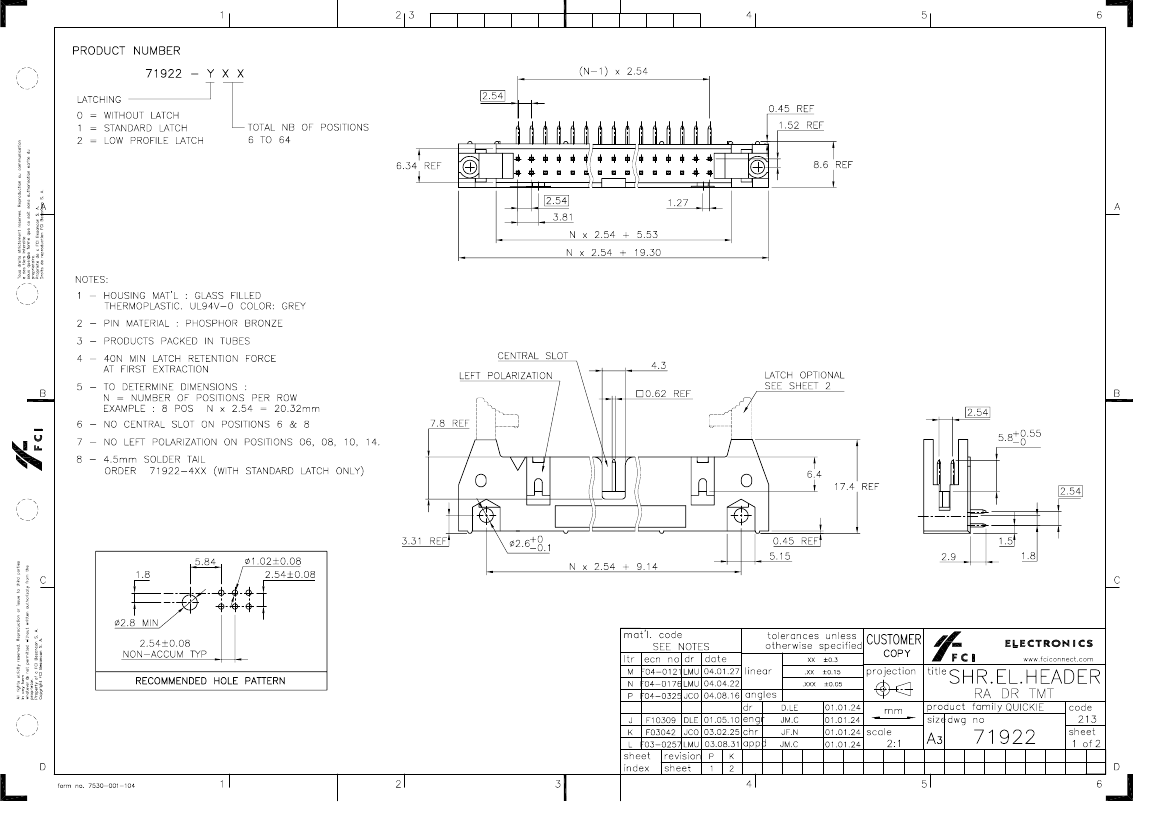

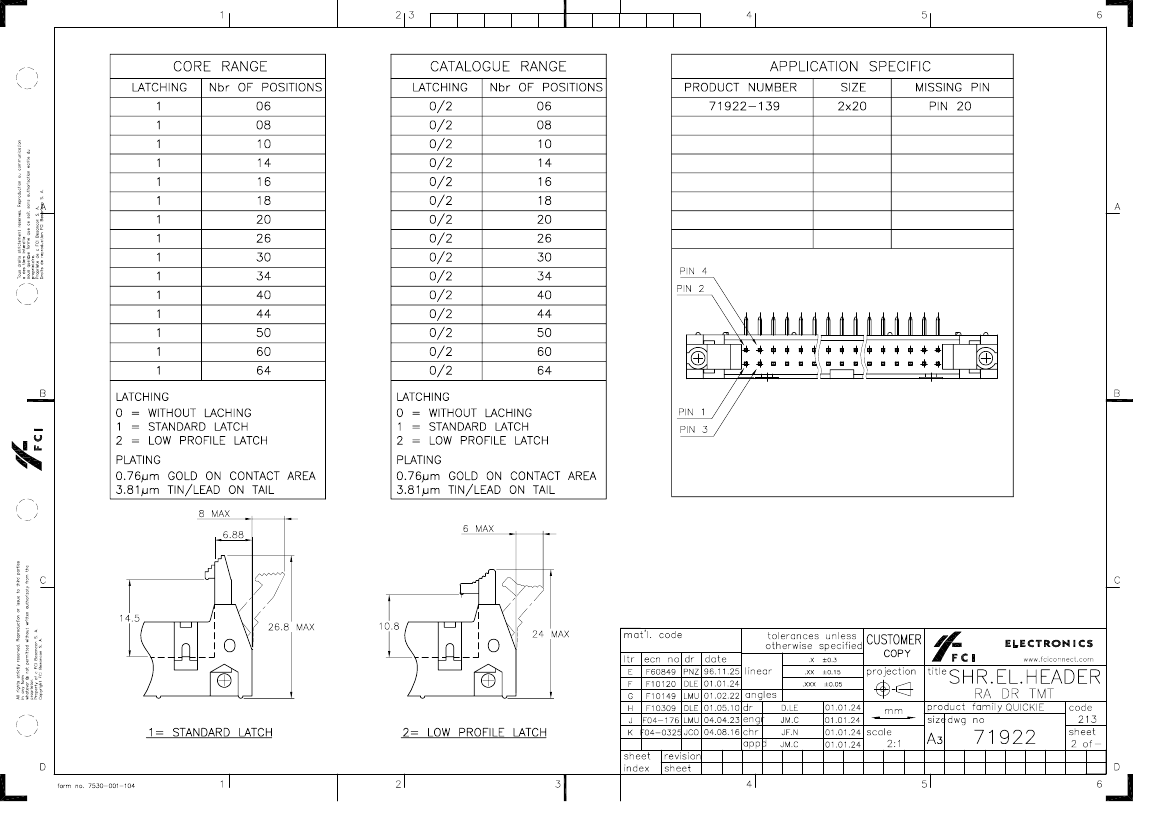

26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

Parameter Name	Attribute value
Contact materials	PHOSPHOR BRONZE
Terminal spacing	2.54 mm
Total number of contacts	26
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Manufacturer Series	71922
Contact surface matching	MATTE Tin OVER Nickel
Contact coated terminals	MATTE Tin OVER Nickel
Connection Type	Dual board connector
Connector male and female	Pin
Installation method	right angle
Installation type	BOARD
Number of load rows	2
Terminal type	welding
UL flammability code	94V-0

PDM: Rev:P

STATUS:

Released

Printed: Aug 17, 2004

	71922-132	71922-126LF	71922-128	71922-129	71922-130
Description	26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	30 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Contact materials	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-
Terminal spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-
Total number of contacts	26	26	26	26	-
Processing package description	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
Lead-free	Yes	Yes	Yes	Yes	-
EU RoHS regulations	Yes	Yes	Yes	Yes	-
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Manufacturer Series	71922	71922	71922	71922	-
Contact surface matching	MATTE Tin OVER Nickel	MATTE Tin OVER Nickel	MATTE Tin OVER Nickel	MATTE Tin OVER Nickel	-
Contact coated terminals	MATTE Tin OVER Nickel	MATTE Tin OVER Nickel	MATTE Tin OVER Nickel	MATTE Tin OVER Nickel	-
Connection Type	Dual board connector	Dual board connector	Dual board connector	Dual board connector	-
Connector male and female	Pin	Pin	Pin	Pin	-
Installation method	right angle	right angle	right angle	right angle	-
Installation type	BOARD	BOARD	BOARD	BOARD	-
Number of load rows	2	2	2	2	-
Terminal type	welding	welding	welding	welding	-
UL flammability code	94V-0	94V-0	94V-0	94V-0	-
