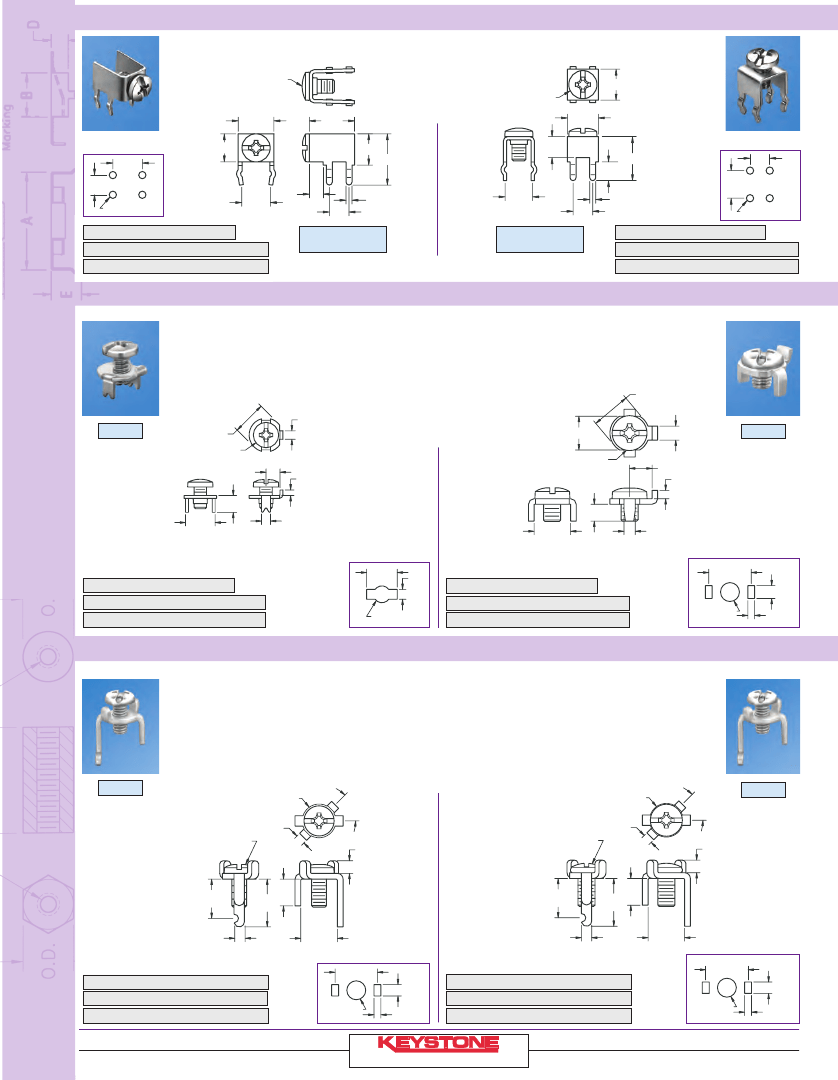

METRIC - “SNAP-IN” PC SCREW TERMINALS
SPECIFICATIONS
M3 x 6.35 L.
SCREW
Rated:
15 Amps
Terminal:
0.81 thick Brass, Tin Plate
Binding Head Screw:
Brass,
M3 x 6.35 L.
Nickel Plate
SCREW
11.50
8.00
8.00
8.30
Mounting Detail
7.50
5.00
7.10
7.90
13.00
5.30
11.20
4.75
Mounting Detail
5.00
7.00
3.50
1.90 DIA. (4) PLS
7.50
5.00
1.50
(4) PLS
7.00
5.00
1.50
(4) PLS
1.85 DIA. (4) PLS
CAT. NO. 7790
(Supplied Less Screw)
CAT. NO. 7689
(Screw Supplied Unassembled)
CAT. NO. 7695
(Screw Installed & Captivated)
M3
HORIZONTAL
NOTE:
All dimensions are in millimeters
M3
VERTICAL
CAT. NO. 7788
(Supplied Less Screw)
CAT. NO. 7698
(Screw Supplied Unassembled)
CAT. NO. 7696
(Screw Installed & Captivated)
LOW PROFILE SCREW TERMINALS
These sturdy, low cost screw terminals, feature an anti-rotation tab for use with spade terminals.
They are available with the screw installed and captivated, the screw unassembled or without a screw.
PRINCIPLE FEATURES
•
Easy to connect using solid or stranded wire, crimp
lugs or terminals
•
Anti-rotation tab for use with spade terminals
•
Supplied with screw installed and captivated,
with screw unassembled, or without screw
•
Stainless steel screw will not wick
SCREW TERMINALS
.437 [11.1]
DIA.
6-32
.094
[2.4]
.375 [9.5] DIA.
6-32 x .250 [6.3] L.
SCREW
.156 [4.0]
.062
[1.57]
.375 [9.6]
.156 [4.0]
10-32
10-32 x .250 [6.3] L.
SCREW
.250 [6.4]
.093
[2.36]
.187 [4.8]
.328
[8.4]
.187 [4.8]
.100 [2.6]
SPECIFICATIONS
SPECIFICATIONS
Mounting Detail
.340 [8.7]
.110
[2.8]
.406 [10.3]
.125 [3.2]
Rated:
15 Amps
Terminal:
.032 (.81) thick Brass, Tin Plate
Screw:
Combination drive, Stainless Steel
Rated:
30 Amps
Terminal:
.062 (1.6) thick Brass, Tin Plate
Screw:
Combination drive, Stainless Steel
Mounting Detail
.472 [12.0]
.142 [3.6]
.210 [5.3] DIA.
.075 [1.9]
CAT. NO. 1284
(Supplied Less Screw)
CAT. NO. 1298
(Screw Supplied Unassembled)
CAT. NO. 1201
(Screw Installed & Captivated)
CAT. NO. 1293
(Supplied Less Screw)
CAT. NO. 1299
(Screw Supplied Unassembled)
CAT. NO. 1202
(Screw Installed & Captivated)
.187 [4.7] DIA.
HEAVY DUTY SCREW TERMINALS
These heavy duty terminals are available with the screw installed or unassembled, and
feature easy access to connect solid or stranded wire, crimp type lugs or terminals.
PRINCIPLE FEATURES
•
Anti-rotation tab for use with spade terminals
•
Below the board notched leg, to facilitate mechanical
and solder connections
•
Easy to connect using solid or stranded wire,
crimp lugs or terminals
•
Available with screw installed, unassembled, or without screw
10-32
.375 [9.5] DIA.
45°
.109 [2.8]
8-32 x .375 [9.5] L.
SCREW
.140
[3.6]
10-32 x .375 [9.5] L.
SCREW
.109 [2.8]
.140
[3.6]
.375 [9.5] DIA.
45°
8-32
.437
[11.1]
SPECIFICATIONS
Rated:
15 Amps
Terminal:
.064 (1.6)
thick Brass, Tin Plate
Screw:
Brass, Nickel Plate
.115 [2.9]
.531
[13.5]
.297
[7.6]
.437
[11.1]
.531
[13.5]
.297
[7.6]
SPECIFICATIONS
.406 [10.3]
Mounting Detail
.470 [12.0]
Rated:
30 Amps
.115 [2.9]
Terminal:
.064 (1.6)
thick Brass, Tin Plate
Screw:
Steel, Nickel Plate
.406 [10.3]
Mounting Detail
.470 [12.0]
CAT. NO. 1205
(Supplied Less Screw)
CAT. NO. 1207
(Screw Supplied Unassembled)
.210 [5.3] DIA.
.126 [3.2]
CAT. NO. 1206
(Supplied Less Screw)
CAT. NO. 1208
(Screw Supplied Unassembled)
.210 [5.3] DIA.
.126 [3.2]
CAT. NO. 1209
(Screw Installed)
.077 [1.96]
CAT. NO. 1283
(Screw Installed)
®
.077 [1.96]
