CR12-60D-3.17DS: DescriptionCard Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,; CategoryThe connector The connector; File Size286KB，3 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

CR12-60D-3.17DS Overview

Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,

CR12-60D-3.17DS Parametric

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	CR12
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	3.18 mm
Termination type	SOLDER
Total number of contacts	60
UL Flammability Code	94V-0

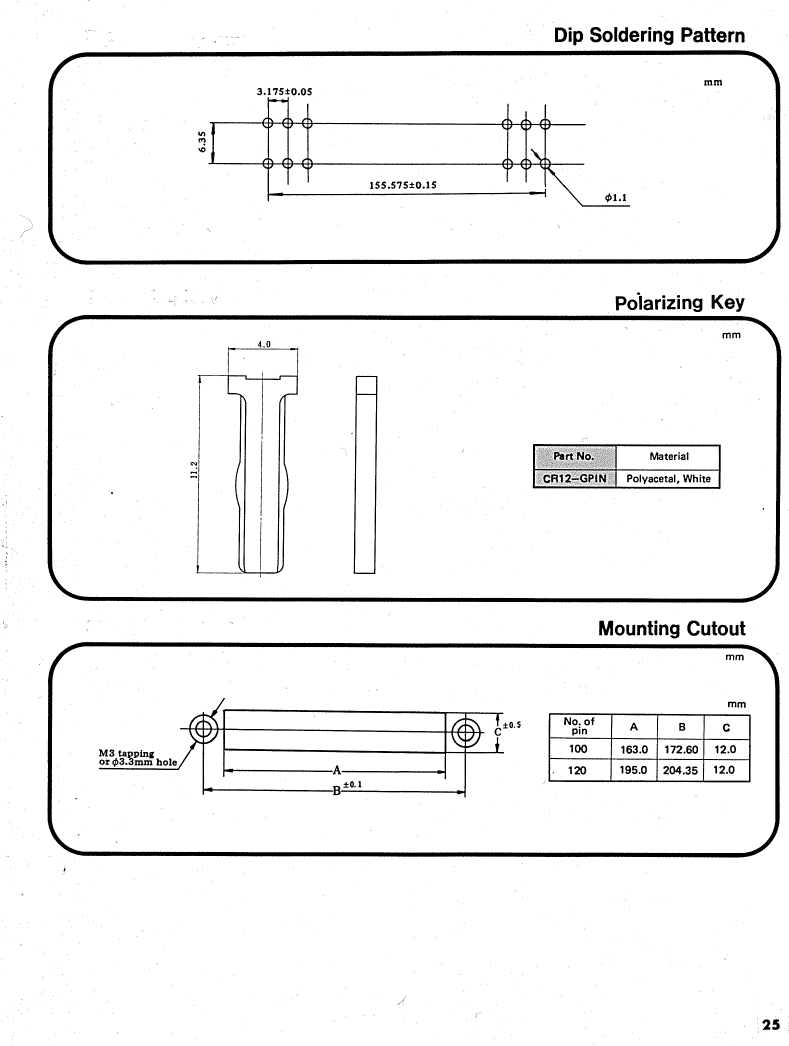

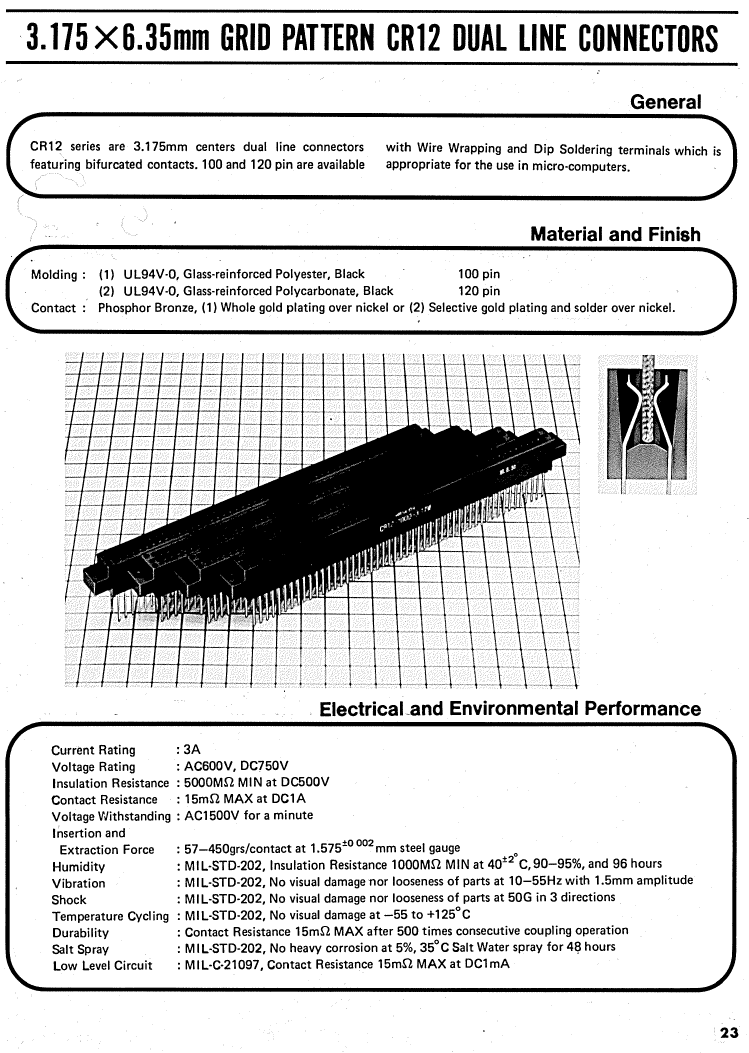

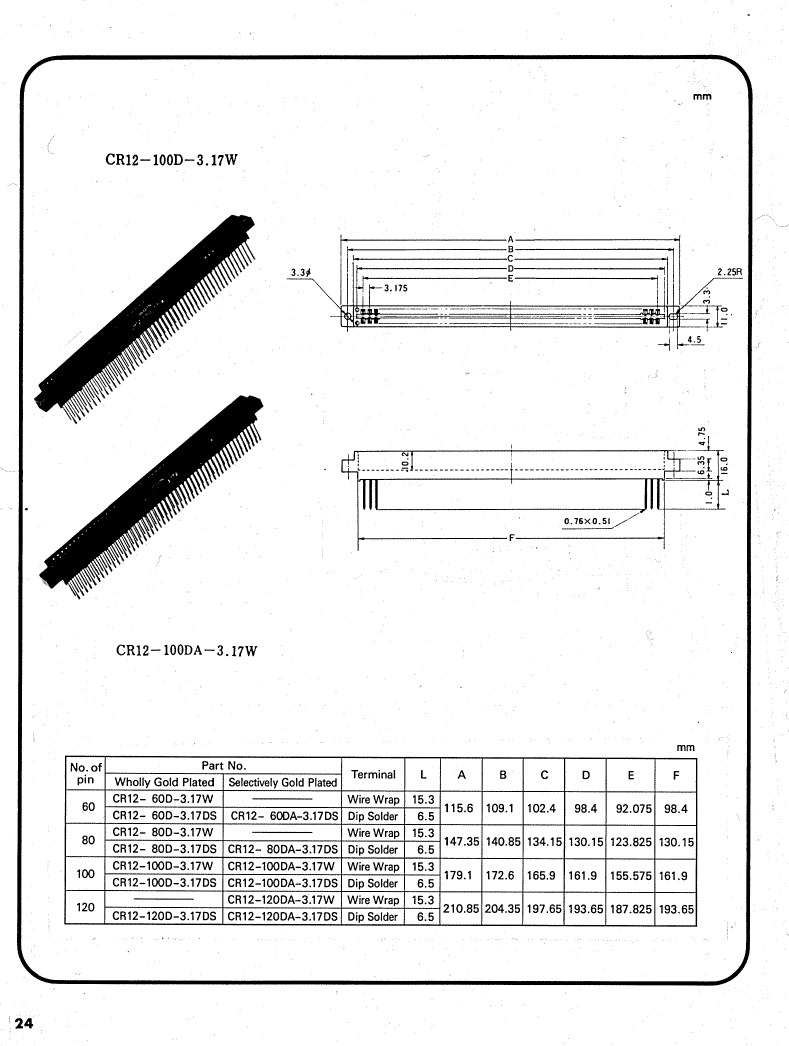

Preview

Download Datasheet

View All

CR12-60D-3.17DS Related Products

	CR12-60D-3.17DS	CR12-80D-3.17W	CR12-80D-3.17DS	CR12-100D-3.17DS	CR12-120D-3.17DS	CR12-120DA-3.17DS	CR12-120DA-3.17W	CR12-80DA-3.17DS
Description	Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 80 Contact(s), 2 Row(s), Female, Wire Wrap Terminal	Card Edge Connector, 80 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 100 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Wire Wrap Terminal	Card Edge Connector, 80 Contact(s), 2 Row(s), Female, Straight, Solder Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	CR12	CR12	CR12	CR12	CR12	CR12	CR12	CR12
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD AND PANEL	PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	PANEL	BOARD AND PANEL
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	3.18 mm	3.18 mm	3.18 mm	3.18 mm	3.18 mm	3.18 mm	3.18 mm	3.18 mm
Termination type	SOLDER	WIRE WRAP	SOLDER	SOLDER	SOLDER	SOLDER	WIRE WRAP	SOLDER
Total number of contacts	60	80	80	100	120	120	120	80
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Hirose	-	-	Hirose	Hirose	Hirose	Hirose	Hirose
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT
