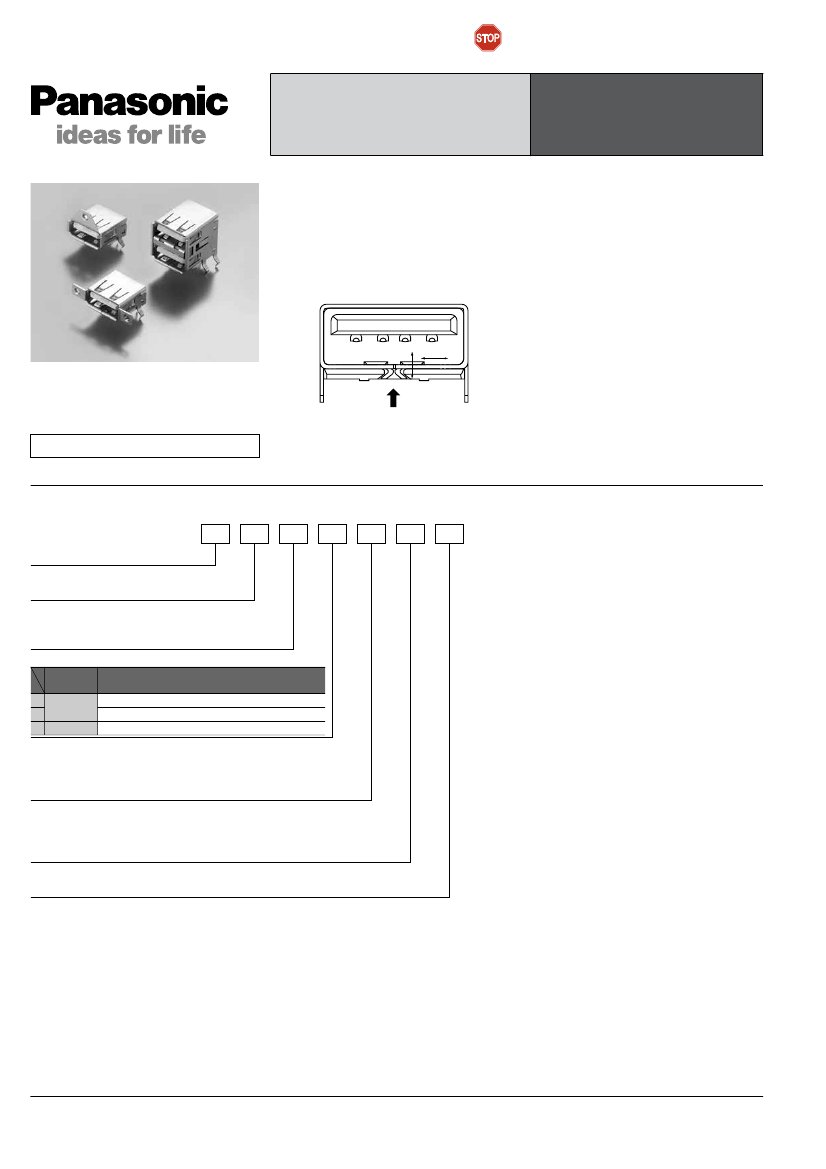

2: Contact portion: Ni plating on base, PdNi + Au flash plating on surface
Terminal portion: Ni plating on base, Au plating on surface
(except for top of the terminal)
<Packing>
T: Tray packaging
1
1
2
T
Matsushita Electric Works, Ltd.
http://www.mew.co.jp/ac/e/
Order Discontinued as of August 31, 2009
AXJ(1)
PRODUCT TYPES
Series
No. of port
Terminal shape
Holding parts shape
Clinching type
Applicable board thickness
0.8mm to 1.2mm
Straight type
Clinching type
Applicable board thickness
0.8mm to 1.2mm
Clinching type
Applicable board thickness
1.6mm
Flange
Side flange
Center flange
Without flange
Side flange
Without flange
Without flange
Part no.
AXJ111212T
AXJ111222T
AXJ111202T
AXJ111512T
AXJ111502T
AXJ112202T
Packing quantity
Inner carton
Outer carton
90
90
90
90
90
60
900
900
900
900
900
600
DIP terminal
1 port
(4 contacts)
SMD terminal
A
2 ports
(4 contacts
×
2-layer)
DIP terminal
Without flange
AXJ112302T
60
600
Note: The “clinching type” refers to a connector whose retention fittings are clinched as shown in the figure below so that the connector can support itself.
Remark: T: Tray packaging
Clinching type
Applicable to DIP terminal
Straight type
Applicable to SMD terminal
PC board
PC board
SPECIFICATIONS
1. Characteristics
Item
Rated current
Rated voltage
Electrical
characteristics
Contact resistance
Insulation resistance
Breakdown voltage
Electrostatic capacity
Mechanical
characteristics
Composite insertion force
Composite removal force
Ambient temperature
Soldering heat resistance
Storage condition
Lifetime
characteristics
Unit weight
Mechanical life
Specifications
1.0A
30V DC/AC
1 Port (receptacle)
Max. 30mΩ
EIA-364-23
(Inductive resistance for wire is not included)
EIA-364-21 Using 500V DC megger
EIA-364-20 Detection current: 1mA
EIA-364-30 Measured at 1 kHz between connectors which
are not connected.
EIA-364-13 Measures the insertion and removal force for
a plug at the speed of 12.5mm/min.
No freezing at low temperatures
Soldering bath
Soldering iron
No freezing at low temperatures
EIA-364-09 Repeated insertion and removal speed of
max. 200 times/hours
Conditions
2 Ports (receptacle)
Max. 40mΩ
Min. 1000MΩ
Breaking voltage 750V AC for 1min.
Max. 2pF
Max. 35N {3.57kgf} (initial)
Min. 10N {1.02kgf}
0°C to +40°C (carrying current)
260°C within 10sec.
Tip temperature of soldering iron:
300°C within 5sec., 350°C within 3sec.
–40°C to +60°C
1500 times
1 port type: 2.0 g, 2 parts type: 5.5 g
Environmental
characteristics
2. Material and surface treatment
Series A
Part name
Resin-molding portion
Contact
Shell
Center clip
Material
Heat-resistant resin (UL94V-0)
Copper alloy
Copper alloy
Copper alloy
Surface treatment
—
Contact portion: Ni plating on base, Au plating on surface
Terminal portion: Ni plating on base, Au plating on surface (except for top of the terminal)
Cu plating on base, Sn plating on surface (except for thick of the terminal)
Cu plating on base, Sn plating on surface (except for thick of the terminal)
Matsushita Electric Works, Ltd.
http://www.mew.co.jp/ac/e/
Interface connectors
Retention fitting (clinching type)
Retention fitting (straight type)
AXJ(1)

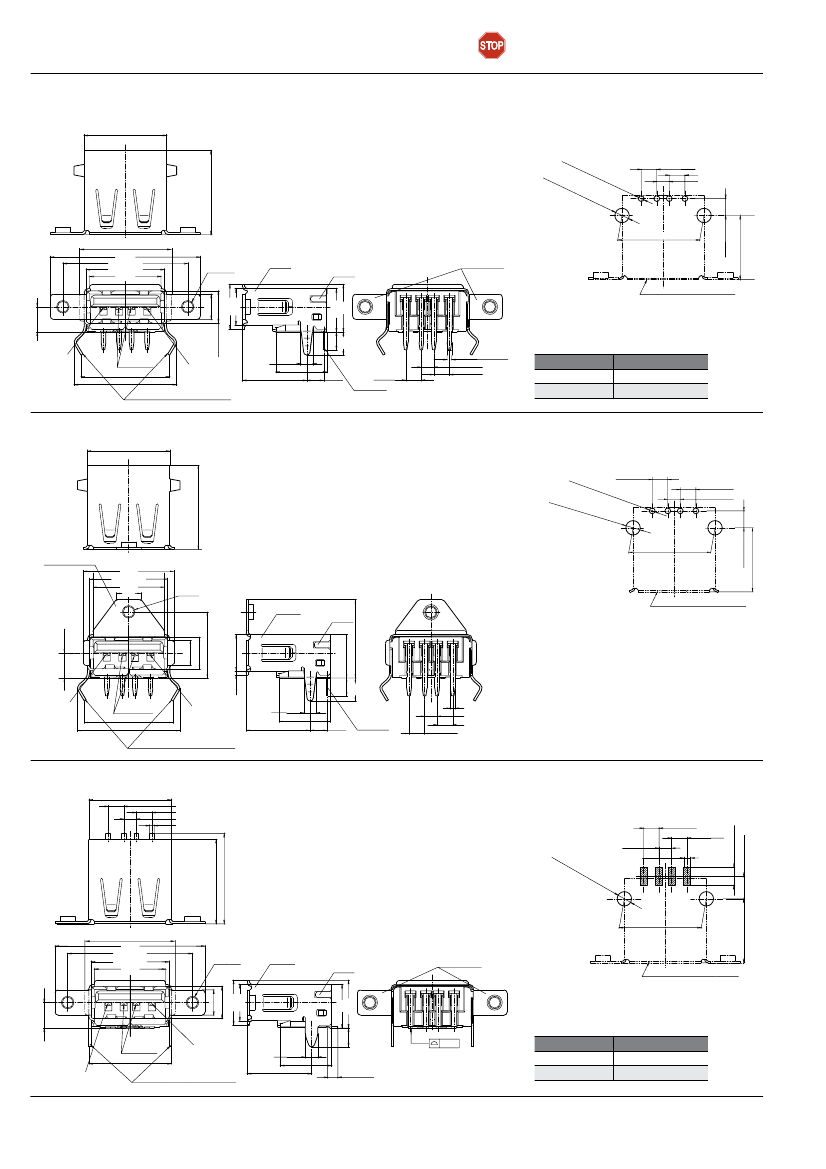

DIMENSIONS
1. Series A 1 port DIP terminal with side flange
13.2
Order Discontinued as of August 31, 2009
mm General tolerance:
±0.3
Recommended PC board pattern
(TOP VIEW)
4-0
.92
±
0.
0
2.5±0.05
8d
ia.
hol
e
2-2
13.5
.3
±
0.0
8
2.5±0.05
2.0±0.05
dia
. ho
le
2.71±0.05
4.05±0.2
14.5 (Applied to without flange type)
24.0
20.0±0.2
12.5±0.2
11.4
2-M2.0
Shell
Body
Side flange
Front edge of connector
7.12
5.82
4.0
6.95
7.6
5.12±0.2
Power
terminal
(No. 1)
Signal
terminal
14.2
16.4
2.85
3.7
Note) Since product bottom is a metal shell, do not
make pattern circuits (to prevent shorting).
0.75±0.1
2.0±0.2
2.5±0.2
Ground
terminal
(No. 4)
2.0±0.1
8.2
10.28
Part no.
AXJ111202
AXJ111212
Flange shape
Without flange
With side flange
2.71
2.5±0.2
Contact
Interface connectors
Retention fitting (clinching)
2. Series A 1 port DIP terminal with center flange
13.2
Recommended PC board pattern
(TOP VIEW)
2.5±0.05
4-0.
92
±
0.08
dia.
hole
2-2.
3
±
0.
08 d
ia. h
ole
2.5±0.05
2.0±0.05
13.5
13.14±0.05
Center flange
14.5
12.5±0.2
11.4
4.0
M2.0
Front edge of connector
Shell
Body
(4.05)
4.0
5.12±0.2
10.6±0.2
5.82
Power
terminal
(No. 1)
Signal
terminal
14.2
16.4
Ground
terminal
(No. 4)
0.65
2.85
3.7
6.95
Note) Since product bottom is a metal shell, do not
make pattern circuits (to prevent shorting).
12.6
2.0±0.1
8.2
10.28
2.71
Contact
2.5±0.2
0.75±0.1
2.0±0.2
2.5±0.2
Retention fitting (clinching)
3. Series A 1 port SMD terminal with side flange
13.2
2.5±0.15
2.5±0.15
2.0±0.15
0.75±0.1
2-2
Recommended PC board pattern
(TOP VIEW)
2.88±0.08
3.58±0.05
(10.28)
2.5±0.05
2.5±0.05
.3
±
2.0±0.05
1.12±0.05
0.0
8d
ia.
ho
13.5
14.5
le
13.14±0.05
14.5 (Applied to without flange type)
24.0
20.0±0.2
12.5±0.2
11.4
2-M2.0
Shell
Body
Side flange
Front edge of connector
4.0
5.12±0.2
7.12
5.82
7.0
7.65
4.1±0.2
Note) Since product bottom is a metal shell, do not
make pattern circuits (to prevent shorting).
0.1
Terminal coplanarity
Power
terminal
(No. 1)
Signal
terminal
13.2
3.0
Ground
terminal
(No. 4)
2.0±0.1
8.2
10.28
Part no.
AXJ111502
AXJ111512
Flange shape
Without flange
With side flange
Retention fitting (Straight)
1.64±0.2
Matsushita Electric Works, Ltd.
http://www.mew.co.jp/ac/e/
2.71±0.05
(10.28)
(10.28)
13.14±0.05
Order Discontinued as of August 31, 2009
AXJ(1)

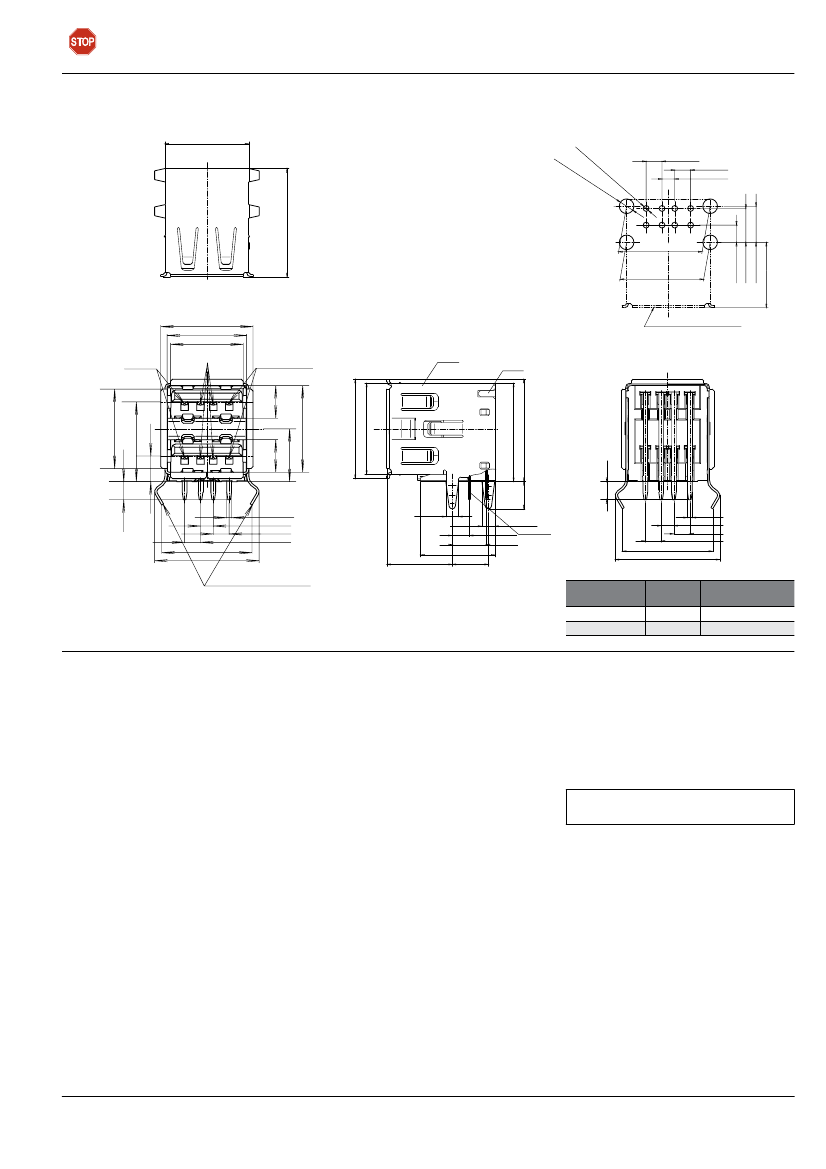

4. Series A 2 ports DIP terminal without flange
mm General tolerance:
±0.3
Recommended PC board pattern
(TOP VIEW)
13.2
4-2
.3
±
8-
0.
92
0.0
8
±
0
.0
8
di
a
dia
. h
. ho
ole
le
2.5±0.05
2.5±0.05
2.0±0.05
17.0
13.14±0.05
Power
terminal
(No. 1)
14.5
12.5±0.2
11.4
Signal terminals
Ground terminal
(No. 4)
Shell
Body
Front edge of connector
Note) Since product bottom is a metal shell, do not
