TCXO & VCTCXO
CERAMIC SMD TYPE
STG
-
-
-
-
Temperature Compensated Crystal Oscillator
External Dimensions : 7.0×5.0 mm
Fundamental AT-cut Crystal used
Clipped Sinewave Output
■ ELECTRICAL SPECIFICATIONS
ITEM
Output Logic Type
Frequency Range
Supply Voltage(V
DD
)
Operating Temperature Range
Storage Temperature Range
Frequency Stability
Vs. Temperature
Vs. Supply voltage
Vs. Load
Vs. Aging
Frequency Tolerance
Input Current
Frequency Deviation
Control Voltage(Vc)
Output Level
Output Load Condition
Phase Noise at 1kHz offset
Clipped Sinewave
12.000 MHz to 26.000 MHz
3.3 V
DC
± 5 %, 5.0 V
DC
± 5 %
-40 to +85 ℃
-40 to +85 ℃
±0.5
±0.2
±0.2
±1.0
ppm
ppm
ppm
ppm
to ±5.0 ppm Max.
Max.
Max.
Max.
Over Operating Temperature range
Supply Voltage ± 5 %
10 ㏀//10 pF± 10 %
25℃, First year
Value
Remarks
±1.0 ppm Max.
2 mA to 5 mA Max.
±5.0 ppm, ±10 ppm Min.
1.65 V ± 1.5 V (V
DD
: 3.3 V)
2.5 V ± 2.0 V (V
DD
: 5.0 V)
0.8 V
P-P
Min. (V
DD
: 3.3 V)
1.0 V
P-P
Min. (V
DD
: 5.0 V)
10 ㏀//10 pF
-130 dBc/Hz
Typical
Peak to peak
Typical

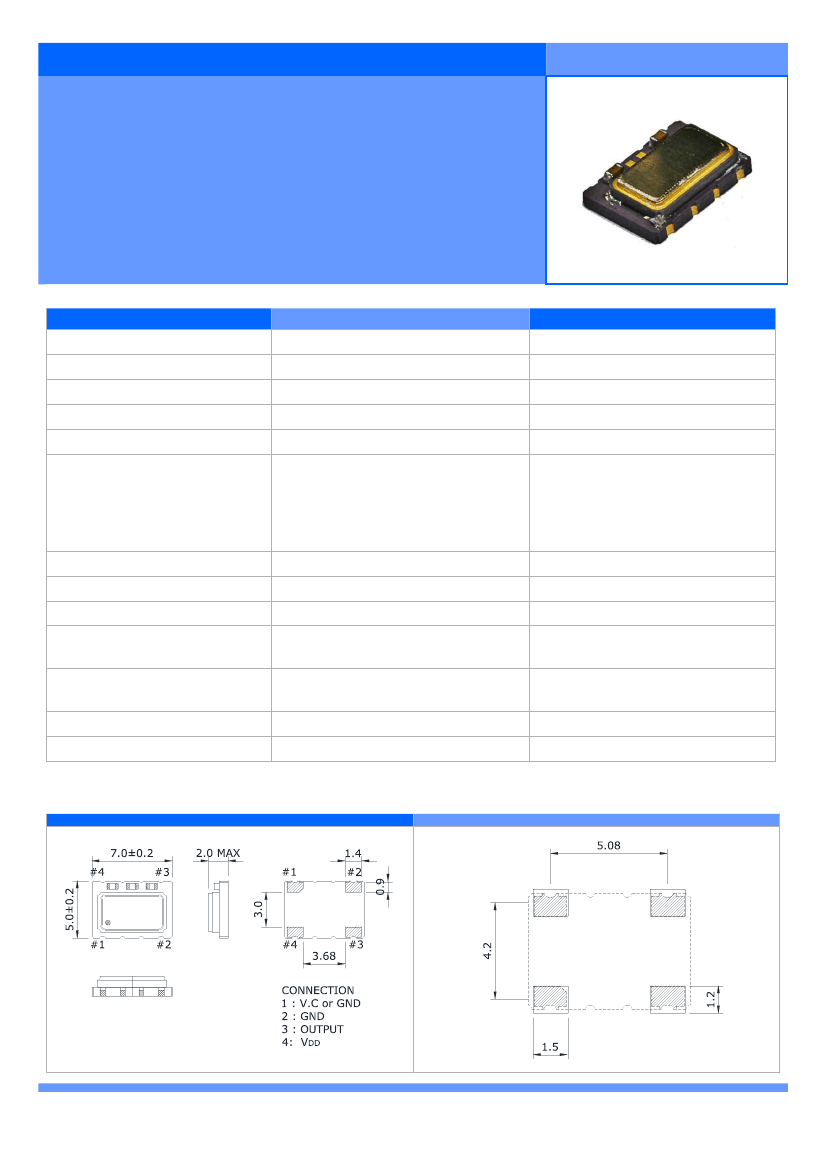

■ MECHANICAL DIMENSIONS
(mm)
■ LAND PATTERN
(mm)
http://www.sunny.co.kr
SUNNY ELECTRONICS CORP
TCXO & VCTCXO
■ PART NUMBERING GUIDE
STG 3 20 H S 5
–
10.000M
Temp
0~50℃
SUPPLY VOLTAGE(V
DD
)
5 : 5.0 V
3 : 3.3 V
FRQUENCY STABILITY
TABLE 1
OPERATING
TEMPERAURE RANGE
TABLE 1
OUTPUT
S : CLIPPED SINEWAVE
FREQUENCY
DEVIATION
BLANK : TCXO
5 : ± 5 ppm min.
10 : ± 10 ppm min.
FREQUENCY
M : MHz
■ TABLE 1
FREQUENCY STABILITY VS. TEMPERATURE RANGE
Stability
±0.5
3
A
B
C
D
E
F
G
H
I
*
*
*
*
*
*
*
±1.0
4
*
*
*
*
*
*
*
*
*
±1.5
5
*
*
*
*
*
*
*
*
*
±2.0
6
*
*
*
*
*
*
*
*
*
±3.0
7
*
*
*
*
*
*
*
*
*
±5.0
8
*
*
*
*
*
*
*
*
*
-10~60℃
-10~70℃
-20~70℃
-30~60℃
-30~70℃
-30~75℃
-40~80℃
-40~85℃
■

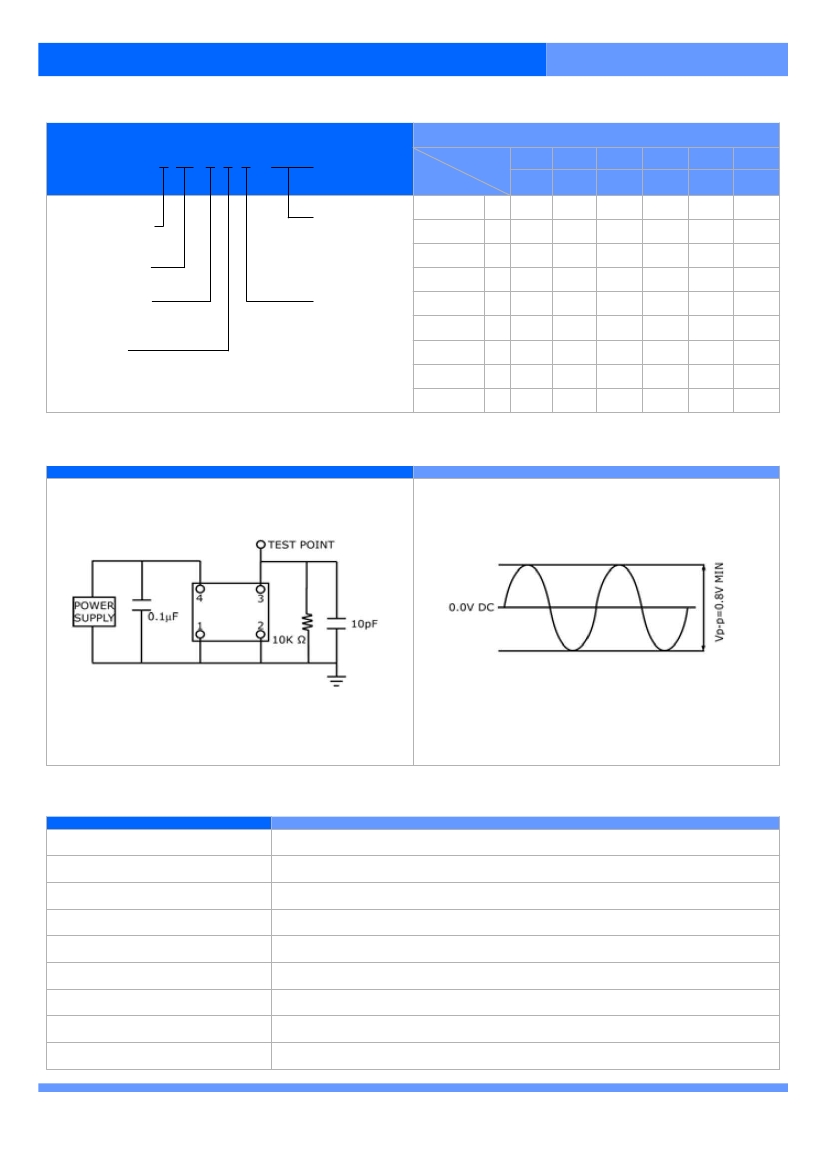

TEST CIRCUIT (Clipped Sinewave)
■
WAVEFORM (Clipped Sinewave)
■
ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
Temperature Cycling
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Moisture Resistance
Moisture Sensitivity
Resistance to Soldering Heat
Solderability
MIL-STD-883, Method 1010, Condition B
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 1004
J-STD-020, MSL 1
MIL-STD-202, Method 210, Condition K
MIL-STD-883, Method 2003
http://www.sunny.co.kr
SUNNY ELECTRONICS CORP
TCXO & VCTCXO

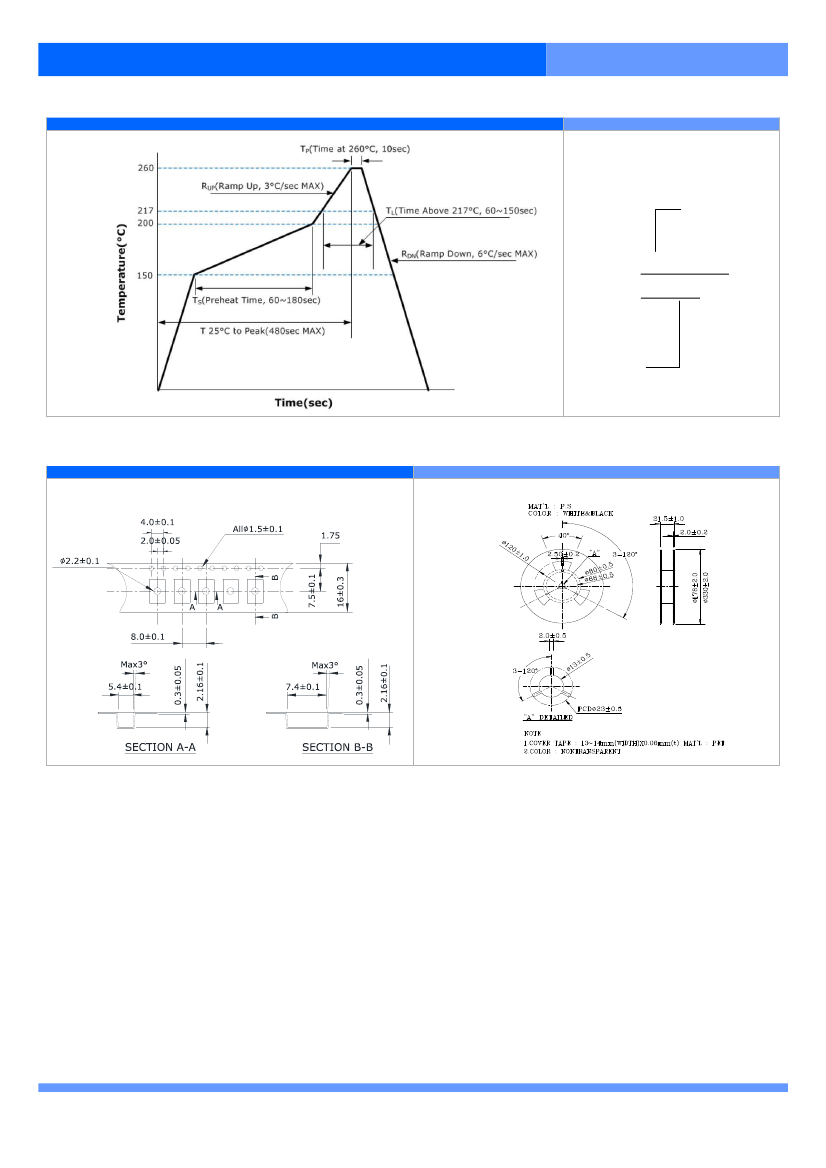

■ REFLOW PROFILE
■ MARKING GUIDE
Model Name
LINE 1 : STG310AM
LINE 2 : XX.XXX MHz
Frequency
in MHz
■ TAPE AND REEL DIMENSIONS
http://www.sunny.co.kr
SUNNY ELECTRONICS CORP
