FR1106W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> FR1106W

FR1106W: DescriptionSingle Color LED, Red, Water Clear, 1.7mm, 2.50 X 2 MM, 1.30 MM HEIGHT, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size213KB，13 Pages; ManufacturerStanley Electric Co; Environmental Compliance

Download Datasheet Parametric View All

FR1106W Overview

Single Color LED, Red, Water Clear, 1.7mm, 2.50 X 2 MM, 1.30 MM HEIGHT, ROHS COMPLIANT PACKAGE-2

FR1106W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Stanley Electric Co
package instruction	2.50 X 2 MM, 1.30 MM HEIGHT, ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
color	RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	70.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.3 mm
method of packing	TAPE AND REEL
peak wavelength	636 nm
shape	ROUND
size	1.7 mm
surface mount	YES
Terminal pitch	3 mm
perspective	140 deg

Preview

Download Datasheet

View All

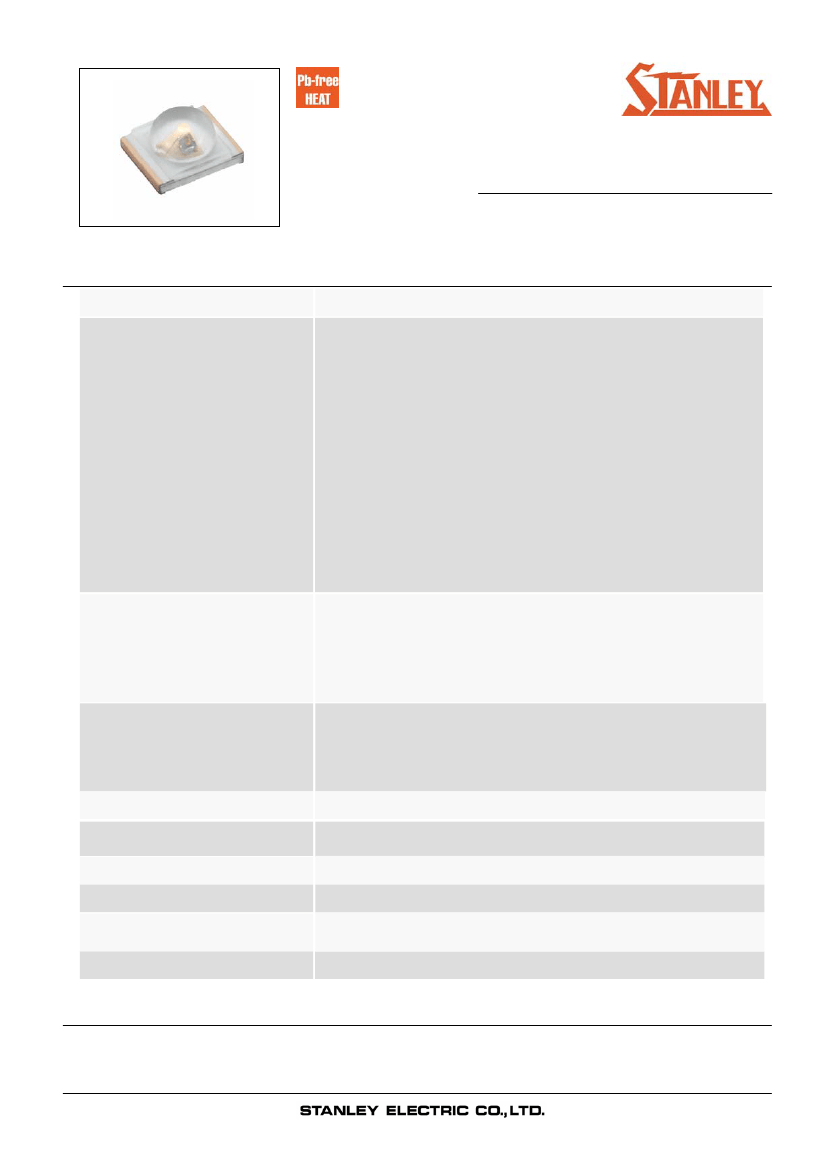

FR1106W

Features

Package

Product features

Super Wide Angle Type (h=1.3 mm), Water Clear resin

・Outer

Dimension 2.5 x 2.0 x 1.3mm ( L x W x H )

・Temperature

range

Storage Temperature : -40℃½120℃

Operating Temperature : -40℃½100℃

・Lead–free

soldering compatible

・RoHS

compliant

Single Color Super Wide Angle Type (h=1.3 mm)

Dominant wavelength

Red

: 626nm(FR)

Half Intensity Angle

: 140 deg.

Die materials

Rank grouping parameter

Assembly method

Soldering methods

Taping and reel

ESD

FR : AlGaInP

Sorted by luminous intensity and wavelength per rank taping

Auto pick & place machine (Auto Mounter)

Reflow soldering and manual soldering

2,500pcs per reel in a 8mm width tape. (Standard)

Reel diameter:φ180mm

AlGaInP : More than 2kV(HBM)

Recommended Applications

Amusement Equipment, Electric Household Appliances, OA/FA, Other General Applications

2007.8.31

Page 1
