6.3SSV22M4X4.5: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3V, 22uF, SURFACE MOUNT, 1717, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size216KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

6.3SSV22M4X4.5 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3V, 22uF, SURFACE MOUNT, 1717, CHIP, ROHS COMPLIANT

6.3SSV22M4X4.5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 1717
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e6
leakage current	0.003 mA
Manufacturer's serial number	SSV
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	29 mA
size code	1717
surface mount	YES
Delta tangent	0.3
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal shape	FLAT
Base Number Matches	1

Preview

Download Datasheet

View All

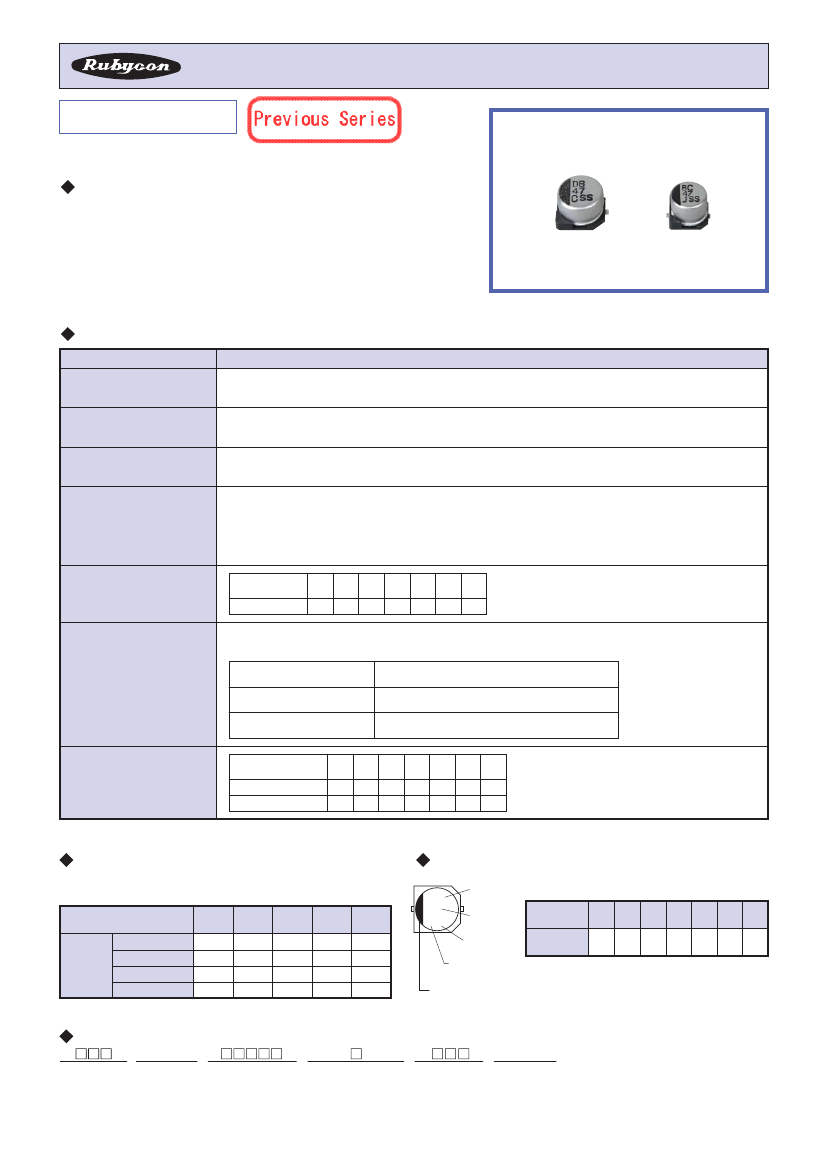

FINAL ACCEPTED ORDER DATE [

/ ]

CHIP ALUMINUM ELECTROLYTIC CAPACITORS

SSV

SERIES

85

o

C 4.6mm MAX Height, Lead Free Reflow Soldering.

FEATURES

•

Case Dia

φ

4∼

φ

6.3mm

.

•

Lead free

reflow soldering is available.

•

Available for high density mounting.

•

RoHS compliance.

SPECIFICATIONS

Items

Category Temperature Range

Characteristics

-40

∼

+85

°

C

4∼50V.DC

+

-

20%(20

°

C,120Hz)

I

=

0.01CV or 3

µ

A whichever is greater.

(After 2 minutes application of rated voltage)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I=

Leakage Current

(µA)

C=

Rated Capacitance

(µF)

V=

Rated Voltage

(V)

Dissipation Factor(MAX)

(tan

δ

)

Rated Voltage

4 6.3 10 16 25 35 50

(V)

tanδ

0.45 0.30 0.24 0.19 0.16 0.14 0.14

(20

°

C,120Hz)

After applying rated voltage with rated ripple current for 1000 hrs at 85

°

C, the capacitors shall meet the following requirements.

+

Within - 25% of the initial value.

Not more than 250% of the specified value.

Not more than the specified value.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Rated Voltage

(V)

Z(

-

25

°

C)/Z(20

°

C)

Z(

-

40

°

C)/Z(20

°

C)

Low Temperature Stability

Impedance Ratio(MAX)

4

7

15

6.3

4

8

10

3

8

16

2

4

25

2

4

35

2

3

50

2

3

(120Hz)

MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

Frequency

MARKING

BD

47

CSS

Lot No.

Capacitance

Series

∗

Voltage Code

Rated Voltage

(V)

Rated Voltage code

4

g

6.3

j

10

A

16

C

25

E

35

V

50

H

(Hz)

0.1∼ 1µF

2.2∼ 4.7µF

Coefficient

10∼ 47µF

100∼ 220µF

60(50)

0.50

0.65

0.80

120

1.00

500

1.20

1.10

1k

1.30

1.15

10k<

=

1.50

1.20

Rated voltage code

∗

Polarity of the terminals

PART NUMBER

SSV

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

D

×

L

Case Size

Recommended Resources

Single-ended input double-ended output

temperature transmitter circuit

Loop timing circuit

555 exponential voltage controlled oscillator circuit

555 fully automatic home appliance protector circuit

820e computer motherboard circuit diagram_62
