HMC290

HMC290 Parametric

Parameter Name	Attribute value
Brand Name	Analog Devices Inc
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ADI
Objectid	1150079940
package instruction	3 X 3 MM, PLASTIC, SOT-26, 6 PIN
Contacts	6
Manufacturer packaging code	RJ-6
Reach Compliance Code	unknown
ECCN code	EAR99
compound_id	199663680
Nominal attenuation	6 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	27.99 dBm
Maximum insertion loss	1.2 dB
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	4000 MHz
Minimum operating frequency	700 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	TSOP6,.11,37
power supply	3/5 V
RF/Microwave Device Types	VARIABLE ATTENUATOR
surface mount	YES
technology	GAAS
Terminal surface	Tin/Lead (Sn/Pb)

HMC290 Preview

HMC290

290E

v01.0605

2 dB LSB GaAs MMIC 2-BIT DIGITAL

ATTENUATOR, 0.7 - 4.0 GHz

ATTENUATORS - DIGITAL - SMT

Typical Applications

The HMC290 / HMC290E is ideal for:

• Cellular

• PCS, ISM, MMDS

• WLL Handset & BaseStation

Features

2 dB LSB Steps to 6 dB

Single Positive Control Per BIT

±0.2 dB Typical Bit Error

Miniature SOT 26 Package: 9 mm

Functional Diagram

General Description

The HMC290 & HMC290E are broadband 2 - bit

positive control GaAs IC digital attenuators in 6 lead

SOT26 surface mount plastic packages. Covering 0.7

to 4 GHz, the insertion loss is typically less than 0.7

dB. The attenuator bit values are 2 (LSB) and 4 dB for

a total attenuation of 6 dB. Accuracy is excellent at ±

0.2 dB typical with an IIP3 of up to +52 dBm. Two bit

control voltage inputs, toggled between 0 and +3 to

+5 volts, are used to select each attenuation state at

less than 50 uA each. A single Vdd bias of +3 to +5

volts applied through an external 5K Ohm resistor is

required. Occupying less than 9 mm2, this is the small-

est 2 - bit digital attenuator available.

Electrical Specifi cations,

= +25° C, Vdd = +3V to +5V & Vctl = 0/Vdd (Unless Otherwise Stated)

Parameter

Frequency

0.7 - 1.4 GHz

1.4 - 2.3 GHz

2.3 - 2.7 GHz

2.7 - 4.0 GHz

0.7 - 4.0 GHz

0.7 - 2.7 GHz

2.7 - 4.0 GHz

Min.

Typical

0.5

0.6

0.8

Max.

0.7

0.8

0.9

1.2

Units

Insertion Loss

Attenuation Range

Return Loss (RF1 & RF2, All Atten. States)

Attenuation Accuracy: (Referenced to Insertion Loss)

2, 4 dB States

6 dB States

Input Power for 0.1 dB Compression

Input Third Order Intercept Point

(Two-tone Input Power = 0 dBm Each Tone)

Switching Characteristics

tRISE, tFALL (10/90% RF)

tON, tOFF (50% CTL to 10/90% RF)

0.7 - 4.0 GHz

± 0.2 + 2% of Atten. Setting Max

± 0.3 + 2% of Atten. Setting Max

dBm

0.7 - 4.0 GHz

400

420

5 - 36

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

For price, delivery, and to place orders, please contact Hittite

Way, P.O. Box 9106, Norwood, MA 02062-9106

Microwave Corporation:

One Technology

20 Alpha Road, Chelmsford, MA 01824 Phone:

Phone: 781-329-4700 • Order online at www.analog.com

978-250-3343 Fax: 978-250-3373

Application Support: Phone: 1-800-ANALOG-D

Order On-line at www.hittite.com

HMC290

290E

v01.0605

2 dB LSB GaAs MMIC 2-BIT DIGITAL

ATTENUATOR, 0.7 - 4.0 GHz

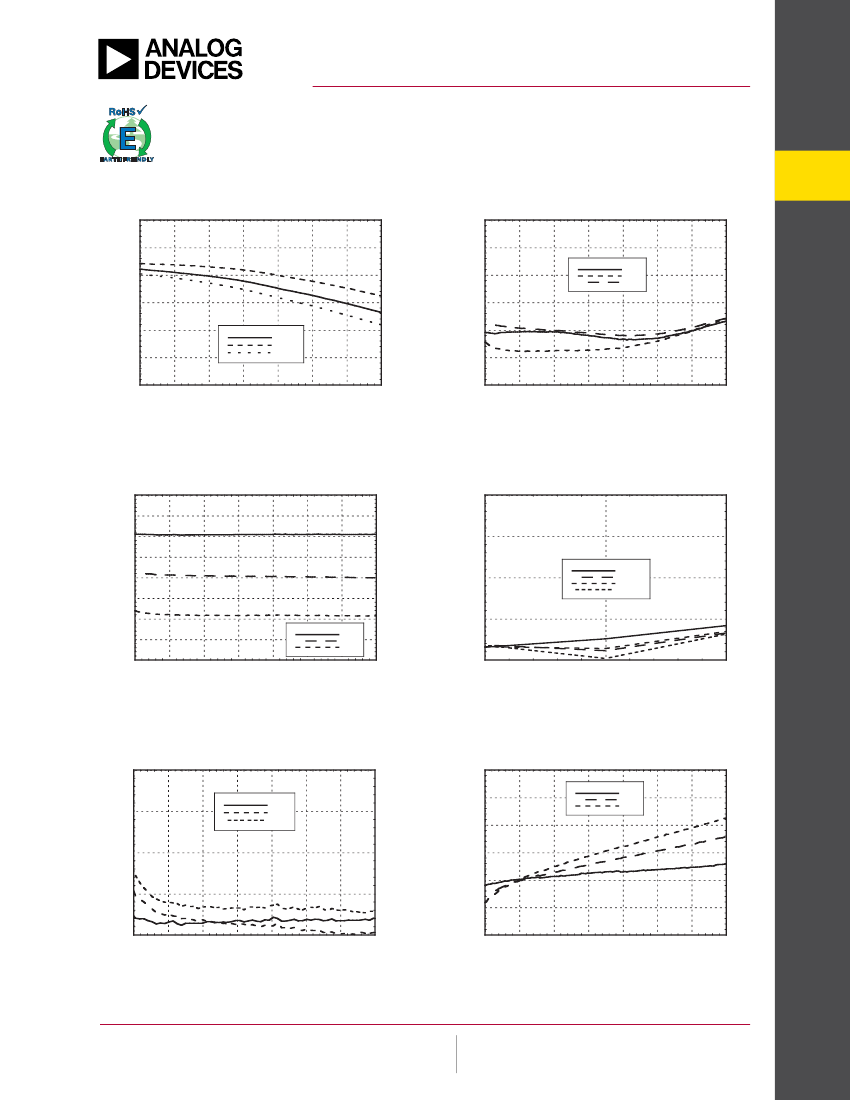

Insertion Loss

-0.25

INSERTION LOSS (dB)

Return Loss RF1, RF2

-5

RETURN LOSS (dB)

-10

-15

-20

-25

-30

0.5

2 dB

4 dB

6 dB

ATTENUATORS - DIGITAL - SMT

5 - 37

-0.5

-0.75

-1

-1.25

-1.5

0.5

+25 C

-40 C

+85 C

1.5

2.5

3.5

1.5

2.5

3.5

FREQUENCY (GHz)

Normalized Attenuation

NORMALIZED ATTENUATION (dB)

-1

-2

-3

-4

-5

-6

-7

-8

0.5

2 dB

4 dB

6 dB

Absolute Bit Error

vs. Attenuation State

0.75

BIT ERROR (dB)

0.5

0.9 GHz

2.4 GHz

1.9 GHz

3.5 GHz

0.25

1.5

2.5

3.5

ATTENUATION STATE (dB)

FREQUENCY (GHz)

Absolute Bit Error vs. Frequency

Relative Phase vs. Frequency

-5

2 dB

4 dB

6 dB

0.75

BIT ERROR (dB)

2 dB

4 dB

6 dB

0.5

0.25

0.5

RELATIVE PHASE (deg.)

3.5

1.5

2.5

-10

0.5

1.5

2.5

3.5

FREQUENCY (GHz)

Note: All Data Typical Over Voltage (+3V to +5V) & Temperature (-40 to +85 deg. C.).

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

For price, delivery, and to place orders, please contact Hittite

Way, P.O. Box 9106, Norwood, MA 02062-9106

Microwave Corporation:

One Technology

20 Alpha Road, Chelmsford, MA 01824 Phone:

Phone: 781-329-4700 • Order online at www.analog.com

978-250-3343 Fax: 978-250-3373

Application Support: Phone: 1-800-ANALOG-D

Order On-line at www.hittite.com

HMC290

290E

v01.0605

2 dB LSB GaAs MMIC 2-BIT DIGITAL

ATTENUATOR, 0.7 - 4.0 GHz

ATTENUATORS - DIGITAL - SMT

Truth Table

Control Voltage Input

4 dB

High

Low

2 dB

High

Low

High

Low

Attenuation

Setting

RF1 - RF2

Reference I.L.

2 dB

4 dB

6 dB

Max. Atten.

Control & Bias Voltages

State

Low

High

Bias Condition

0 to + 0.2V @ 20 uA Max

Vdd ± 0.2V @ 50 uA Max

Note: Vdd = +3V to 5V ± 0.2V

Absolute Maximum Ratings

Control Voltage (V1, V2)

Bias Voltage (Vdd)

Storage Temperature

Operating Temperature

Vdd + 0.5 Vdc

+ 8.0 Vdc

-65 to +150 °C

-40 to +85 °C

+28 dBm

Any combination of the above states will provide an attenuation

approximately equal to the sum of the bits selected.

ELECTROSTATIC SENSITIVE DEVICE

OBSERVE HANDLING PRECAUTIONS

RF Input Power (0.7 - 4 GHz)

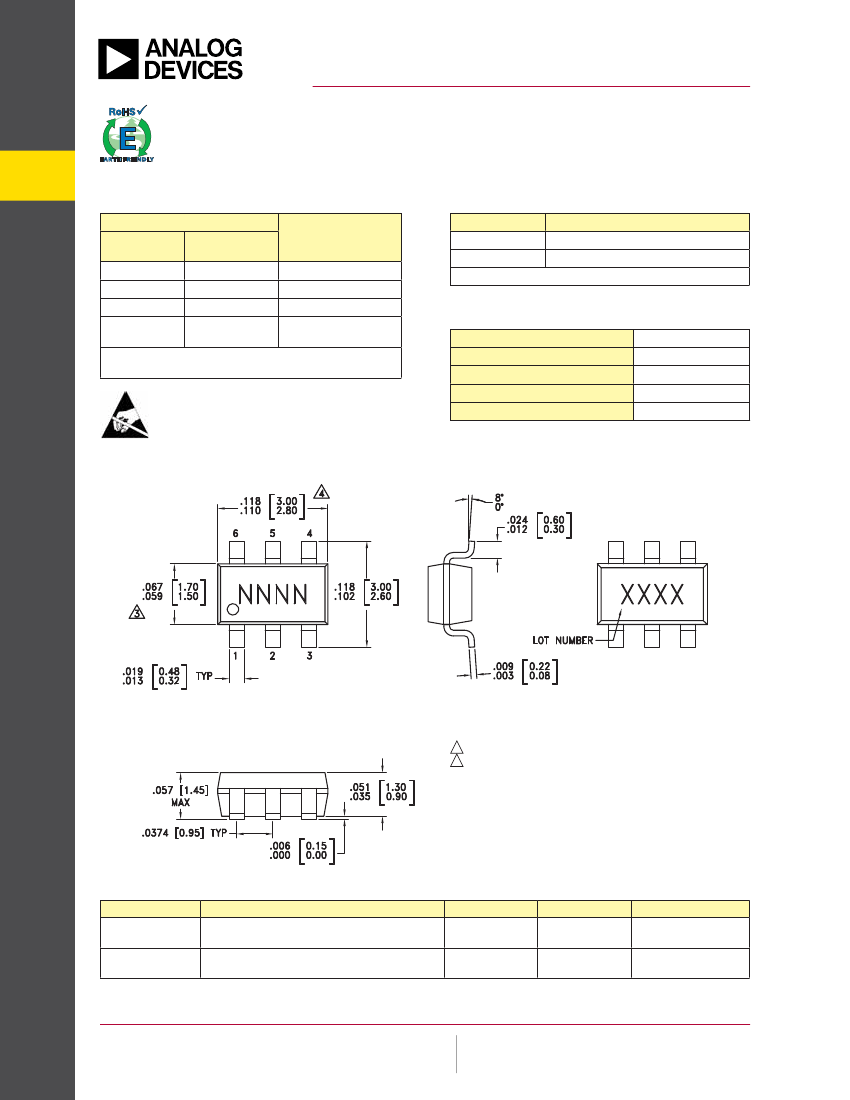

Outline Drawing

NOTES:

1. LEADFRAME MATERIAL: COPPER ALLOY

2. DIMENSIONS ARE IN INCHES [MILLIMETERS]

3. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.15mm PER SIDE.

4. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.25mm PER SIDE.

5. ALL GROUND LEADS MUST BE SOLDERED TO PCB RF GROUND

Package Information

Part Number

HMC290

HMC290E

Package Body Material

Low Stress Injection Molded Plastic

RoHS-compliant Low Stress Injection Molded Plastic

Lead Finish

Sn/Pb Solder

100% matte Sn

MSL Rating

MSL1

[1]

Package Marking

[3]

H290

XXXX

290E

XXXX

[2]

[1] Max peak reflow temperature of 235 °C

[2] Max peak reflow temperature of 260 °C

[3] 4-Digit lot number XXXX

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

5 - 38

For price, delivery, and to place orders: Analog Devices, Inc.,

For price, delivery, and to place orders, please contact Hittite

Way, P.O. Box 9106, Norwood, MA 02062-9106

Microwave Corporation:

One Technology

20 Alpha Road, Chelmsford, MA 01824 Phone:

Phone: 781-329-4700 • Order online at www.analog.com

978-250-3343 Fax: 978-250-3373

Application Support: Phone: 1-800-ANALOG-D

Order On-line at www.hittite.com

HMC290

290E

v01.0605

2 dB LSB GaAs MMIC 2-BIT DIGITAL

ATTENUATOR, 0.7 - 4.0 GHz

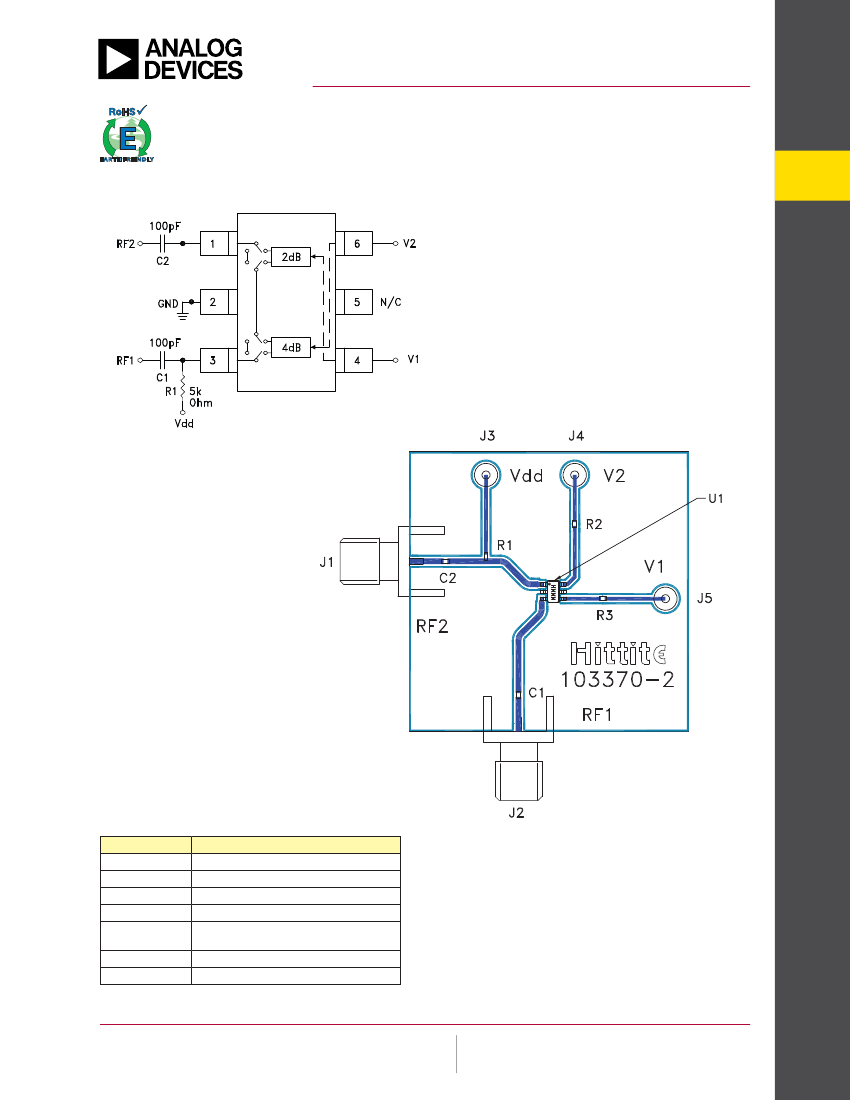

Application Circuit

DC blocking capacitors C1 & C2 are required on RF1 &

RF2. Choose C1 = C2 = 100 ~ 300 pF to allow lowest

customer specific frequency to pass with minimal loss.

R1 = 5K Ohm is required to supply voltage to the circuit

through either PIN 3 or PIN 1.

Evaluation Circuit Board

* R2 = R3 = 100 Ohm.

These resistors are optional

and may be used to enhance

decoupling of the RF path

from the control inputs.

List of Materials for Evaluation PCB 103372

[1]

Item

J1 - J2

J3 - J6

R2, R3

C1, C2

PCB

[2]

Description

PCB Mount SMA Connector

DC Pin

5k Ohm Resistor, 0402 Chip

100 Ohm Resistor, 0402 Chip

0402 Chip Capacitor, Select for Lowest

Frequency of Operation

HMC290 / HMC290E Digital Attenuator

103370 Evaluation PCB 1.5” x 1.5”

[1] Reference this number when ordering complete evaluation PCB

[2] Circuit Board Material: Rogers 4350

The circuit board used in the final application should

use RF circuit design techniques. Signal lines

should have 50 ohm impedance while the pack-

age ground leads should be connected directly to

the ground plane similar to that shown. A sufficient

number of via holes should be used to connect the

top and bottom ground planes. The evaluation cir-

cuit board as shown is available from Hittite Micro-

wave Corporation upon request.

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

For price, delivery, and to place orders, please contact Hittite

Way, P.O. Box 9106, Norwood, MA 02062-9106

Microwave Corporation:

One Technology

20 Alpha Road, Chelmsford, MA 01824 Phone:

Phone: 781-329-4700 • Order online at www.analog.com

978-250-3343 Fax: 978-250-3373

Application Support: Phone: 1-800-ANALOG-D

Order On-line at www.hittite.com

5 - 39

ATTENUATORS - DIGITAL - SMT

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

HMC290 Related Products

	HMC290	HMC290E	HMC290ETR	HMC290TR
Description	HMC290	HMC290E	HMC290ETR	HMC290TR
Brand Name	Analog Devices Inc	Analog Devices Inc	Analog Devices Inc	Analog Devices Inc
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	conform to	conform to	incompatible
Maker	ADI	ADI	ADI	ADI
package instruction	3 X 3 MM, PLASTIC, SOT-26, 6 PIN	3 X 3 MM, ROHS COMPLIANT, PLASTIC, SOT-26, 6 PIN	TSOP6,.11,37	TSOP6,.11,37
Contacts	6	6	6	6
Manufacturer packaging code	RJ-6	RJ-6	RJ-6	RJ-6
Reach Compliance Code	unknown	unknown	compliant	compliant
Nominal attenuation	6 dB	6 dB	6 dB	6 dB
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum input power (CW)	27.99 dBm	27.99 dBm	28 dBm	28 dBm
Maximum insertion loss	1.2 dB	1.2 dB	1.2 dB	1.2 dB
Maximum operating frequency	4000 MHz	4000 MHz	4000 MHz	4000 MHz
Minimum operating frequency	700 MHz	700 MHz	700 MHz	700 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR
JESD-609 code	e0	e3	e3	-
Installation features	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	6	-	6	6
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	TSOP6,.11,37	-	TSOP6,.11,37	TSOP6,.11,37
power supply	3/5 V	-	3/5 V	3/5 V
surface mount	YES	-	YES	YES
technology	GAAS	-	GAAS	GAAS
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Matte Tin (Sn)	-

Recommended Resources

SI9114 uses MOSFET circuit diagram

Sipu STR machine soft starter one to two circuit

General-purpose inverter uses switch to switch the main speed-auxiliary speed of the second speed

Constant current charger with short circuit and polarity protection

28V simple regulated power supply circuit

810 computer motherboard circuit diagram_24

Wavecom audio file transmission problem: I want to make an automatic voice reply system. For example, when a user dials Wavecom's number, Wavecom automatically opens the previously recorded voice file after the call is connected, so that the...; wangencheng Embedded System

#define #include #ifdef and other issues in assembly language: I encountered the following situation when learning assembly language (ARM architecture AT&T syntax). There are related keywords such as #include #ifdef #endif #define, which are similar to those in C...; jiafa Embedded System

Peripheral Circuit Design Guide (Version 7): Peripheral Circuit Design Guide (Version 7)...; fish001 Microcontroller MCU

Car Multimedia Entertainment System Solutions: Chenhan Electronics is a high-tech company specializing in the research and development of embedded underlying development platforms. We are committed to providing innovative embedded product solution...; HGP965 Embedded System

A real beauty, very pure: It seems like some advertisement for self-promotion on some show, but it's very real...; yanghua8173 Talking

The values of idVendor, idProduct, and bcdDevice of the obtained device descriptor are always changing: This is a toast example in the ddk vista 6000 version. I just rewrite this section in filter.c to get the device descriptor. Every time I read it, it is different. Why is this happening? Under ddk. No...; zhb12230305 Embedded System

Shortcut: L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components
